RAM-GDS-CHARGE-V14U - GDS Hardwire Charger - 10-28V In, 16V Out - DC 5.5mm Barrel

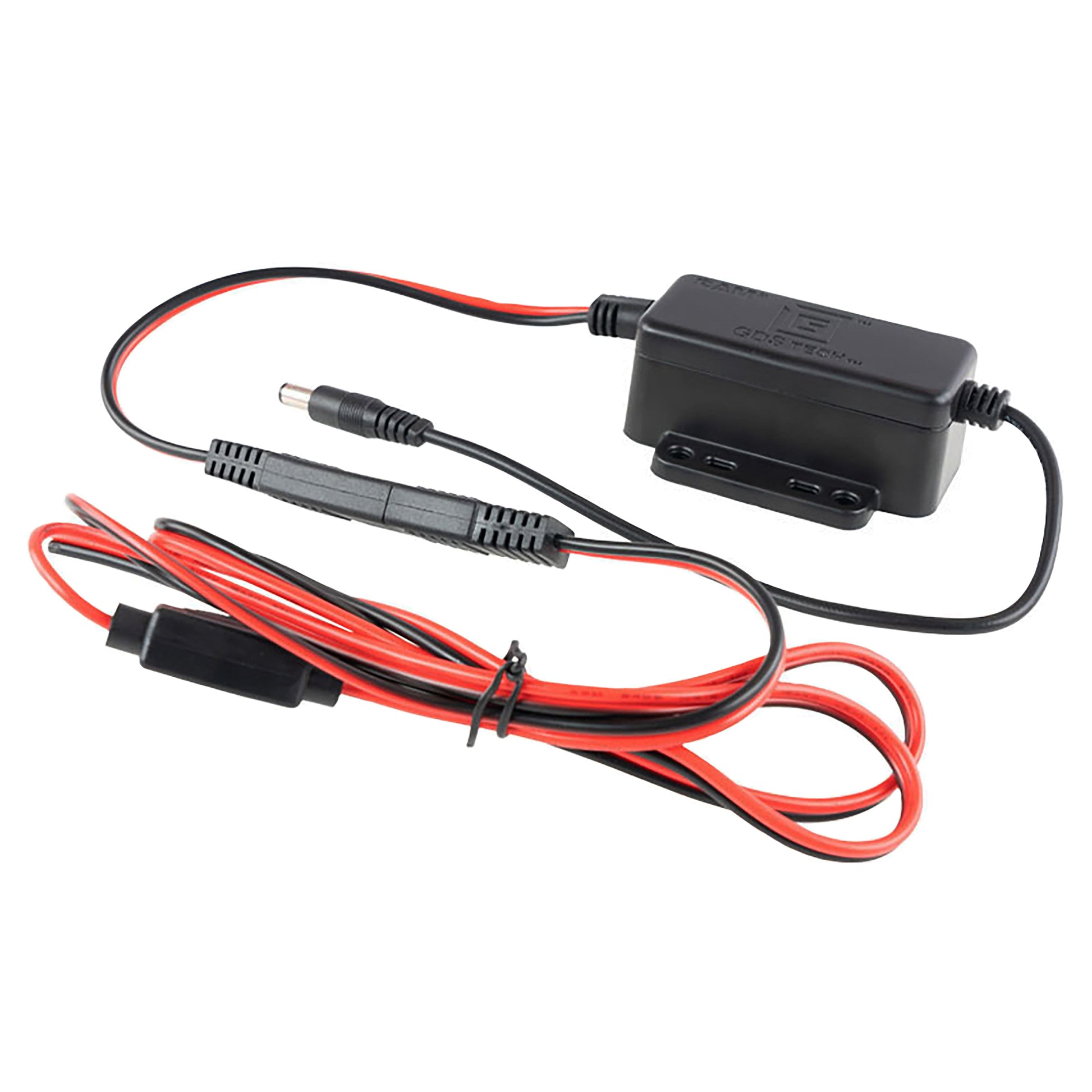

RAM-GDS-CHARGE-V14U GDS® 10-28VDC Hardwire Charger, 16VDC Output, Male DC 5.5mm

RAM-GDS-CHARGE-V14U is a GDS® modular hardwire charger that takes 10-28V DC from a vehicle's electrical system and delivers a regulated 16V DC at up to 3.5A through a 5.5mm barrel plug, for RAM® and GDS® DC powered docks that call for a 16V input.

Key Features

• 16V output: a less common requirement than 12V, specified by particular docks; check yours before ordering.
• Suits 12V and 24V vehicles: the 10-28V input range covers cars, trucks, vans and propane forklifts.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

RAM® and GDS® docks that specify a 16V DC input on a 5.5mm barrel. Note that the input range on this one stops at 28V rather than the 32V used elsewhere in the family, so it is worth confirming your vehicle sits inside it. If the machine is an electric forklift or similar higher-voltage equipment, the same 16V output is available as RAM-GDS-CHARGE-V15U, which takes 28-60V. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 10-28V DC
• Output voltage: 16V DC
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Why does this one stop at 28V when others go to 32V? It is simply how RAM has specified this model. A 24V vehicle sits comfortably inside 10-28V, but if your system runs higher, choose the 28-60V version instead.

Will it charge a tablet directly? No. It outputs 16V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
