RAM-GDS-CHARGE-V15U - GDS Hardwire Charger - 28-60V In, 16V Out - DC 5.5mm Barrel

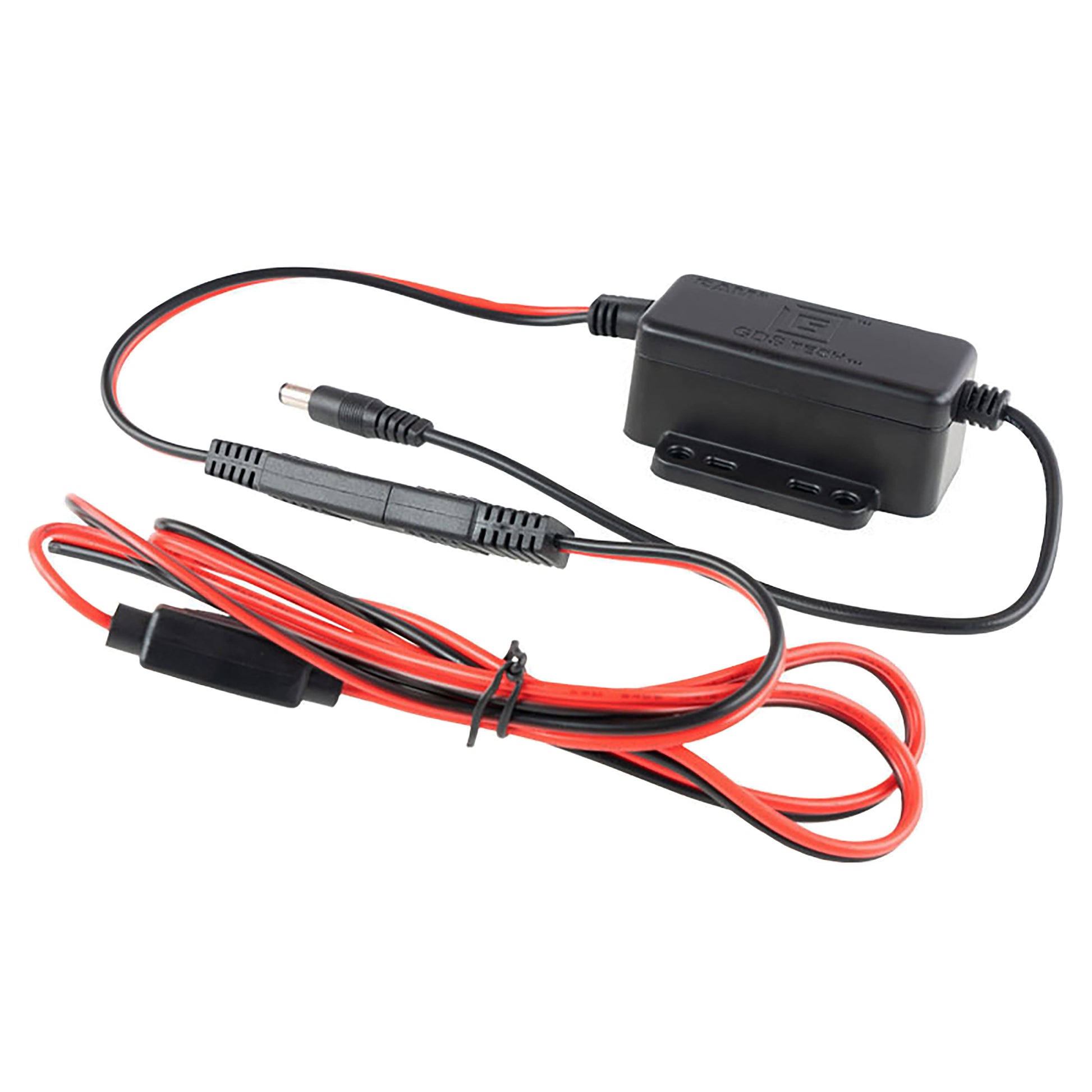

RAM-GDS-CHARGE-V15U GDS® 28-60VDC Hardwire Charger, 16VDC Output, Male DC 5.5mm

RAM-GDS-CHARGE-V15U is a GDS® modular hardwire charger that takes 28-60V DC from an electric forklift, pallet truck or other industrial vehicle and delivers a regulated 16V DC at up to 3.5A through a 5.5mm barrel plug, for RAM® and GDS® DC powered docks that call for a 16V input.

Key Features

• Built for material handling: the 28-60V input range covers 36V and 48V electric forklift systems.
• 16V output: a less common requirement than 12V, specified by particular docks; check yours before ordering.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

RAM® and GDS® docks that specify a 16V DC input on a 5.5mm barrel. Note that the input range starts at 28V, so this one will not run from a standard 12V or 24V vehicle; for those, use RAM-GDS-CHARGE-V14U, which takes 10-28V. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 28-60V DC
• Output voltage: 16V DC
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Will this work on a 24V forklift? No. The input range starts at 28V, so a 24V system sits below it. Use the 10-28V version for 12V and 24V machines.

Will it charge a tablet directly? No. It outputs 16V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.
