RAM Glareshield Clamp with 1" Ball

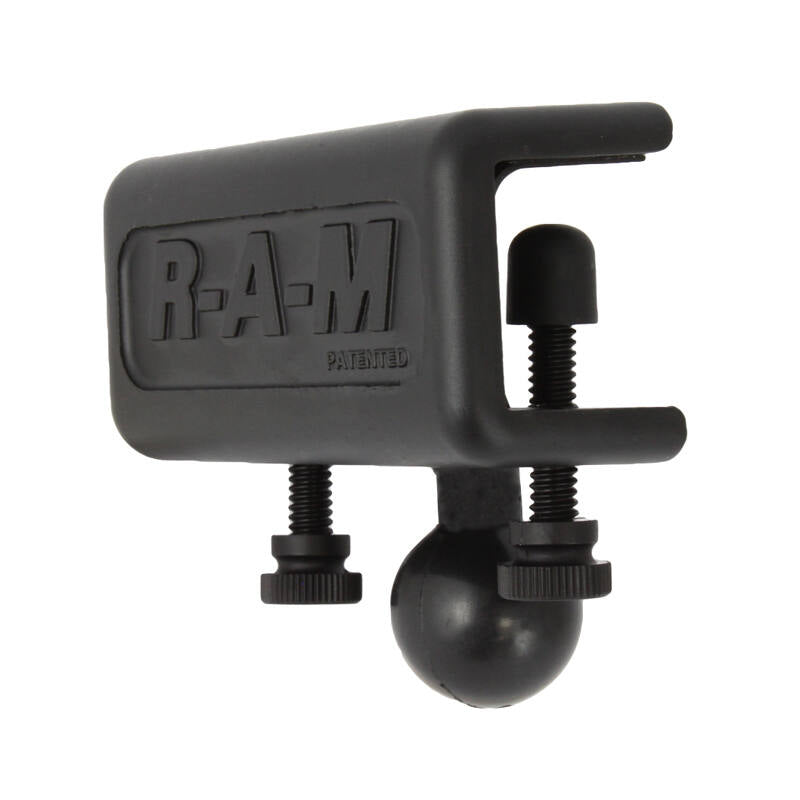

RAM-B-259U – RAM® Glareshield / Edge Clamp Ball Base

The RAM-B-259U is the glareshield / edge clamp base at the heart of the RAM glareshield range. It clamps to the lip of a flat surface up to 15.875mm (0.625") thick, such as an aircraft glareshield, boat windscreen frame or car window edge, and gives you a 1" B-size ball ready for any RAM double socket arm and cradle. No drilling required.

Key Features

• Flat-surface clamp grips an edge up to 15.875mm (0.625") thick, no drilling needed
• Two composite thumb screws tighten the base onto the lip surface
• 1" B-size RAM® ball and socket system allows near-infinite adjustment
• Powder-coated marine-grade aluminium for corrosion resistance and long life
• The building block for the rest of the glareshield range, add an arm and base to suit

What's Included

• RAM-B-259U glareshield / edge clamp base with 1" B-size ball

Dimensions & Specifications

• Clamp range: 0 to 15.875mm (0 to 0.625")
• Clamp pad: 25 x 25mm (1" x 1")
• Ball size: B size, 1" rubber ball
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 145g (0.32 lb)
• Material: powder-coated marine-grade aluminium

Works With

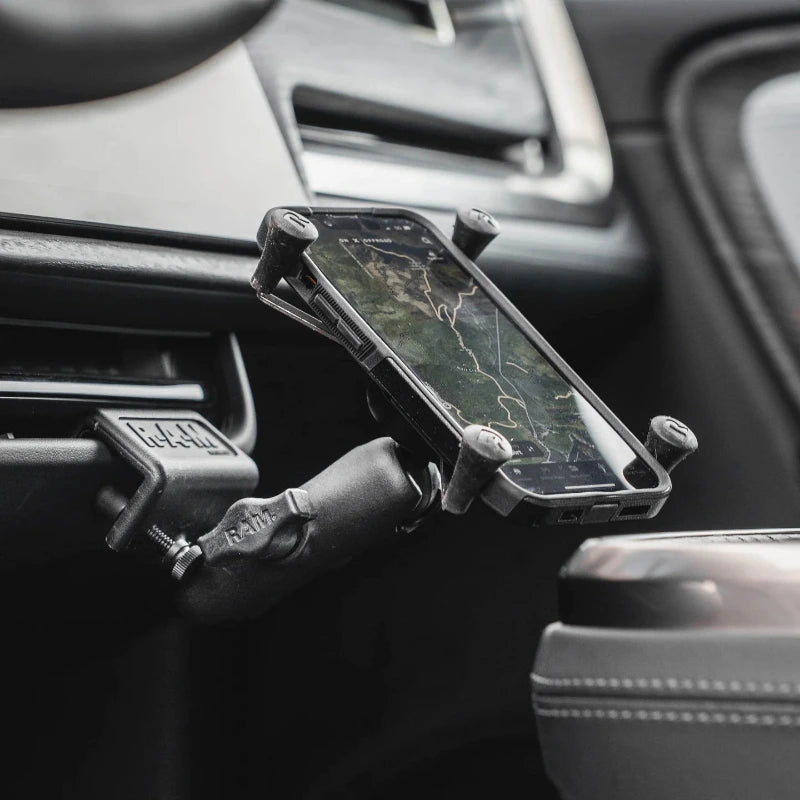

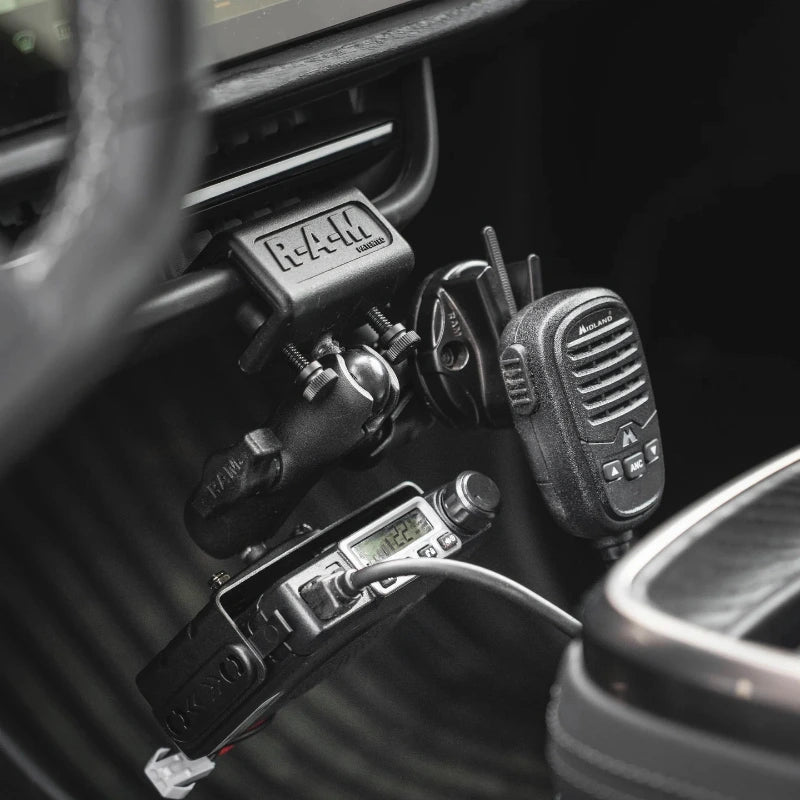

Pair with any RAM 1" (B size) double socket arm and a RAM base or cradle to build your mount. Popular ready-made versions in this range include the diamond base, round base and rectangular AMPS base mounts. Suits aircraft glareshields, boat windscreen frames and car window edges.

Videos

• RAM glareshield clamp demo
