RAM Half VESA Rectangular Base Plate - 35mm x 75mm - D Series (2.25" Ball)

RAM-D-2462U RAM® 35x75mm Half-VESA Base Plate with D Size Ball

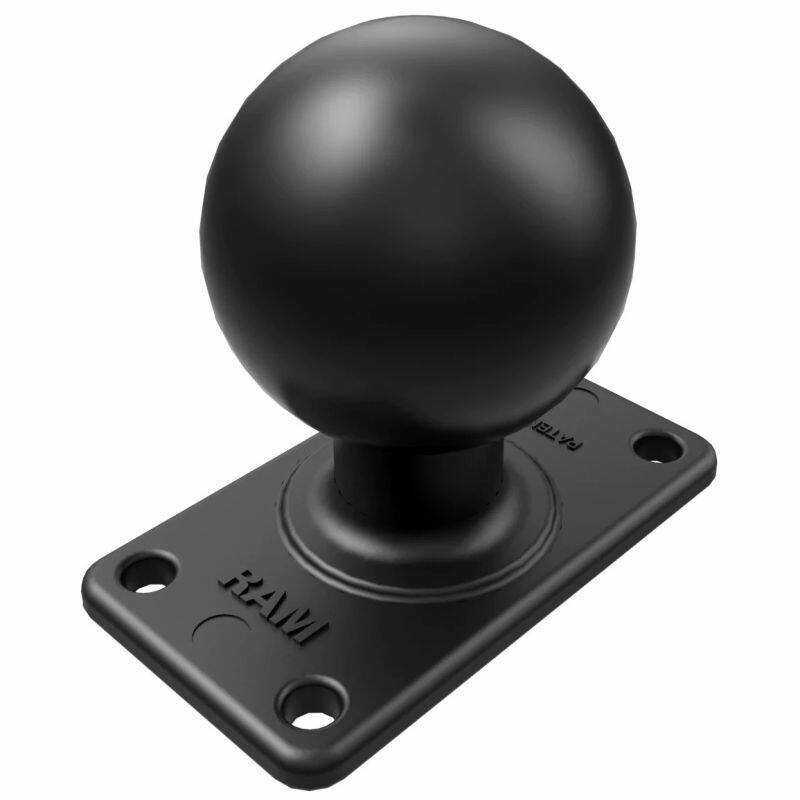

The RAM-D-2462U is a rectangular 91.4 x 53.3mm (3.6" x 2.1") half-VESA base plate fitted with a D size 2.25" rubber ball. It carries a 35x75mm half-VESA hole pattern and connects to any D size RAM double socket arm for near-infinite adjustment.

Key Features

• Rectangular plate with a 35x75mm half-VESA hole pattern
• D size 2.25" RAM rubber ball connects to any D size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

Any D size (2.25") RAM double socket arm, and any device or display carrying a 35x75mm half-VESA pattern. For the same plate with a smaller C size ball, see the RAM-2462U.

Dimensions & Specifications

• Plate size: 91.4 x 53.3mm (3.6" x 2.1")
• Hole pattern: 35x75mm half-VESA
• Ball size: 2.25" (D size)
• Material: marine-grade aluminium
• Weight: 258g (0.57 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use
