RAM-HOL-ZE30U - Quick Release Printer Holder for Zebra ZQ521 Series

RAM-HOL-ZE30U RAM® Quick Release Printer Holder for Zebra ZQ521 Series

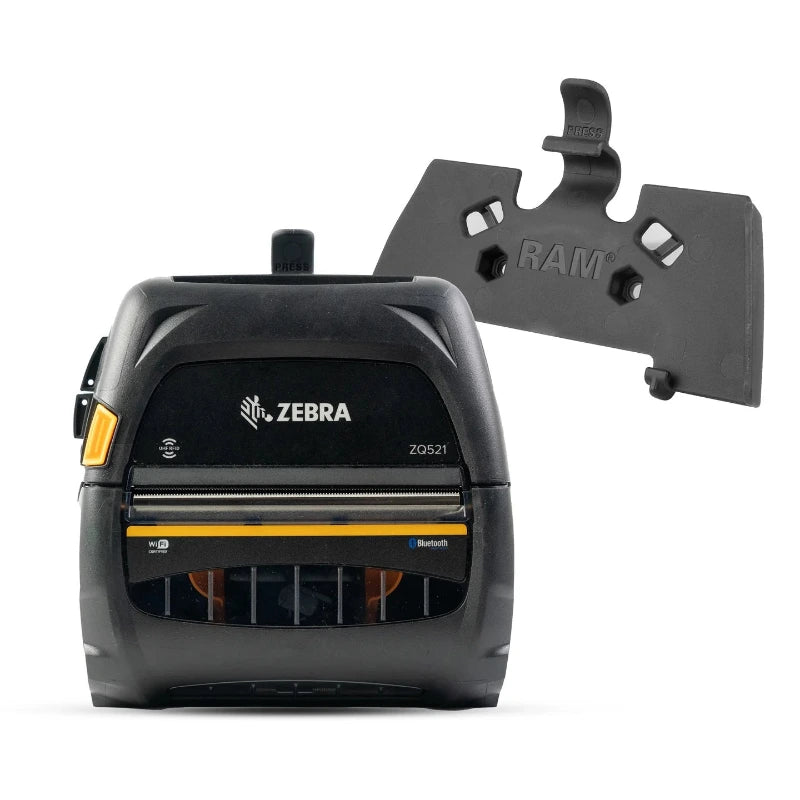

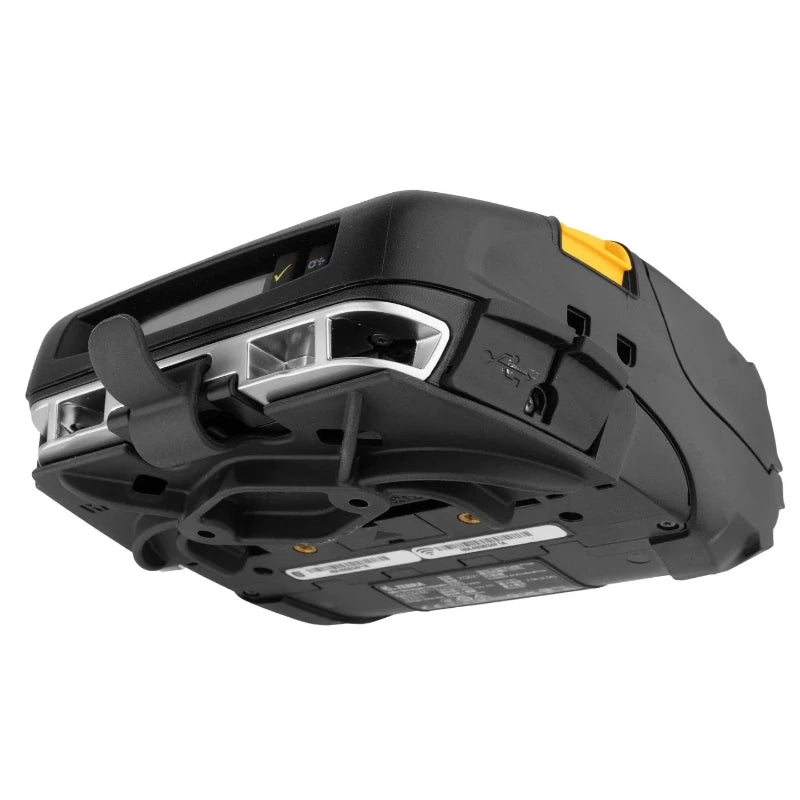

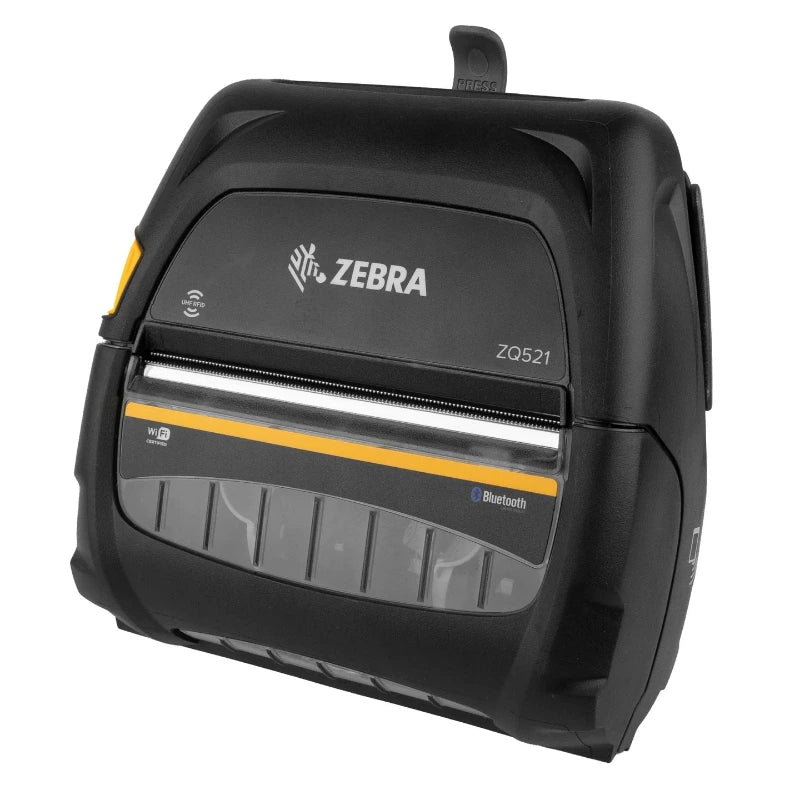

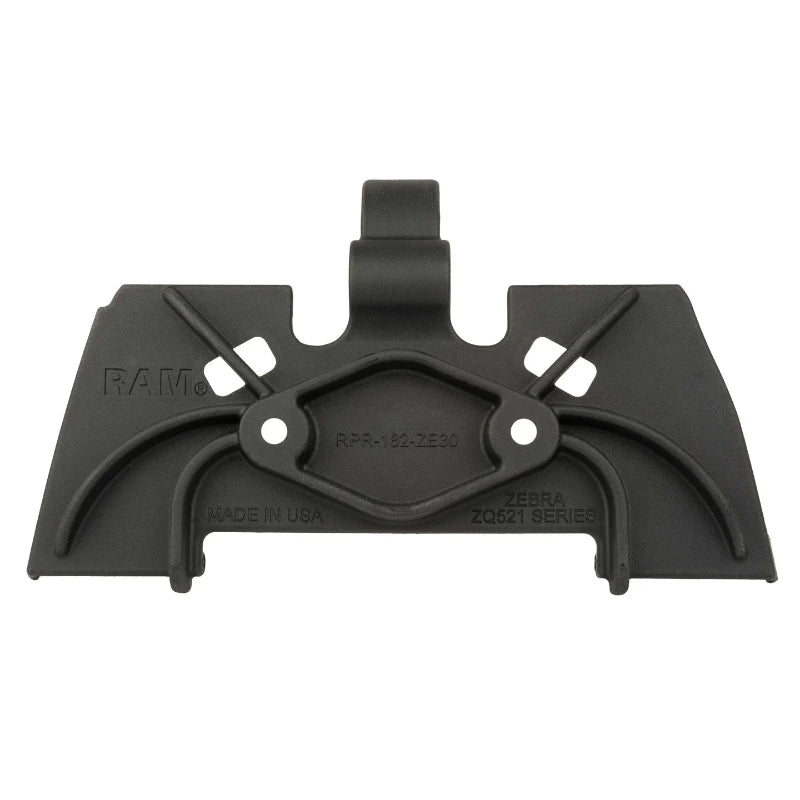

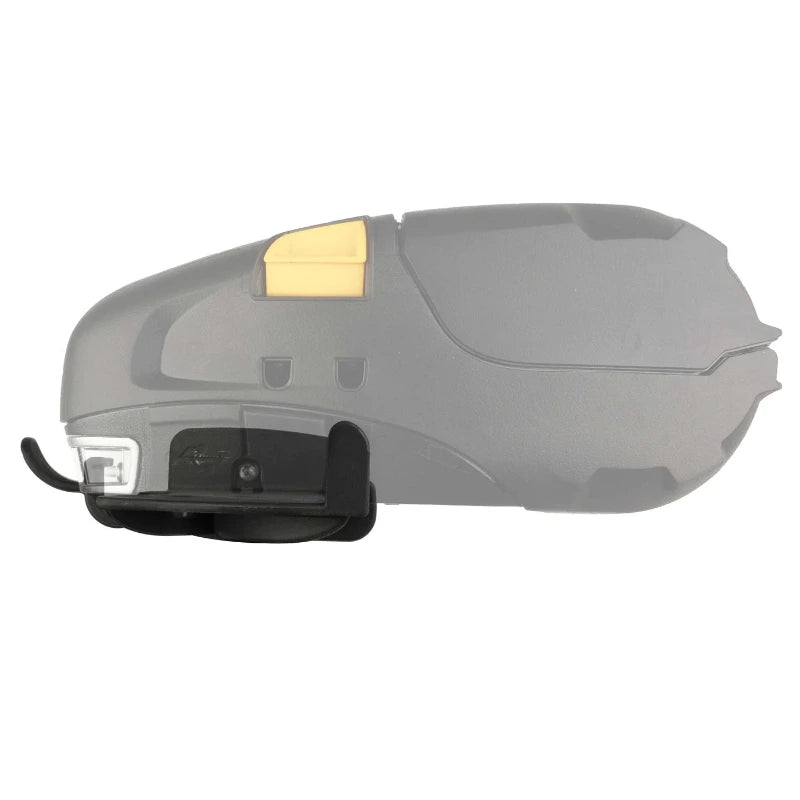

The RAM-HOL-ZE30U is a form-fit holder for the Zebra ZQ521 mobile printer. The printer drops into the moulded cradle and a quick-release latch lets the driver or picker lift it out and take it with them, then clip it back in on return. It bolts flush to a flat surface or onto any RAM® 2-hole AMPS mount, so the printer can sit alongside a tablet or vehicle terminal rather than rattling around the cab.

Key Features

• Form-fit for the ZQ521, so the printer is held without straps, foam or packing
• Quick-release latch for taking the printer away from the vehicle and back again
• 2-hole AMPS pattern at 48.6mm (1.912") centres: mount it flush, or run it off a RAM® arm as a peripheral beside a dock
• Three screw lengths supplied, to suit different panel and bracket thicknesses
• High-strength composite, backed by RAM's lifetime warranty

Works With

The Zebra ZQ521 only. On the mounting side it fits any RAM® component with a 2-hole AMPS diamond plate, such as the RAM-B-103-A-238U short arm with diamond base or the RAM-B-103-238U medium arm.

Important: this holder does not fit a ZQ521 with the extended battery or the battery eliminator accessory fitted. Measure your printer as configured before ordering.

Dimensions & Specifications

• Fits: Zebra ZQ521 mobile printer (standard battery)
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centres
• Material: high-strength composite
• Weight: 73g (0.16 lb)

What's Included

• 1 x RAM-HOL-ZE30U holder
• 1 x RAM-HAR-COM-NCU hardware pack: 2 x #8-32 x 12.7mm (1/2"), 2 x #8-32 x 15.9mm (5/8") and 2 x #8-32 x 19mm (3/4") machine screws, plus 2 x #8-32 nyloc nuts

FAQs

Will it fit my ZQ511 or ZQ520?
No. This holder is moulded specifically around the ZQ521. The other ZQ models take their own holders, so get in touch with your exact model and we'll point you at the right one.

Does it work with the extended battery?
No. Neither the extended battery nor the battery eliminator accessory will fit inside this holder.

How does it attach to my vehicle?
Either straight through the two AMPS holes into a flat panel, or onto a RAM® arm with a diamond base plate if you want it adjustable or positioned beside an existing dock.

How fast does this ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
