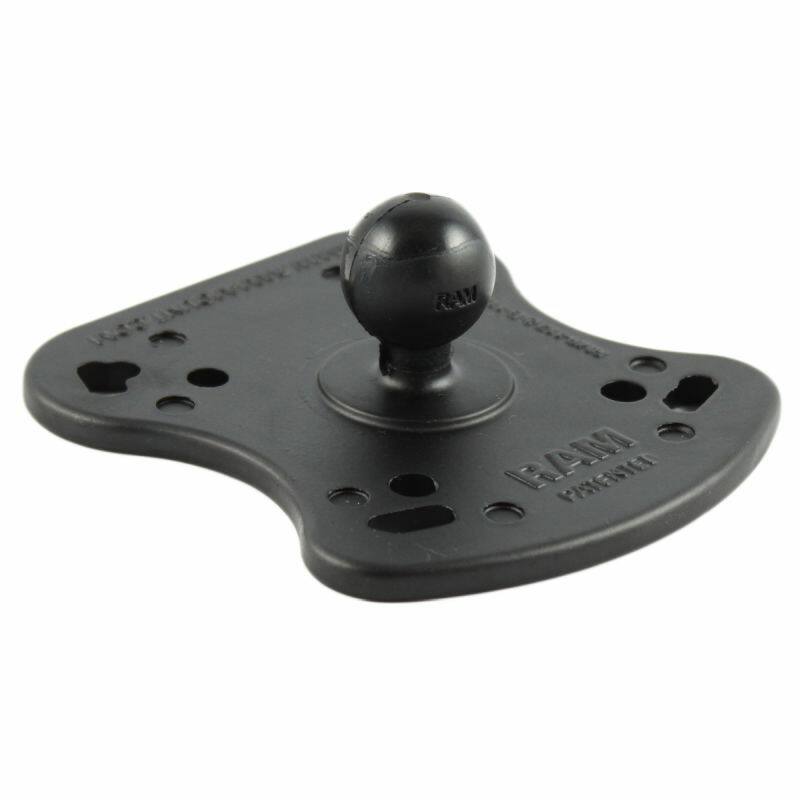

RAM-B-107BU RAM® Ball Adapter for Humminbird Devices
Features
* Adaptor for lighter Humminbird, Lowrance and Raymarine devices
* 1" Ball will mate to any RAM B series arm
* Manufactured from Powder Coated Marine Grade Aluminium for longevity and strength
* A heavier duty version is available - see RAM-107BU

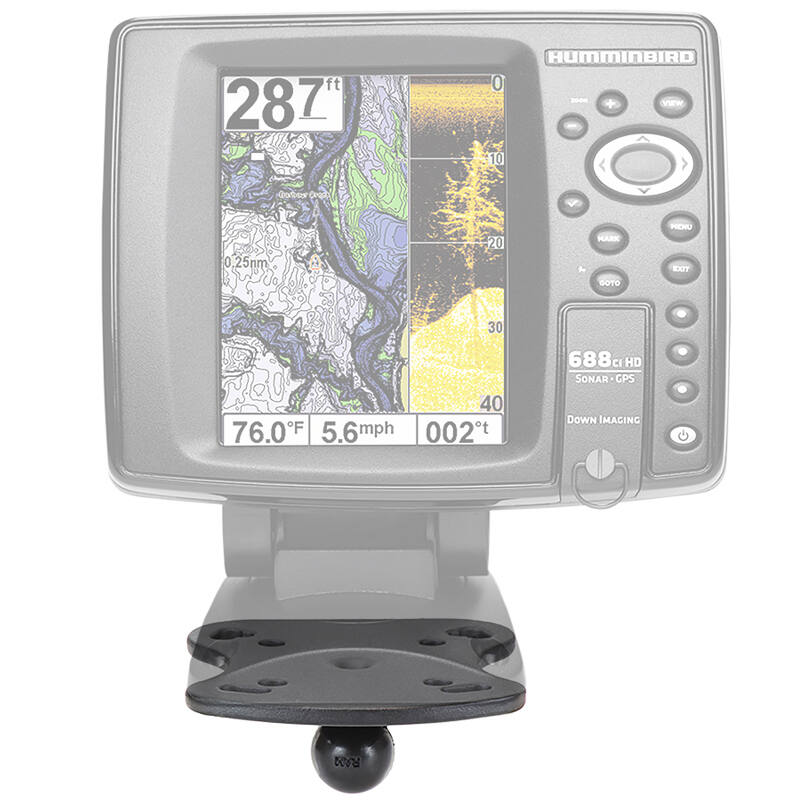

This is a 1" ball Marine Electronic "LIGHT USE" Base for the Humminbird 100, 300, 500, 700 Series, Matrix Series and Lowrance Elite-5 Series The RAM-B-107BU is a marine grade aluminum base with 1" rubber ball. The base connects to the underside of Humminbird and Raymarine marine GPS devices.
Compatible Devices
Humminbird
700 Series
600 Series
500 Series
300 Series
100 Series
Matrix Series (excluding Matrix 97)
Lowrance
Elite-5
Elite-5M
Elite-5X
Raymarine
Apelco Fishfinder with matching hole pattern

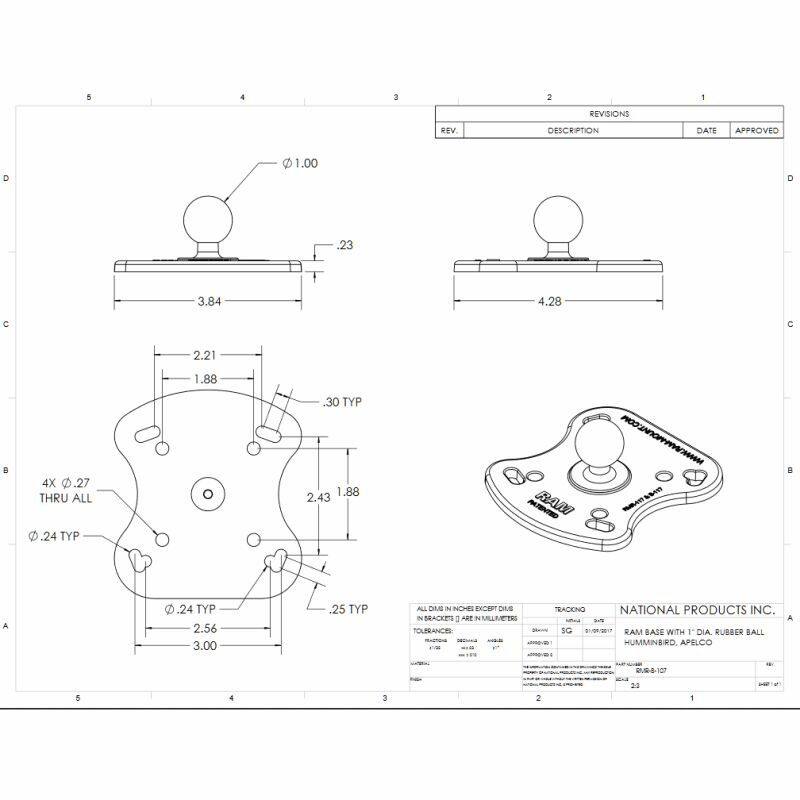

Plate Size
107.95mm x 96.8mm (4.25" x 3.81")
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use: 4
54 grams (1 lb)
Weight:
159 grams (0.35 lbs.)
Material:
Powder Coated Marine Grade Aluminium
Note:
The RAM-B-107BU is a "light use" base, designed to hold small marine electronic devices. For a heavier use version see the C series RAM-107BU.
