RAM Mounts

RAM Marine Humminbird / Lowrance "RUGGED USE" Electronic Base

RAM Marine Humminbird / Lowrance "RUGGED USE" Electronic Base

SKU:RAM-107BU

Regular price $58.56 NZD
Regular price Sale price $58.56 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

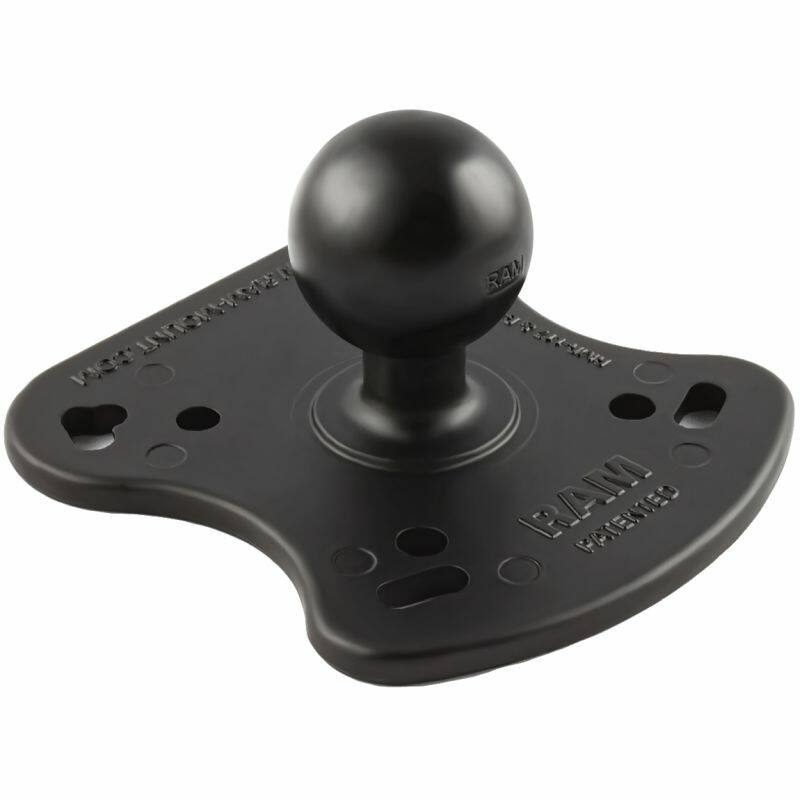

RAM-107BU RAM® Fishfinder Ball Adapter for Humminbird Devices


Features

* Adaptor for heavier Humminbird, Lowrance and Raymarine devices
* 1.5" Ball will mate to any RAM C series arm
* Manufactured from Powder Coated Marine Grade Aluminium for longevity and strength
* A lighter duty version is available - see RAM-B-107BU


This is a 1.5" Ball Marine Electronic "RUGGED USE" Base for the Humminbird 100, 300, 500, 700 Series, Matrix Series and Lowrance Elite-5 Series

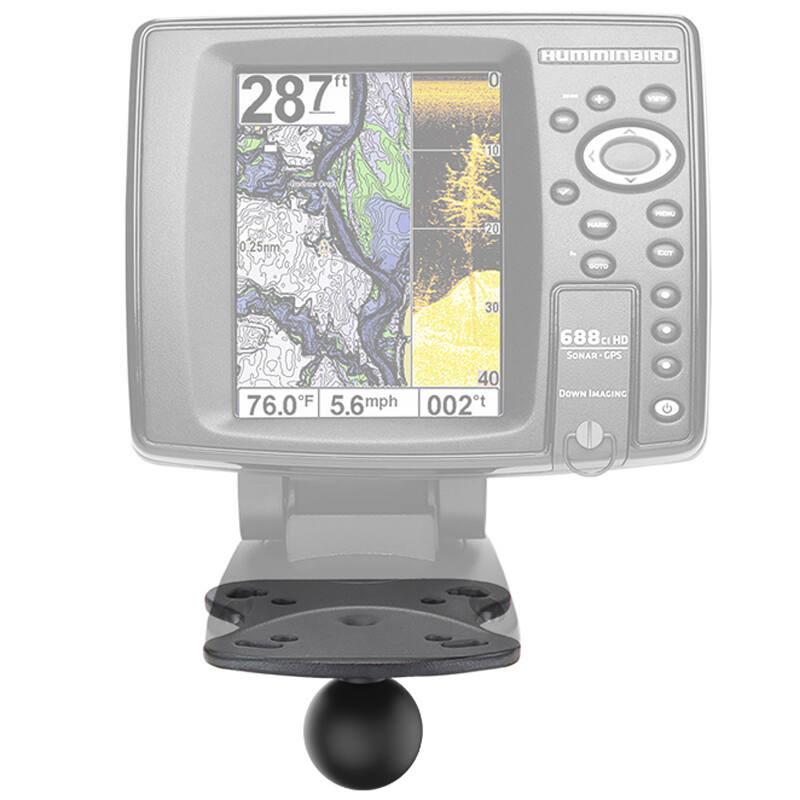

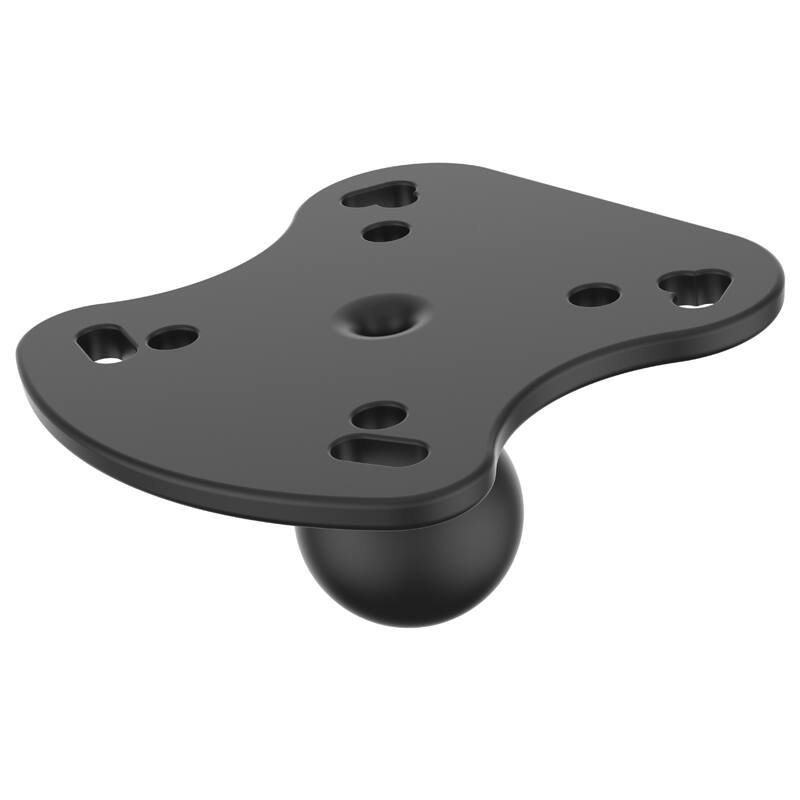

The RAM-107BU is a marine grade aluminium base with 1.5" rubber ball. The base connects to the underside of Humminbird and Raymarine marine GPS devices.


Compatible Devices

Humminbird
700 Series
500 Series
300 Series
100 Series
Matrix Series (excluding Matrix 97)

Lowrance
Elite-5
Elite-5M
Elite-5X

Raymarine
Apelco Fishfinders

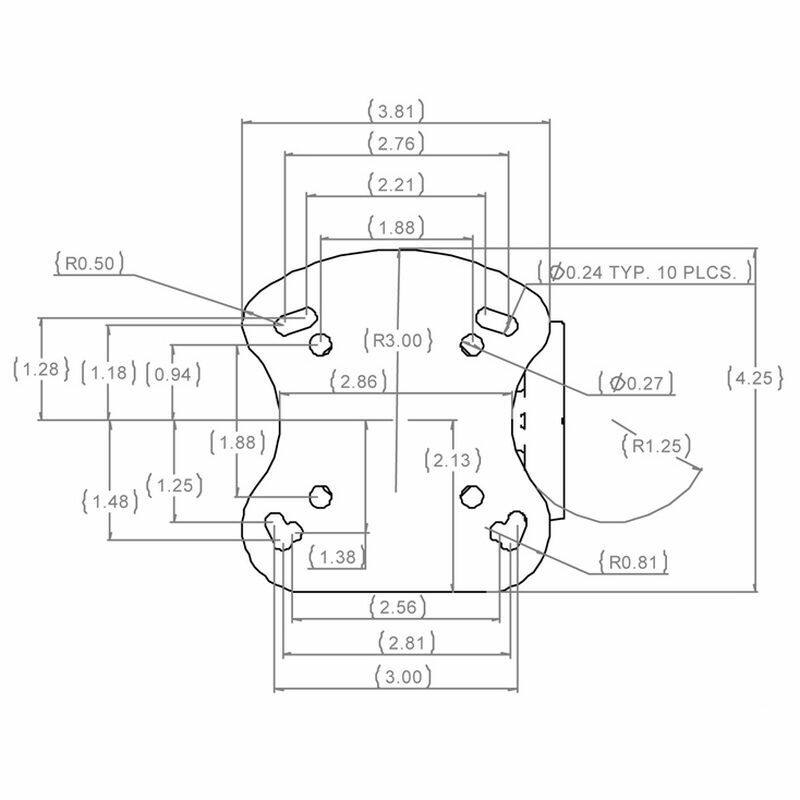

Plate Size
107.95 mm x 91.69mm (4.25" x 3.81")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium
