RAM Marine Swing Arm - Double with Round Plate - D Size - 305mm long

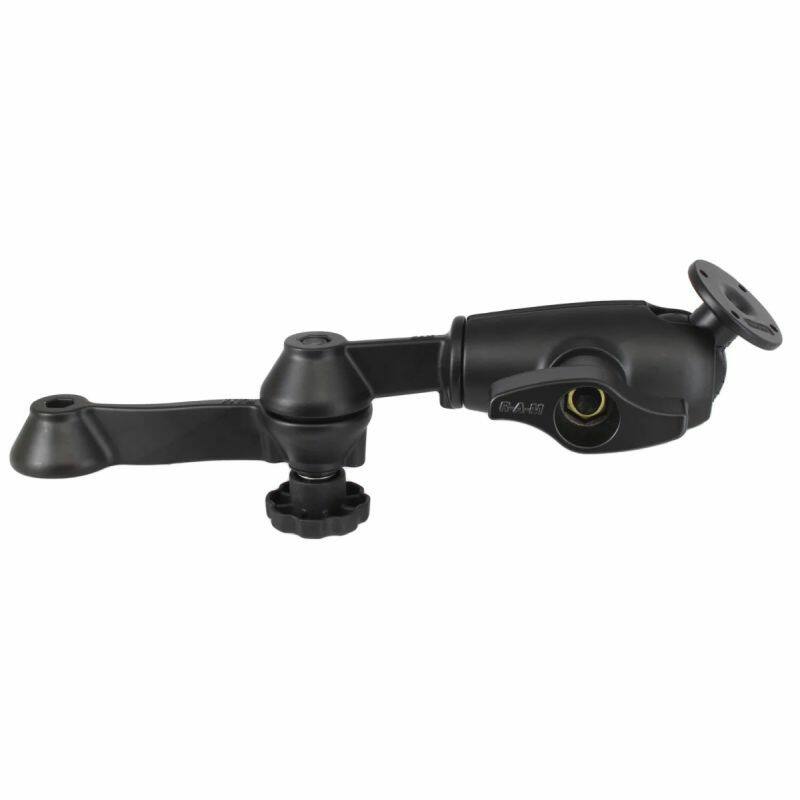

RAM-VB-D-110-1-254U RAM® 305mm (12") Double Swing Arm with Round Plate, D Size

The RAM-VB-D-110-1-254U is a 305mm (12") double swing arm finished with a D-size (2.25") round AMPS plate, built for heavy-duty screens and marine electronics. The two arms let you twist and tilt the viewing angle, then push the whole assembly out of the way when it's not needed.

Key Features

• 305mm (12") double swing arm for extended reach and flexible positioning

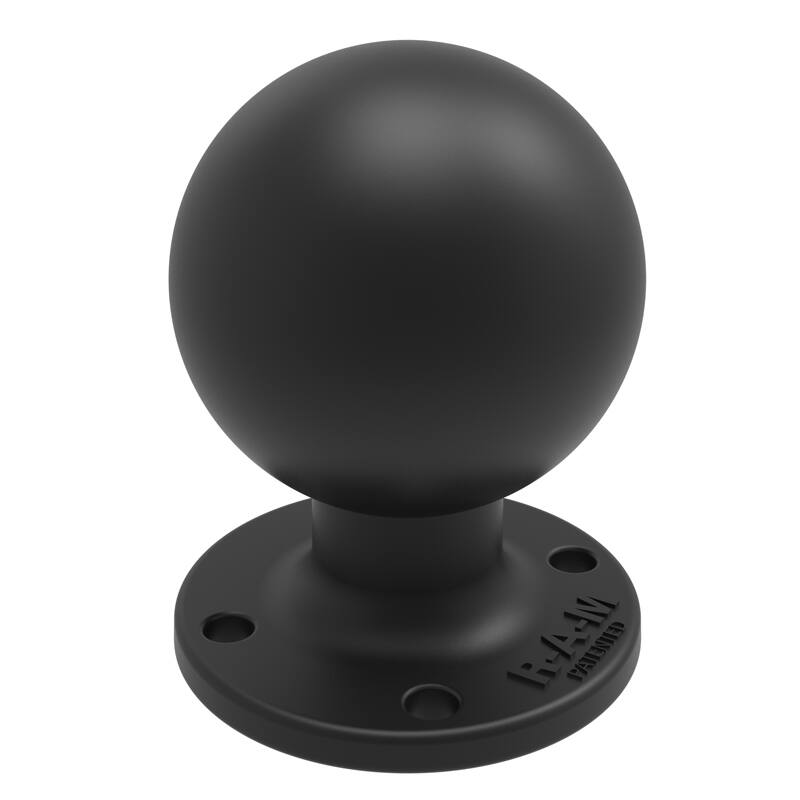

• D-size (2.25") round plate with the 4-hole AMPS pattern, matching many devices and RAM® cradles
• Rugged construction suited to super heavy-duty screens that need to be pushed out of the way when not in use
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by the RAM® lifetime warranty

Works With

The D-size round plate's 4-hole AMPS pattern matches a wide range of RAM® D-size cradles and devices. For a C-size version of this arm with a smaller 1.5" ball, see the RAM-VB-110-1U.

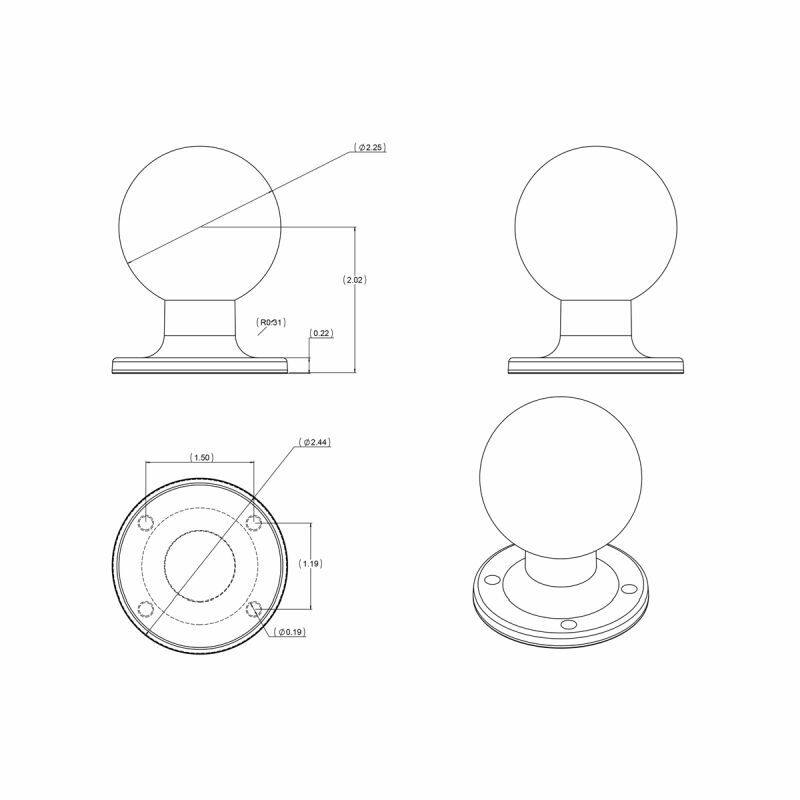

Dimensions & Specifications

• Total arm reach: 305mm (12")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Ball size: D size, 57mm (2.25")
• Material: marine-grade aluminium
• Weight: 1.63kg (3.6 lbs)

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

What's the difference between this and the C-size double swing arm? This uses a larger 2.25" D-size ball and round plate, built for heavier screens and electronics than the 1.5" C-size double swing arm (RAM-VB-110-1U).
