RAM Marine Swingle Swing Arm with Swivel Socket - D Series

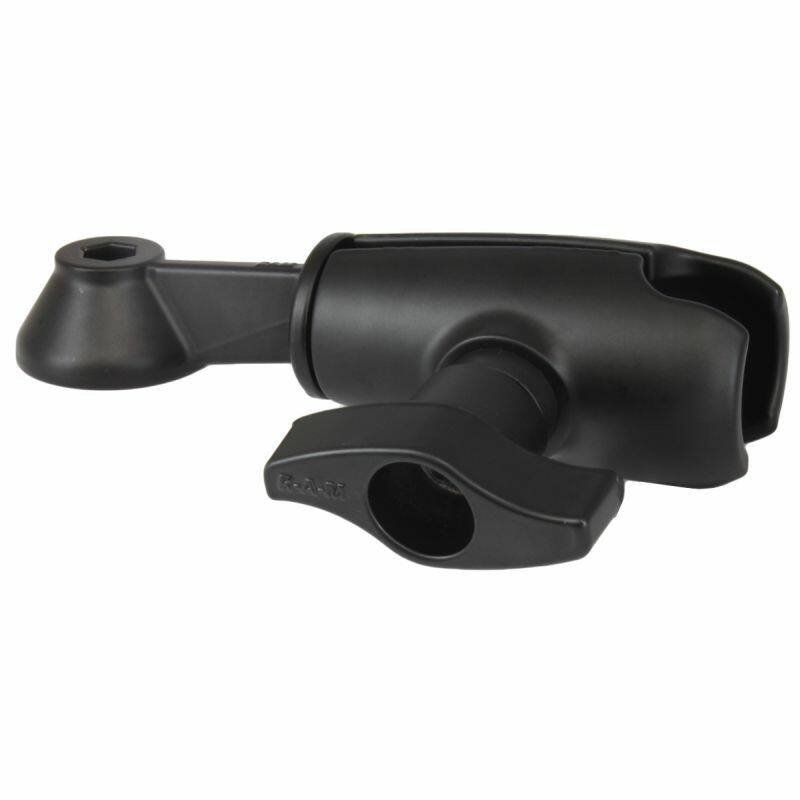

RAM-VB-D-110-2U RAM® 152mm (6") Swingle Swing Arm with Swivel Socket, D Series

The RAM-VB-D-110-2U is a 152mm (6") single swing arm finished with a D-size (2.25") swivel socket, built for larger and heavier marine electronics than the standard C-size arms. The socket rotates to set the viewing angle, and the arm mates to RAM® 109 vertical or horizontal bases for a stable, permanent install.

Key Features

• 152mm (6") single swing arm with D-size (2.25") swivel socket
• D-size socket connects to RAM® D series ball bases for heavier devices
• Swivel socket rotates to achieve the ideal viewing angle
• Mates to vertical or horizontal bases for a stable, permanent install
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by the RAM® lifetime warranty

Works With

Connects to the RAM-109V-BU vertical base or RAM-109H-BU horizontal base. The D-size socket accepts any base or cradle with a 2.25" RAM® D-size ball, such as the RAM-D-202U-25 rectangular plate for larger fishfinders and chartplotters.

Dimensions & Specifications

• Arm length: 152mm (6")
• Socket / ball size: D size (2.25")
• Material: marine-grade aluminium
• Weight: 1.36kg (3.0 lbs)
• Weight capacity: standard use 2.72kg (6 lbs); heavy-duty use 2.26kg (5 lbs)

Hardware Included

• (1) 3/8"-16 x 4" hex bolt
• (1) 2" rubber washer
• (1) 1.25" fender washer
• (2) steel washers
• (1) thrust bearing washer
• (1) 3/8"-16 knob

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

What's the difference between this and the C-size swing arms? This uses a larger 2.25" D-size socket and ball, built for bigger, heavier marine electronics than the 1.5" C-size arms used elsewhere in the swing arm range.
