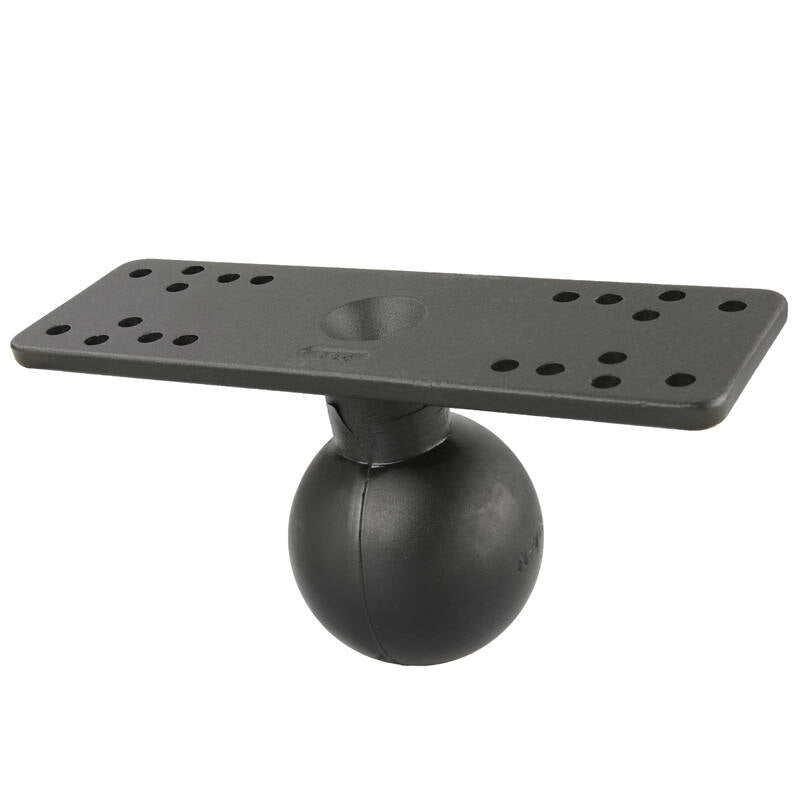

RAM-D-115BU RAM® Marine Electronics Ball Adapter
Features
* D size ball adapter for 9"-12" fishfinder gimbal brackets

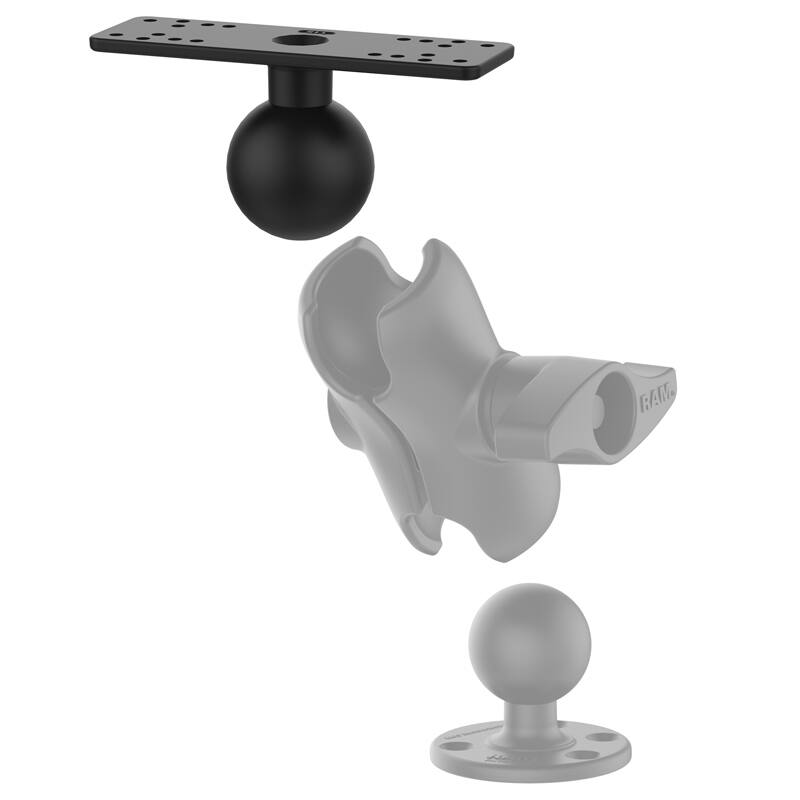

* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

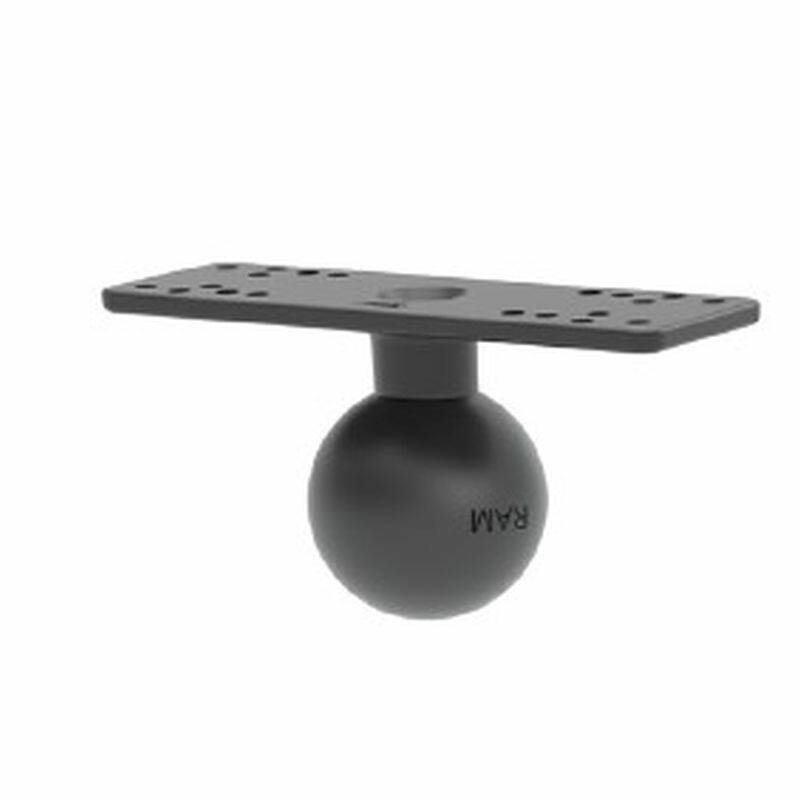

The universal mounting plate consists of a 57mm / (2.25") diameter rubber ball, connected at right angles to a flat 158 x 50mm (6.25" x 2") rectangular plate.
Compatible with most large chart plotters, radar and sounders including:
Compatible Devices
Garmin
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 8616
GPSMAP 8616xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 923
GPSMAP 923xsv
GPSMAP 942
GPSMAP 942xs
GPSMAP 943
GPSMAP 943xsv
GPSMAP 1223
GPSMAP 1223xsv
GPSMAP 1243
GPSMAP 1243xsv
echoMAP Chirp 72-95 Series
ECHOMAP Plus 72-97 Series
ECHOMAP UHD 62-95 Series
ECHOMAP Ultra 102sv
ECHOMAP Ultra 106sv
Striker Plus 9sv
Striker Vivid 9sv
Fishfinders and GPS Chartplotters
Lowrance
Elite FS 7
Elite FS 9
HDS Carbon 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters
Humminbird
800 & 900 Series
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Material:
Powder Coated Marine Grade Aluminium

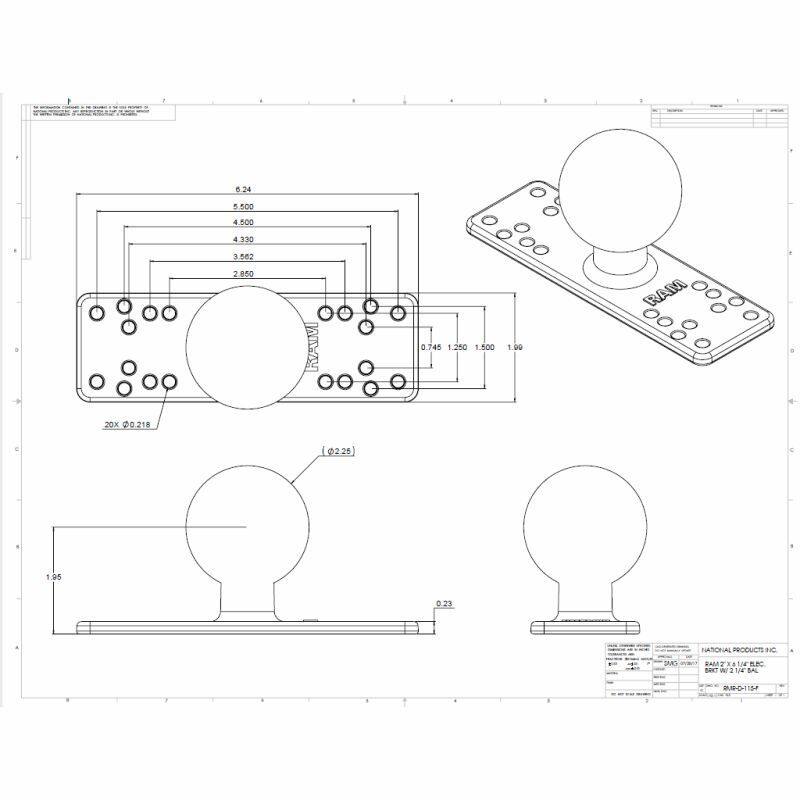

Hole Pattern
See Drawing
Plate Size
157.8mm x 50.8mm (6.25" x 2")
Ball/Socket Size
D Size (2.25")
Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)
Weight
290 grams (0.64 lbs.)
Additional Information
This rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
