RAM Marine Universal Electronic Device Mount with Suction Cup Base

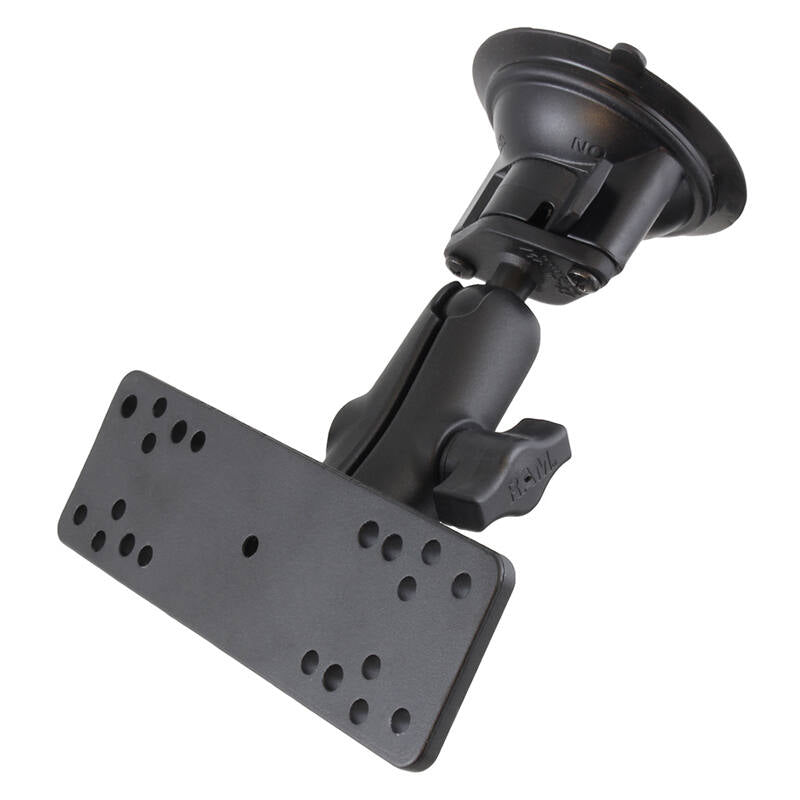

RAM-B-166-111U RAM® Twist-Lock™ Suction Cup Mount with Universal Electronics Plate (Medium Arm)

The RAM-B-166-111U is a complete, no-drill mounting solution that pairs a strong RAM® Twist-Lock™ suction cup base with a universal marine electronics plate and a medium 1" double socket arm. It is ideal for temporary or removable mounting of a GPS or chartplotter on windscreens and other smooth, non-porous surfaces.

Key Features

• RAM® Twist-Lock™ suction cup base for a strong hold on glass and smooth non-porous surfaces
• Universal rectangle electronics plate with multiple pre-drilled hole combinations
• Medium RAM® double socket arm with near-infinite ball-and-socket adjustability
• No drilling required, so it suits temporary and removable setups
• High-strength composite construction; lifetime warranty

Works With

The plate suits Garmin GPSMAP, marine GPS, CB radios, ham radios, gimbal brackets and similar equipment. As a universal bracket, some applications may require additional holes to be drilled for an exact fit.

Dimensions & Specifications

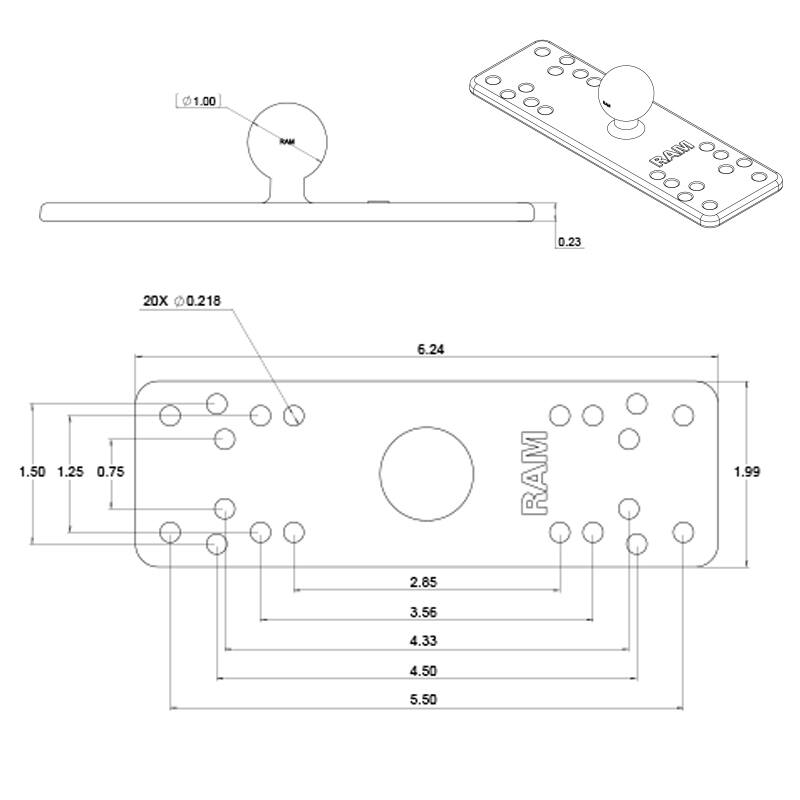

• Rectangle plate: 158.8 x 50.8mm (6.25" x 2")
• Suction cup base: 82mm (3.3") diameter, B-series 1" ball
• Overall height: 170mm (6.69")
• Arm length: overall 94mm (3.69"); socket-to-socket 76mm (3")
• Ball size: 1" rubber ball (B size)
• Material: high-strength composite
• Weight: 376g (0.85 lb)

Compatible Devices

Garmin

• GPSMAP 162, 168, 175, 180, 180C, 182, 185, 188, 232, 238
• Striker 5 Series
• Striker Plus 5cv

Also Available

Prefer a more compact setup? See the short-arm version (RAM-B-166-A-111U).

Components

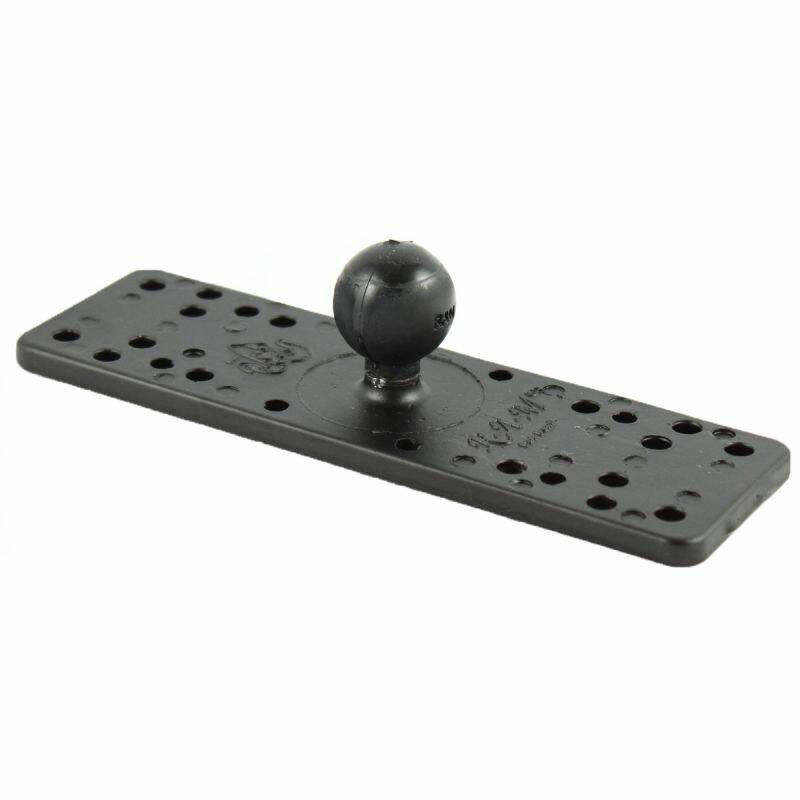

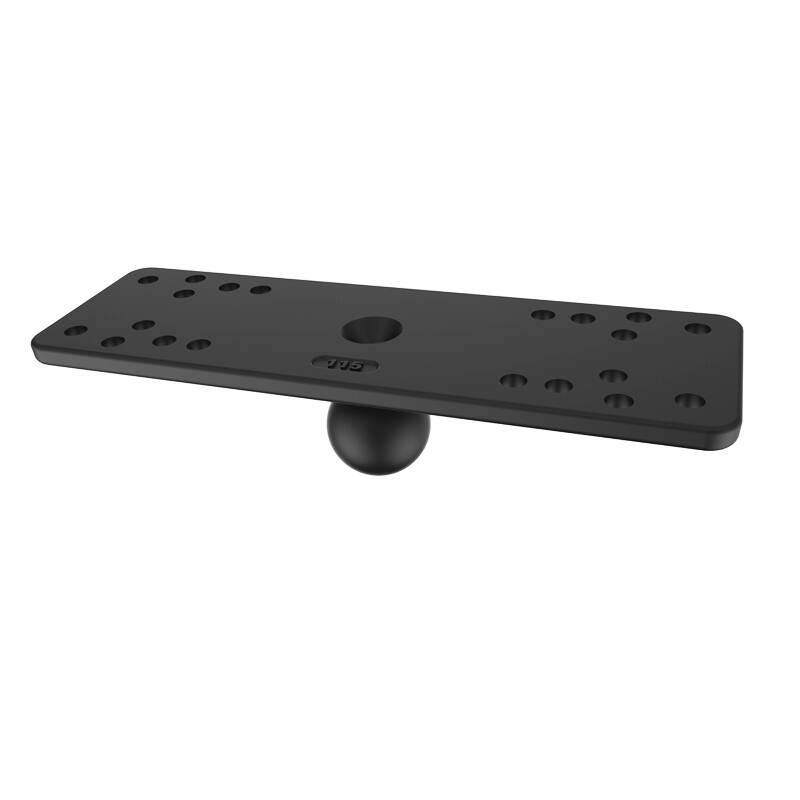

• RAM-B-111BU rectangular plate (B series)
• RAM-B-201U 94mm medium double socket arm
• RAM-B-224-1U 82mm (3.3") diameter suction cup base with 1" ball
