RAM Marine Universal Electronic Device Mounting System - B Series Medium Arm

RAM Marine Universal Electronic Device Mounting System - B Series Medium Arm

SKU:RAM-B-111U

Regular price $92.82 NZD
Regular price Sale price $92.82 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-111U RAM® Universal Marine Electronic Mount - B Size Medium


Features

* Complete flat surface, drill-down mounting solution with an overall height of 127mm
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

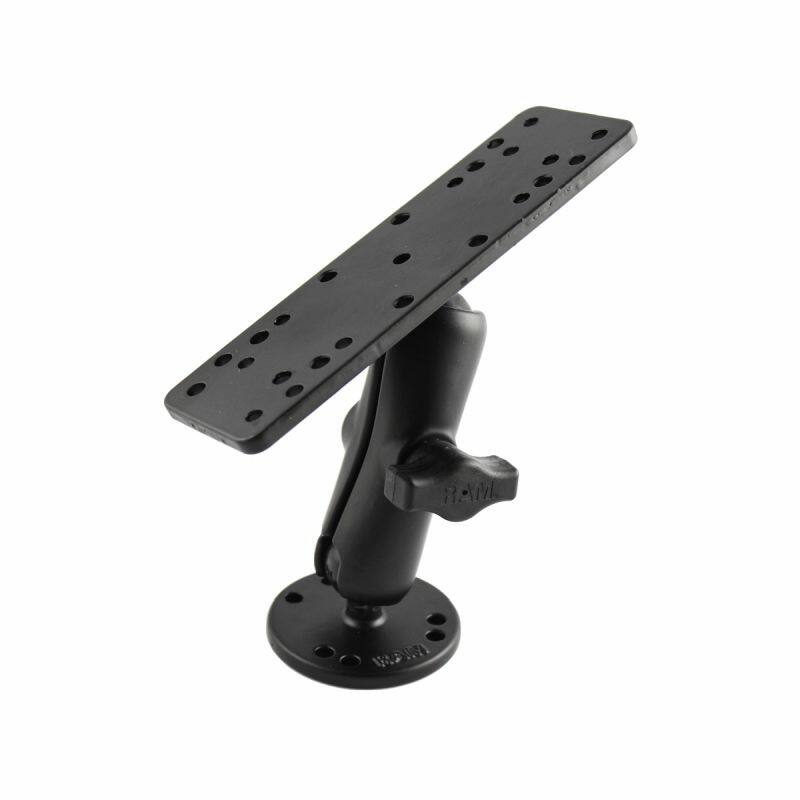

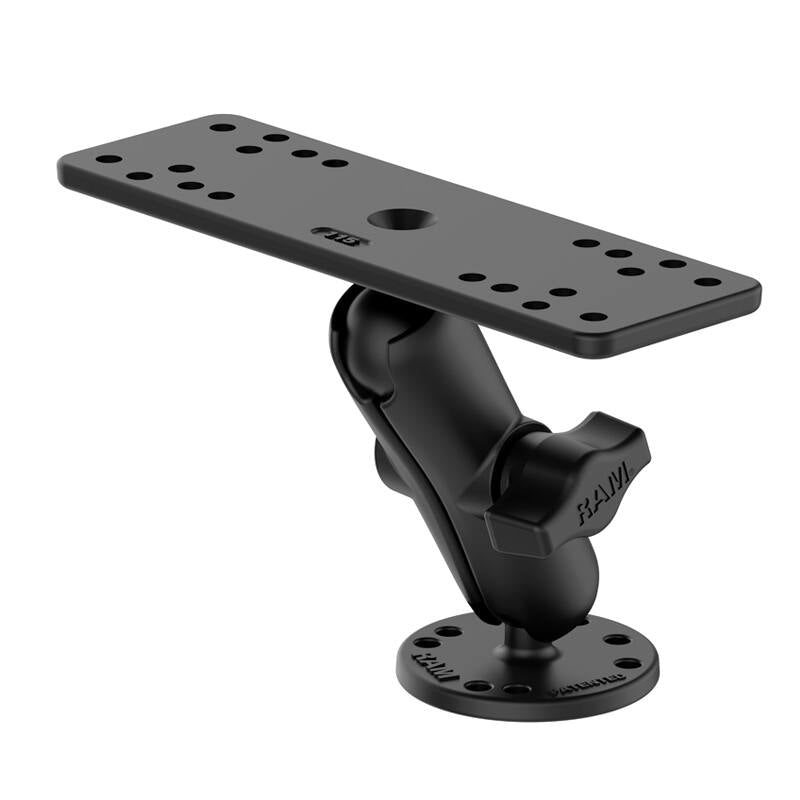

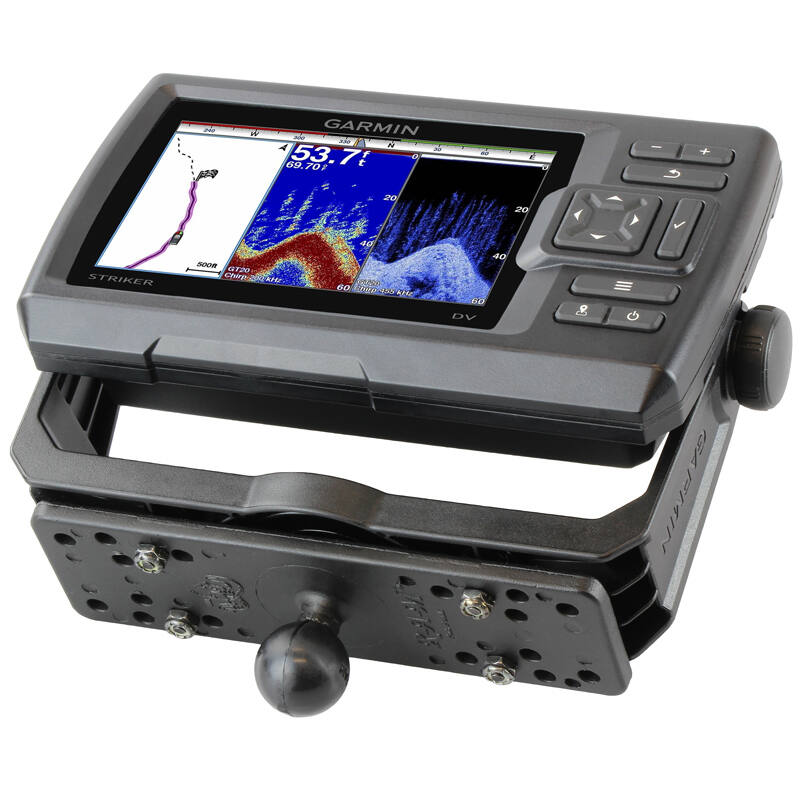

The RAM-B-111U consists of a double socket arm, 2.5" diameter round base and 158 mm x 51 mm (6.25" x 2") rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Compatible Devices:

Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238

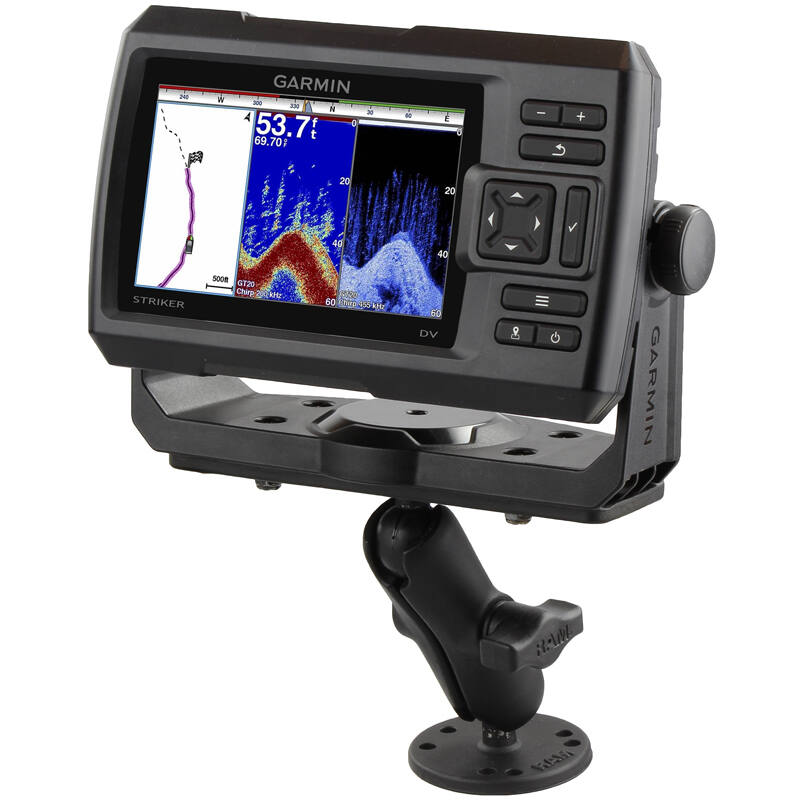

Garmin Striker 5 Series
Garmin Striker Plus 5cv

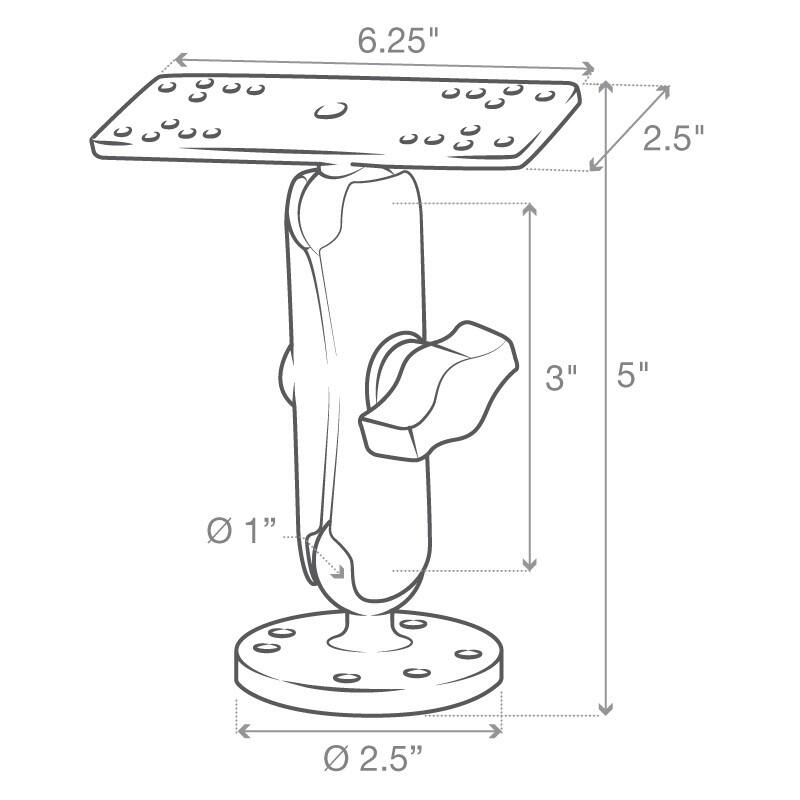

Dimensions:
Overall Height:
127mm (5")

Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")

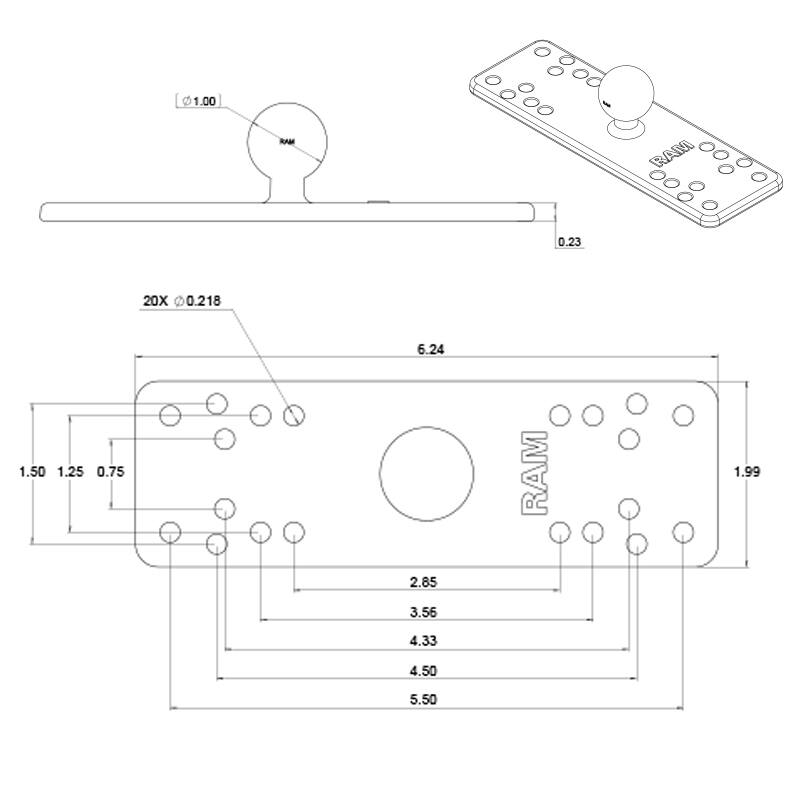

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
B Size 1" Rubber Ball

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

Weight
710 grams (1.57 lbs)


Components:

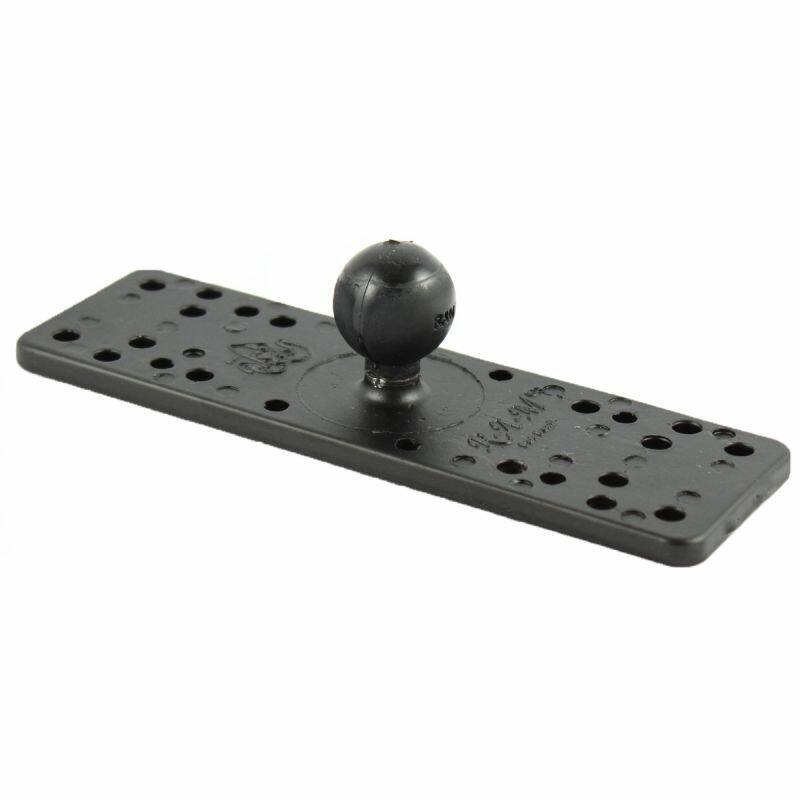

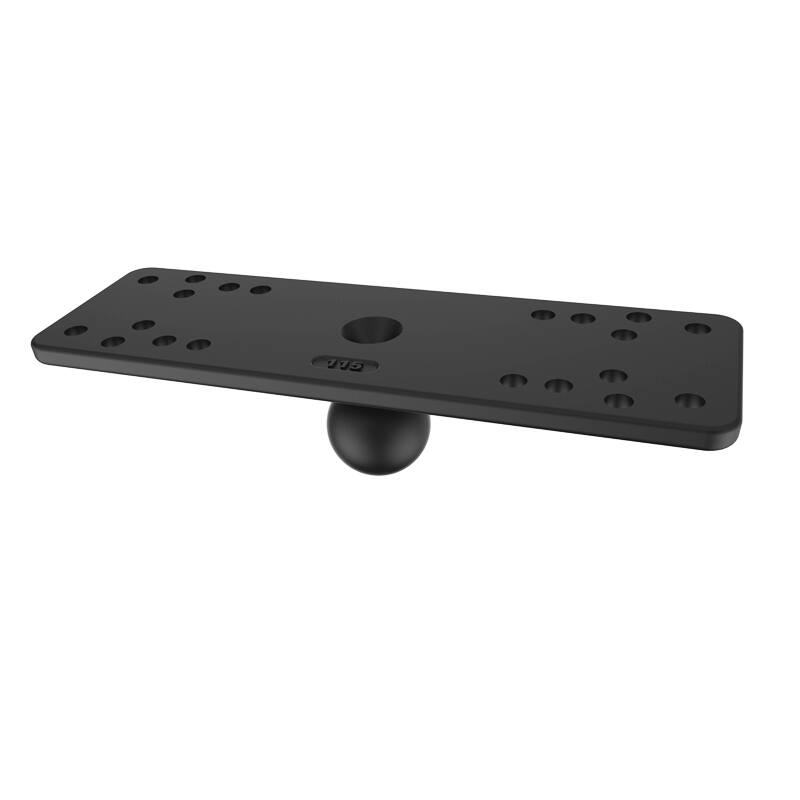

RAM-B-111BU RECTANGULAR PLATE B SERIES
RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM

YouTube:
https://www.youtube.com/watch?v=Bq3V6EQR2Ds&t=82s
