RAM Marine Universal Electronic Device Mounting System - Short Arm

RAM Marine Universal Electronic Device Mounting System - Short Arm

SKU:RAM-B-111U-A

Regular price $86.34 NZD
Regular price Sale price $86.34 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

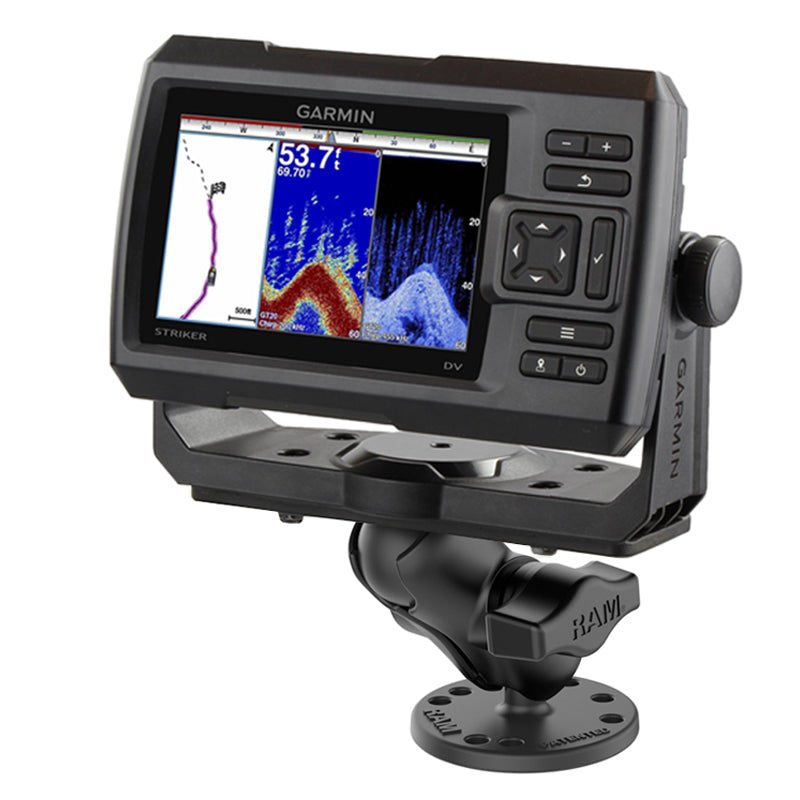

RAM-B-111U-A RAM® Universal Marine Electronic Mount - B Size Short

Features

* Complete flat surface, drill-down mounting solution with an overall height of 63.5mm
* Includes short RAM® double socket arm
* Round drill down base includes universal AMPS hole pattern
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

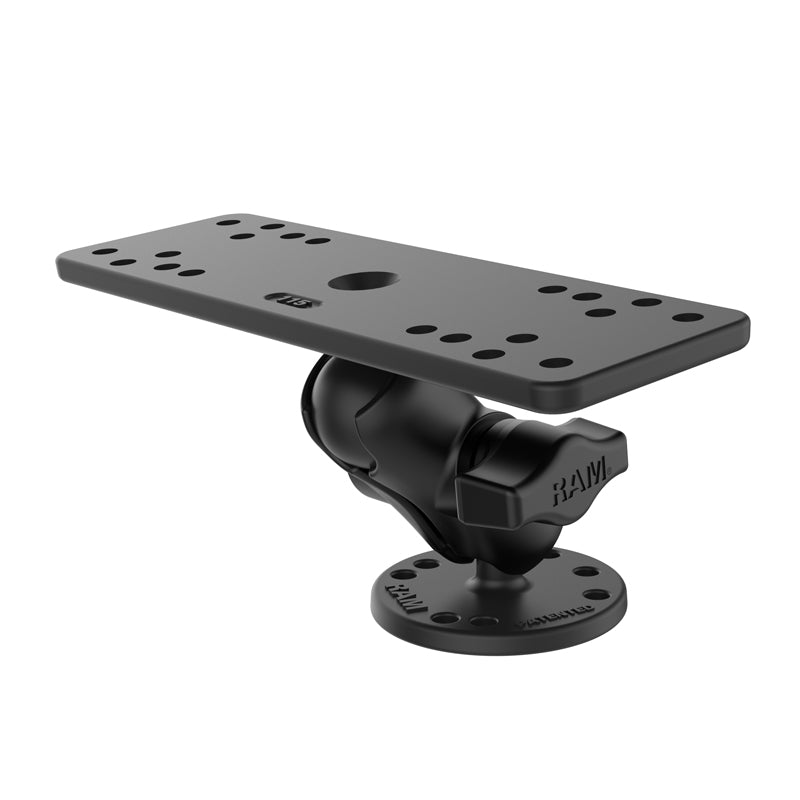

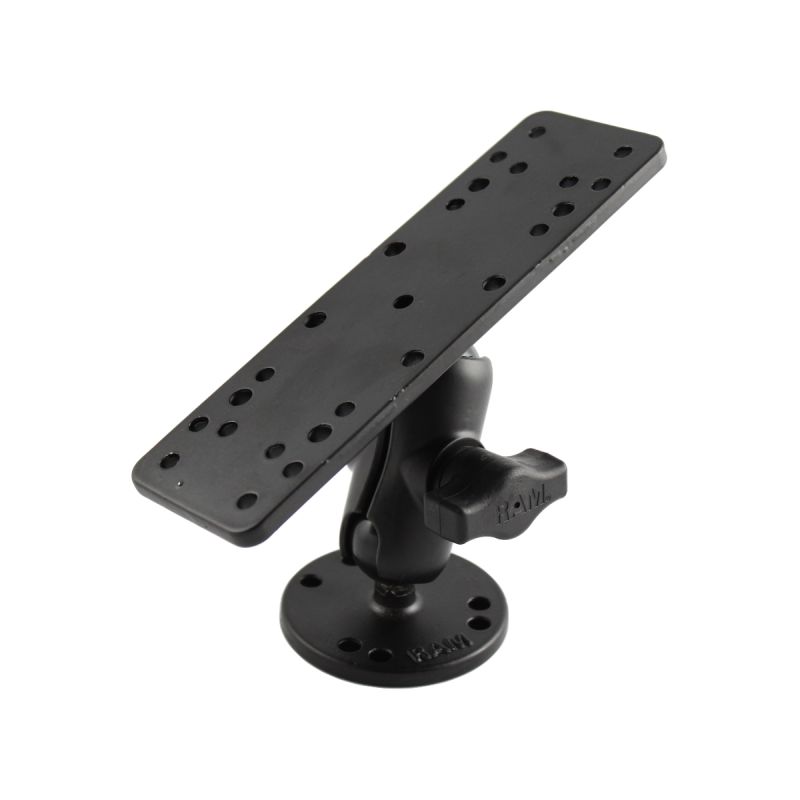

The RAM-B-111U-A consists of a short double socket arm, 63.5mm diameter round base and 158.7mm x 50.8mm (6.25" X 2") rectangular base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Compatible Devices Include

Garmin
GPSMAP 162
GPSMAP 168
GPSMAP 175
GPSMAP 180
GPSMAP 180C
GPSMAP 182
GPSMAP 185
GPSMAP 188
GPSMAP 232
GPSMAP 238
Striker 5 Series
Striker Plus 5cv
Striker Vivid 5cv


Specs & Features

Overall Height
63.5mm (2.5")

Short Double socket Arm Dimensions
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

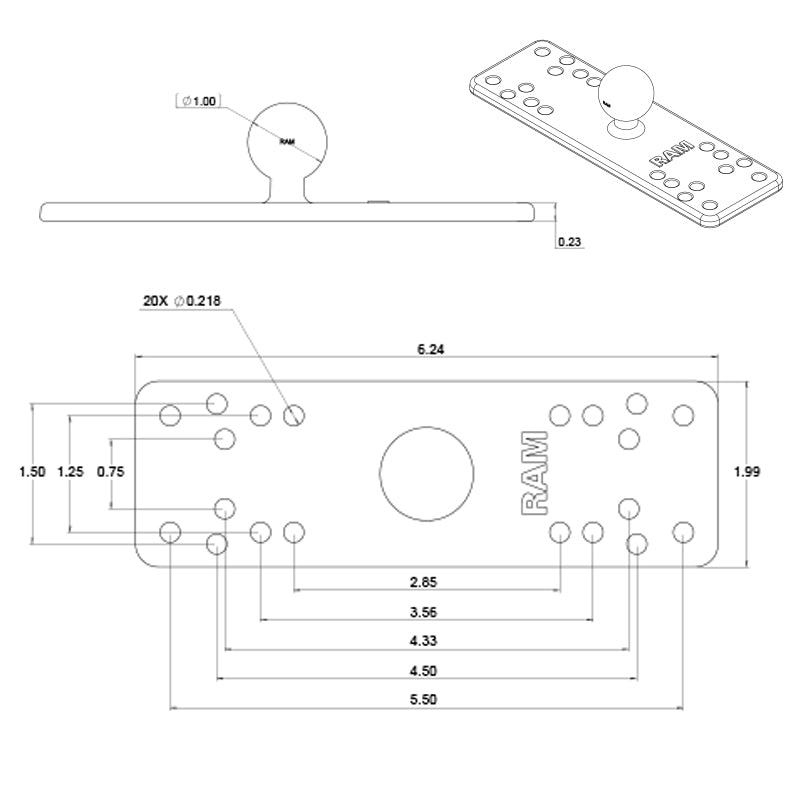

Rectangular Plate Dimensions
158.7mm x 50.8mm (6.25 X 2")

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight
0.303 kg (0.67 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

Components include:
RAM-B-202U - Round Base
RAM-B-201UA - Short Double Socket Arm for 1" Balls

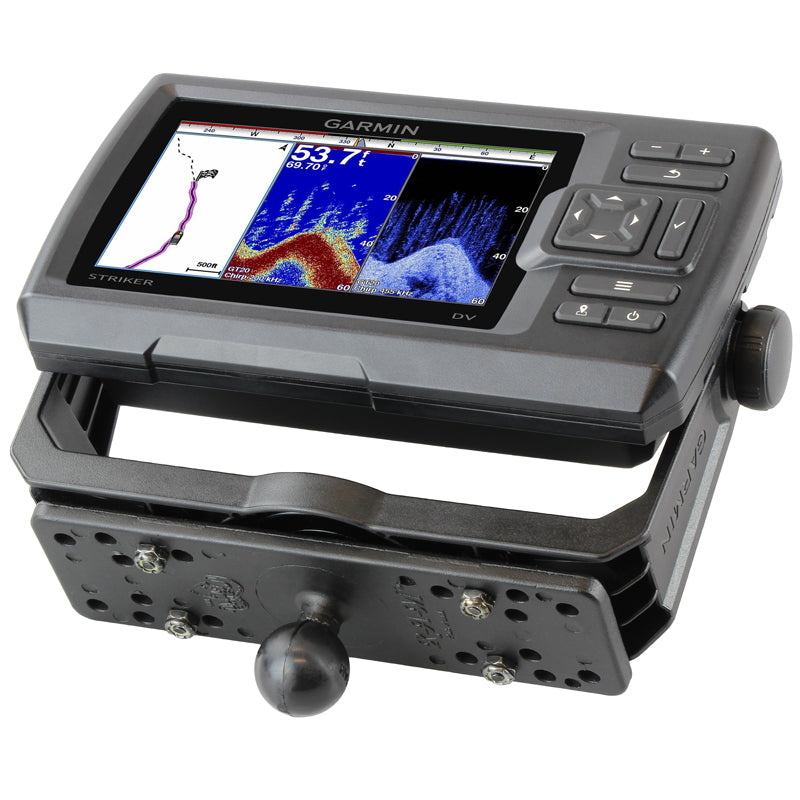

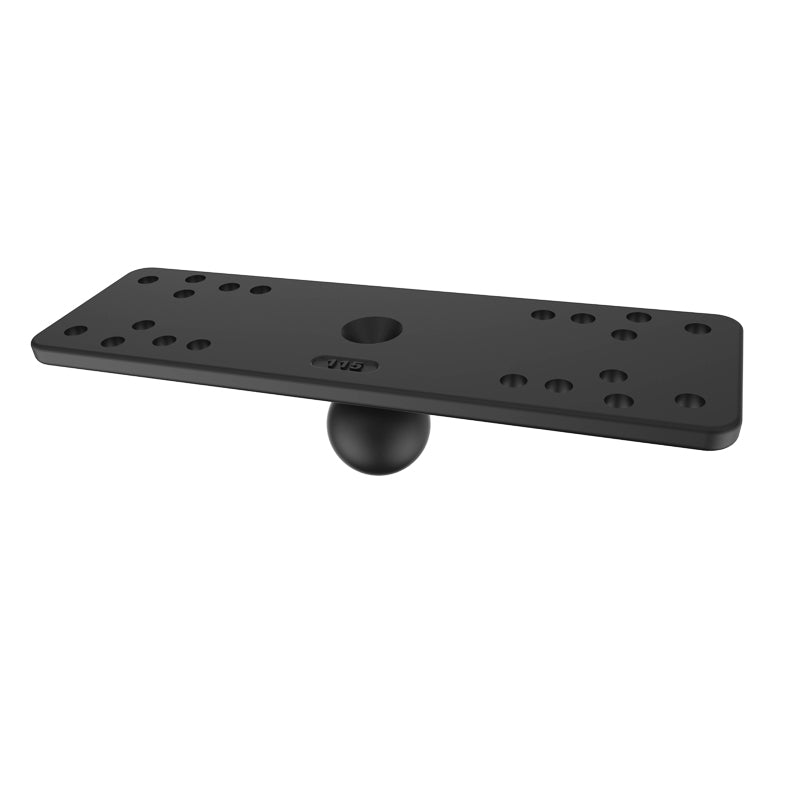

RAM-B-111BU - Rectangle Base with 1" Ball
