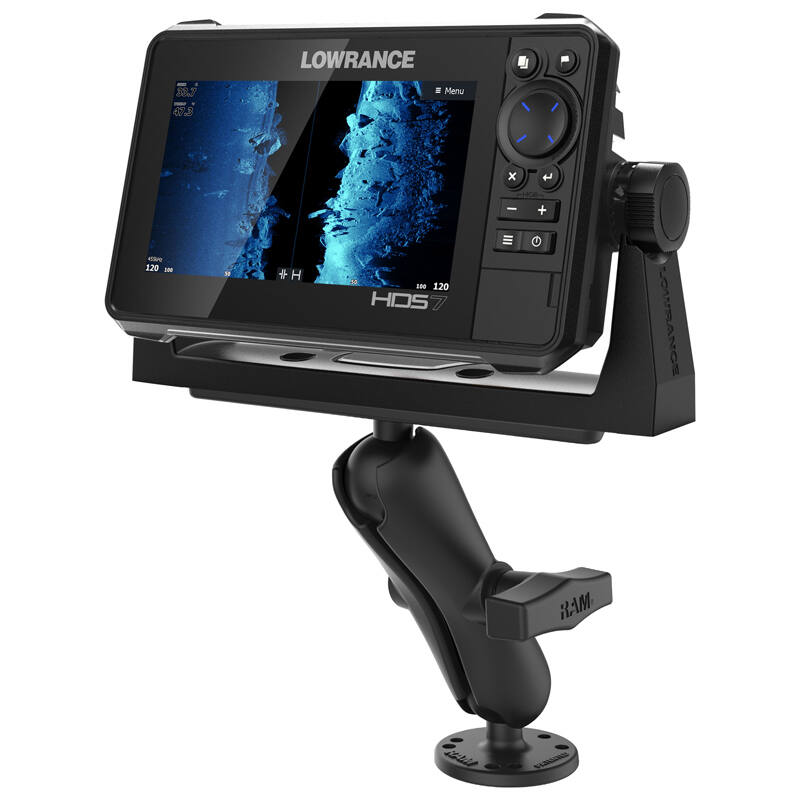

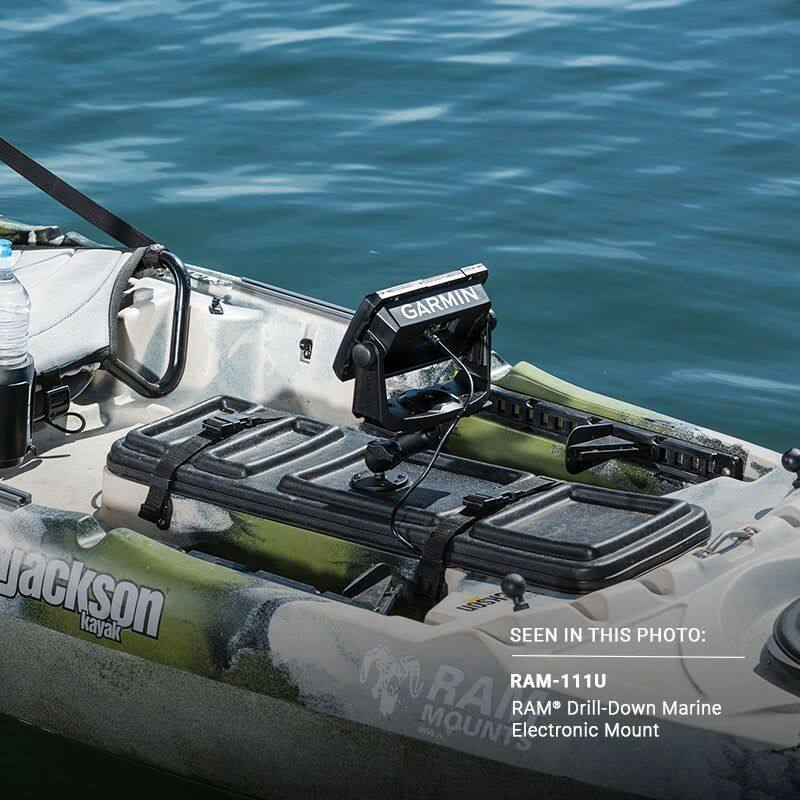

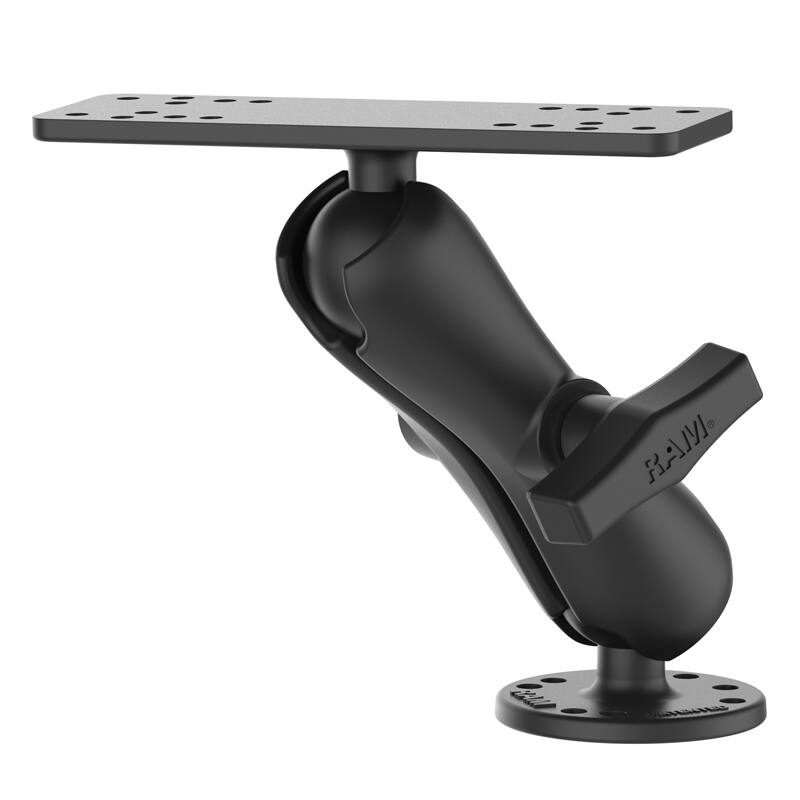

RAM-111U RAM® Drill-Down Marine Electronic Mount
Features
* Complete flat surface, drill-down mounting solution with an overall height of 7.35"
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
This consists of a 63.5mm diameter round base that contains the universal AMPs hole pattern, STANDARD LENGTH double socket arm and 158.75 x 50.8mm rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Note: The base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Compatible Devices Include:
Garmin
ECHOMAP Plus 72cv / 73cv / 74cv / 75cv / 77cv
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Vivid 5cv / 7cv / 7sv
Striker Plus 5cv / 7cv / 7sv
Lowrance
Elite FS 7
Elite FS 9
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Overall Length:
186.7mm (7.35")
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter

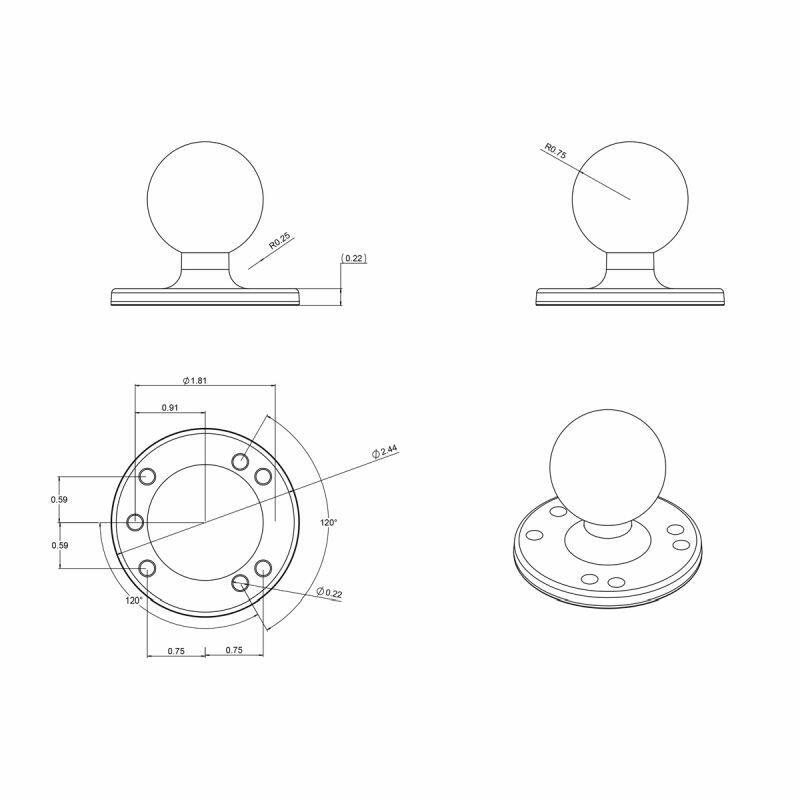

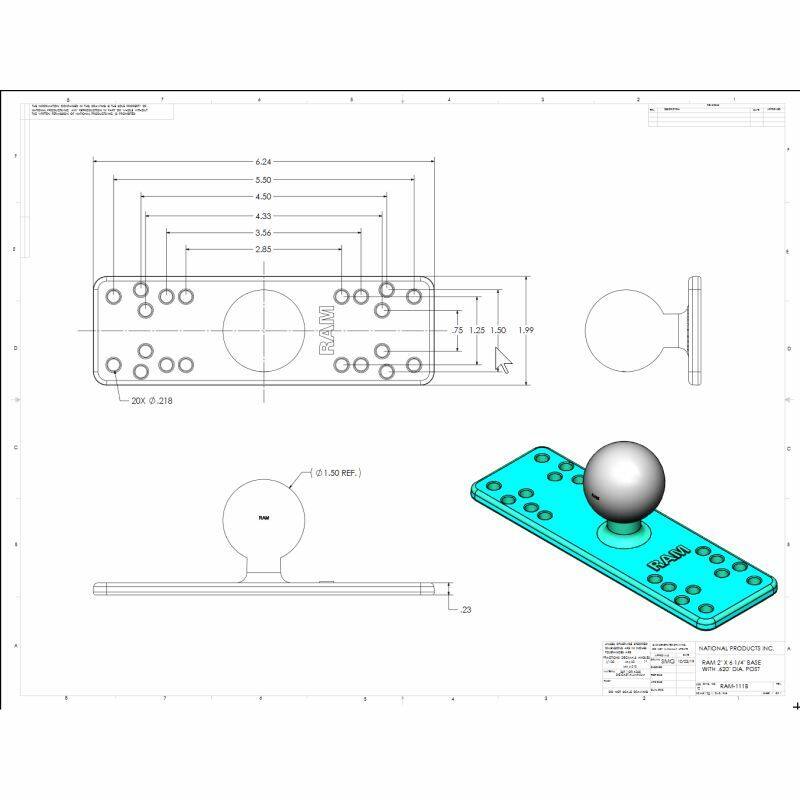

See Drawing
Plate Sizes
Rectangular:
158.75 x 50.8mm (6.25" x 2")
Round:
63.5mm (2.5" Diameter)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
C Size 1.5" Rubber Ball
Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Weight:
572 grams (.26 lbs.)

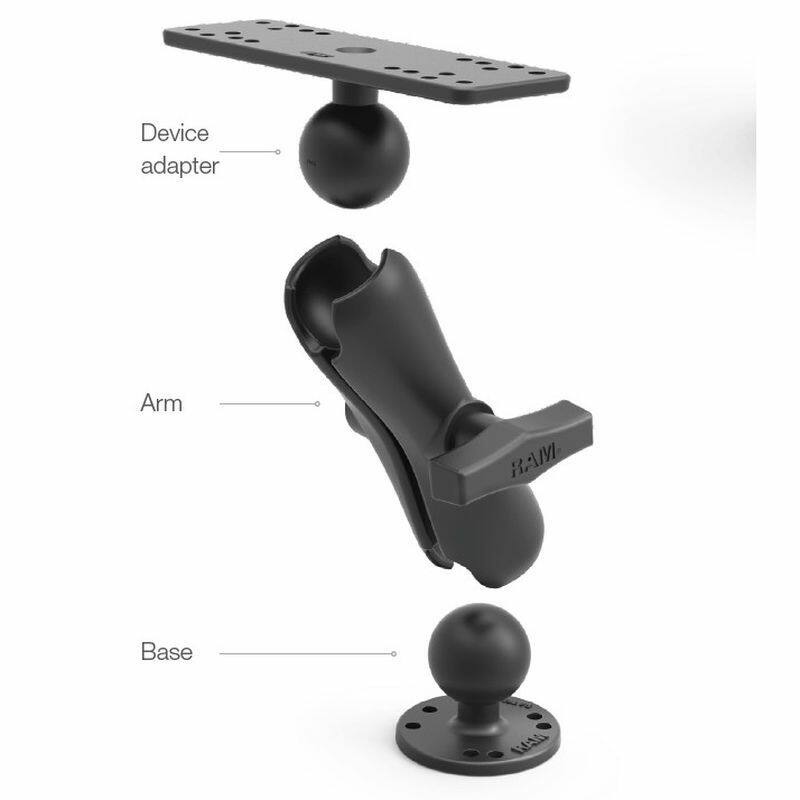

Components:
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

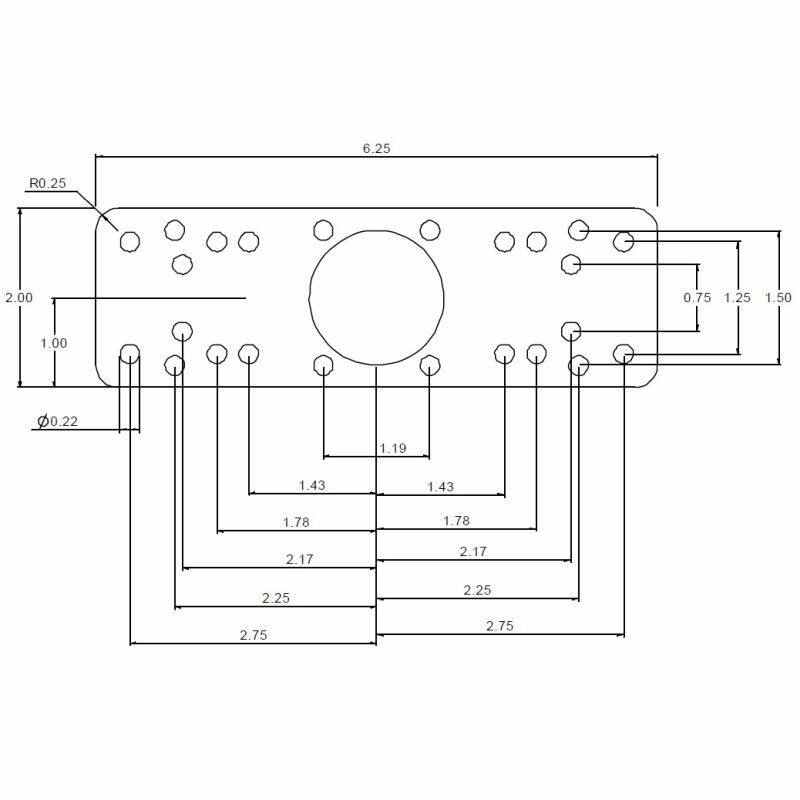

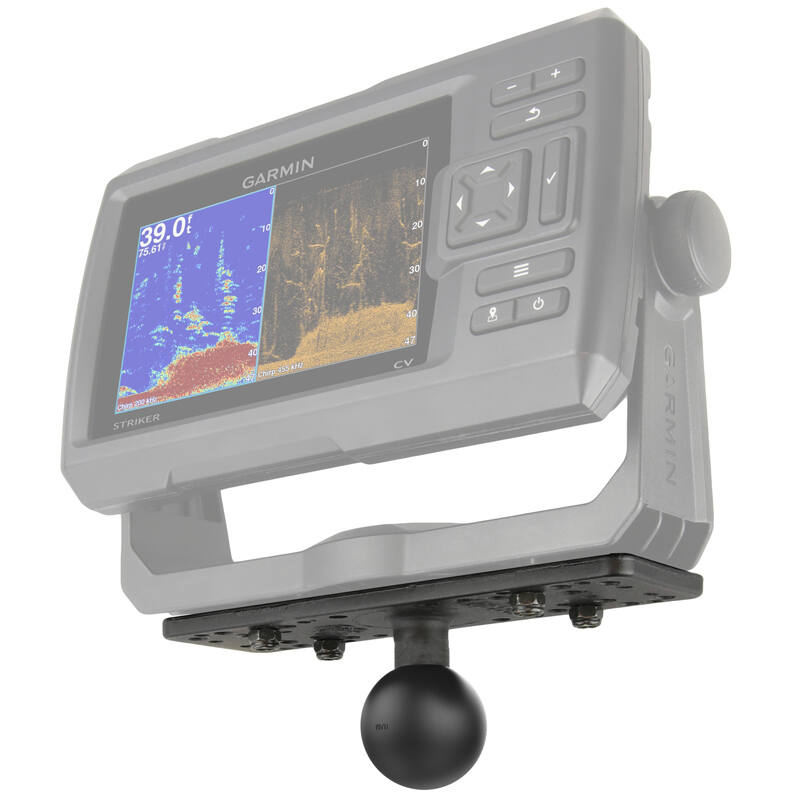

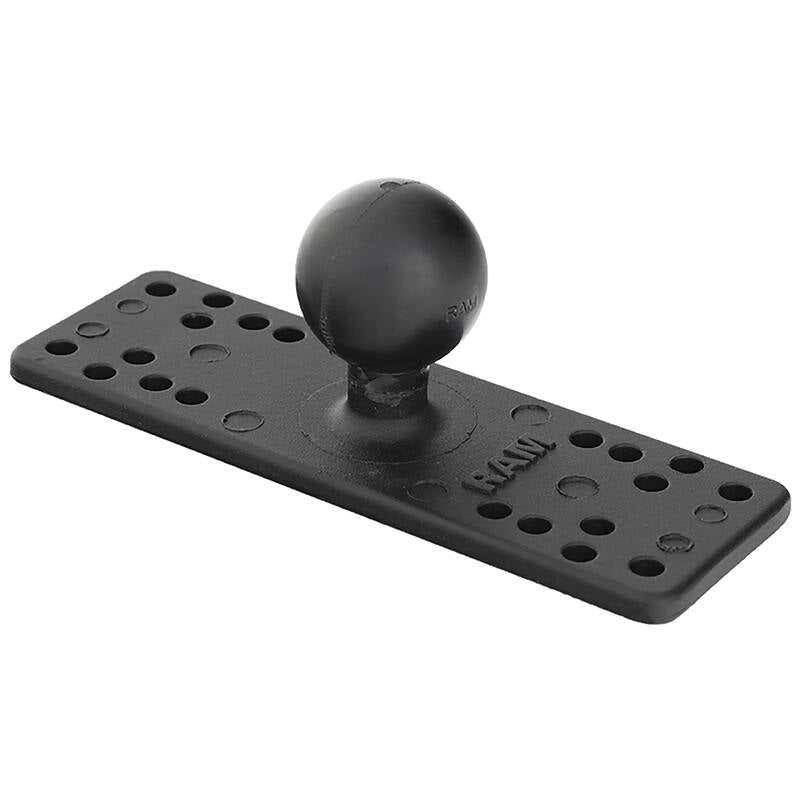

RAM-111BU RAM 158 x 50mm Universal Electronics Base with 1.5" Ball

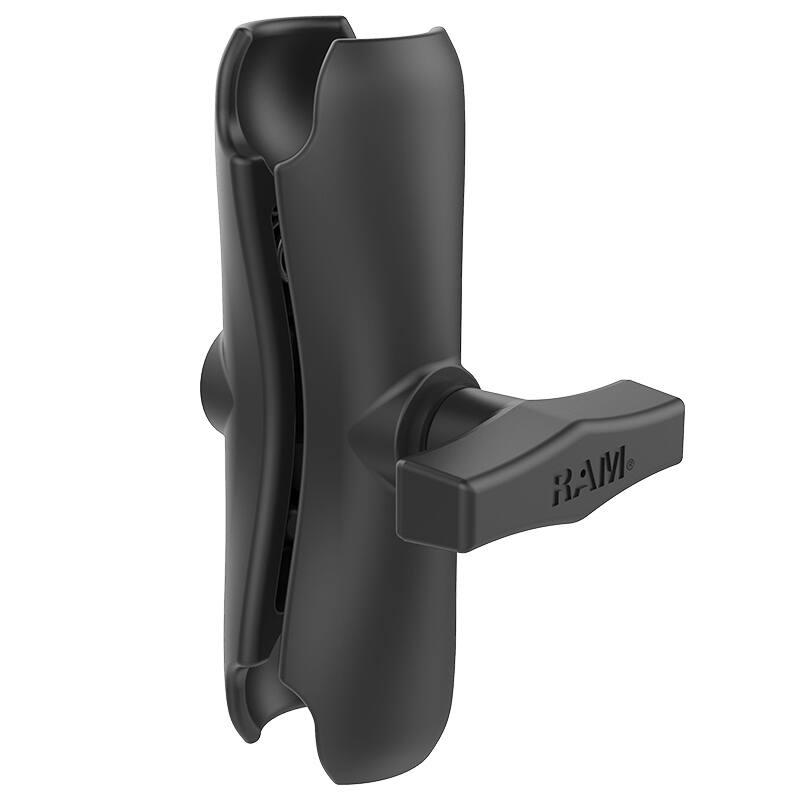

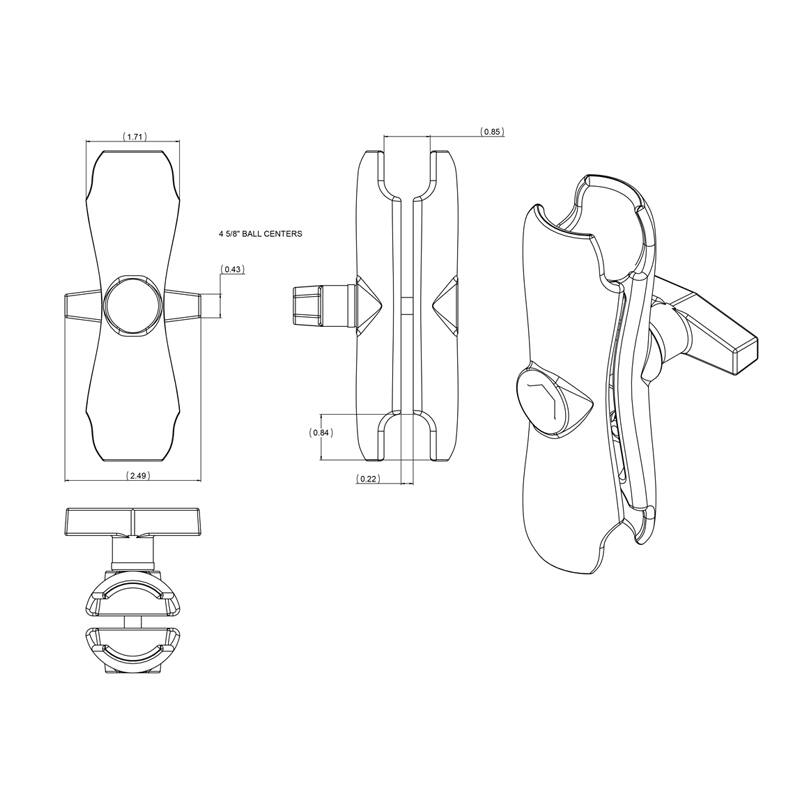

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
Note: This product is available with longer or shorter length arms and is also available in 1" B series and 2.25" D series
