RAM Mounts

RAM Motorcycle Brake/Clutch Clamp / U-Bolt Mount - Diamond Base & Short Arm

RAM Motorcycle Brake/Clutch Clamp / U-Bolt Mount - Diamond Base & Short Arm

SKU:RAM-B-174U-A-v

Regular price $96.96 NZD
Regular price Sale price $96.96 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

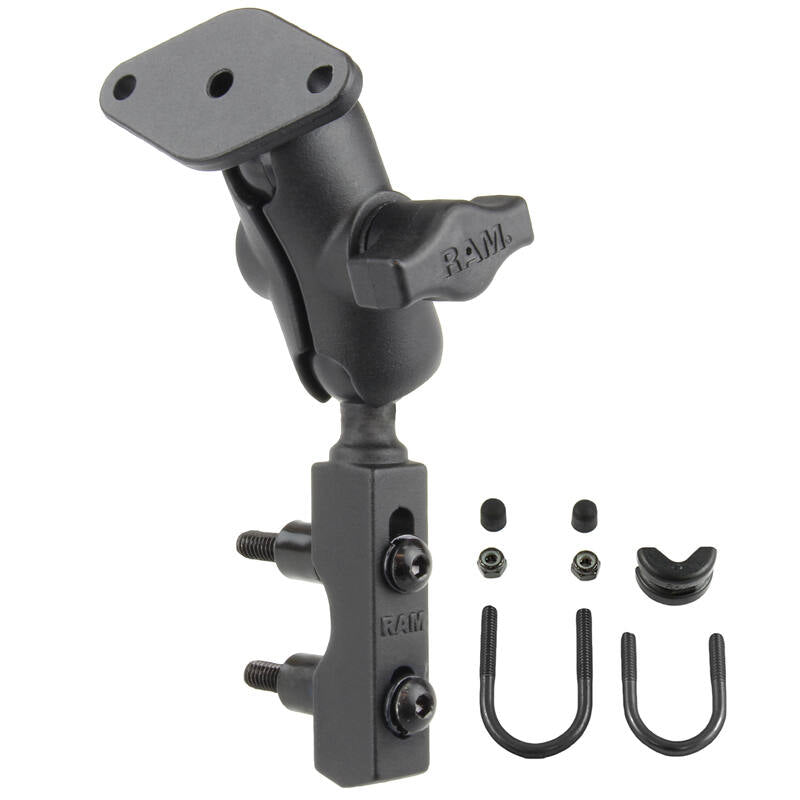

RAM-B-174U-A RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short.

Features:

* Contains both reservoir and handlebar U-Bolt mounting options
* Includes short length RAM double socket arm
* Diamond plate contains 2 hole AMP's pattern for connection to many RAM cradles
* Marine-grade aluminium construction ensures product longevity
* Lifetime warranty

This consists of a 1" diameter rubber ball, short double socket arm and hardware for mounting brake/clutch reservoirs / clamps. The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. To see if the RAM-B-174U-A base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm (0.94") and a maximum of 40.1mm (1.58").

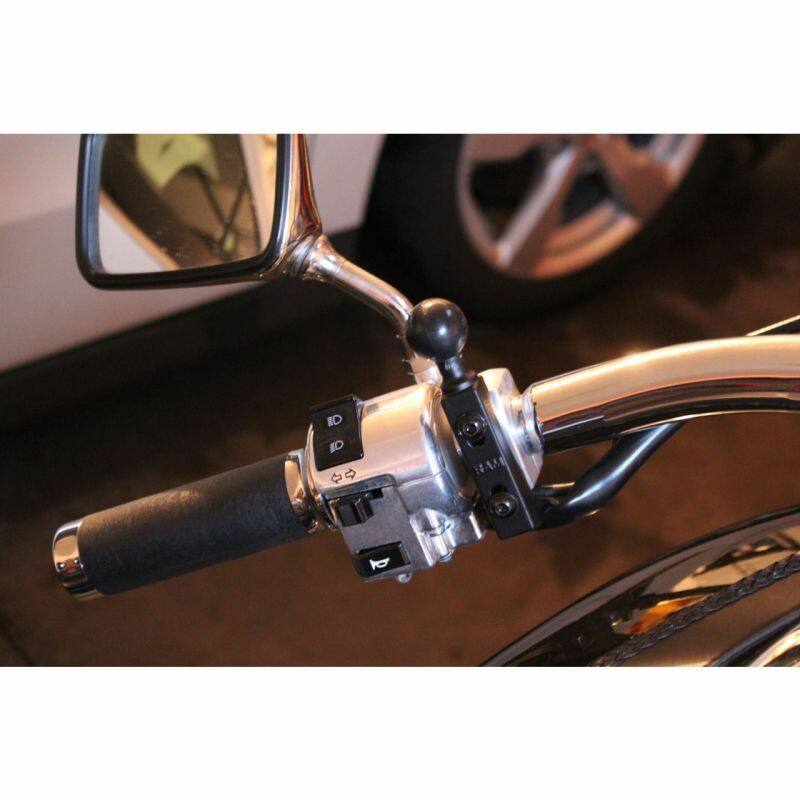

If you would rather bolt directly to the handlebars then the included U-Bolt option allows for direct connection to rails/bars that are 12.7mm to 31.75mm (0.5 to 1.25 inches) in diameter.

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm. The system allows you to move the mount to your optimum viewing position with a twist of the knob.


Specifications/Features

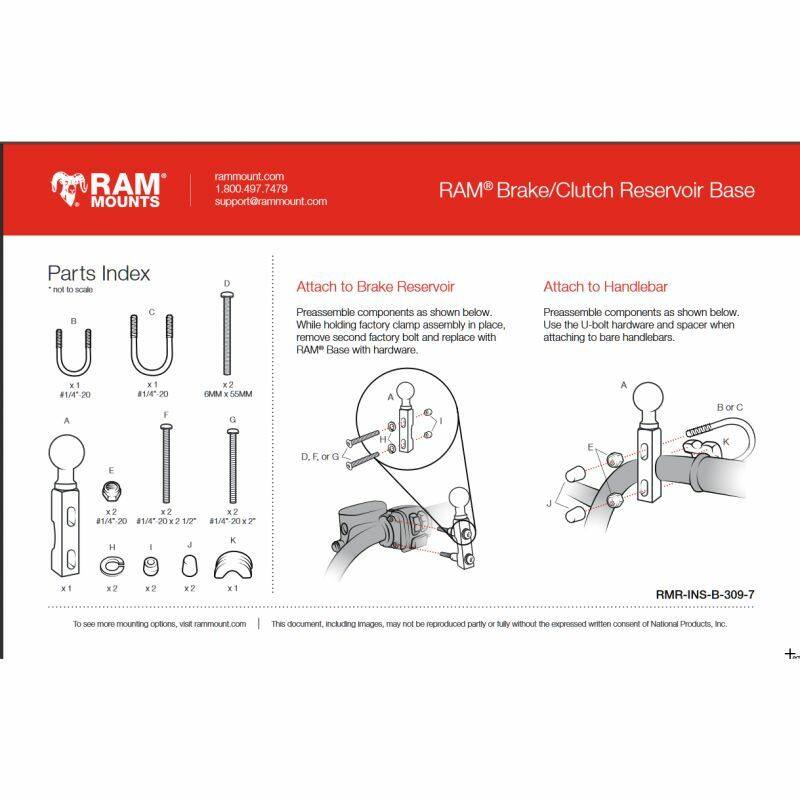

Hardware Included
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

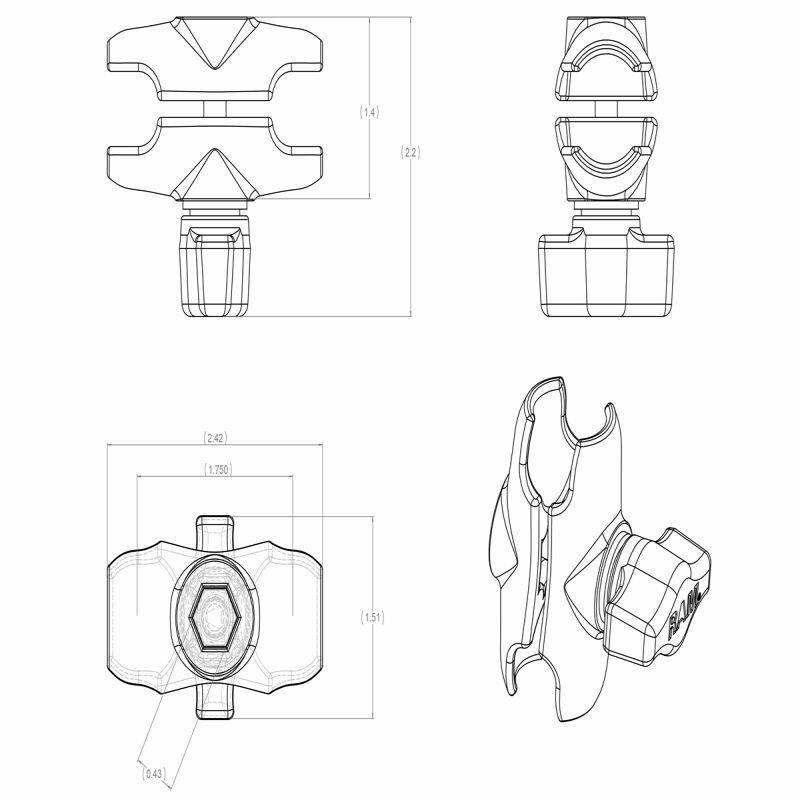

Arm Dimensions:
Overall:
60.5mm (2.38")
Socket-To-Socket:
51mm (2")


Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
1" Rubber Ball "B" Size


Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


YouTube:

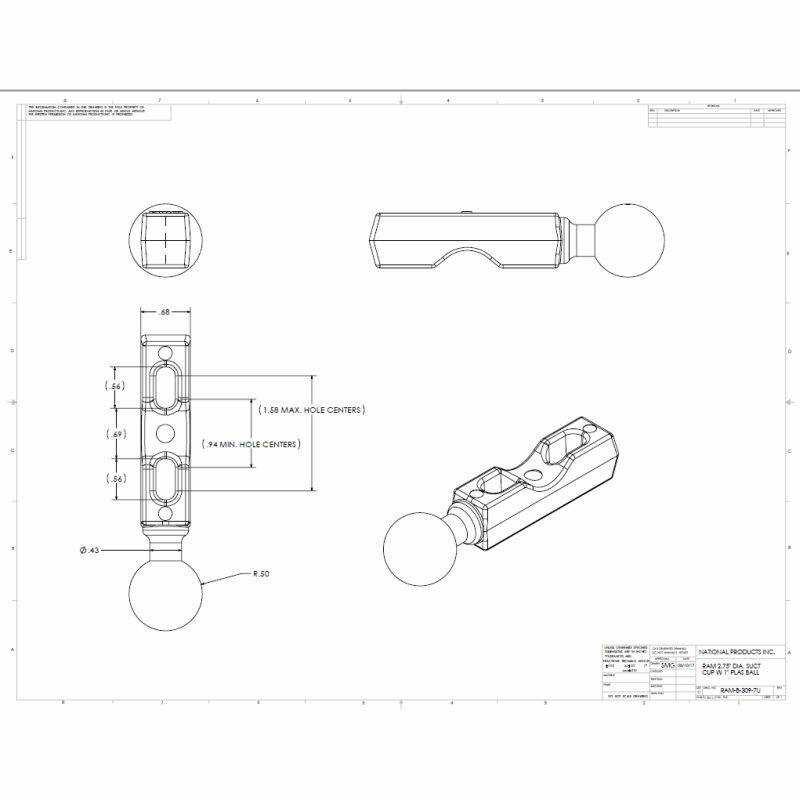

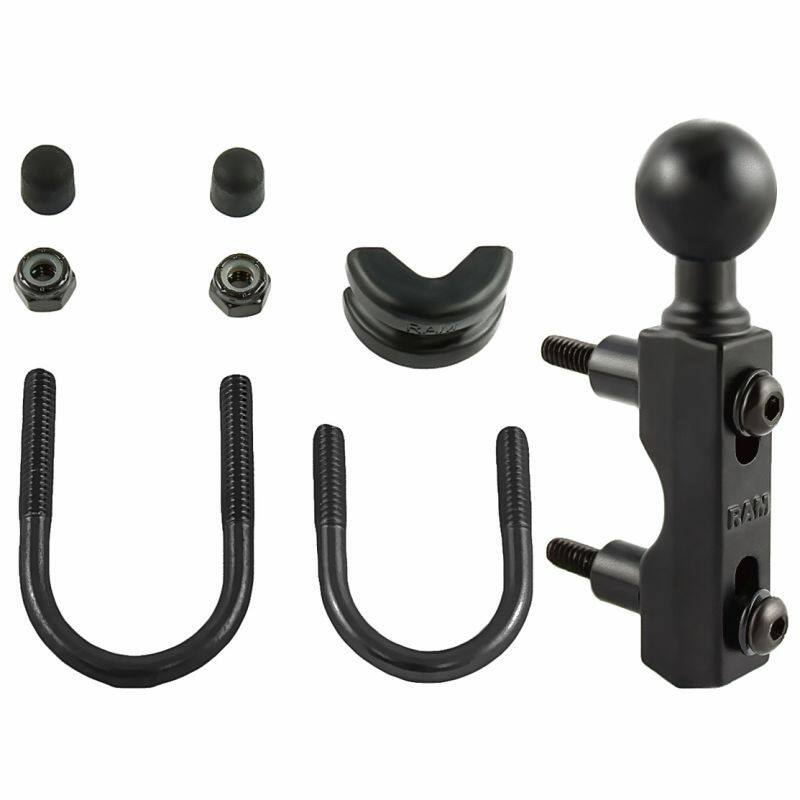

RAM-B-309-7U BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT COMBO

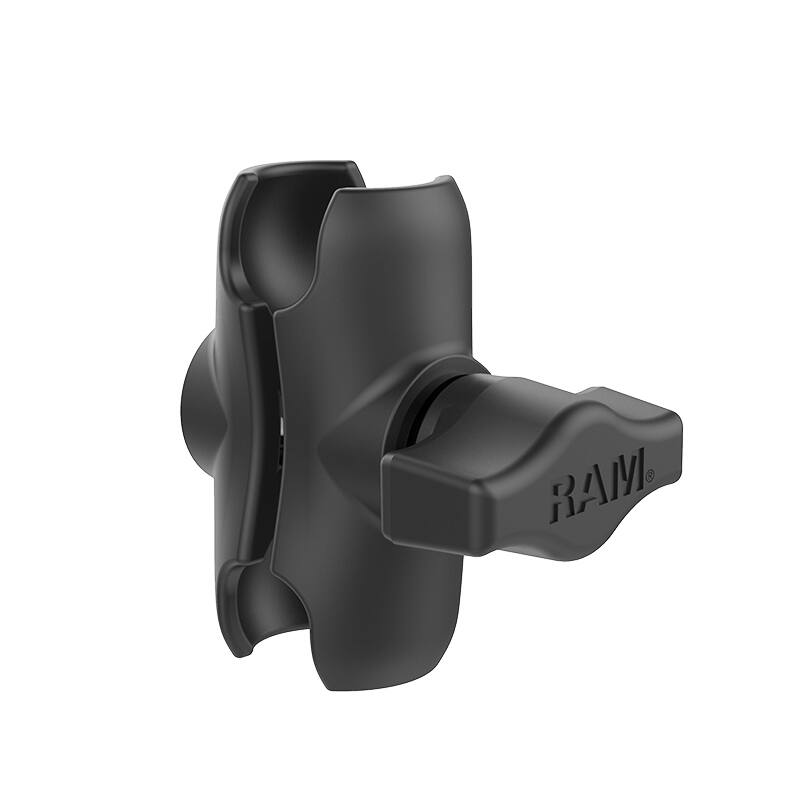

RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL

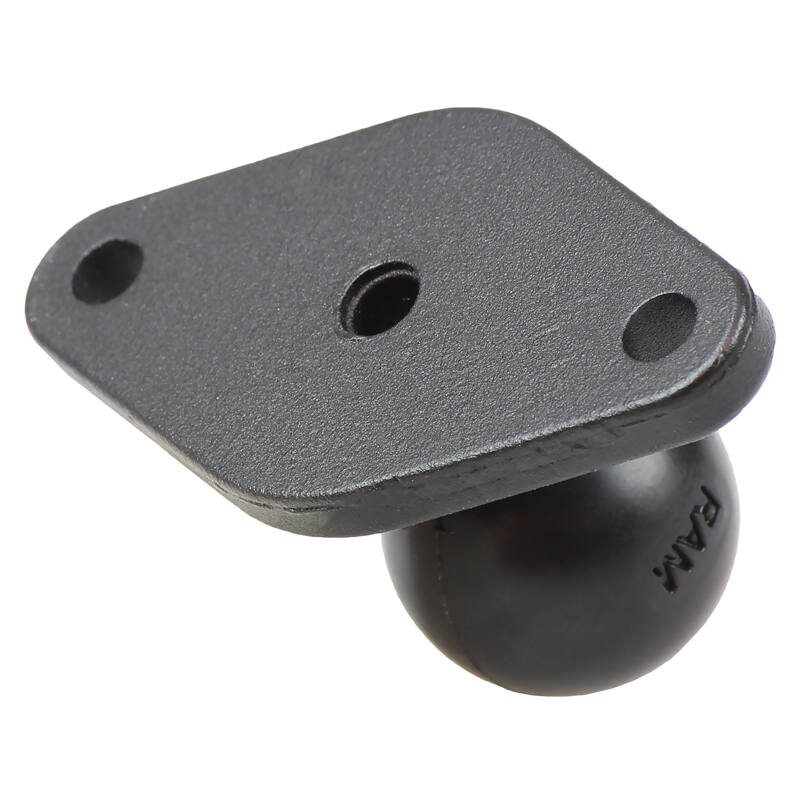

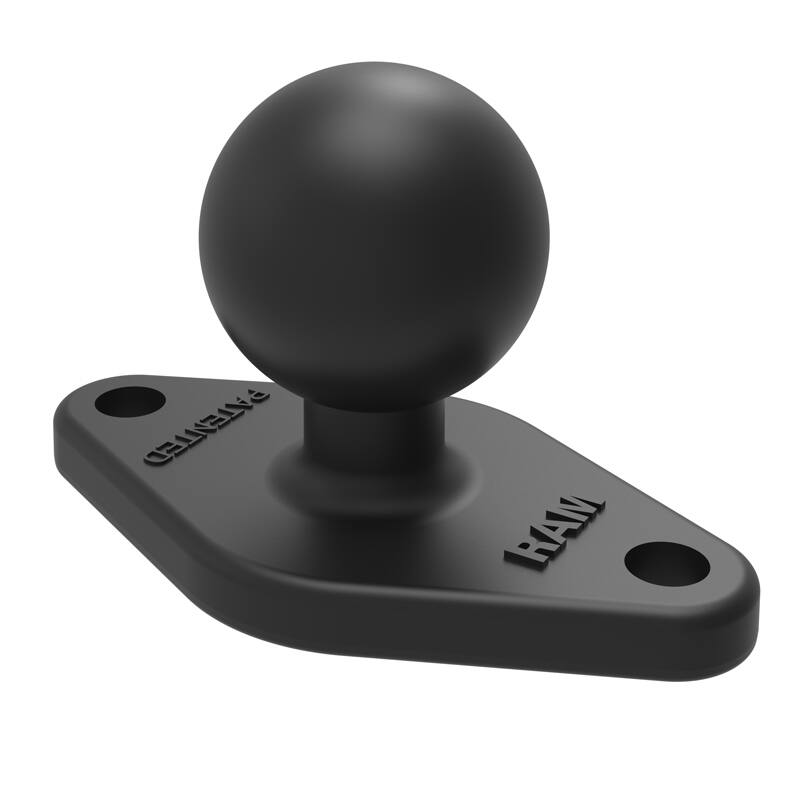

RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
