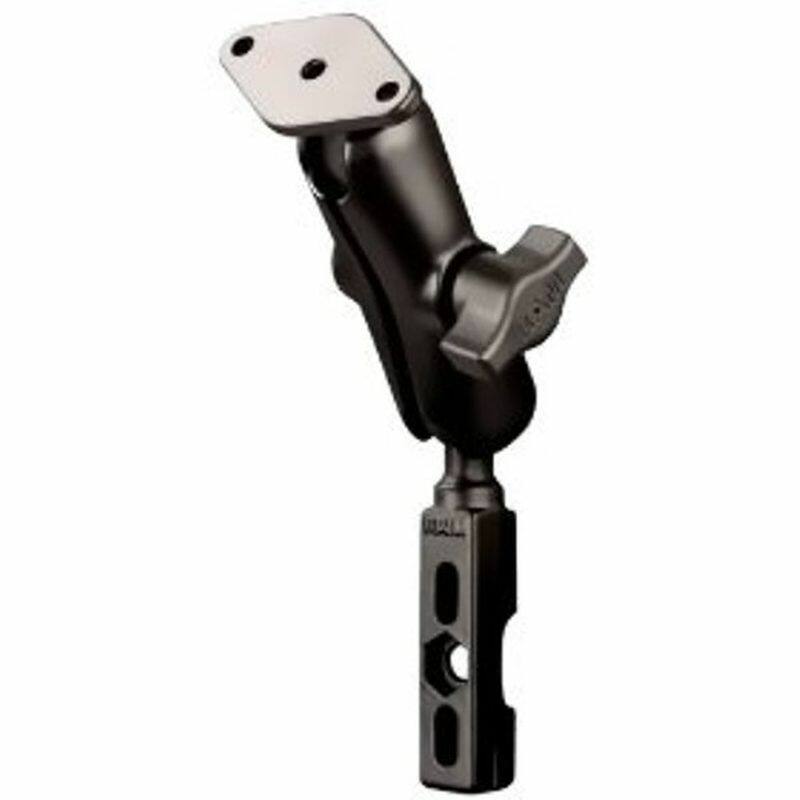

RAM-B-174U RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium
Features:

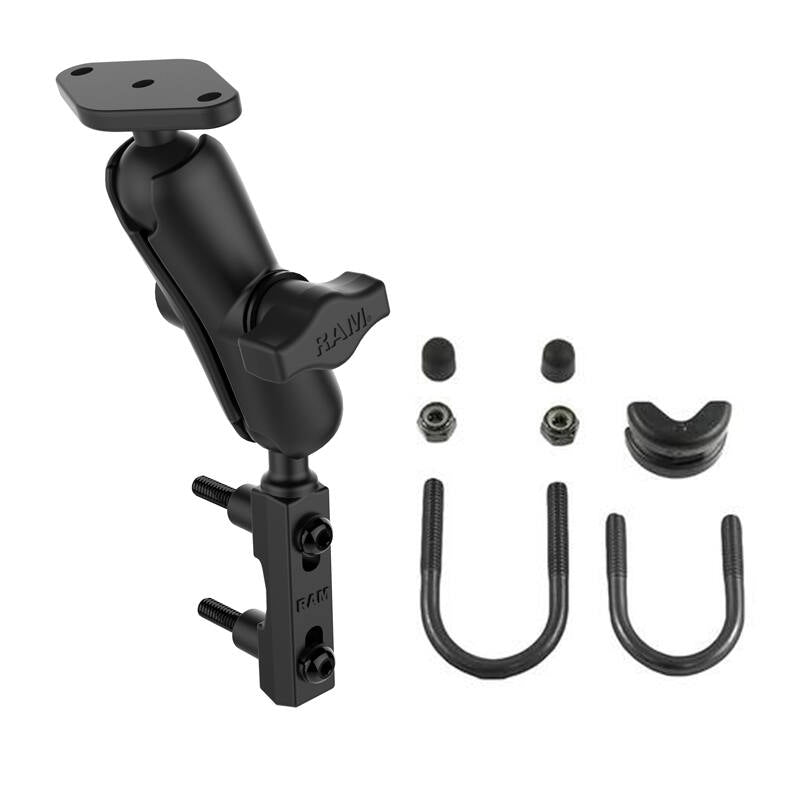

* Contains both reservoir and handlebar U-Bolt mounting options
* Includes medium length RAM double socket arm
* Marine-grade aluminium construction ensures product longevity
* Lifetime warranty

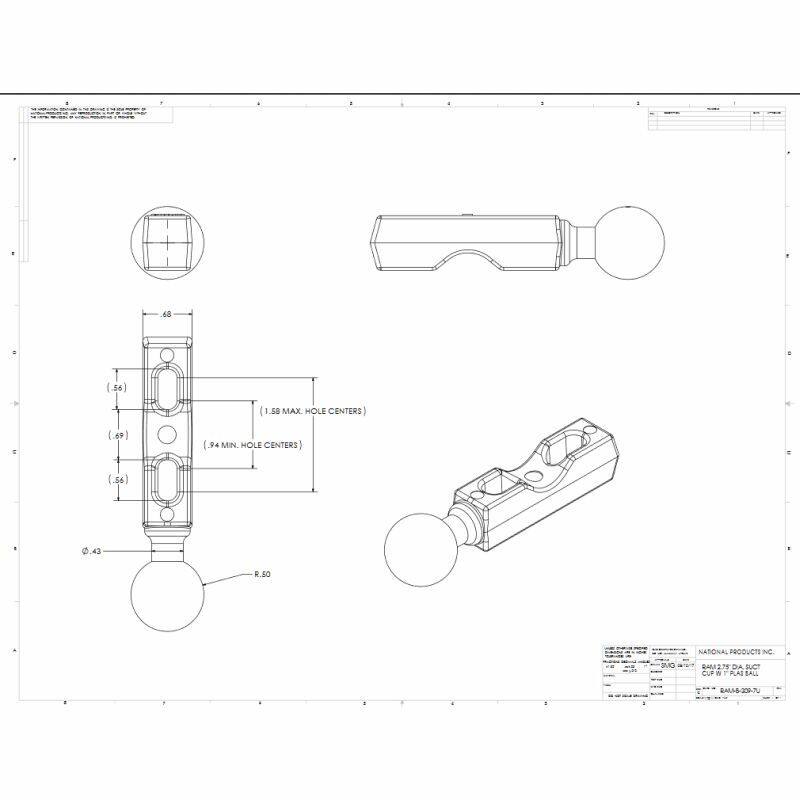

This consists of a 1" diameter rubber ball, double socket arm and hardware for mounting brake/clutch reservoirs / clamps. The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. To see if the RAM-B-174U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm (0.94") and a maximum of 40.1mm (1.58").

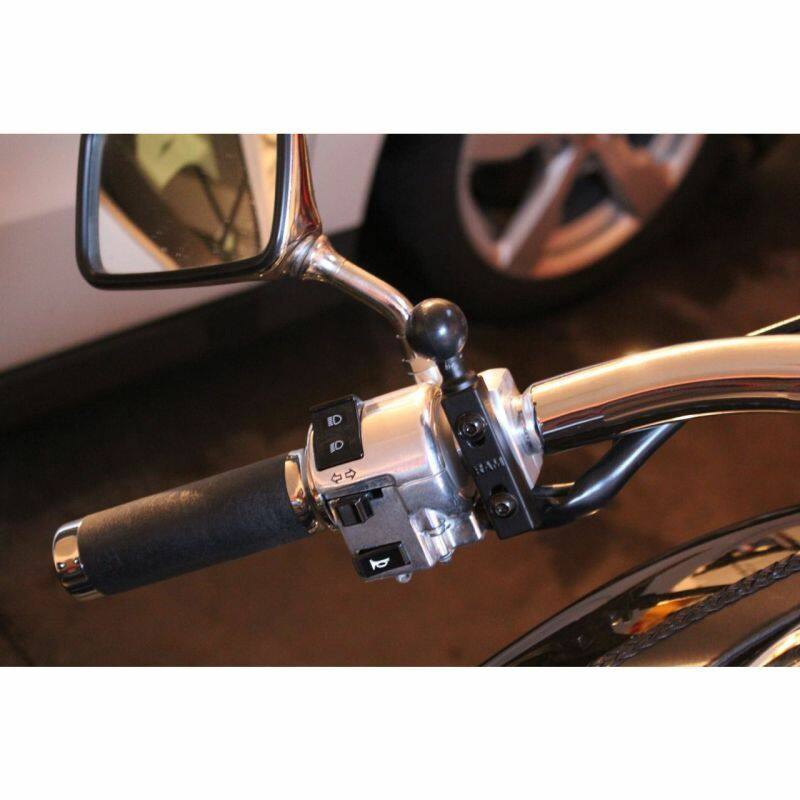

If you would rather bolt directly to the handlebars then the included U-Bolt option allows for direct connection to rails/bars that are 12.7mm to 31.75mm (0.5 to 1.25 inches) in diameter.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm. The system allows you to move the mount to your optimum viewing position with a twist of the knob.

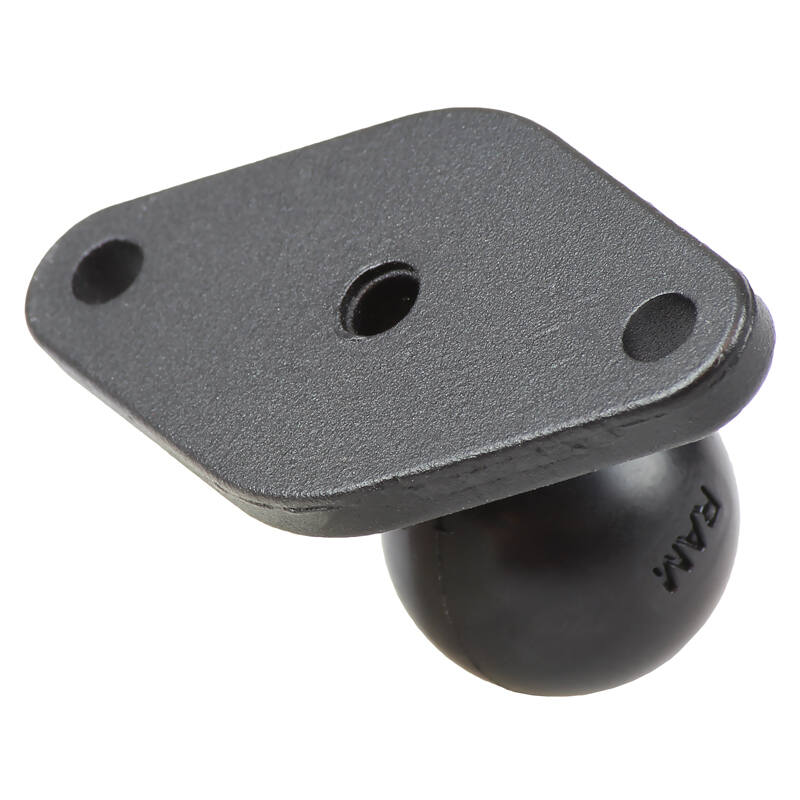

The Diamond Plate 2.43" x 1.31" with B Size 1" Ball attaches directly to any light weight RAM cradle
RAM Motorcycle Combination Base for Handlebar or Brake/Clutch Reservoir with 1" Ball includes Hardware for mounting to either brake/clutch reservoir or rail/handlebar
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Related Links:

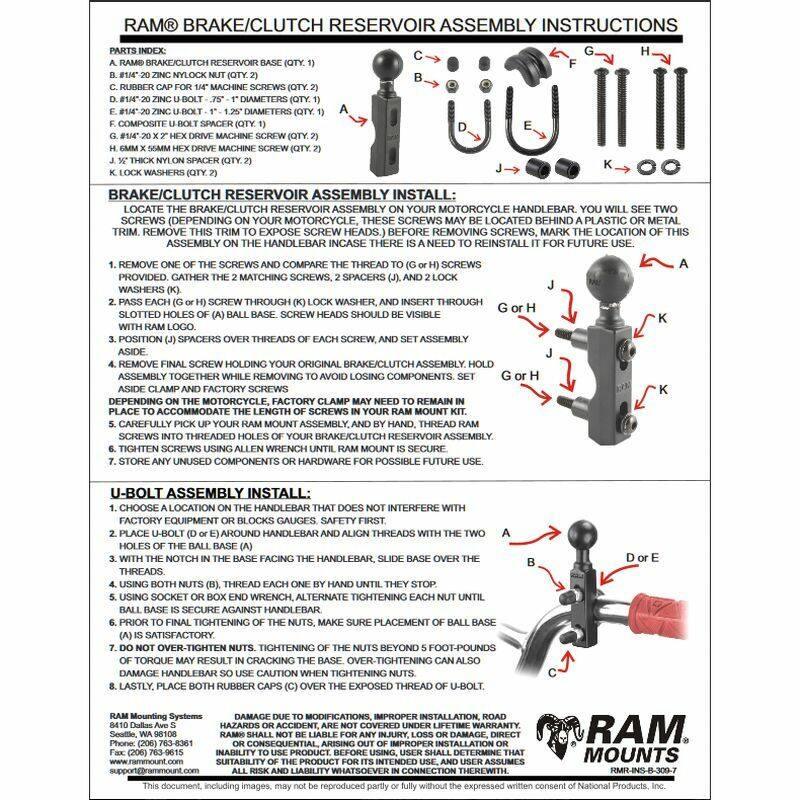

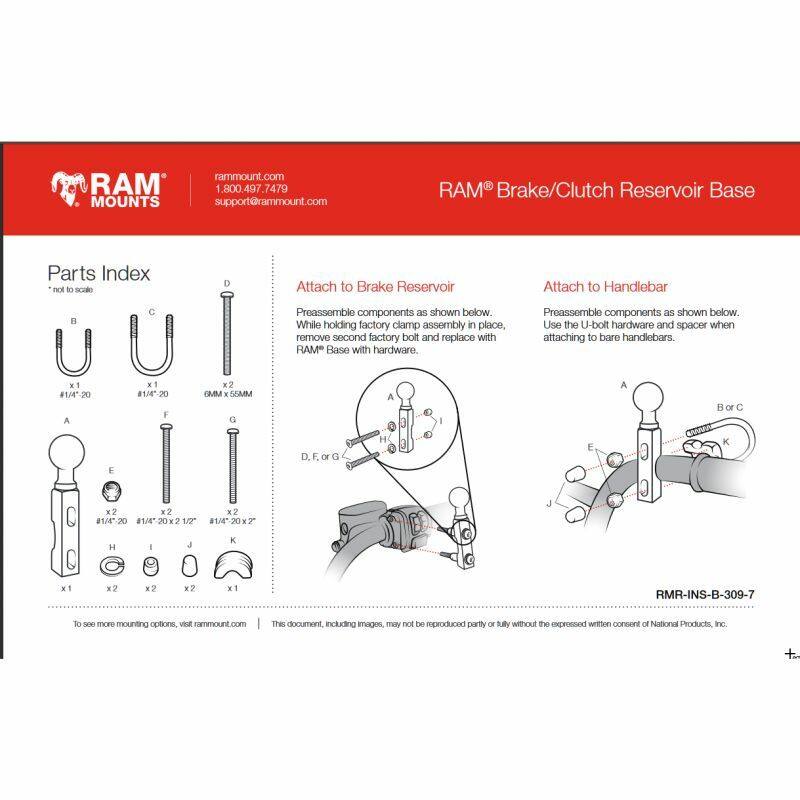

Brake/Clutch Reservoir Base Assembly Instructions: http://www.rammount.com/files/pdf/3091instructions.pdf
Components:

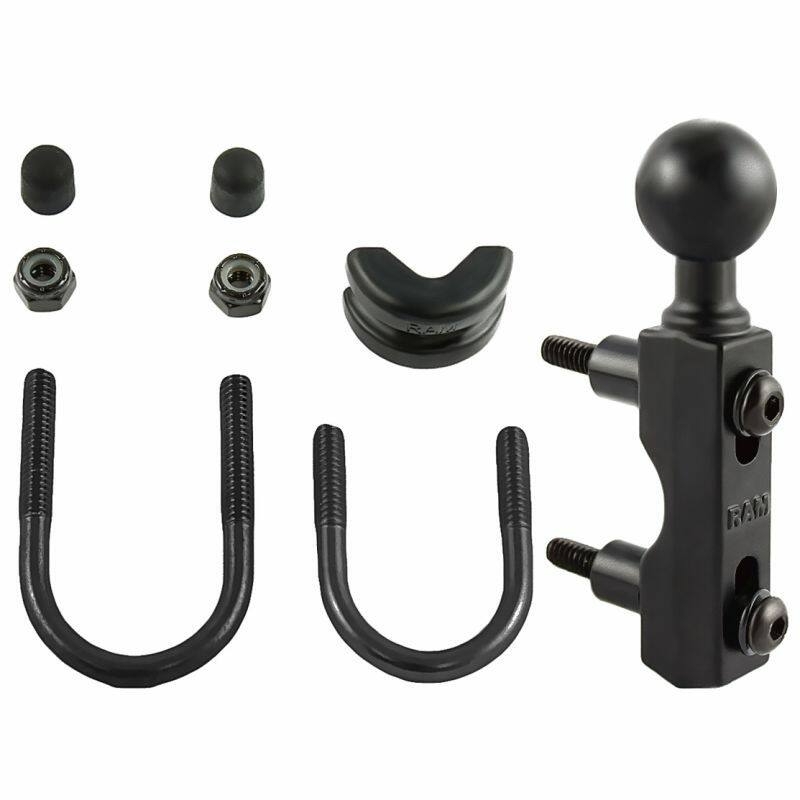

RAM-B-309-7U RAM BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT COMBO

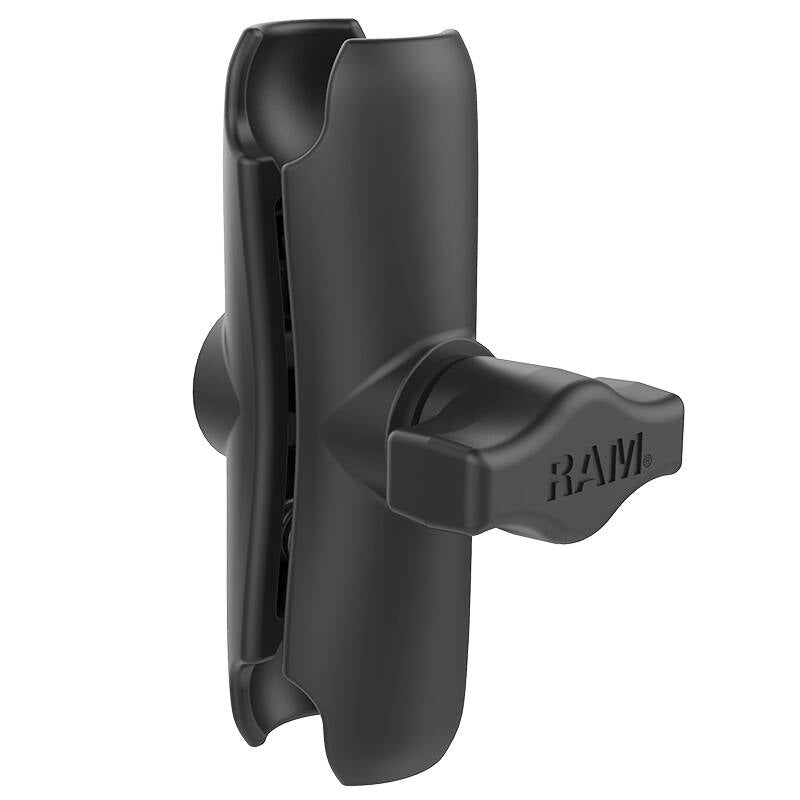

RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

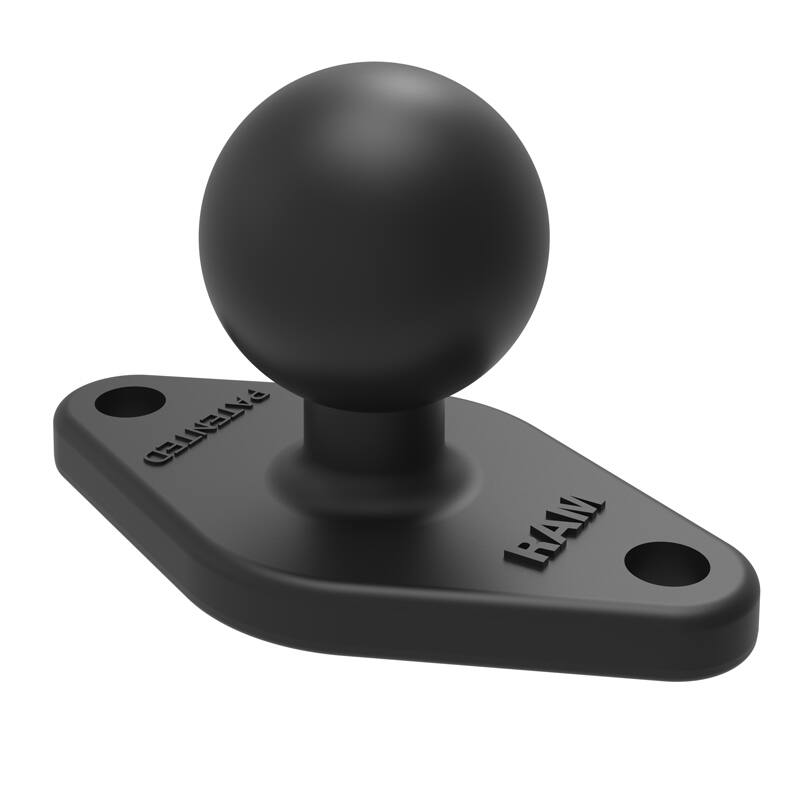

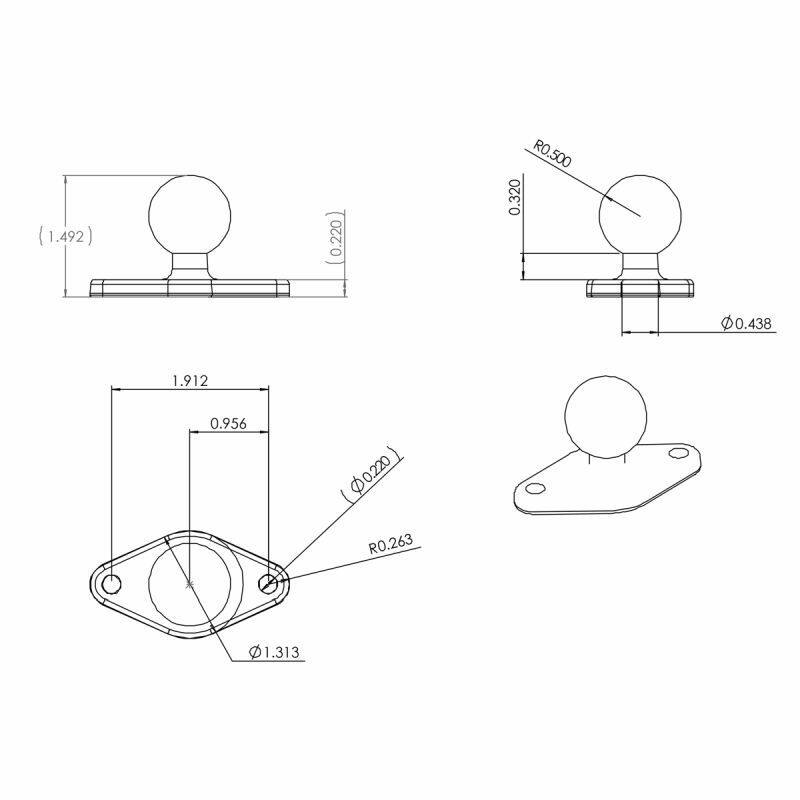

RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
