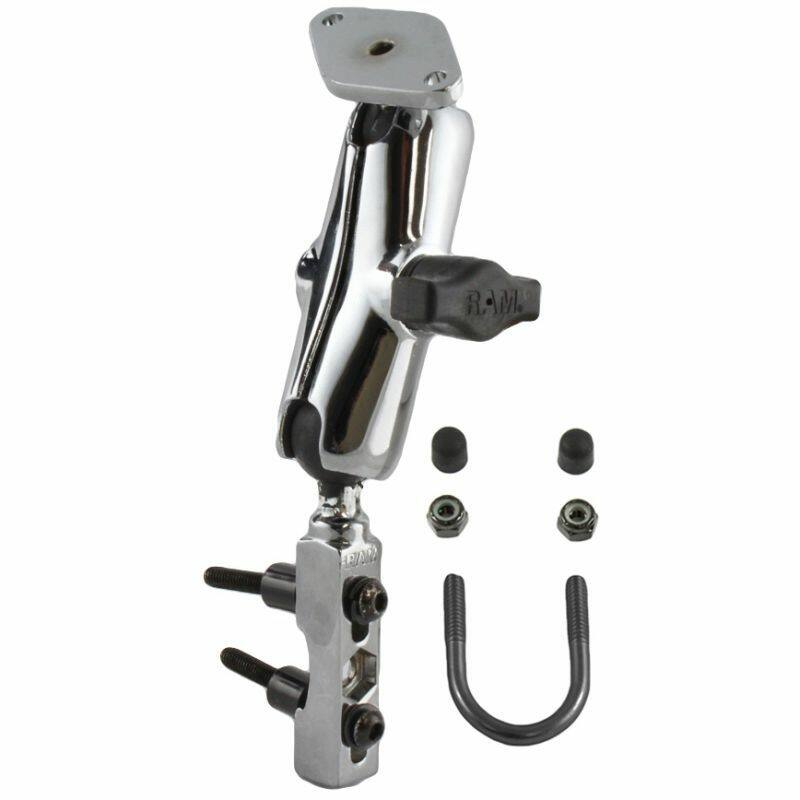

RAM-B-174CHU – RAM® Chrome Brake/Clutch Reservoir & U-Bolt Mount with Diamond Plate
The RAM-B-174CHU is the chrome-finish version of our two-in-one motorcycle base, for riders who want the mount to match the bike. Bolt it to a brake or clutch reservoir cover, or clamp it to a handlebar with the included U-bolt. It comes with a medium B-size double socket arm and a diamond AMPS plate for any RAM 1" ball cradle.
Key Features
Bright chrome finish to suit cruisers and custom builds

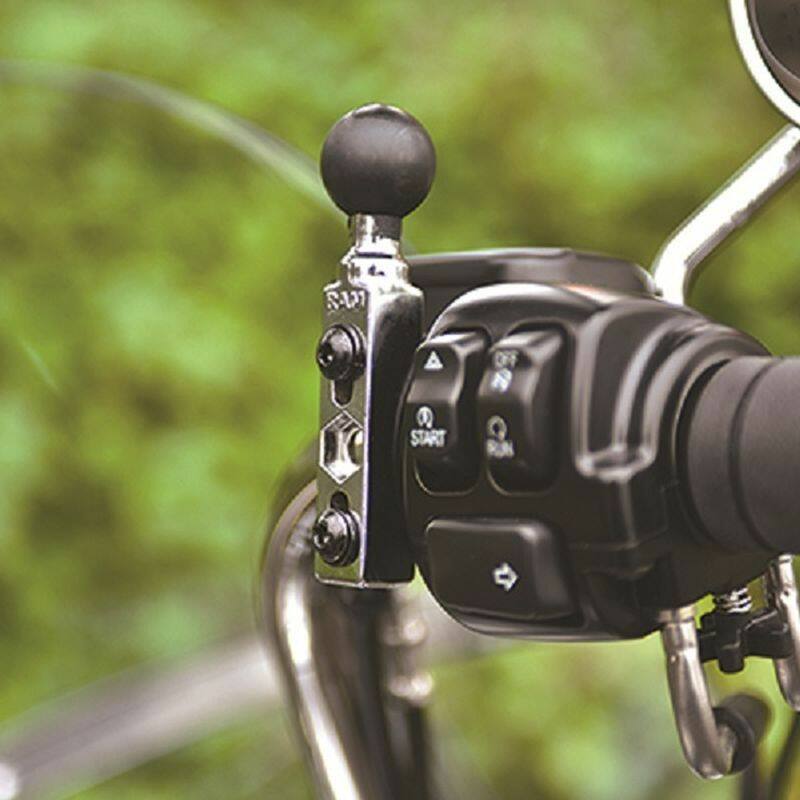

Mounts two ways: brake/clutch reservoir cover, or handlebar/rail via U-bolt
Reservoir hardware in standard and metric thread; U-bolt clamps rails 12.7mm to 31.75mm (0.5" to 1.25")
Diamond plate with 2-hole AMPS pattern
Marine-grade aluminium with chrome finish, RAM lifetime warranty
Works With
Takes any RAM B-size (1" ball) cradle or AMPS-pattern holder. To check reservoir fit, measure the bolt-hole centres on your cover: this base spans 23.9mm (0.94") to 40.1mm (1.58"). Prefer the standard powder-coated finish? See the RAM-B-174U.

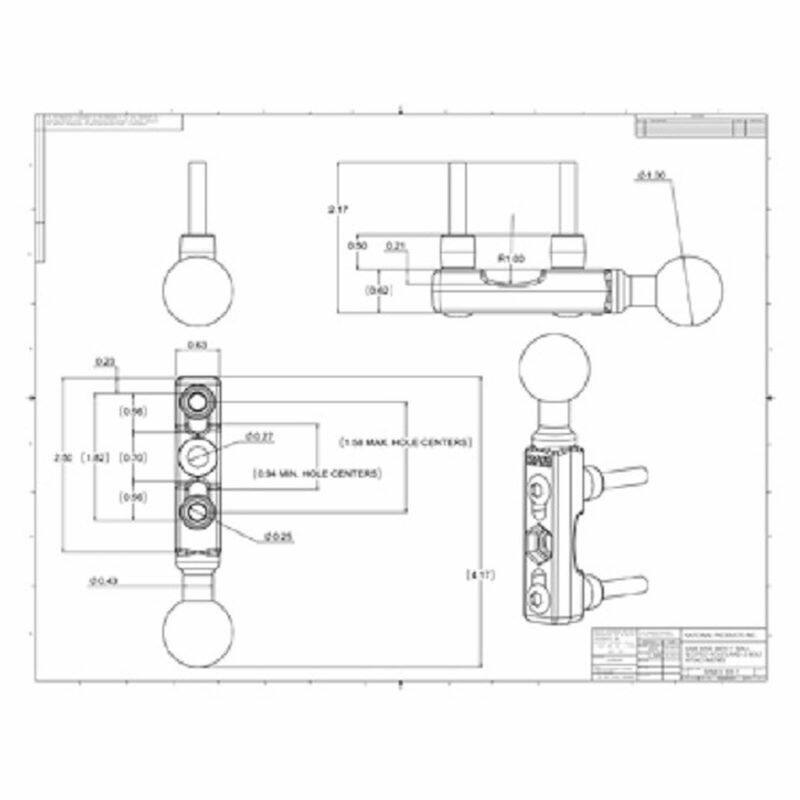

Dimensions & Specifications

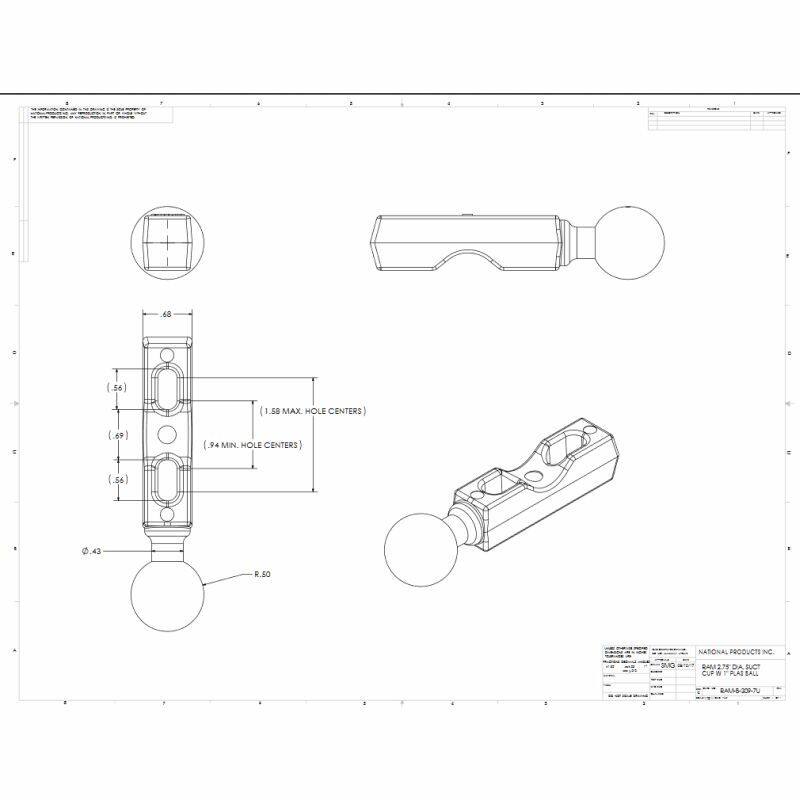

Reservoir bolt-hole centres: 23.9mm (0.94") to 40.1mm (1.58")
U-bolt clamping range: 12.7mm to 31.75mm (0.5" to 1.25")
Arm overall length: 94mm (3.69")
Arm socket-to-socket: 76mm (3")
Diamond plate: 61.7 x 33.3mm (2.43" x 1.31"), 2-hole AMPS 48.6mm (1.912")
Ball size: 1" rubber ball, RAM B-size
Material: marine-grade aluminium with chrome finish
Weight: 331g (0.73 lb)
What's Included

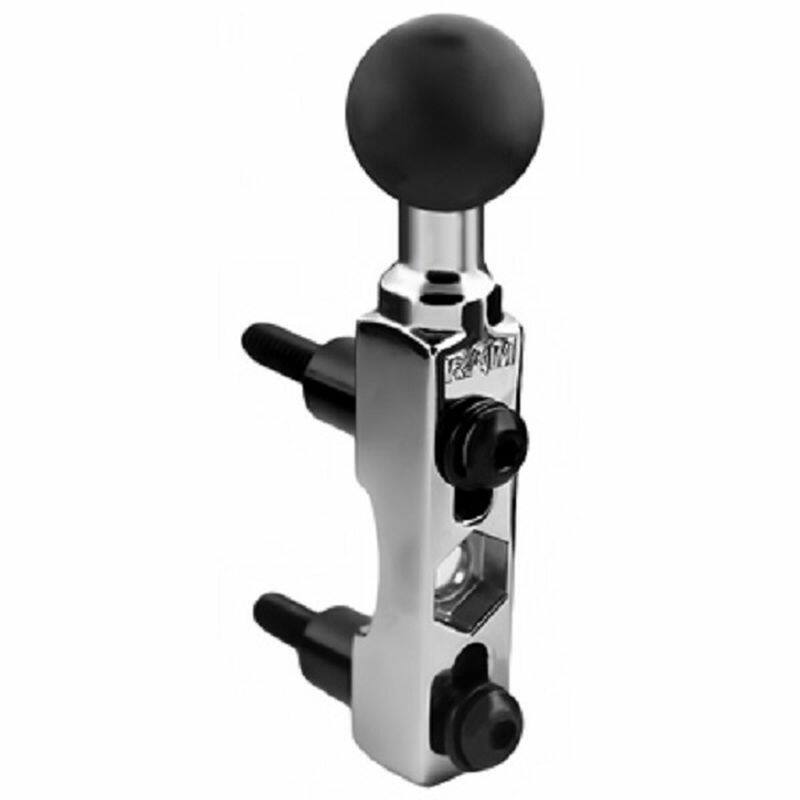

RAM-B-309-1CHU chrome brake/clutch reservoir and U-bolt combination base

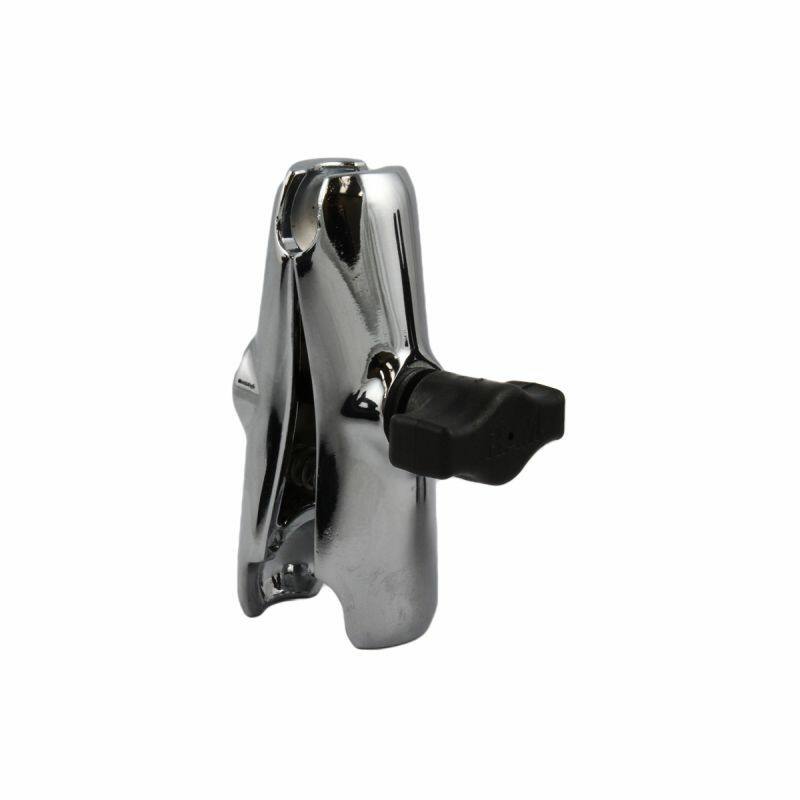

RAM-B-201CHU chrome medium double socket arm

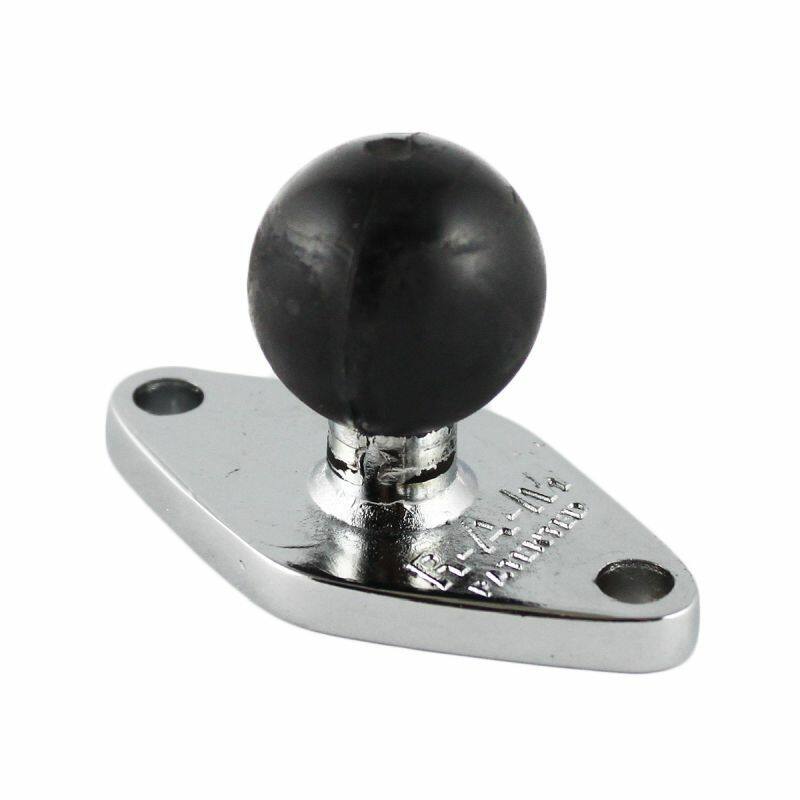

RAM-B-238CHU chrome diamond AMPS plate

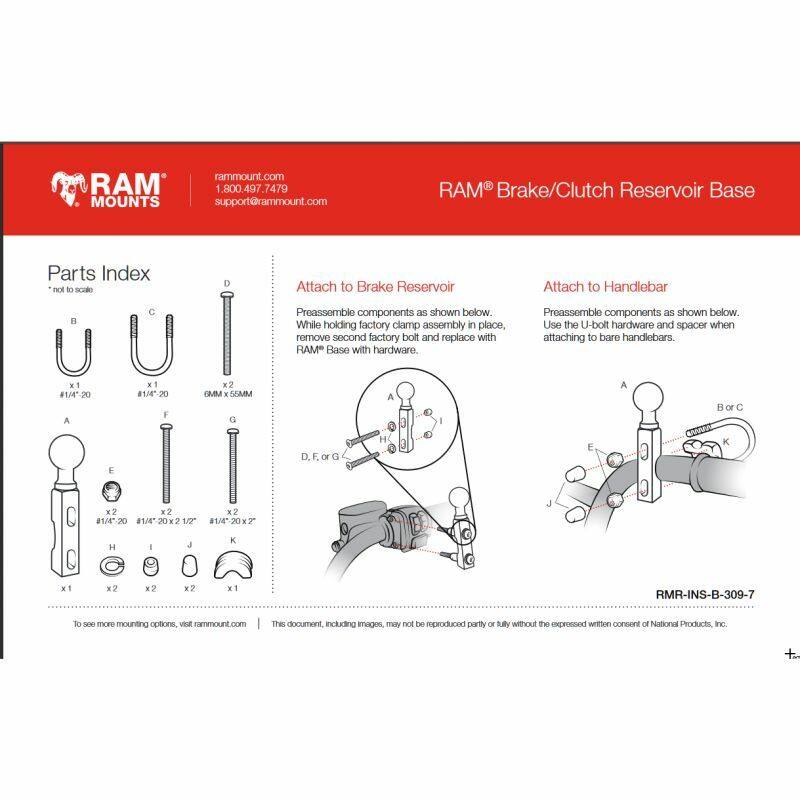

Standard and metric reservoir mounting bolts; U-bolt hardware
FAQs
Is the whole mount chrome? Yes. The ball, arm, plate and base all carry the chrome finish to match chrome bar and lever hardware. Function is identical to the standard RAM-B-174U.
How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
