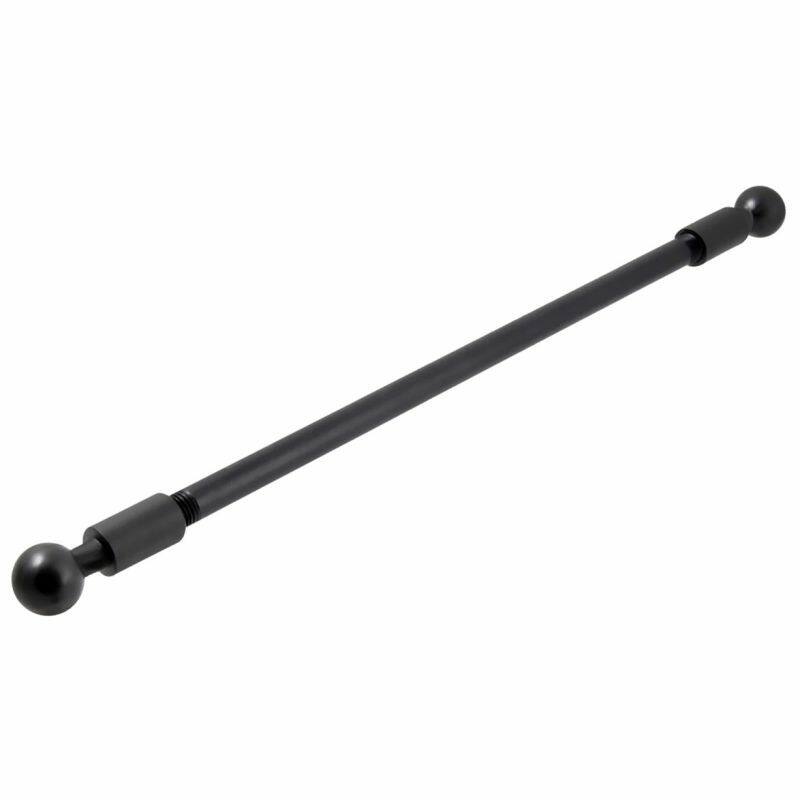

RAM Pipe 305mm / 12" Long with Dual Ball Ends

RAM-B-218-5412U RAM® 12" Long Rigid Pipe with Dual Ball Ends

Features

* 305mm aluminium pipe provides solid connection between base and cradle
* Both sockets ares B series to connect to RAM B series arms
* Backed by a lifetime warranty
* Made of Powder Coated Marine Grade Aluminium

The RAM-B-218-5412U consists of a 305mm / 12" long rigid with (2 qty) connected 1" diameter ball ends. The pipe includes 1/4" NPT female threaded holes at both ends.


Ball size
B Size (1")



Pipe DIMENSIONS
Overall Length:
305mm / 12"


THREAD PITCH
1/4" NPT


MATERIALS
Marine-grade aluminium


WEIGHT
150 grams / .33lbs

Components:

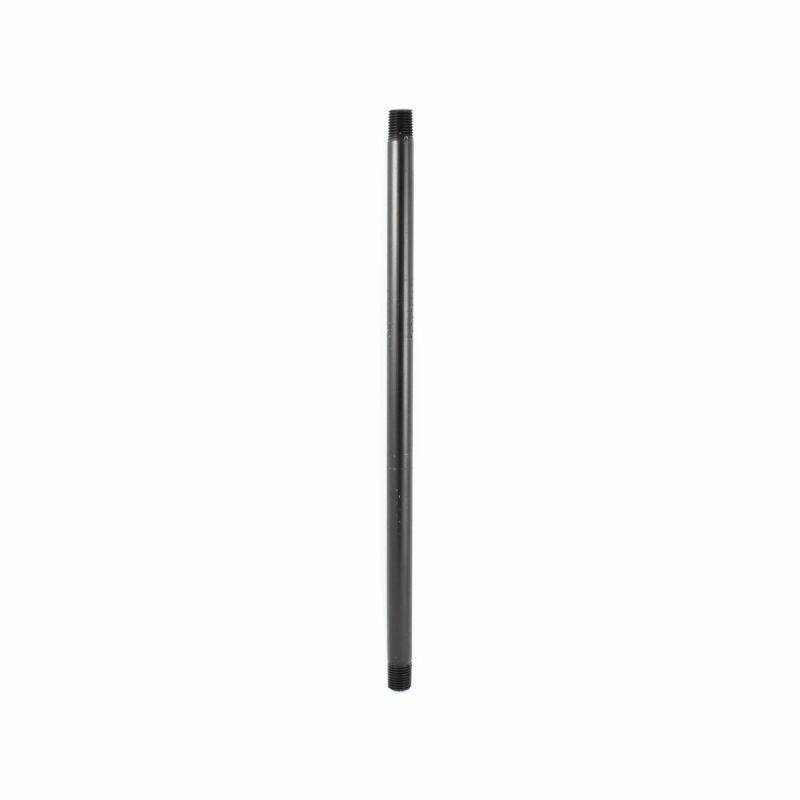

RAM-PA5412 RAM 1/4" X 12" LONG PIPE NIPPLE aluminium

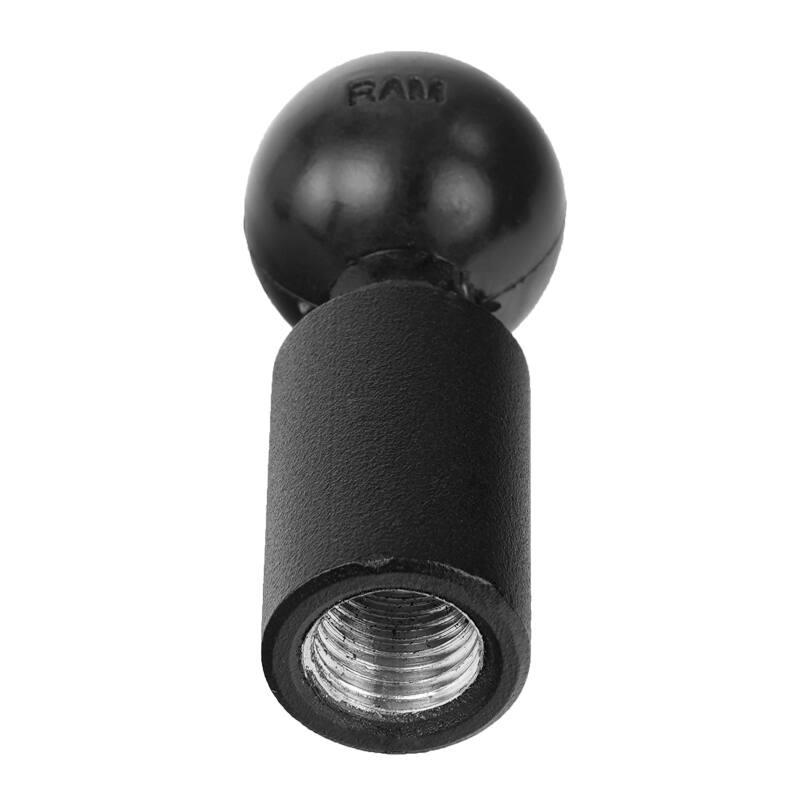

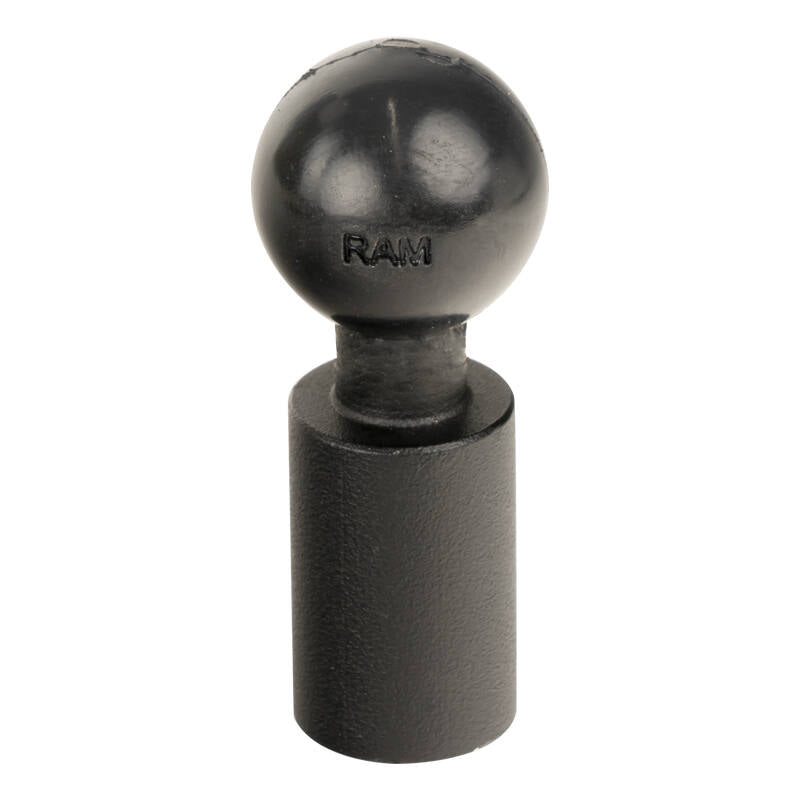

RAM-B-218-1U RAM BASE WITH 1/4" NPT THREADED HOLE (x2)



Additional Information

NPT Thread and Pipe Sizing:


NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:


NPT Size (NPS) / Pipe Outer Dia. / (OD) Threads per inch
1/4" / 0.540" / 18
1/2" / 0.840" / 14
1" / 1.315" / 11.5
