RAM-B-102-A-PD3U RAM® Quick-Grip™ Phone Mount with Diamond Base
Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices

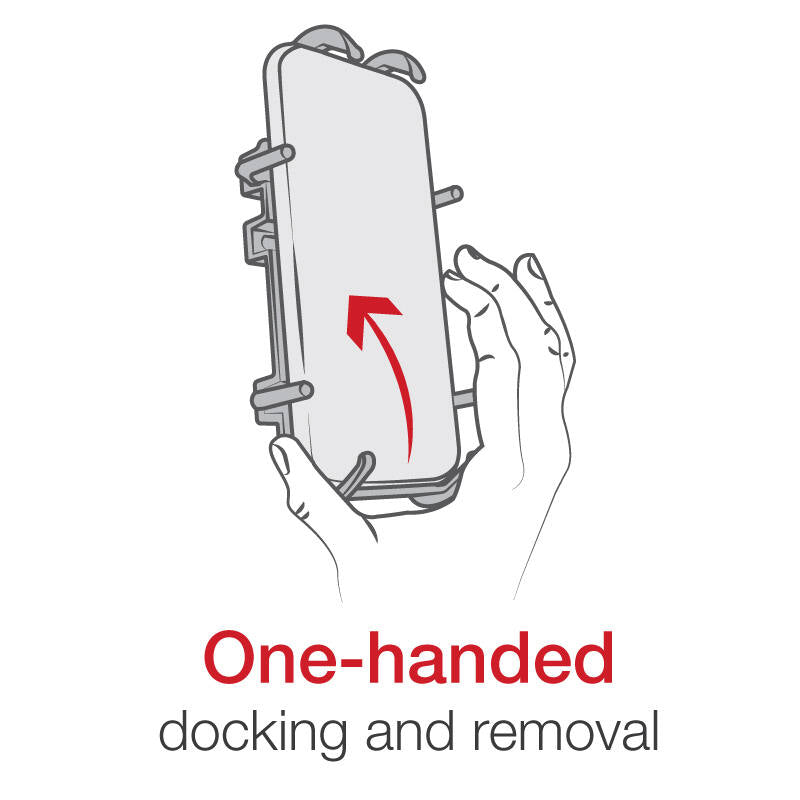

* Easily insert and remove your phone with one hand
* RAM® diamond base has universal 2 Hole AMPs pattern for drill-down mounting on boats, cars, trucks, planes etc
* Short RAM arm with double socket technology allows for a wide variety of viewing angles
* Backed by a lifetime warranty

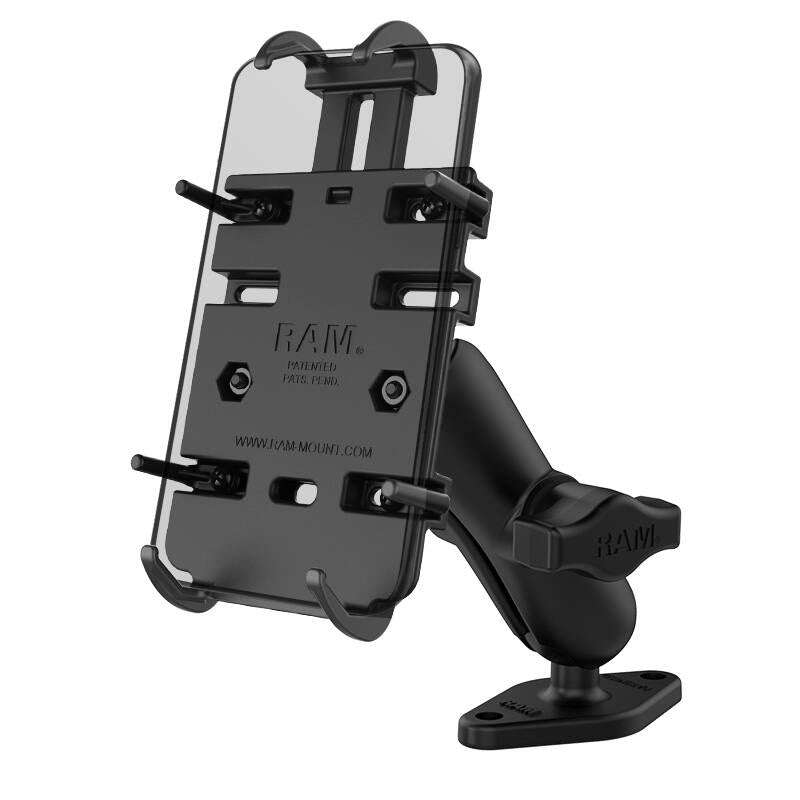

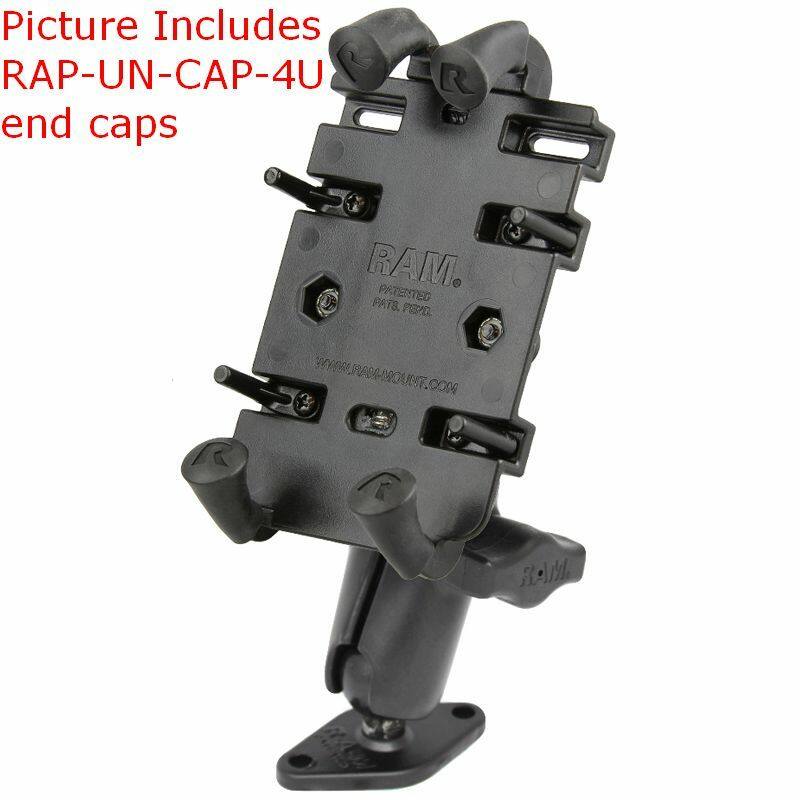

The RAM Quick-Grip™ Flat Surface Mount consists of a 2-hole diamond drill-down bases, a SHORT alloy double socket arm and spring loaded cradle for supporting most phones.
The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.
The Diamond Plate is perfect for permanent mounting on boats, cars, trucks, planes etc. and consists of a 1" diameter rubber ball connected to a diamond base. The base has two holes using the standard AMPS hole pattern.

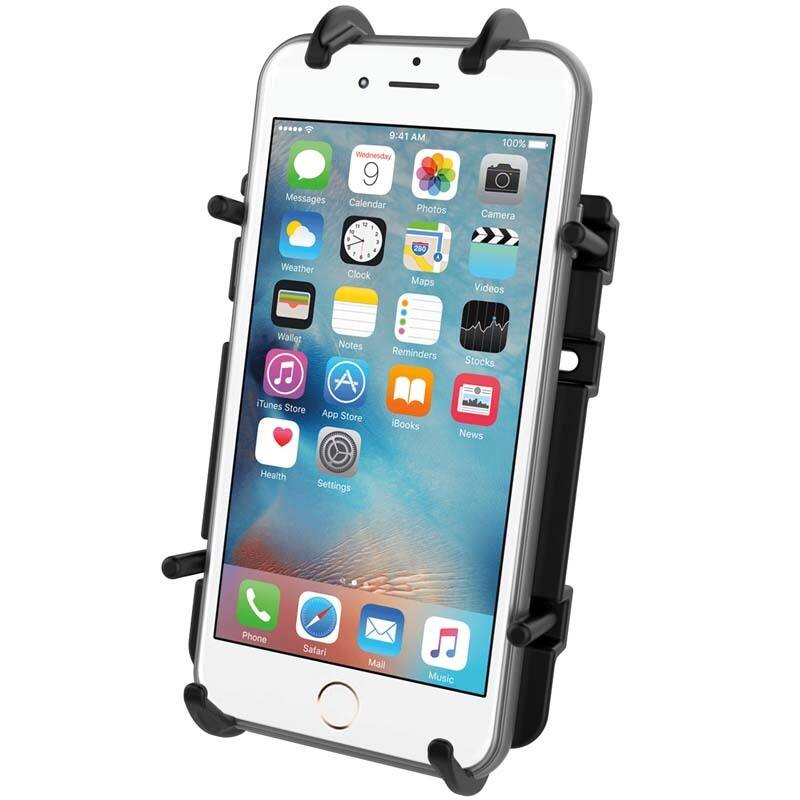

The spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of smartphones and other devices. For Phablets a larger version is available. Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices the -PD3U allows you to easily insert and remove your phone with one hand
The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.
Cradle Clamping Dimensions:
Height Range: 120.7 to 144.1mm (4.75" - 5.75")
Width Range: 31.8 to 82.6mm (1.25" - 3.25")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD3U
Arm Dimensions:
Overall:
60.5mm (2.38")
Socket-To-Socket:
51mm (2")
Diamond Plate
Dimensions:
61.7mm x 33.3mm (2.43" x 1.31")
Hole Pattern
2-Hole AMPS: 48.6mm (1.912")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
286 grams (0.63 lbs)
Components

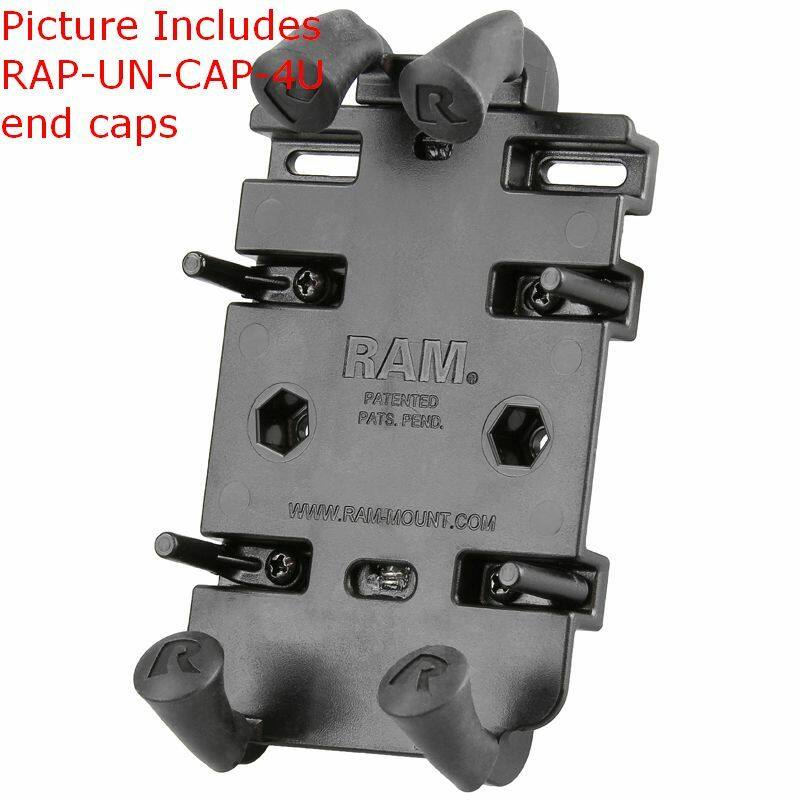

RAM-HOL-PD3U - Quick Grip
RAM-B-201U-A - short alloy arm
RAM-B-238U (x2) - diamond base
