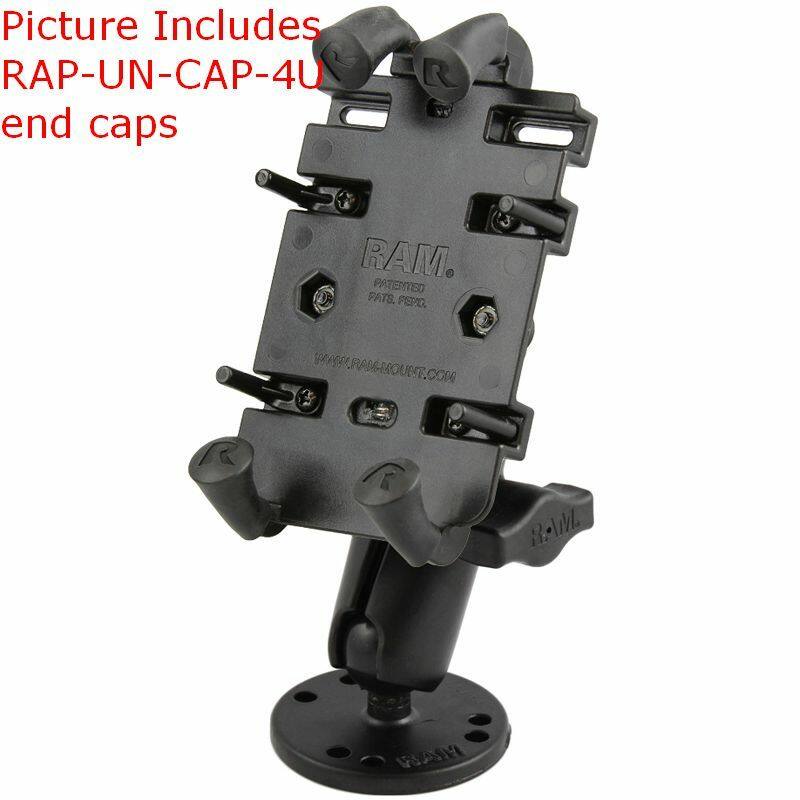

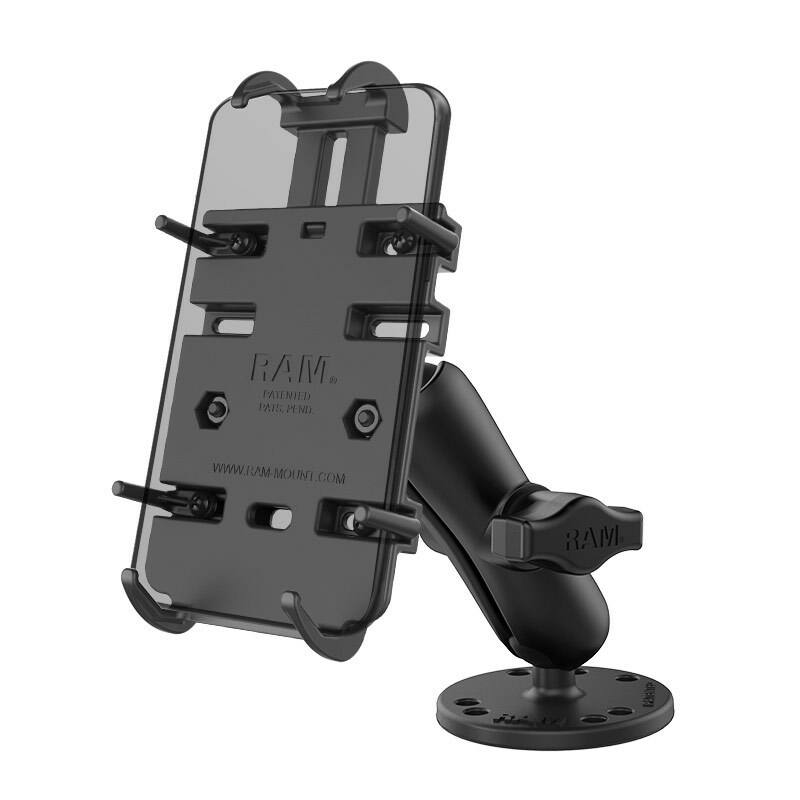

RAM-B-138-PD3U RAM® Quick-Grip™ Phone Mount with Drill-Down Round Base
The RAM-B-138-PD3U pairs a spring-loaded Quick-Grip™ cradle with a 63.5mm (2.5") drill-down round base, for a permanent, flat-surface install on dashboards, consoles, or cabinetry. A diamond base plate is also included as an alternate mounting option.
Key Features

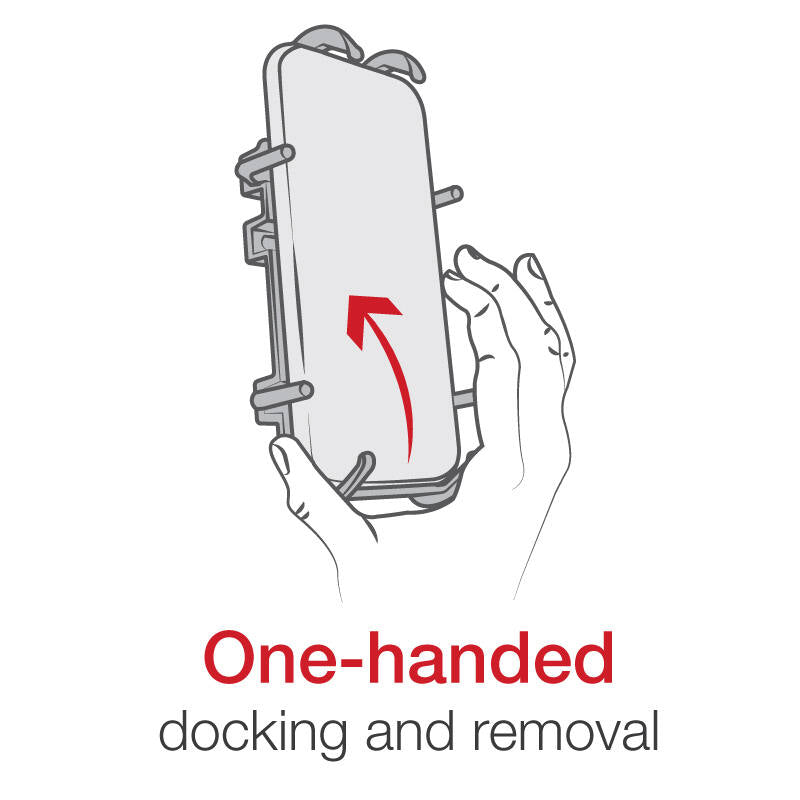

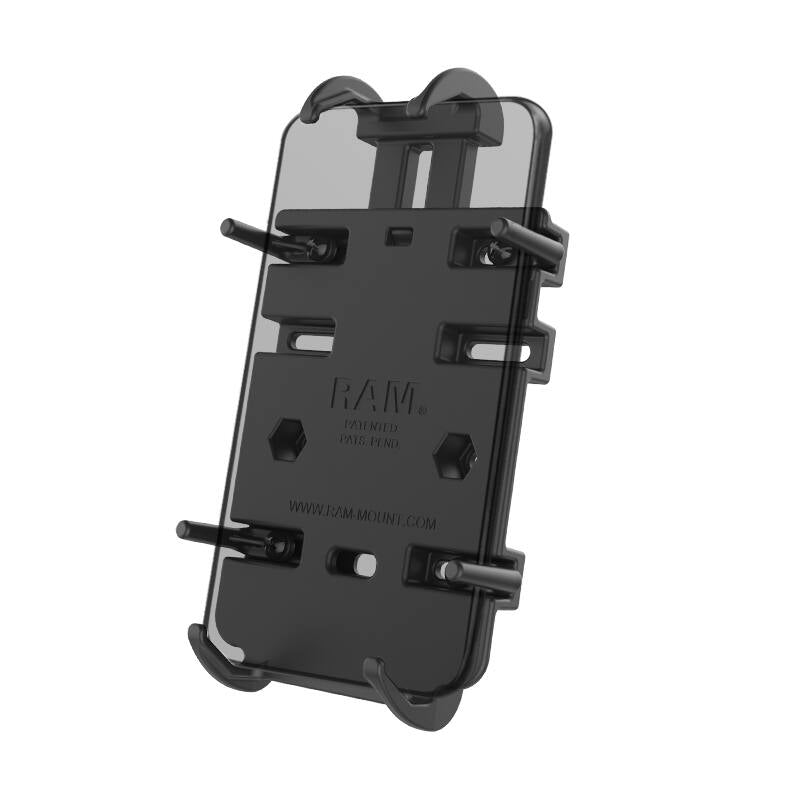

Spring-loaded Quick-Grip™ cradle with adjustable side supports holds a wide range of phones and devices; insert and remove with one hand
63.5mm (2.5") drill-down round base bolts to any flat surface; supports both 4-hole AMPS and 3-hole 120-degree mounting patterns
Diamond base plate included as an alternate 2-hole AMPS mounting option
Medium-length B size RAM® double socket arm with ball-and-socket design for near-infinite positioning
Powder-coated marine-grade aluminium and high-strength composite construction
Backed by a lifetime warranty

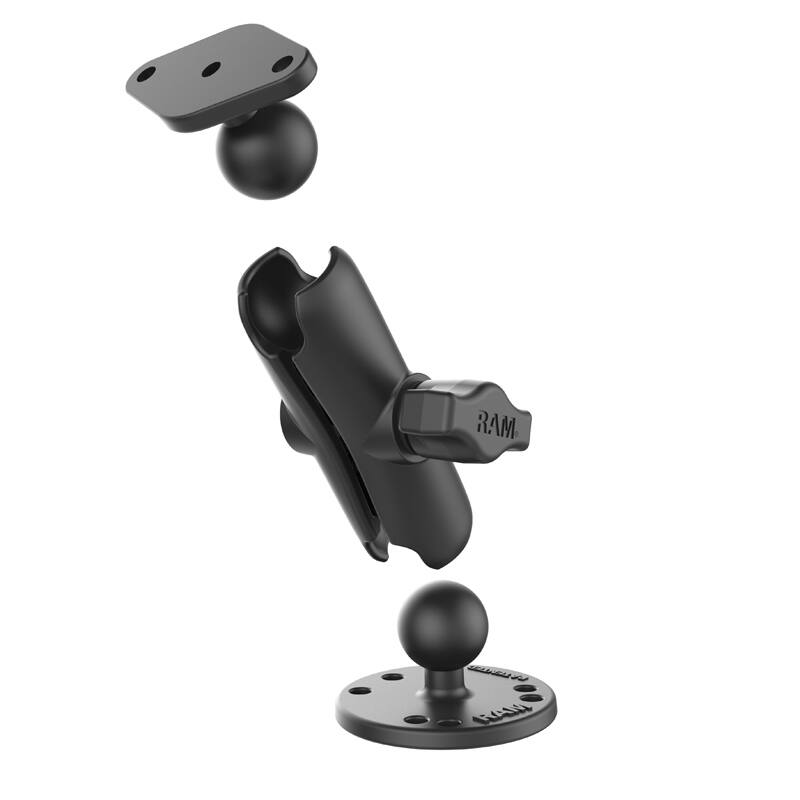

What's Included

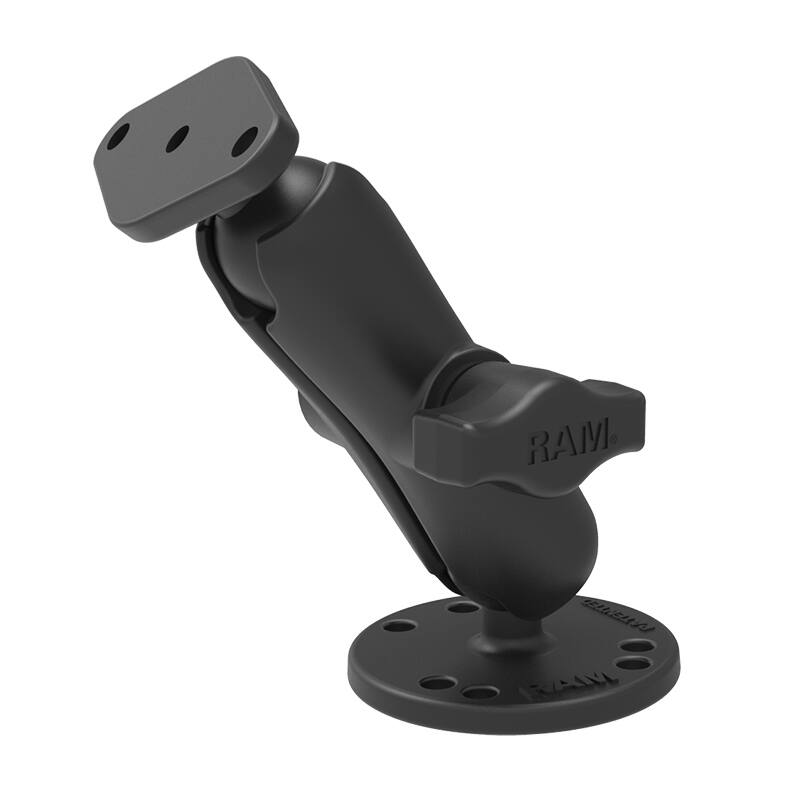

RAM-B-202U 63.5mm (2.5") round base with 1" B-size ball
RAM-B-238U diamond base plate with 1" B-size ball
RAM-B-201U double socket arm

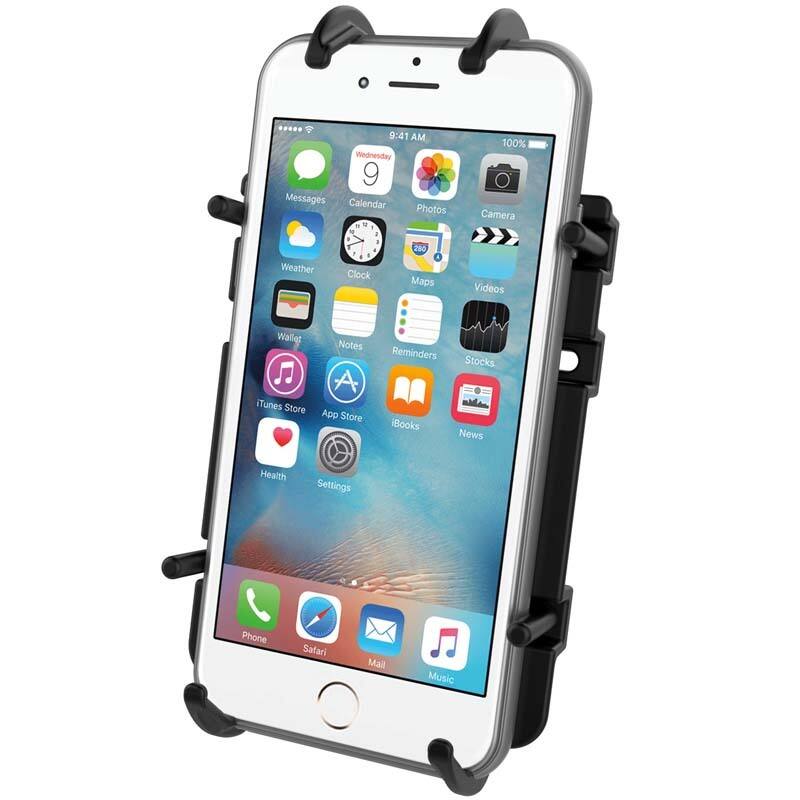

RAM-HOL-PD3U Quick-Grip™ cradle
Dimensions & Specifications

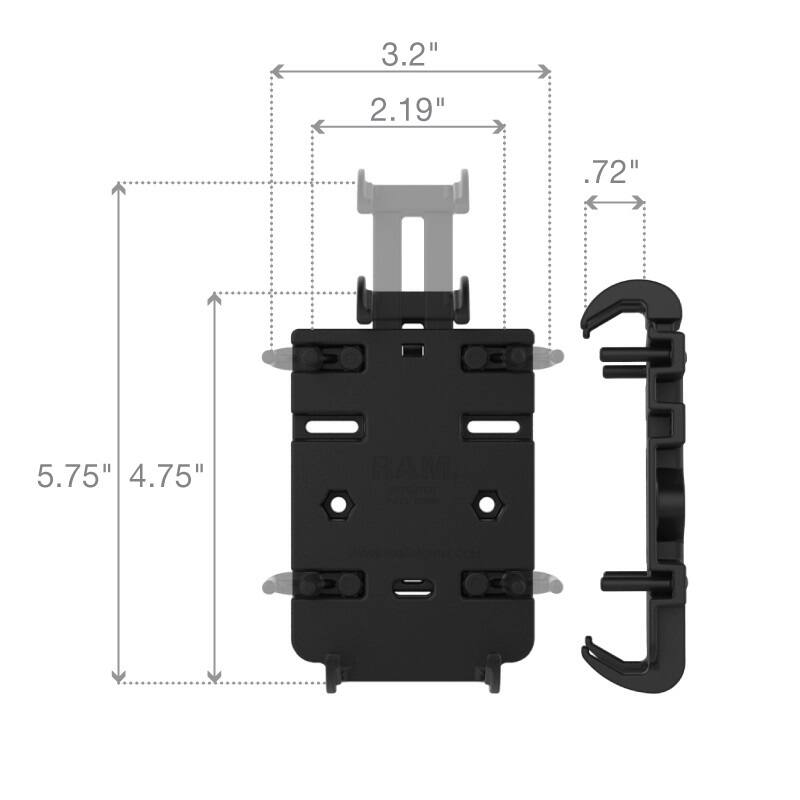

Cradle clamping height range: 120.7mm to 144.1mm (4.75" to 5.75")
Cradle clamping width range: 31.8mm to 82.6mm (1.25" to 3.25")
Cradle max depth: 18.3mm (0.72")
Round base diameter: 63.5mm (2.5")
Hole pattern, 4-hole AMPS: 30mm x 38mm (1.181" x 1.496")
Hole pattern, 3-hole 120-degree: 46.0mm (1.812")
Diamond plate size: 61.7mm x 33.3mm (2.43" x 1.31")
Hole pattern, diamond plate: 2-hole AMPS, 48.6mm (1.912") centre to centre
Arm length, overall: 94mm (3.69"); socket-to-socket: 76mm (3")
Fits phones and similarly-sized devices within the cradle dimensions above. For a phablet-sized version, see the RAM-HOL-PD4U cradle. For the full list of compatible devices, see our RAM-HOL-PD3U cradle listing.
