RAM Quick-Grip Universal XL Phone Cradle - with Torque Base (Medium Bars) & Medium Arm

RAM-B-408-75-1-PD4U – RAM® Quick-Grip™ XL Phone Mount with Torque™ Medium Rail Base (Medium Arm)

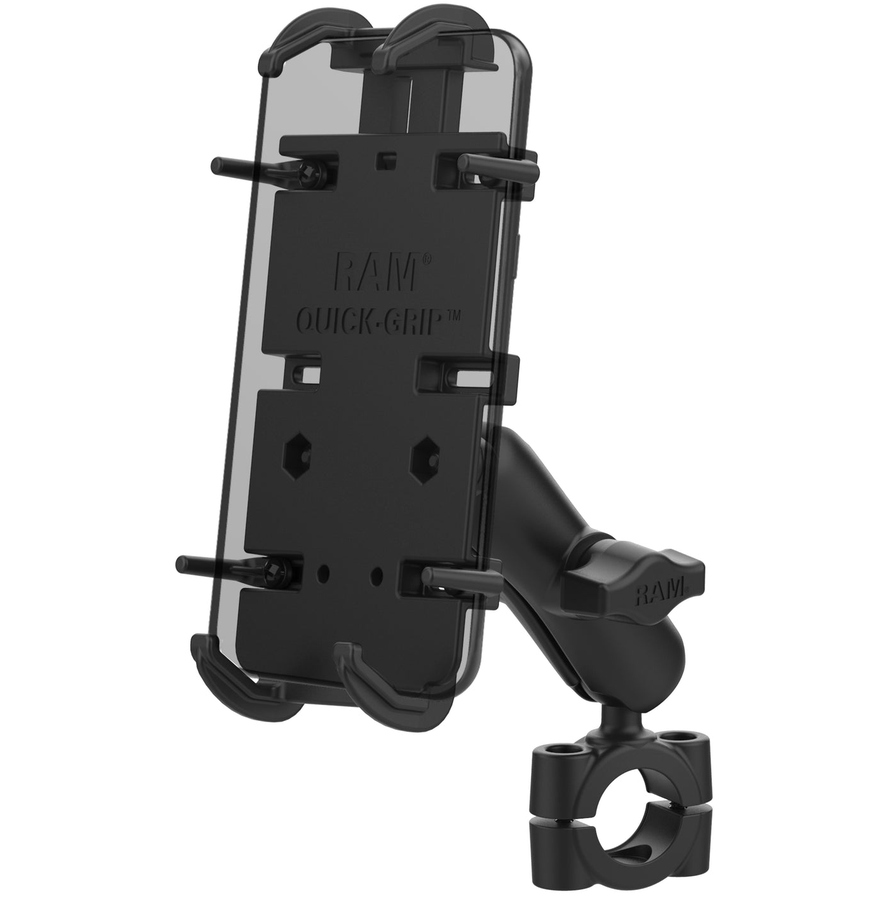

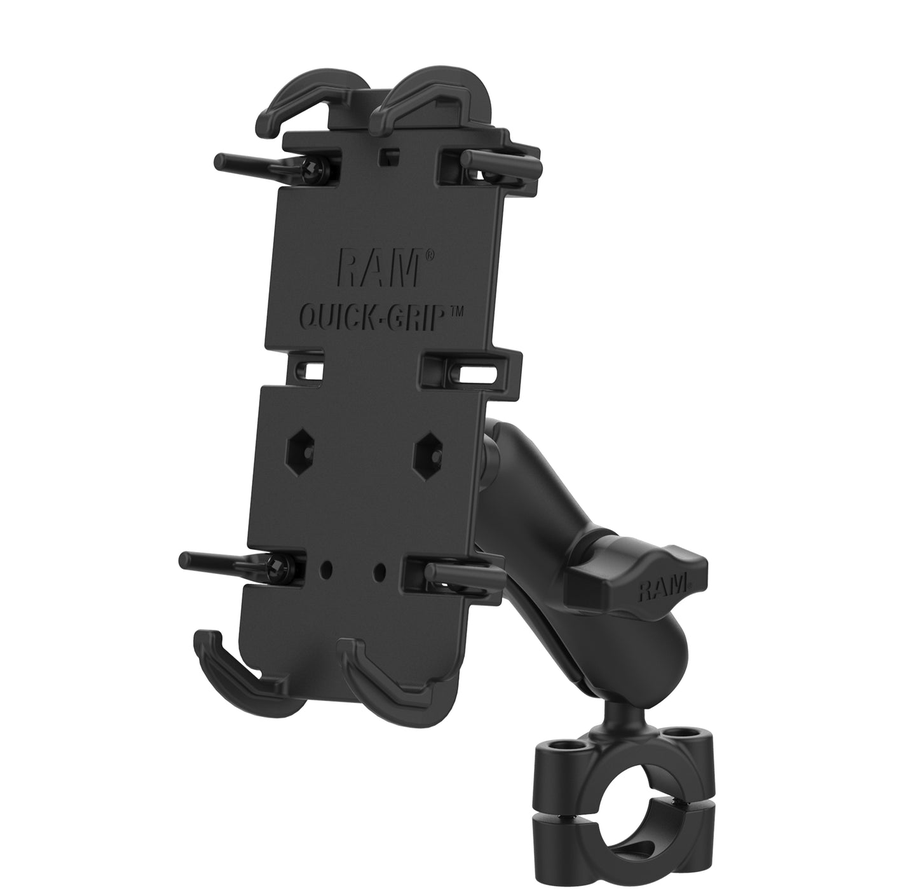

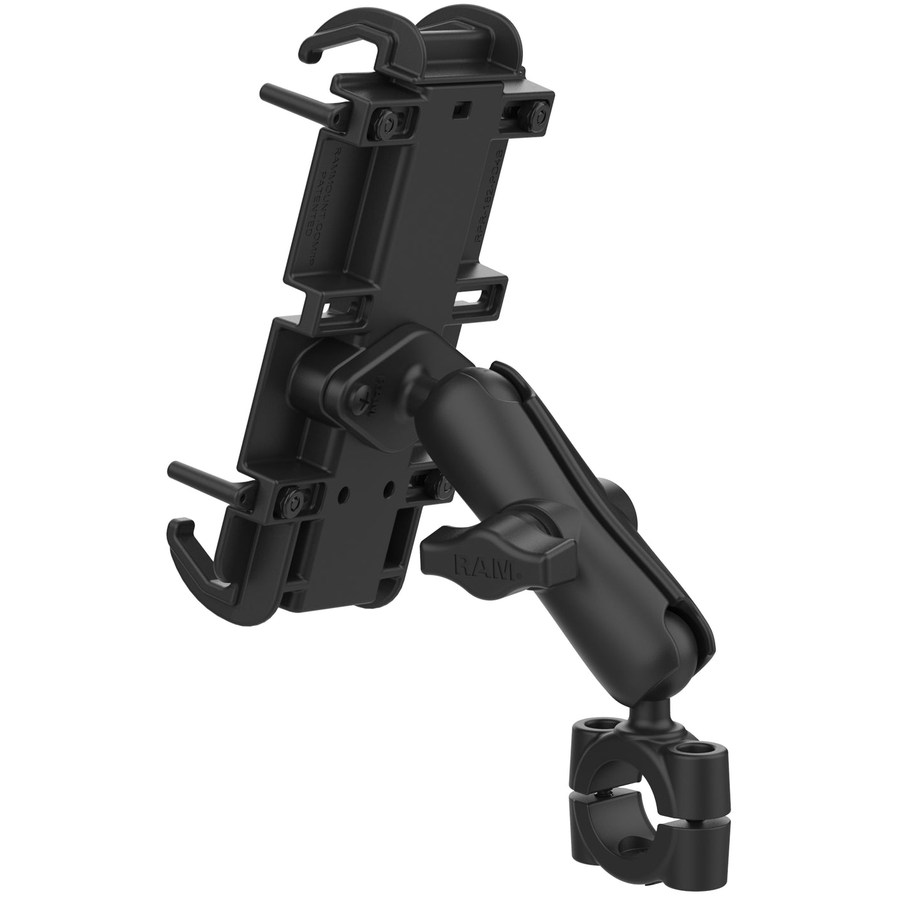

The RAM-B-408-75-1-PD4U is a complete handlebar and rail mounting kit for large phones and other oversized devices. It pairs RAM® Mounts' XL Quick-Grip™ cradle with a Torque™ base that clamps bars from 19mm to 25mm (0.75" to 1") in diameter, joined by a medium B Size double socket arm. The Torque™ base uses nylon-insert locknuts to resist loosening, which is what you want on a motorcycle, ATV or anything else that vibrates all day.

Key Features

• Spring-loaded Quick-Grip™ cradle holds devices 66.7mm to 92.1mm wide, with adjustable side supports and one-handed insertion and release
• Torque™ rail base fits bars 19mm to 25mm (0.75" to 1") in diameter; sizing inserts are included for a snug fit that protects the bar surface
• Nylon-insert locknuts resist loosening in high-vibration environments
• Medium B Size double socket arm gives near-infinite ball-and-socket adjustment at both ends
• Built from powder-coated marine-grade aluminium, stainless steel hardware and high-strength composite
• Backed by a lifetime warranty

What's Included

• RAM-HOL-PD4-238AU: Quick-Grip™ XL phone cradle with 1" ball
• RAM-B-201U: B Size double socket arm, medium length
• RAM-B-408-75-1U: Torque™ medium rail base with 1" ball

Works With

Any round bar or rail from 19mm to 25mm in diameter: motorcycle and ATV handlebars, bicycle bars, boat rails and grab handles. If your bars are outside that range, the RAM-B-149Z-PD4U U-Bolt kit uses the same cradle and covers 12.7mm to 31.8mm. Prefer the X-Grip® cradle on the same Torque™ base? See the RAM-B-408-75-1-UN10U.

Dimensions & Specifications

• Cradle width range: 66.7mm to 92.1mm (2.625" to 3.625")
• Cradle height range: 146.1mm to 184.1mm (5.75" to 7.25")
• Cradle max depth: 18.3mm (0.72")
• Torque™ base clamping range: 19mm to 25mm (0.75" to 1") diameter
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket length: 76mm (3")
• Ball size: 1" rubber ball, B Size
• Weight capacity: 907g (2 lbs) standard use, 454g (1 lb) heavy-duty use
• Weight: 440g (0.97 lbs)
• Materials: powder-coated marine-grade aluminium, high-strength composite, stainless steel

Hardware Included

• (2) #10-24 x 1" socket head cap screws
• (2) #10-24 nylock nuts
• (2) 0.75" composite bushings
• (2) 0.9" composite bushings
• (1) 88.9mm rubber strip
• (1) 5/32" hex key wrench

Compatible Devices

This kit uses the same cradle as the rest of the Quick-Grip™ XL range, so the compatible device list is identical. See the RAM-HOL-PD4U listing for the full brand-by-brand list. As always, check your device's dimensions with any case or sleeve fitted before ordering.

FAQs

Will it fit my handlebars?
If the bar measures between 19mm and 25mm (0.75" to 1") in diameter where you want to clamp, yes. Two sets of sizing bushings and a rubber strip are included to take up the difference and protect the finish.

Will my phone fit with its case on?
Measure the phone with the case fitted. If it falls between 66.7mm and 92.1mm wide, 146.1mm and 184.1mm tall, and no more than 18.3mm thick, it will fit.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
