RAM-B-202U RAM® Round Plate with Ball
Features
* 63mm round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

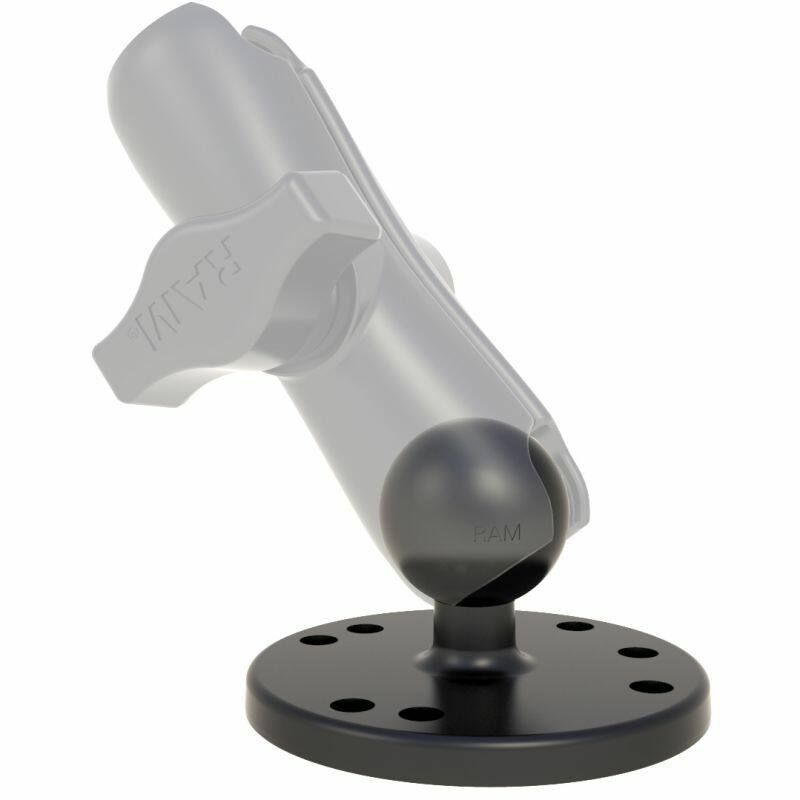

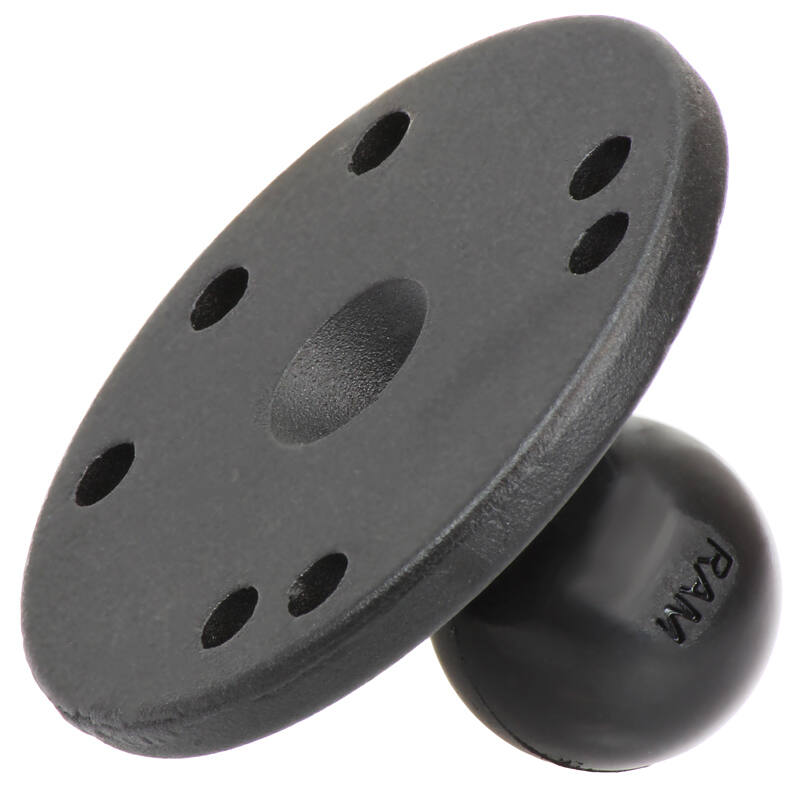

This is a flat 63mm (2.5") diameter base with a 1" diameter rubber ball with pre-drilled holes, including the universal AMPs hole pattern and is perfect for permanent mounting.
This base requires an arm and cradle to form a complete mounting solution.
Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm. The RAM ball and socket technology allows for near-infinite adjust-ability
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)
Ball Size:
1" Rubber Ball "B" Size
Material:
Powder Coated Marine Grade Aluminium
Weight:
68 grams (0.15) lbs.
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Note: The RAM-B-202U will attach to any RAM composite cradle; however, the RAM-B-238U is used when the cradle has a 2-hole AMP's hole pattern
