RAM Radar Detector Mount - Strap / U-Bolt base - Large Handlebars

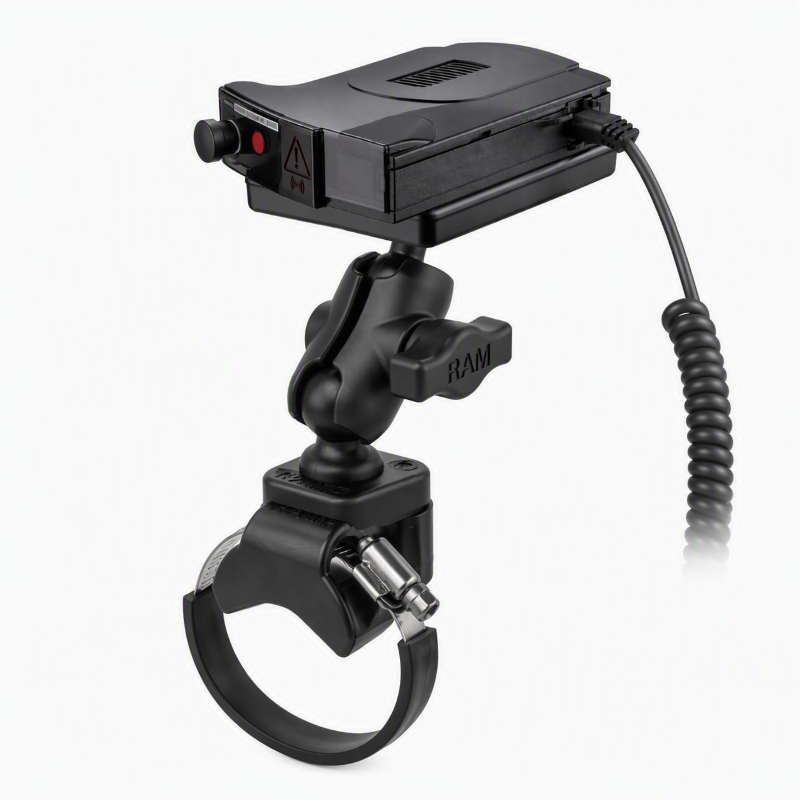

RAM-B-149Z-2-A-300-1U RAM® Strap / U-Bolt Handlebar Mount with Power Plate III Radar Detector Holder

The RAM-B-149Z-2-A-300-1U is a complete four-part radar detector mount for large-diameter bars. A strap and U-bolt base clamps to tubing from 12.7mm right up to 80mm, a short double socket arm sets the angle, and RAM's Magnetic Power Plate™ III holds the detector on two rare-earth magnets so you can twist it off when you park.

Key Features

• Fits an unusually wide range of bars: 12.7mm to 32.75mm on the U-bolt, 40mm to 80mm on the strap clamp

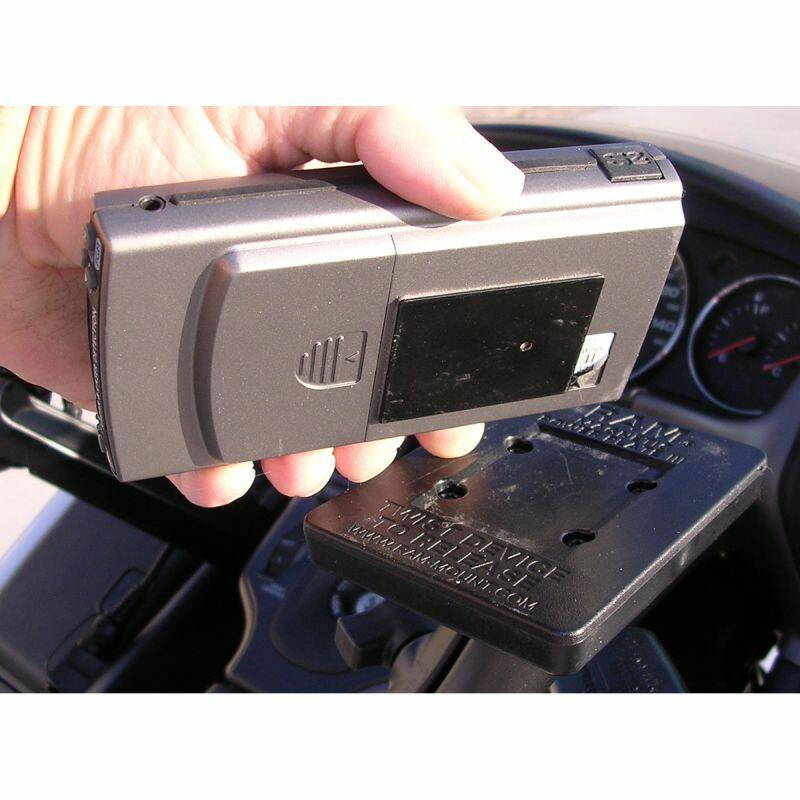

• Magnetic Power Plate™ III holds the detector with two rare-earth magnets and a supplied adhesive steel plate

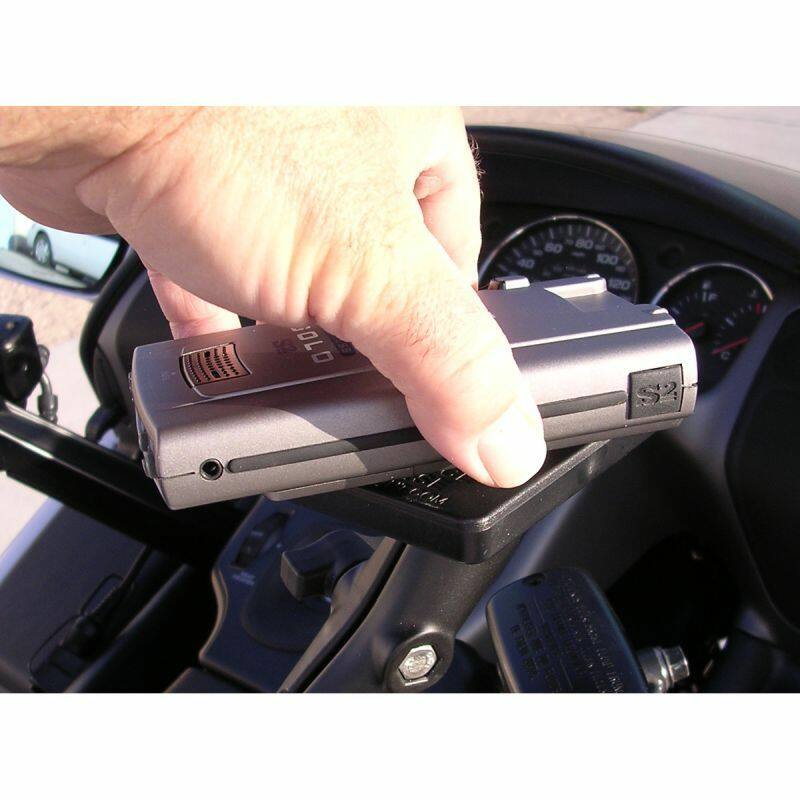

• Quick-release: twist the detector off the holder in one motion
• Double ball-and-socket design gives near-infinite adjustment and damps shock and vibration
• Strap clamp is concealed in a snag-free housing, so there are no sharp edges
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by RAM Mounts' lifetime warranty

What's Included

This is a kit built from four RAM components, all of which we also sell individually:

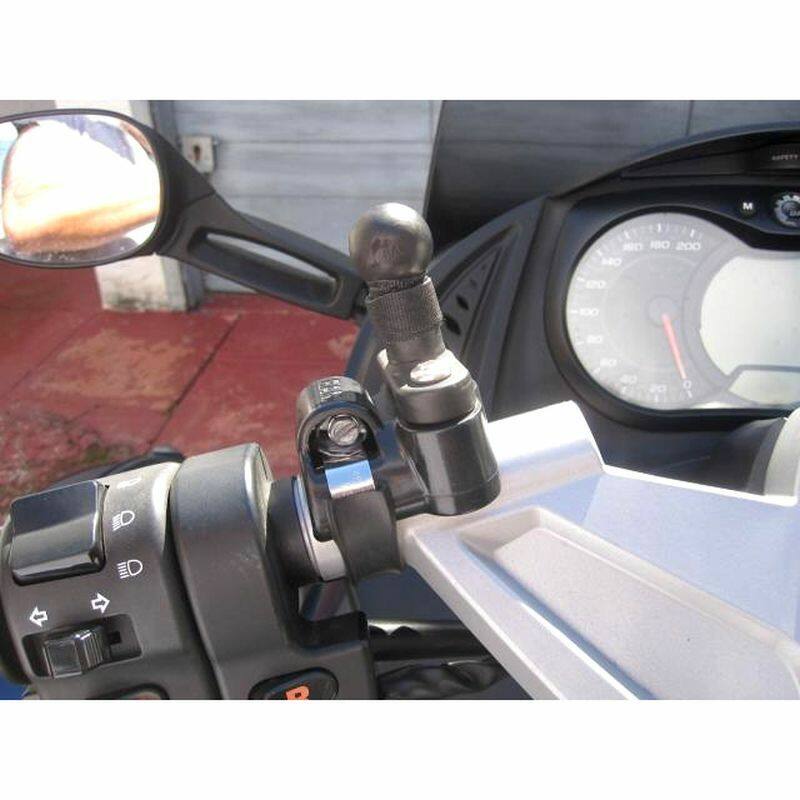

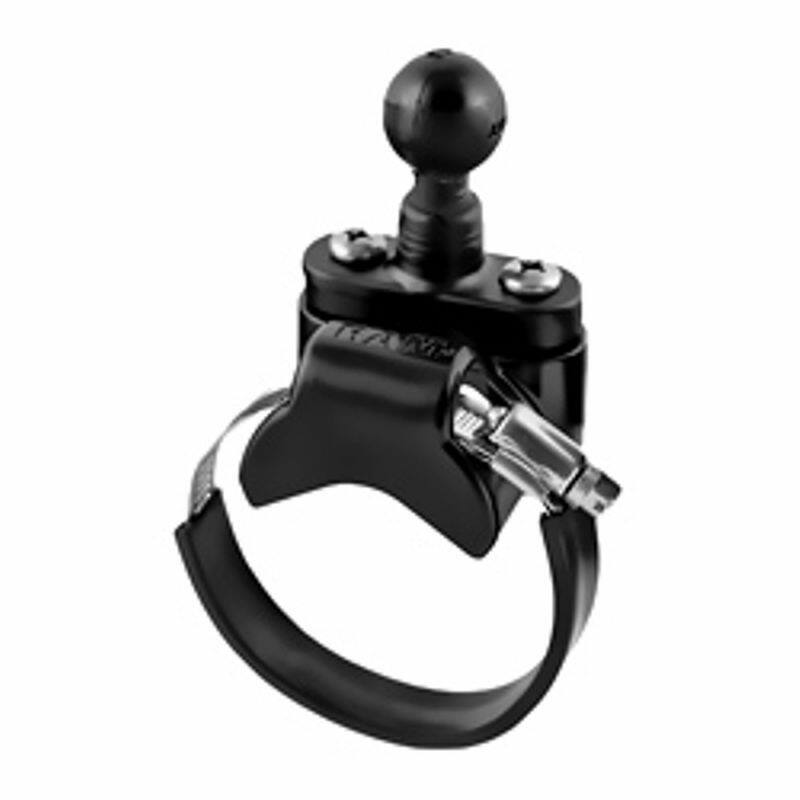

• RAM-B-231Z-2U: strap and U-bolt rail base with 1" B-size ball, covering 12.7mm to 80mm tubing
• RAM-B-201U-A: short double socket arm, 51mm socket-to-socket
• RAM-B-202U: 63.5mm round base with 1" ball and AMPS hole pattern, which the holder bolts to

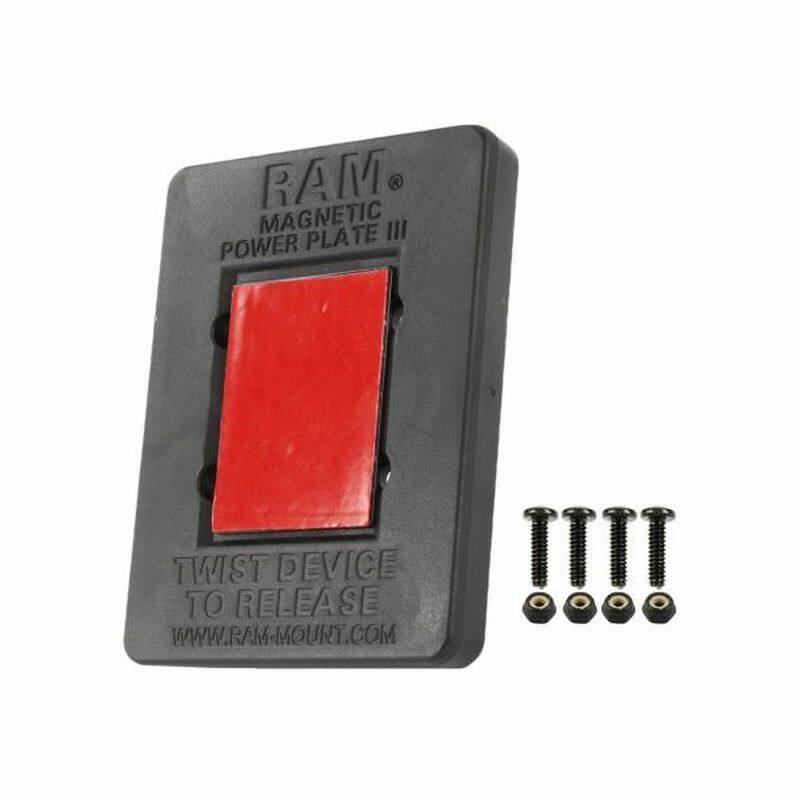

• RAP-300-1U: Power Plate III magnetic holder for larger detectors

Works With

Any radar detector with a flat bottom surface of roughly 102mm x 76mm (4" x 3"). The 1" B-size balls mean you can swap in a longer arm or a different base later without replacing the whole mount. If your detector is on the smaller side, the Power Plate II version (RAP-300U) is the better fit.

Dimensions & Specifications

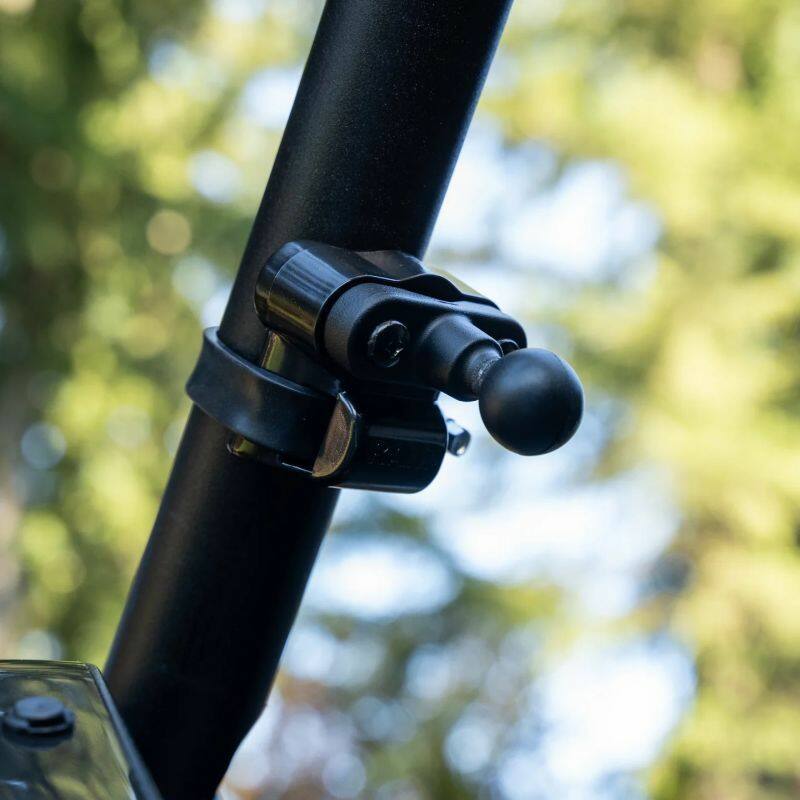

• Strap clamping range: 40mm to 80mm (1.57" to 3.15")
• U-bolt clamping range: 12.7mm to 32.75mm (0.5" to 1.25")
• Arm length, socket-to-socket: 51mm (2"); 60.5mm overall
• Round base diameter: 63.5mm (2.5")
• Holder plate size: 79.5mm x 101.6mm (3.13" x 4")
• Adhesive steel plate: 50mm x 38mm x 0.08mm thick
• Ball size: 1" rubber ball, B Series
• Material: Powder-coated marine-grade aluminium and high-strength composite
• Weight capacity: 907 grams (2 lbs) standard use, 454 grams (1 lb) heavy-duty use

Compatible Devices

Beltronics

• GT-7

Cobra

• ESD 7570

Escort

• iX
• Max 360
• Passport S55
• Solo S4

Radenso

• XP

Uniden

• R3

Valentine

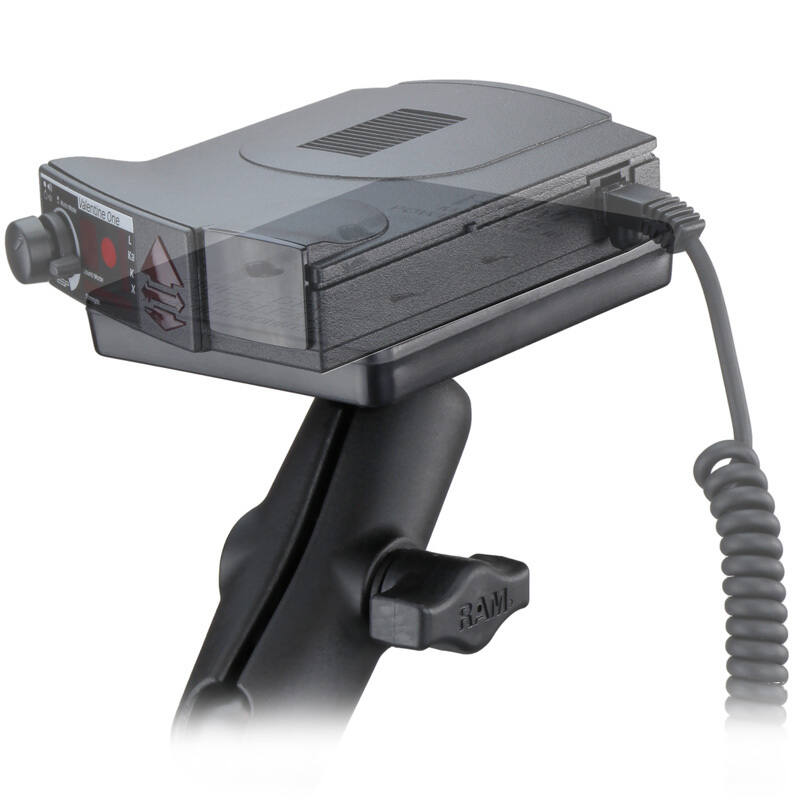

• One V1

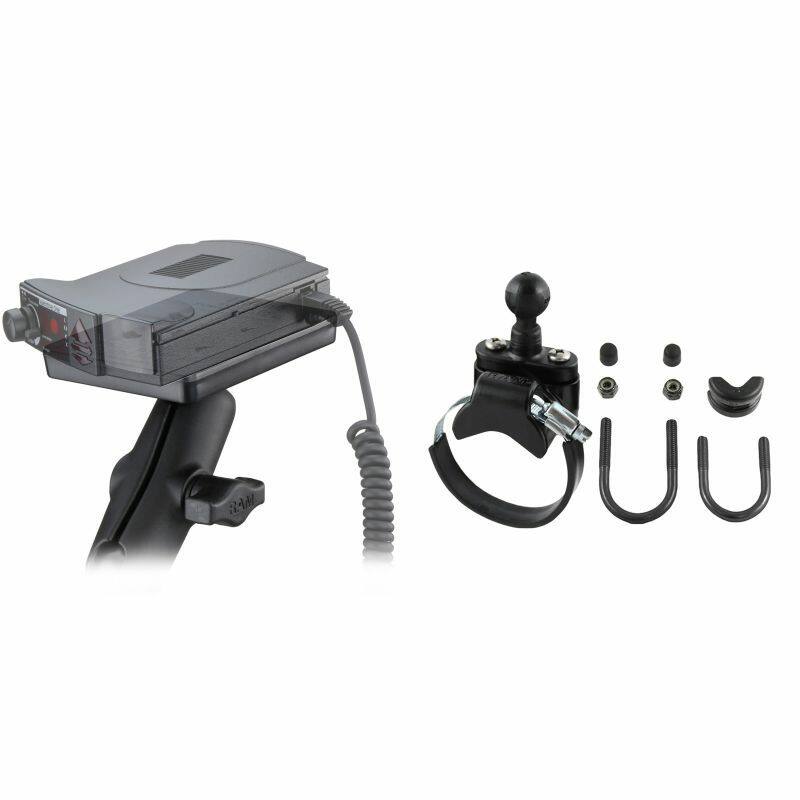

Hardware Included

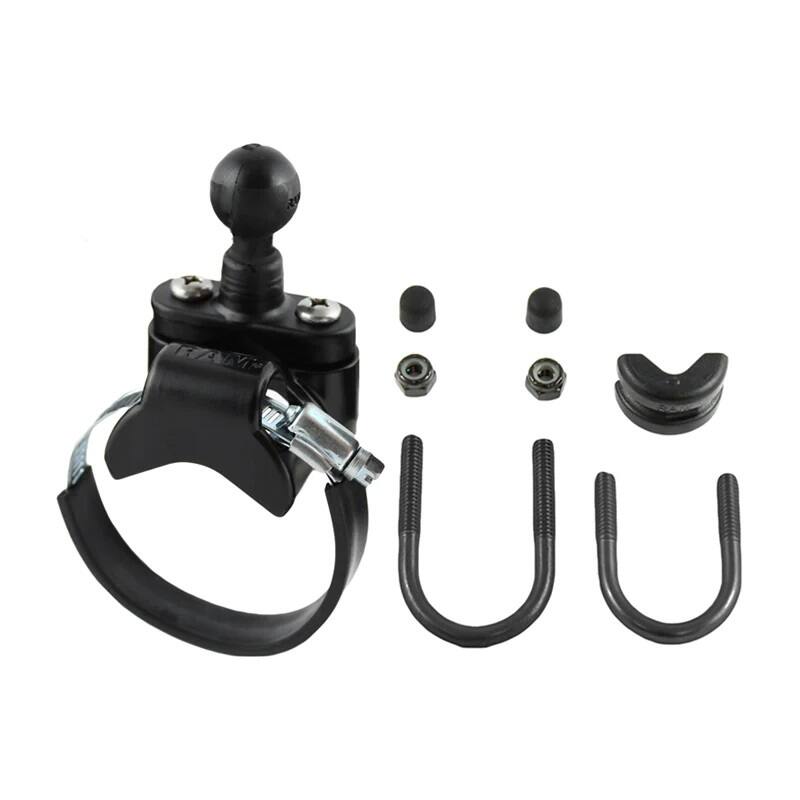

• 1 x strap clamp adapter
• 1 x zinc worm drive strap clamp
• 1 x 6" rubber strip
• 1 x 1/4"-20 U-bolt for 0.5" to 1" rails
• 1 x 1/4"-20 U-bolt for 1" to 1.25" rails
• 1 x U-bolt spacer
• 2 x 1/4"-20 x 1" machine screws
• 2 x 1/4"-20 nylock nuts
• 2 x rubber caps
• 1 x 50mm x 38mm adhesive steel plate
• 2 x rare earth magnets
• 4 x #6-32 x 1/2" machine screws
• 4 x #6-32 nylock nuts

Good to Know

• Bars over 80mm: the base will take any size worm-drive strap clamp, so a larger clamp from the hardware store gets you onto fatter tubing.
• Hard drives: don't use a magnetic mount to hold any device with an internal hard drive, as the magnets may damage it.
• Spare plates: replacement adhesive steel plates are part number RAP-300-1SU.

Videos

• Product overview video
• Strap base assembly and installation video

FAQs

Do I need both the U-bolt and the strap?
No. Use whichever suits your bar. The U-bolt handles narrow bars up to 32.75mm, the strap clamp takes over from 40mm to 80mm.

Can I use a different arm?
Yes. Everything here runs on 1" B-size balls, so any B Series double socket arm will fit if you want more reach.

Will the magnet hold at speed?
RAM doesn't publish a rating for the magnets themselves; their figures cover the ball-and-socket connection. In practice the two rare-earth magnets hold a detector securely, and the steel plate needs to be stuck flat to the device.
