RAM-D-202U-22 - Square Base 38×38mm - D Series (2.25" Ball)

RAM-D-202U-22 RAM® Square Ball Base with 38 x 38mm 4-Hole Pattern (D Size)

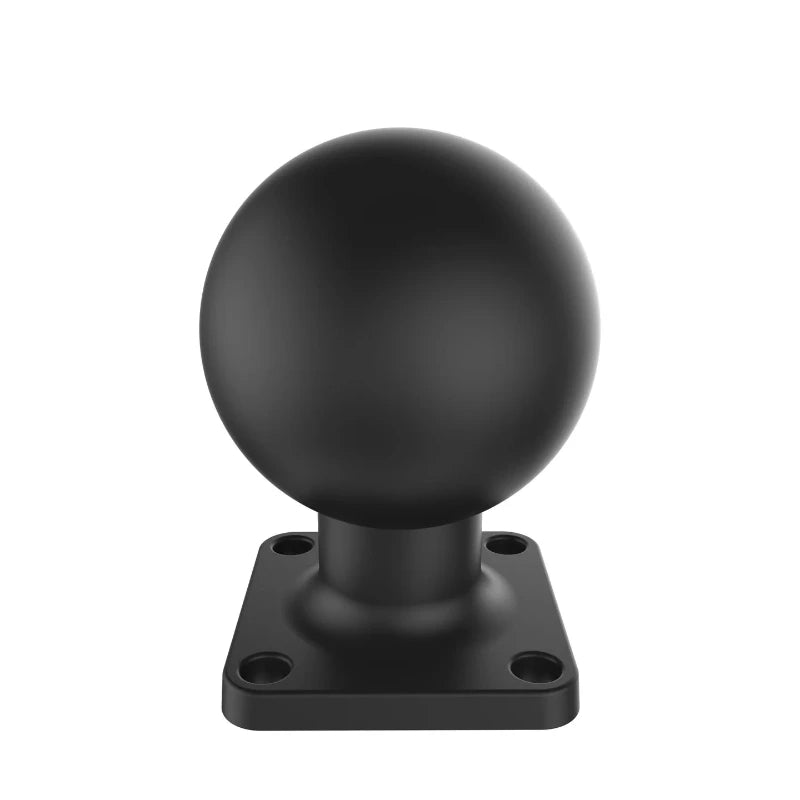

The RAM-D-202U-22 is a D-size square drill-down base: a flat 51mm (2") square plate fitted with a heavy-duty 2.25" rubber ball and a four-hole 38 x 38mm (1.5" x 1.5") mounting pattern. It bolts to a flat surface and gives you a D-size ball to build a mount from, connecting to any D-size RAM double socket arm.

Key Features

• 51 x 51mm (2" x 2") square plate with a four-hole 38.1 x 38.1mm (1.5" x 1.5") pattern, centre to centre
• Included D-size 2.25" (57mm) rubber ball connects to any D-size RAM® double socket arm
• Extra heavy-duty hold for high-vibration and larger-device mounting
• Ball-and-socket design allows near-infinite adjustment
• Powder-coated, marine-grade aluminium for durability in demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Any D-size (2.25") RAM® double socket arm, and any surface where you can drill or tap the four-hole 38 x 38mm square pattern. Pair it with a D-size arm and a cradle to build a complete mount. Need the same square base on a smaller ball? See the B-size RAM-B-202U-22 or C-size RAM-202U-22. Mounting a screen with a VESA pattern instead? Use the RAM-D-246U VESA plate.

Dimensions & Specifications

• Plate dimensions: 51 x 51mm (2" x 2"), square
• Hole pattern: 4-hole, 38.1 x 38.1mm (1.5" x 1.5") centre to centre
• Ball size: D size, 2.25" (57mm) rubber ball
• Weight capacity: 2.72kg (6 lb) standard use; 2.26kg (5 lb) heavy-duty use
• Material: powder-coated marine-grade aluminium

FAQs

Is this a VESA base?
No. The four holes sit on a 38 x 38mm (1.5" x 1.5") square pattern, not a 75mm or 100mm VESA pattern. For a D-size VESA screen plate, use the RAM-D-246U instead.

Can I use it with a B or C arm?
No. The 2.25" ball is D size and only fits a D-size double socket arm. Match the ball size to your arm.

How fast does it ship?
If it shows in stock, it dispatches from our Auckland warehouse, usually within one business day. If it shows as out of stock, get in touch and we can normally get it in for you.
