RAM Strap / Roll Bar V-Shaped base w/ Long Arm & Diamond Base - B Series

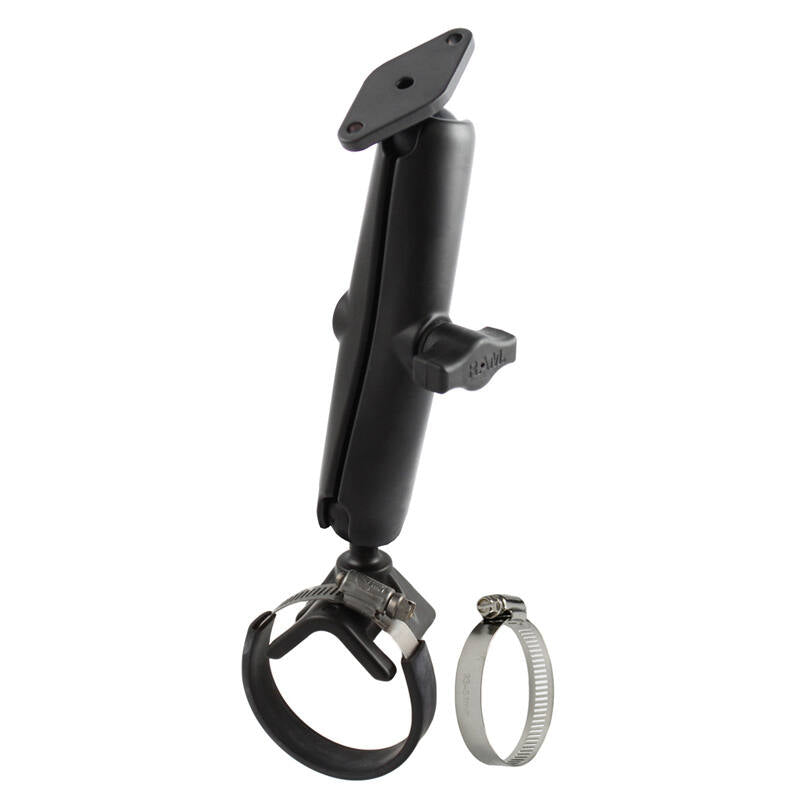

RAM-B-108-C-238 – RAM® Strap / Roll-Bar V-Base Mount with Long Arm and Diamond Plate

The RAM-B-108-C-238 is the long-reach version of our saddle clamp mount for rails and roll-bars from 25.4mm to 53.3mm (1" to 2.1"). A long 152mm (6") B-size arm gives extra reach and angle, and a diamond AMPS plate takes lighter cradles. The flat saddle base won't rotate on square or rectangular bars.

Key Features

• Saddle V-base straps to round, square or rectangular rails 25.4mm to 53.3mm (1" to 2.1")
• Won't spin on the bar, unlike a U-bolt base
• Diamond plate with 2-hole AMPS pattern for lighter RAM and third-party cradles
• Long 152mm (6") B-size double socket arm for extra reach
• Powder-coated marine-grade aluminium, RAM lifetime warranty

Works With

The diamond AMPS plate bolts to lighter AMPS-pattern cradles. Need less reach or a round plate? See the medium-arm RAM-B-108U or short-arm RAM-B-108U-A.

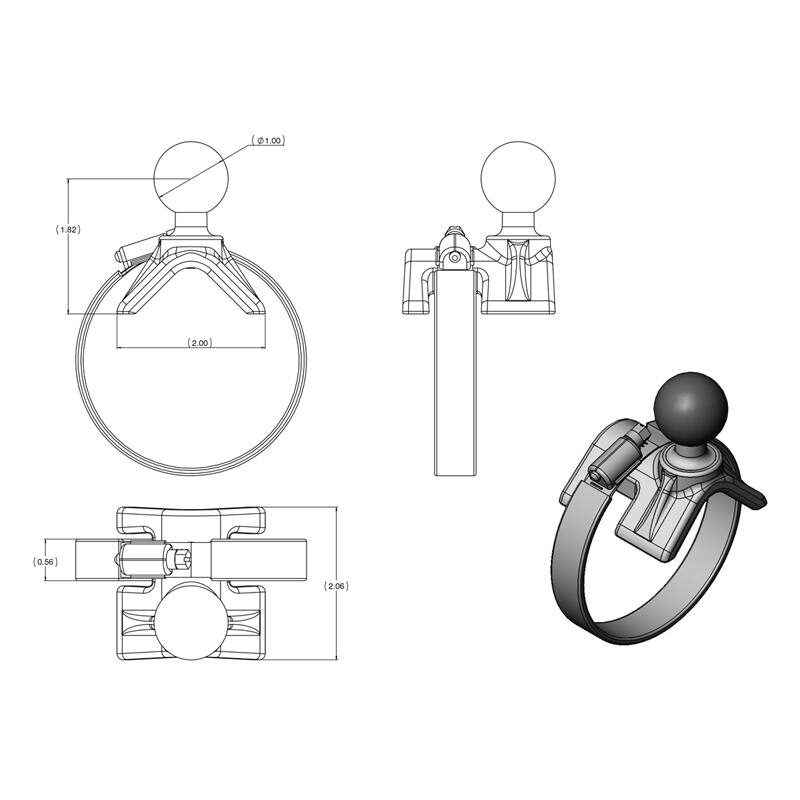

Dimensions & Specifications

• Clamp range: 25.4mm to 53.3mm (1" to 2.1")
• Arm overall length: 152mm (6")
• Arm socket-to-socket: 134mm (5.25")
• Diamond plate: 61.7 x 33.3mm (2.43" x 1.31"), 2-hole AMPS 48.6mm (1.912")
• Ball size: 1" rubber ball, RAM B-size
• Material: marine-grade aluminium
• Weight: 476g (1.05 lb)
• Load rating: up to 907g (2 lb)

What's Included

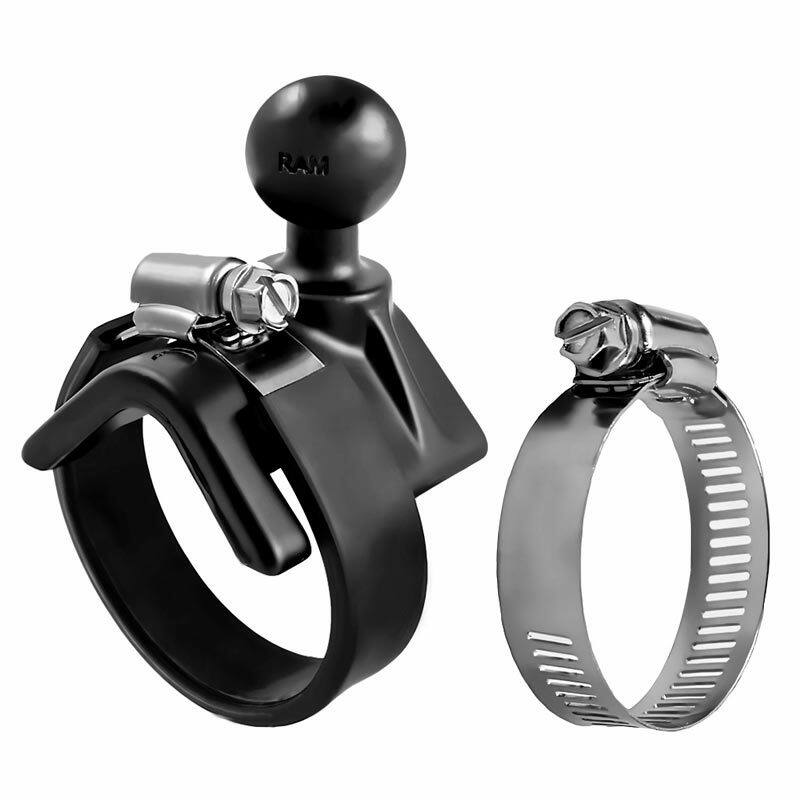

• RAM-B-108BU saddle V-base with 1" ball
• RAM-B-201U-C long double socket arm
• RAM-B-238U diamond AMPS plate
• #20 and #28 worm-drive strap clamps and a 6" rubber protector strip

FAQs

Why the diamond plate here?
The diamond plate suits lighter cradles and pairs with the long arm for reach. For heavier holders, the round-plate RAM-B-108U is the sturdier choice.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
