RAM-B-108U-A RAM Strap Clamp Roll Bar with 2.5" Round Base that contains the AMPs Hole Pattern and Short Arm
Features
* Saddle-shaped clamp mount ideal for rails ranging from 25-53mm in diameter
* Round plate includes 4 and 3 hole AMP's patterns for connection to a widce variety of RAM Cradles
* Included SHORT B size 1" RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
If you need to mount to a square or rectangular bar this will prevent the mount from rotation - unlike a "U-Bolt" base that are designed for round bars.

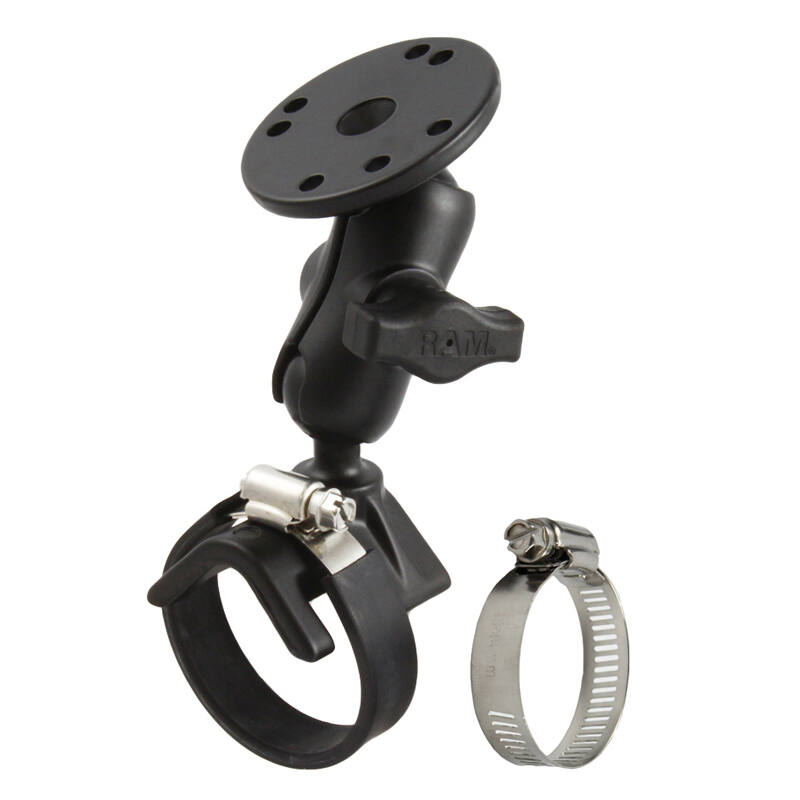

The RAM-B-108-A consists of a 1" diameter rubber ball connected at a right angle to a v-shaped base, short double socket arm and 2.5" base that contains the universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Mounting Instructions:
To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.
Rail Dimensions:
2.54cm to 5.33cm (1.0" to a maximum of 2.1") in diameter
Included in Kit:
(1) QTY 15.24cm (6") long metal strap
(1) QTY 20.32cm (8") long metal strap
(1) QTY 13.97cm (5.5") rubber strip that supports the metal straps to avoiding scratching or marking of the rail
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
322 grams (0.71 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

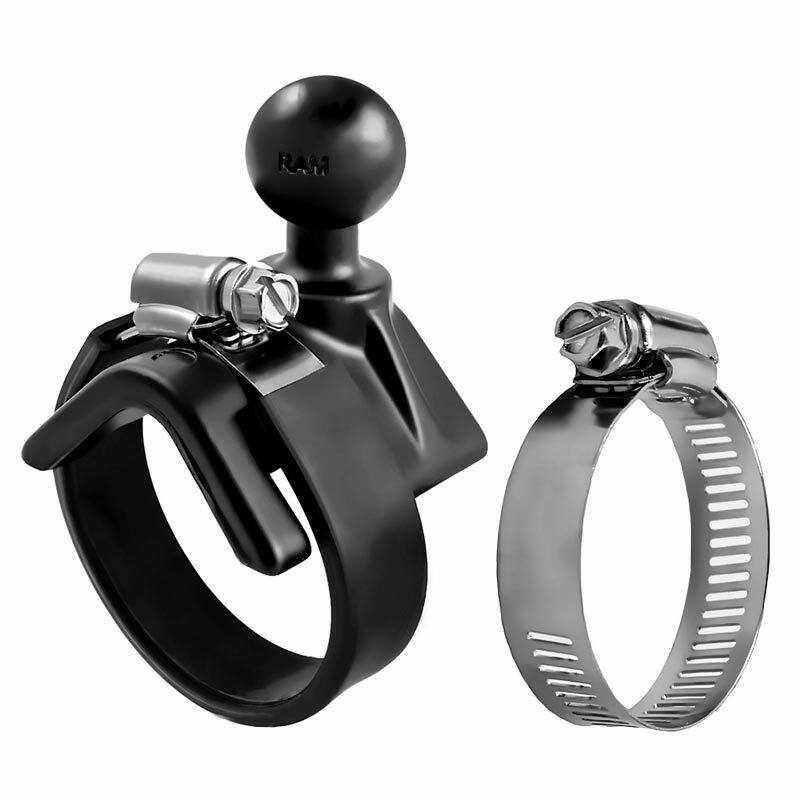

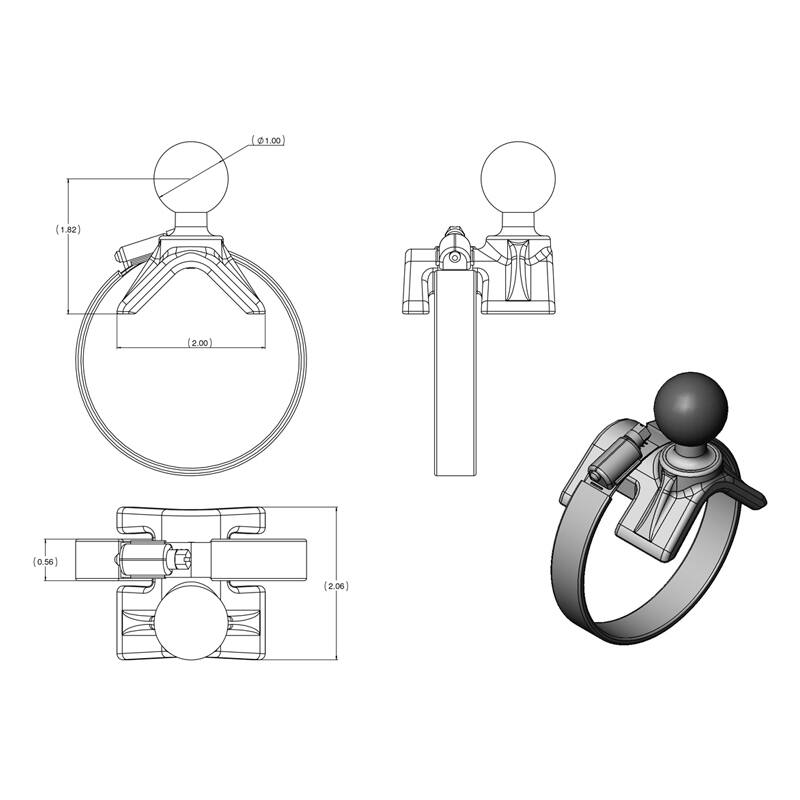

RAM-B-108BU - Strap / Rollbar V-Shaped base - for 1"- 2.5" Rails and Rollbars
RAM-B-201U-A RAM SHORT DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U - Round base
