RAM-B-224-1U - Suction Cup Base 84mm - B Series (1" Ball) - Alloy

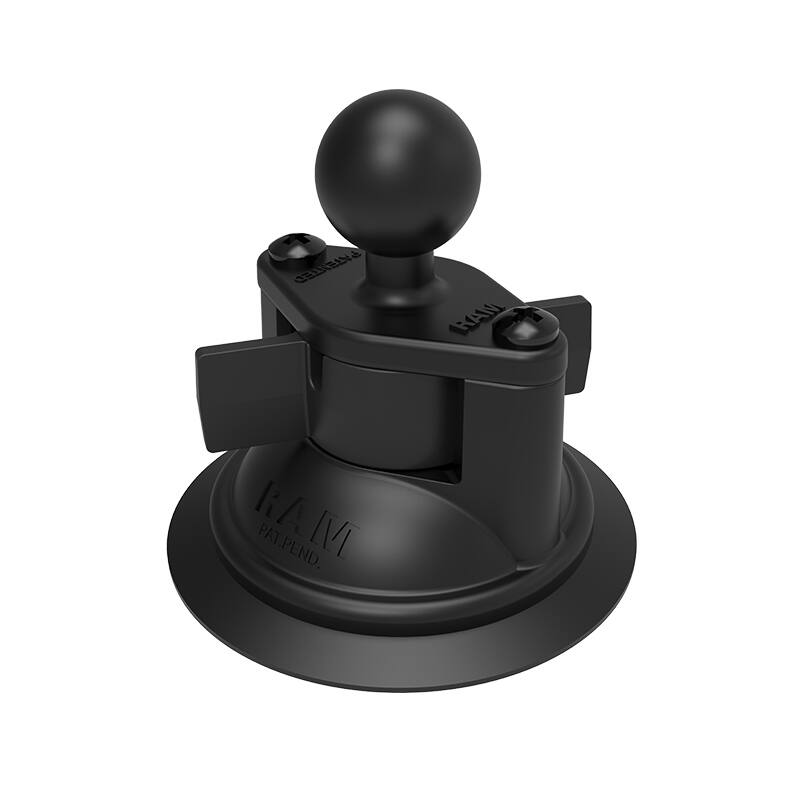

RAM-B-224-1U RAM® Twist-Lock™ Suction Cup Base – Aluminium Diamond Base, B Size Ball

The RAM-B-224-1U pairs an 83.8mm (3.3") suction cup, locked with a flip switch, with a powder-coated, marine-grade aluminium diamond ball base and B Size 1" ball, the same diamond base used on our RAM-B-238U. It gives a strong temporary hold on glass and other smooth, non-porous surfaces, pair it with any B Size RAM® double socket arm and device holder to complete a mount.

Key Features

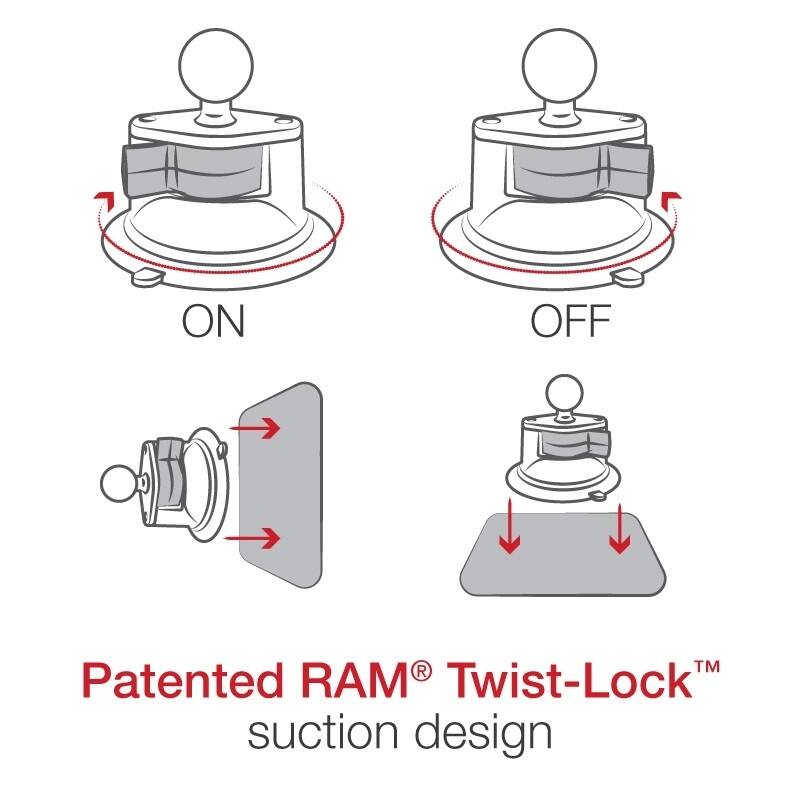

• 83.8mm (3.3") suction cup with a flip-switch lock, for an extra-strong grip on smooth, non-porous surfaces
• Powder-coated, marine-grade aluminium diamond ball base with a B Size 1" rubber ball
• Compatible with any B Size RAM® double socket arm; ball-and-socket technology allows near-infinite adjustability
• Composite suction cup body paired with the aluminium diamond base for durability in demanding environments
• Backed by RAM®'s lifetime warranty

Works With

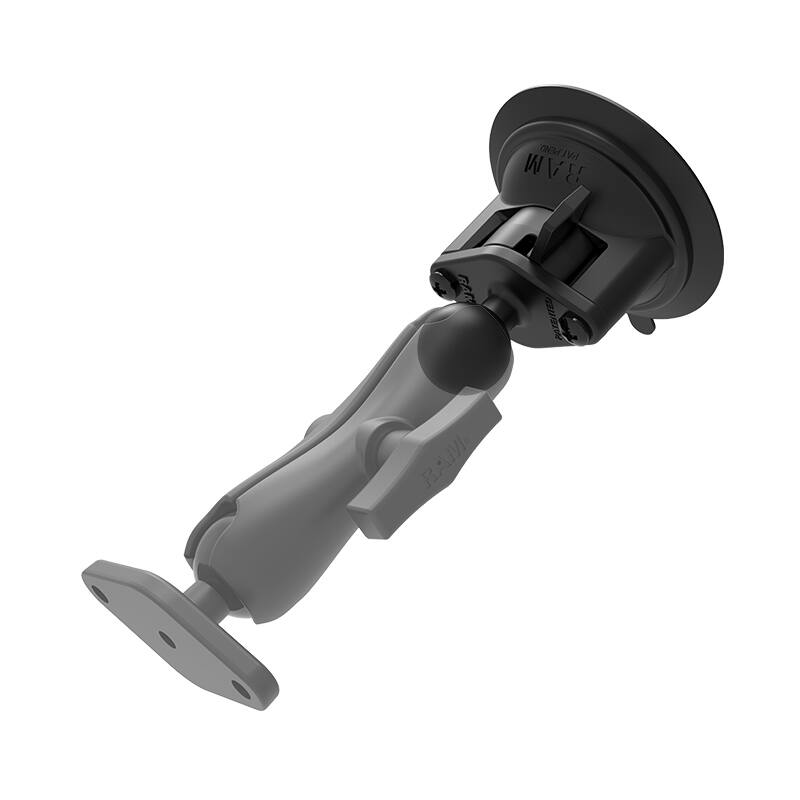

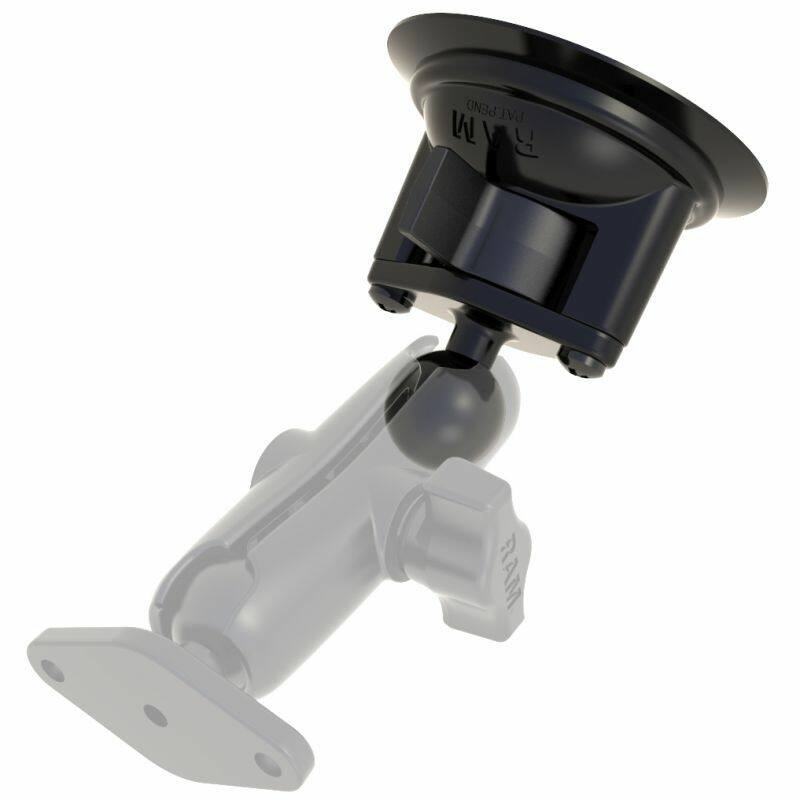

This is a base only, it needs a RAM® double socket arm and a device holder to complete a mount. For the strongest hold, fit the suction cup to glass or another smooth, non-porous surface rather than anything textured. Prefer a dashboard mount over a window? Pair this ball with the RAP-279C RAM® Portable Friction Dashboard Base instead.

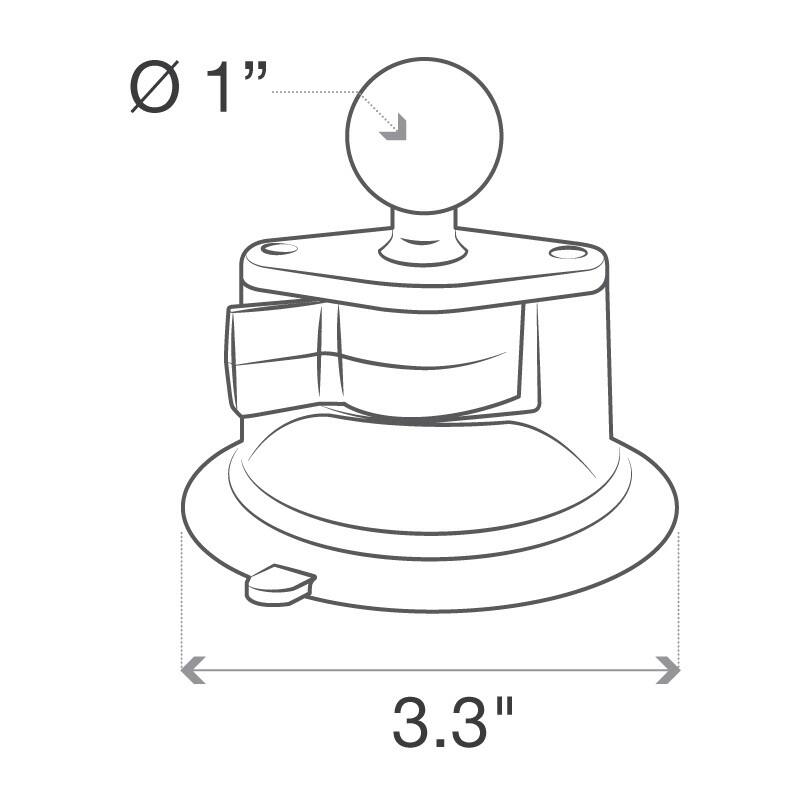

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Ball/socket size: B Size (1")
• Weight: 118g (0.26 lbs)
• Standard use weight capacity: 907g (2 lbs)
• Heavy-duty use weight capacity: 454g (1 lb)
• Materials: composite suction cup, powder-coated marine-grade aluminium diamond base

Alternative Bases

Prefer composite over aluminium? RAP-B-224-1U is the same suction cup with a composite diamond base instead. Need a lower profile? RAP-B-224-2U is a 2.75" low-profile composite suction cup base. A C Size 1.5" ball version, plus dual and triple suction cup bases, are also available.
