RAP-B-224-1U - Suction Cup Base 84mm - B Series (1" Ball) - Composite

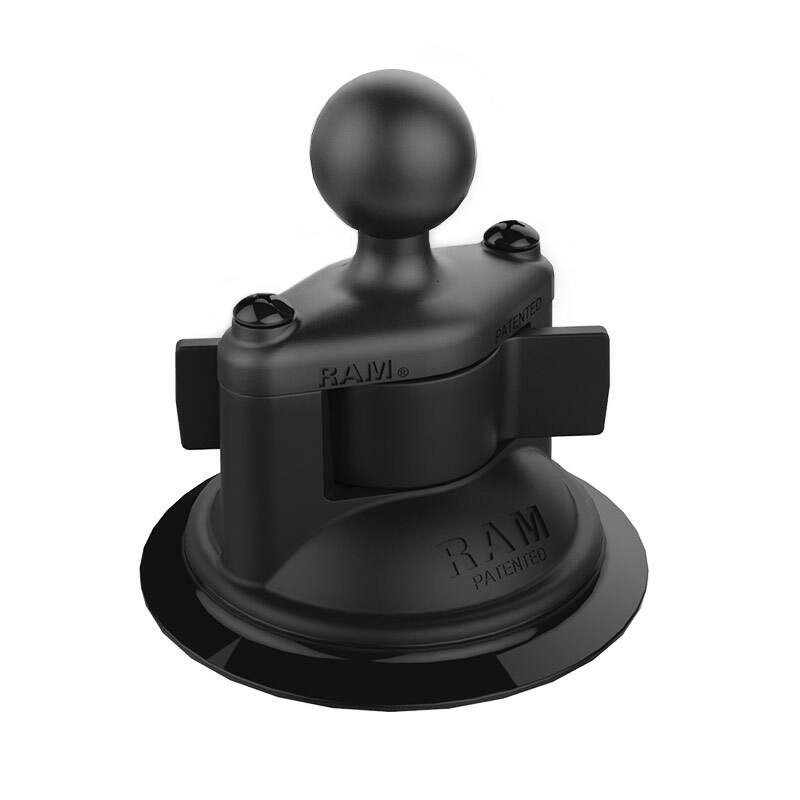

RAP-B-224-1U RAM® Twist-Lock™ Suction Cup Base – Composite Diamond Base, B Size Ball

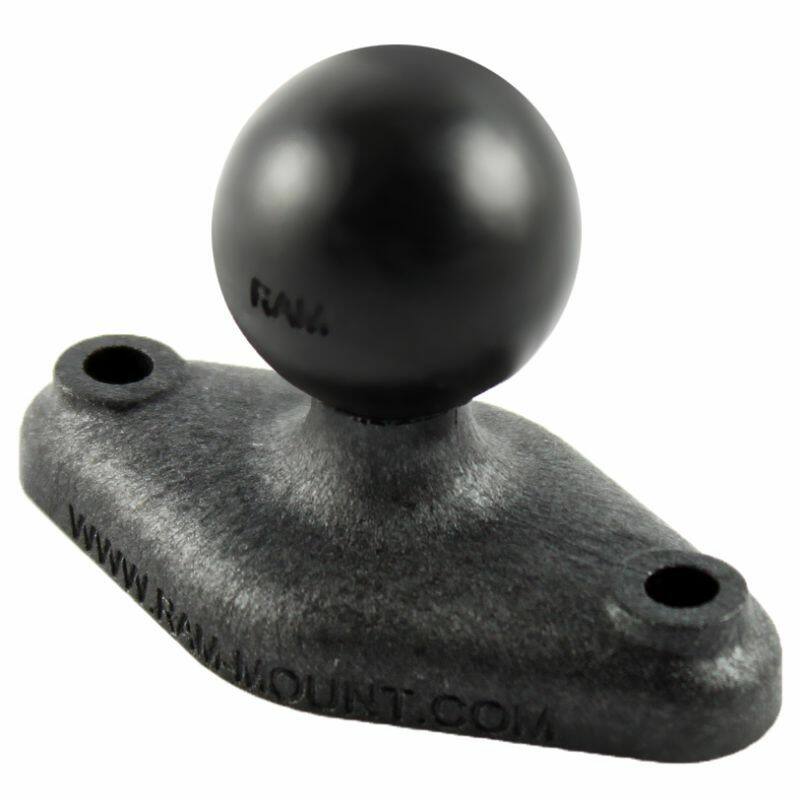

The RAP-B-224-1U pairs an 84mm (3.3") suction cup, locked with a flip switch, with a composite diamond ball base and B Size 1" rubber ball, the same diamond base used on our RAP-B-238U. It gives a strong temporary hold on glass and other smooth, non-porous surfaces, pair it with any B Size RAM® double socket arm and device holder to complete a mount.

Key Features

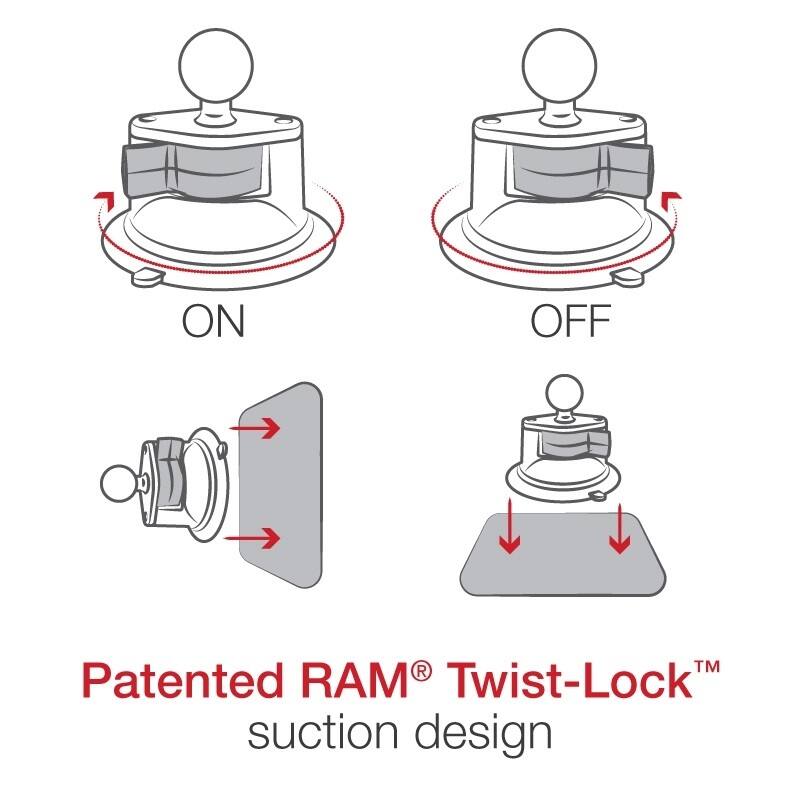

• 84mm (3.3") suction cup with a flip-switch lock, for an extra-strong grip on smooth, non-porous surfaces
• Composite diamond ball base with a B Size 1" rubber ball

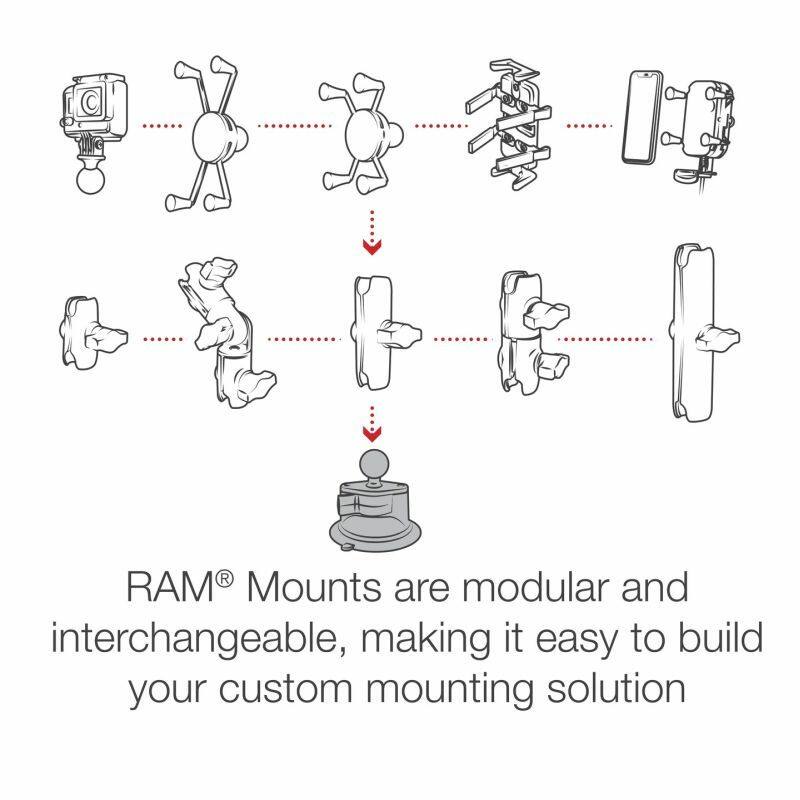

• Compatible with any B Size RAM® double socket arm; ball-and-socket technology allows near-infinite adjustability
• Suction cup and diamond base both in high-strength composite, light and corrosion-proof
• Backed by RAM®'s lifetime warranty on the base hardware; the suction cup itself is treated as a wear item and sits outside that cover

Works With

This is a base only, it needs a RAM® double socket arm and a device holder to complete a mount. Suction cups work by creating a vacuum, so they need a genuinely smooth surface to grip. Anything textured lets air in and weakens the hold, windows and highly polished metal give the best result.

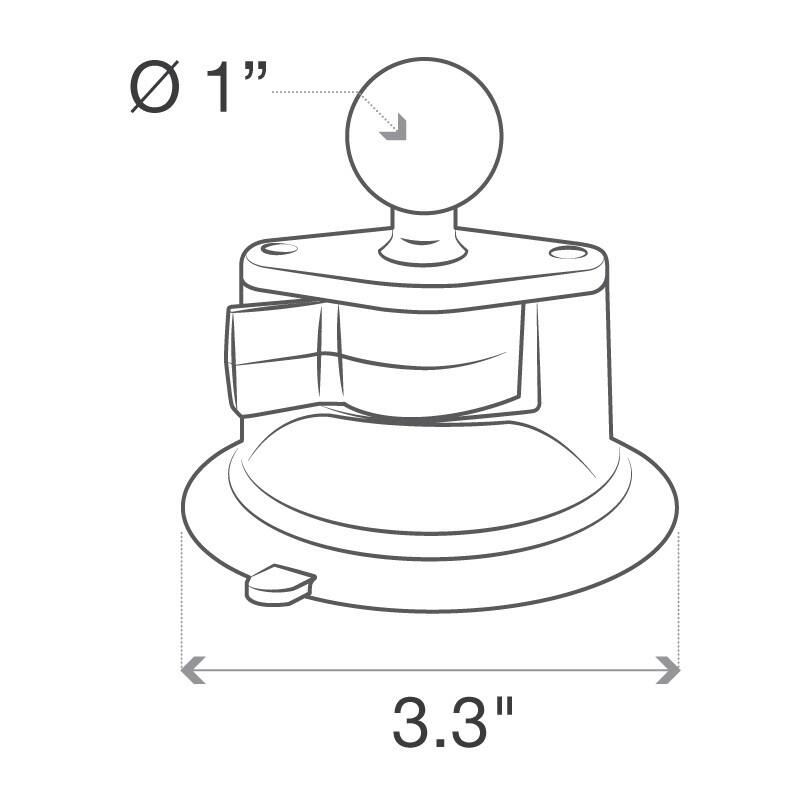

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Ball/socket size: B Size 1" rubber ball
• Weight: 109g (0.24 lbs)
• Standard use weight capacity: 907g (2 lbs)
• Heavy-duty use weight capacity: 453g (1 lb)
• Material: high-strength composite (suction cup and diamond base)

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow it rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base and ball hardware are covered as normal.

Alternative Bases

Prefer aluminium over composite? RAM-B-224-1U is the same suction cup with an aluminium diamond base instead. Need a lower profile? RAP-B-224-2U is a 2.75" low-profile version. A C Size 1.5" ball version, plus dual and triple suction cup bases, are also available.

FAQs

How high is the centre of the ball from the surface it's mounted to?
On the RAP-B-224-1U, the height from the mounting surface to the centre of the ball is 30.2mm (1.19").

What surfaces does this suction cup work with?
Suction cups create a vacuum, so they need a smooth, non-porous surface to grip. Textured surfaces let air in and weaken the hold. Windows and highly polished metal give the best result.
