RAM Tab-Lock Locking Cradle - 10" Tablets - Incl Apple iPad Gen 1-4 with Case

RAM-HOL-TABL17U RAM® Tab-Lock™ Locking Cradle for 10" Tablets incl. Apple iPad Gen 1-4 with Case

The RAM-HOL-TABL17U is a key-locking version of RAM's Tab-Tite™ cradle for 10" tablets with a case, built around the Apple iPad Gen 1-4. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release.

Key Features

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings
• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

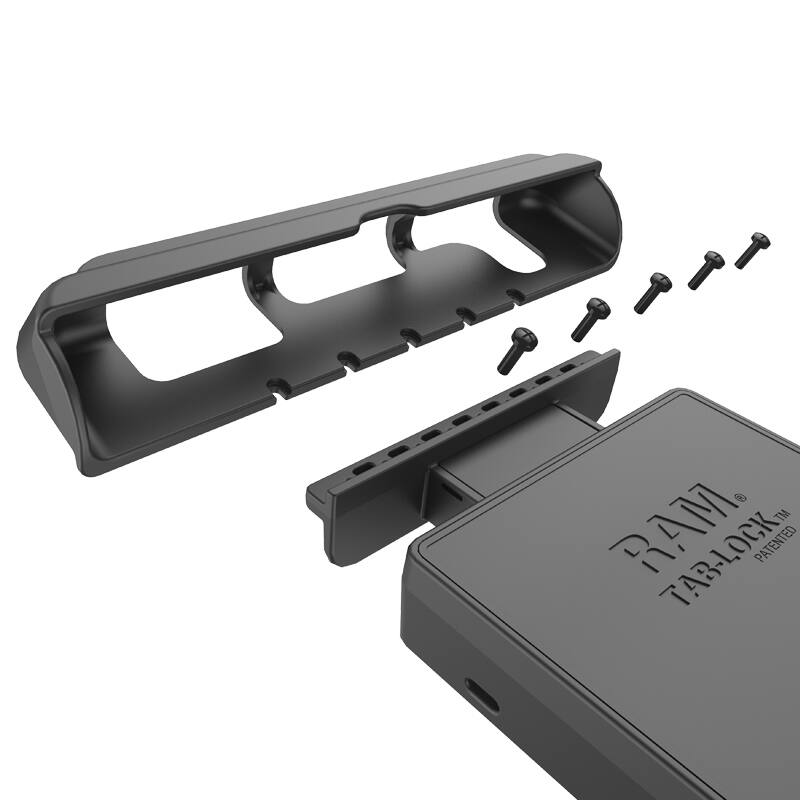

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets (in case): 241–298mm H x 162–210mm W x 3.3–28mm D (9.5"–11.75" x 6.375"–8.25" x 0.13"–1.1")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 590g (1.3 lbs)
• Material: high-strength composite

Compatible Devices

Apple

• iPad (1st Generation) with Case
• iPad 2 with Case
• iPad (3rd Generation) with Case
• iPad (4th Generation) with Case
• iPad Air 4 with Case
• iPad Pro 11" with Case
• iPad Pro 11" (2020) with Case
• iPad Pro 11" (2021) with Case
• iPad Pro 11" (2022) with Case

Dell

• Venue 10 7000 with Case

Google

• Nexus 10 with Case

HP

• ElitePad 900 G1 with Case
• Pro 610 with Case
• Pro Slate 10.1 with Case

Lenovo

• S6000 with Case
• Yoga Tablet 2 (10 inch) with Case

What's Included

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys

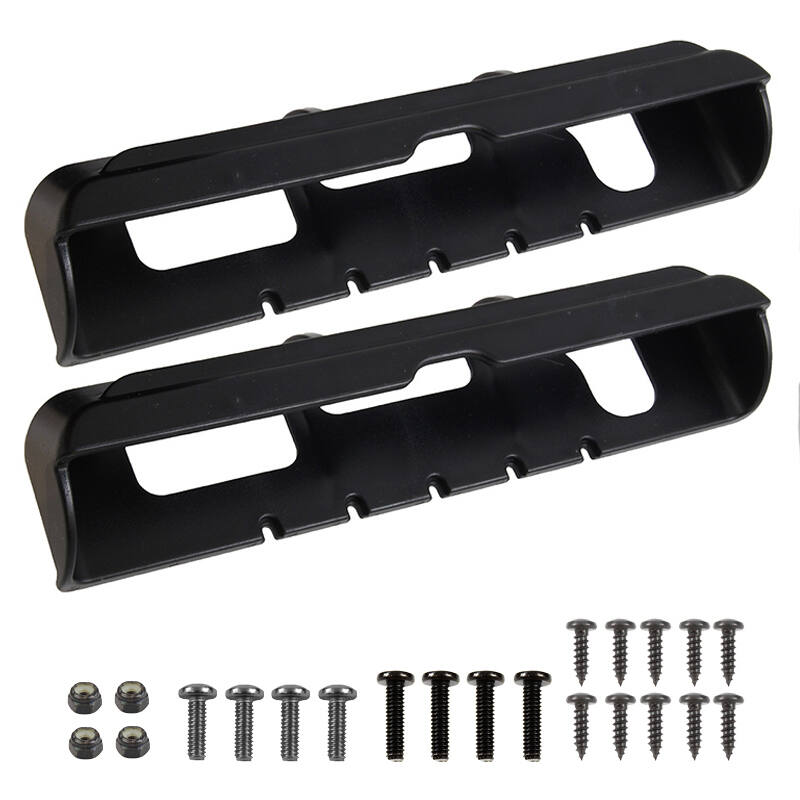

• Assembly hardware: (2) #8 x 5/8" sheet metal screws, (2) M4 x 32mm machine screws, (2) M4 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit my tablet if it's not listed? Check your tablet's dimensions (with case) against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
