RAM Tab-Lock Locking Cradle - 8" Tablets Samsung Galaxy Tab A 8.0 and Tab S 8.4

RAM-HOL-TABL24U RAM^® Tab-Lock^™ Spring Loaded Holder for 8" Tablets

Features

* Spring-loaded, key locking holder secures most 8" tablets including Samsung Tab A 8.4; interchangeable end cups allow you to modify the holder when upgrading devices

* Compatible with B and C size RAM^® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

* Made of high-strength composites for durability and reliability in the most demanding environments

* Backed by a lifetime warranty

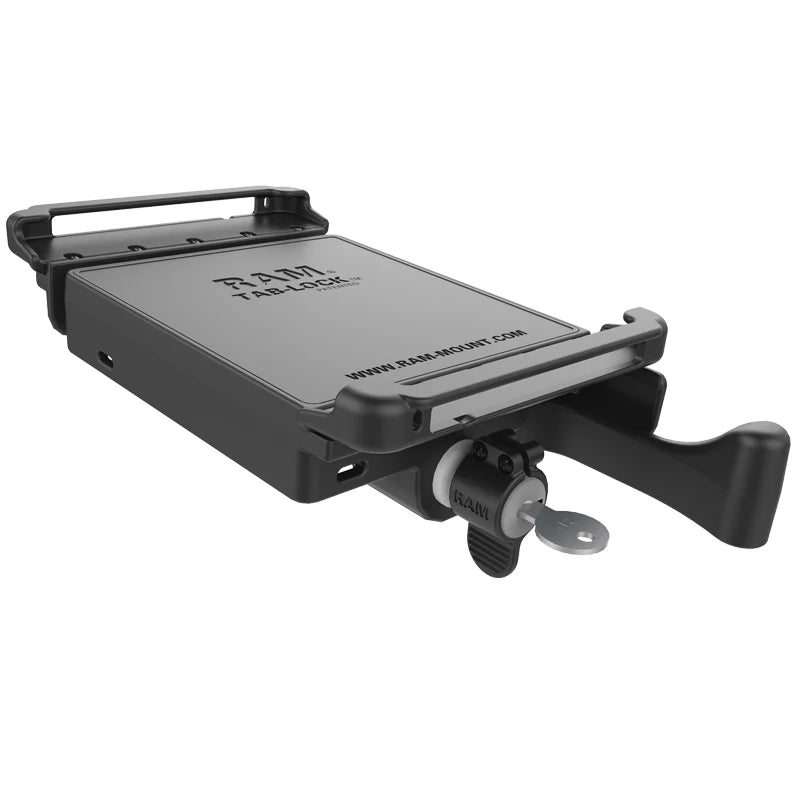

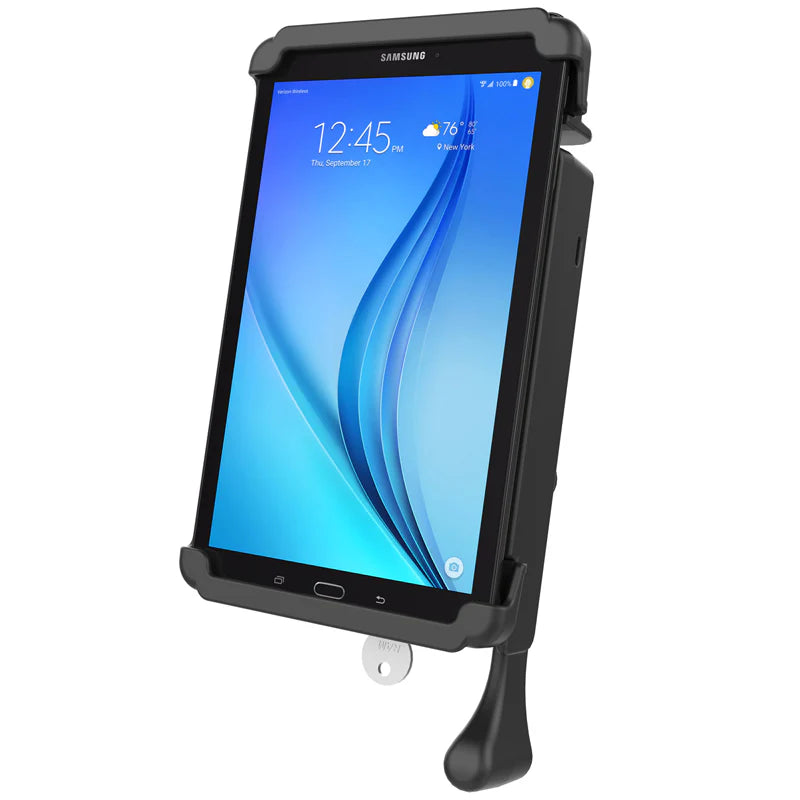

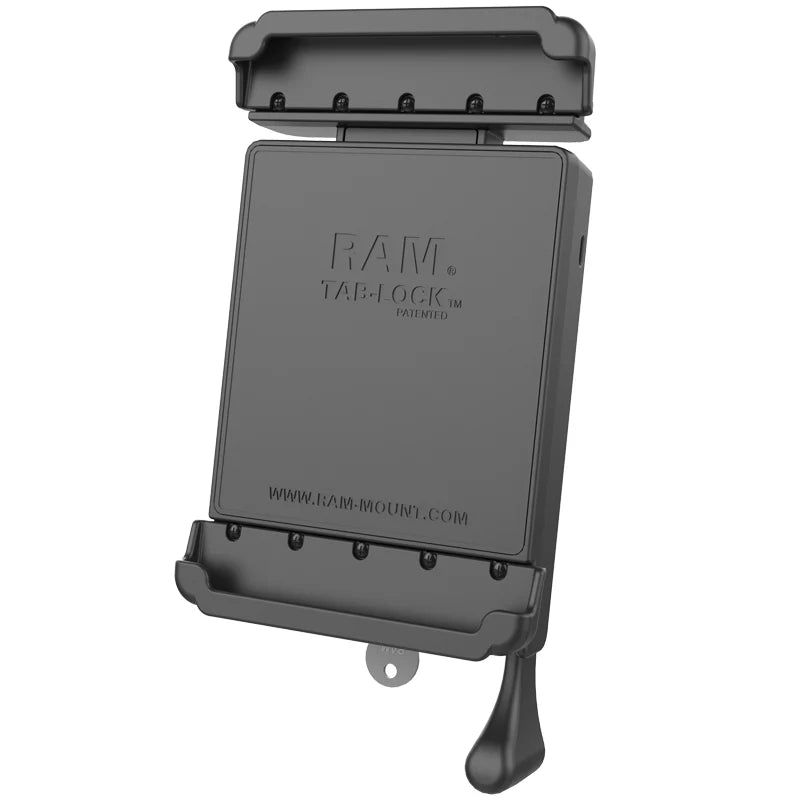

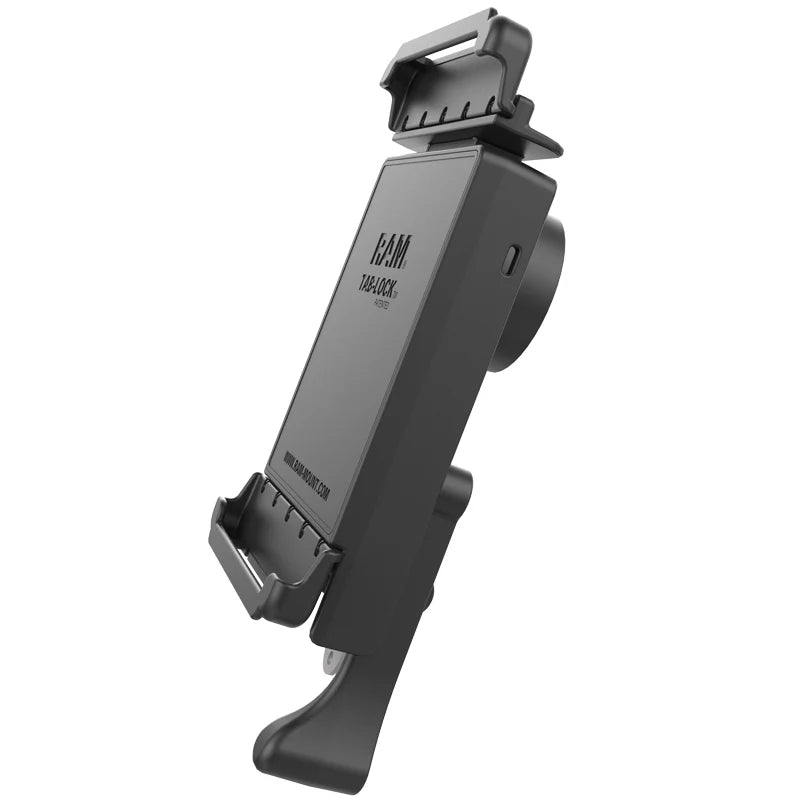

The RAM^® Tab-Lock^™ spring loaded, quick release cradle with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab Tab E 8.0, Tab A 8.0 and Tab A 8.4.

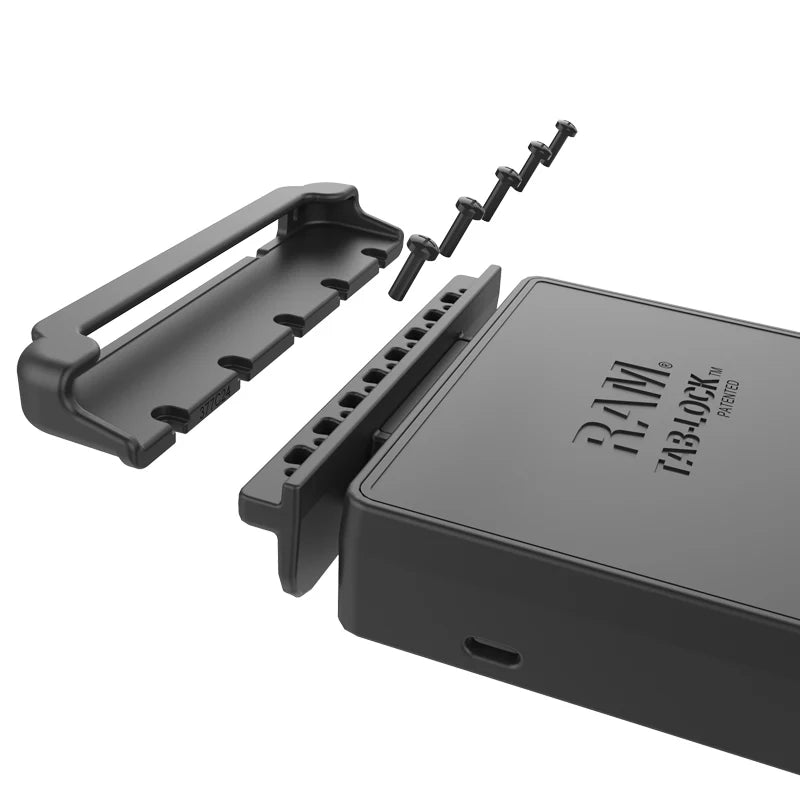

The spring-loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models.

New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

The Tab-Lock^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.



Compatible Devices

ASUS

MeMO Pad 8

VivoTab 8

ZenPad 8.0

ZenPad S 8.0



Dell

Venue 8 7840



Huawei

MediaPad M3

MediaPad M3 Lite

MediaPad T3 8



Lenovo

Tab 2 A8

Tab 4 8

Tab 4 8 Plus

Tab A8-50

Tab S8

Tab3 8



LG

G Pad F 8.0 (2nd Gen)

G Pad II 8.0

G Pad X 8.0



Samsung

Galaxy Tab 3 8.0

Galaxy Tab 4 8.0

Galaxy Tab A 8.0 (2017)

Galaxy Tab A 8.0 (2018)

Galaxy Tab A 8.0 (2019)

Galaxy Tab A 8.4

Galaxy Tab A7 Lite 8.7

Galaxy Tab E 8.0

Galaxy Tab S 8.4



Holder Dimensions:

Height Range: 8.08" - 10.69"
Width Range: 3.77" - 4.96"
Depth Range: .13" - .36"



Hardware Included:

Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

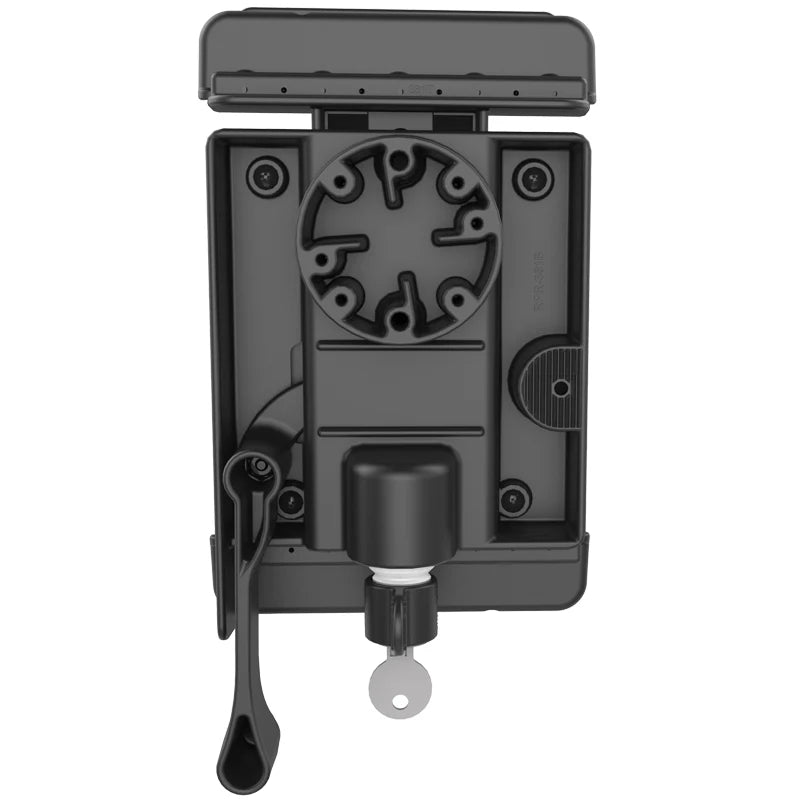

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"



Materials:

High strength composite



Weight:

521 grams / 1.15 lb
