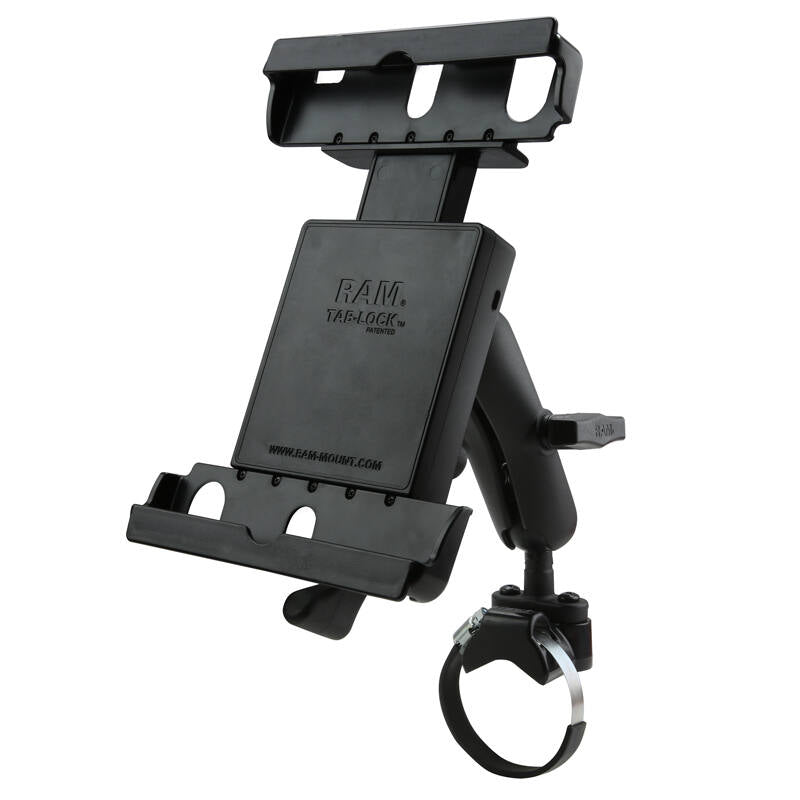

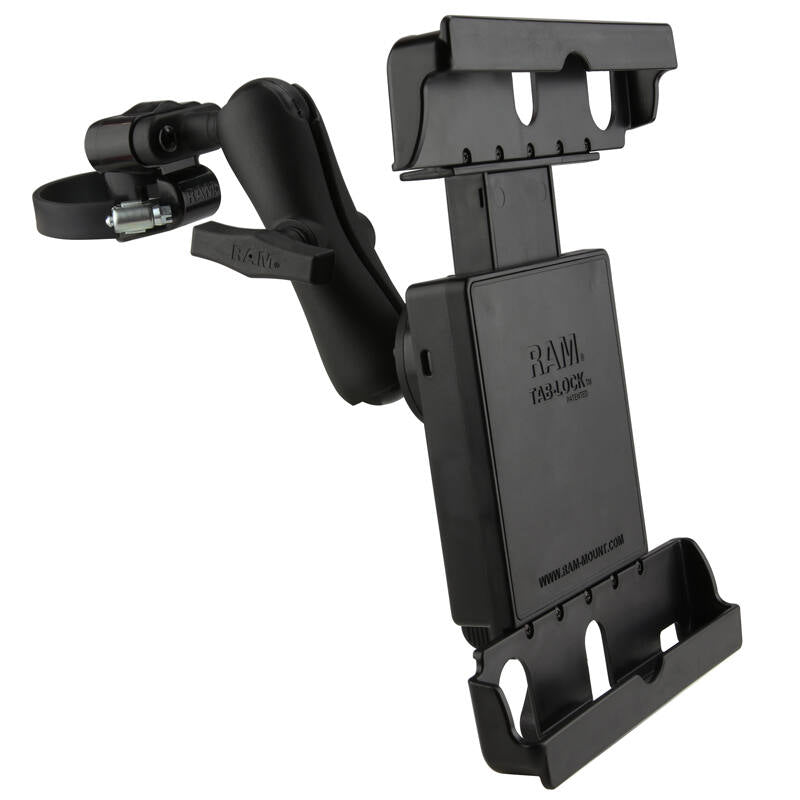

RAM-231Z-2-TABL20U RAM® ATV/UTV Rail Mount for 9"-10.5" Tablets with Heavy Duty Cases
Features
* Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

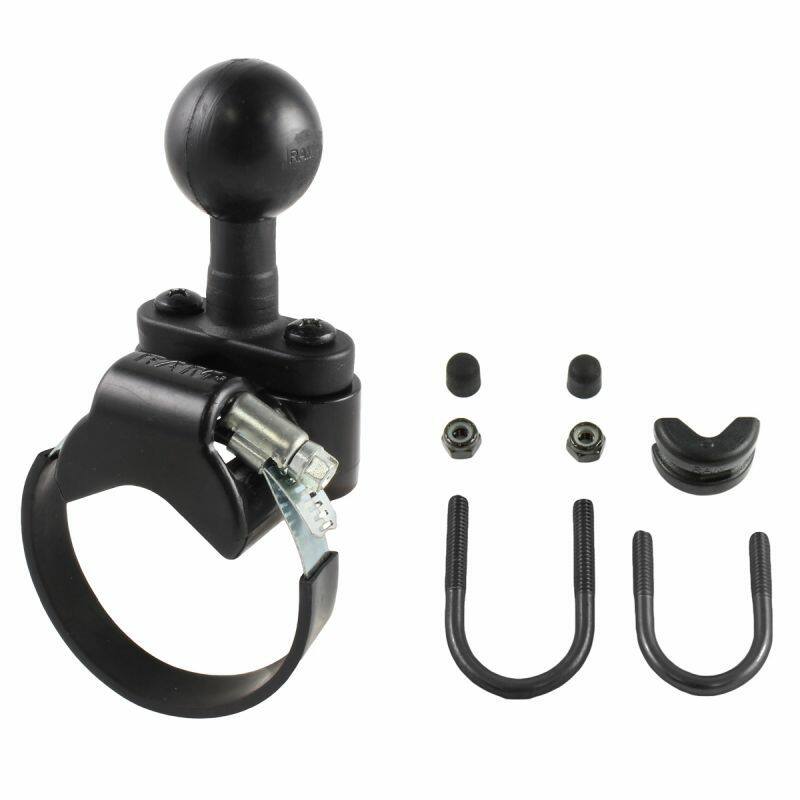

The RAM-231Z-2U Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1.5" Ball for Rails to 80mm in Diameter is designed for a clean installation, base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, this lets you modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.

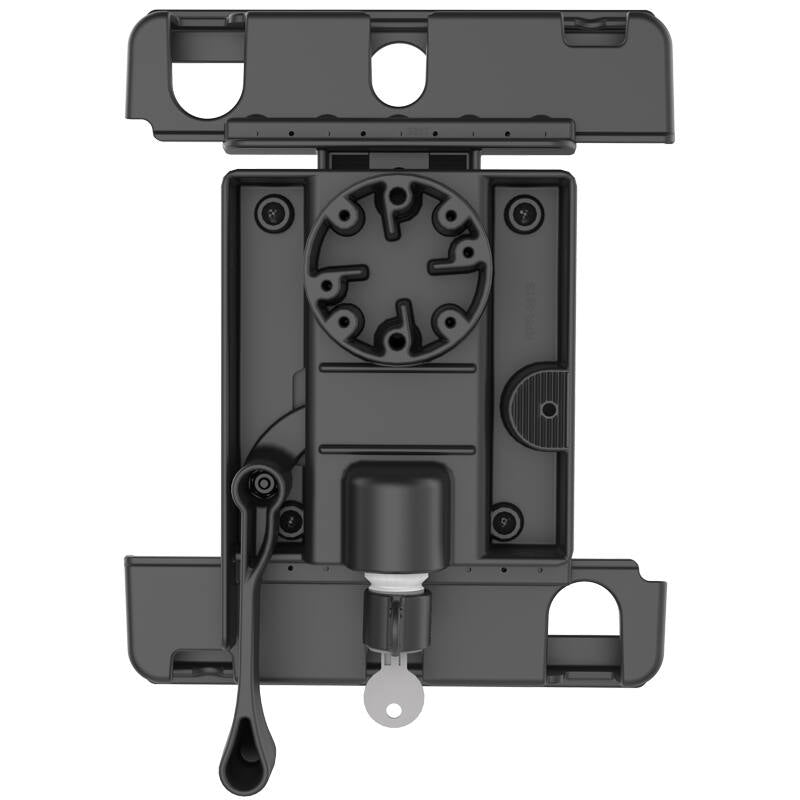

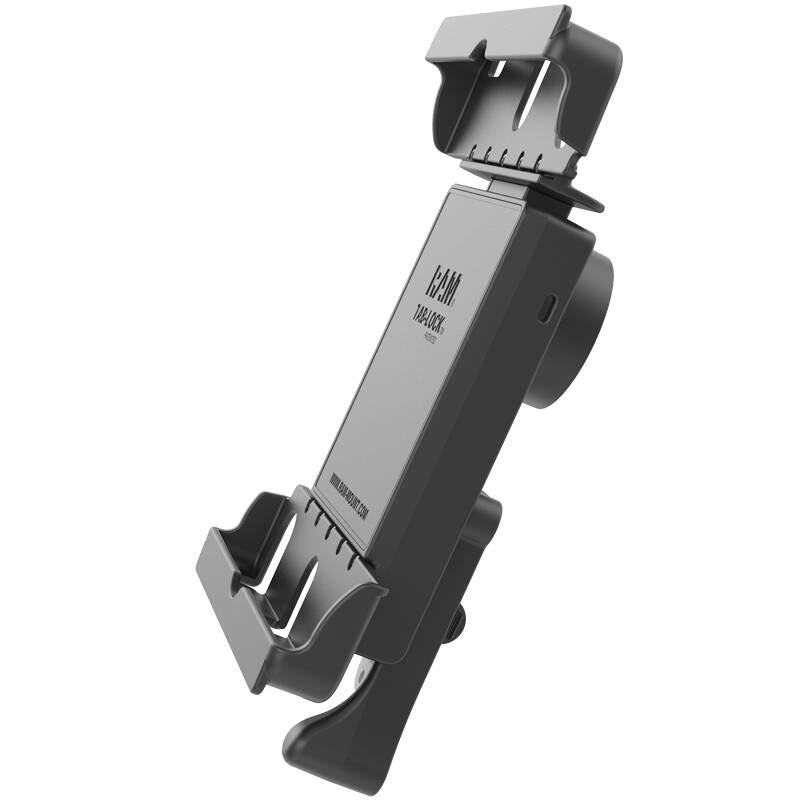

The cradle consists of a spring loaded back plate, custom support cups and locking mechanism offers theft deterrence and unwanted tampering in public settings. This spring loaded design makes it easy to load and unload your iPad Air, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, USB, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad Air secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.
The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 241 to 308mm (9.5 to 12.125")
W: 166 to 189mm (6.55 to 7.43")
D: 7.6 to 22mm (0.3 to 0.875")
Compatible Devices include:
Apple
iPad (5th Generation) with Case
iPad (6th Generation) with Case
iPad (7th Generation) with Case
iPad 9.7 (2017) with Case
iPad 9.7 (2018) with Case
iPad Air with Case
iPad Air 2 with Case
iPad Pro 10.5 (2nd Generation) with Case
ASUS
ZenPad 10 with Case
ZenPad 3S 10 with Case
ZenPad Z10 with Case
Huawei
MediaPad M2 10.0 with Case
Lenovo
Tab 2 A10-70 with Case
Tab 4 10 with Case
Tab 4 10 Plus with Case
Tab3 10 Business with Case
Yoga Tab 3 10 with Case
LG
G Pad 10.1 with Case
G Pad II 10.1 with Case
G Pad X 10.1 with Case
G Pad X II 10.1 with Case
Samsung
Galaxy Tab 10.1 with Case
Galaxy Tab 3 10.1 with Case
Galaxy Tab 8.9 with Case
Galaxy Tab A 9.7 with Case
Galaxy Tab A 10.5 with Case
Galaxy Tab E 9.6 with Case
Galaxy Tab Pro 10.1 with Case
Galaxy Tab S2 9.7 with Case
Galaxy Tab S3 9.7 with Case
Galaxy Tab S4 10.5 with Case
Galaxy Tab S6 with Case
Sony
Xperia Tablet Z with Case
Vankyo
MatrixPad Z4 10
Clamp Range:
Strap Dimensions:
1.57" (39.88mm) to a maximum of 3.15" (80mm)
U-Bolt Holding Dimensions:
0.50" (12.7mm) to a maximum of 1.25" (31.75mm)

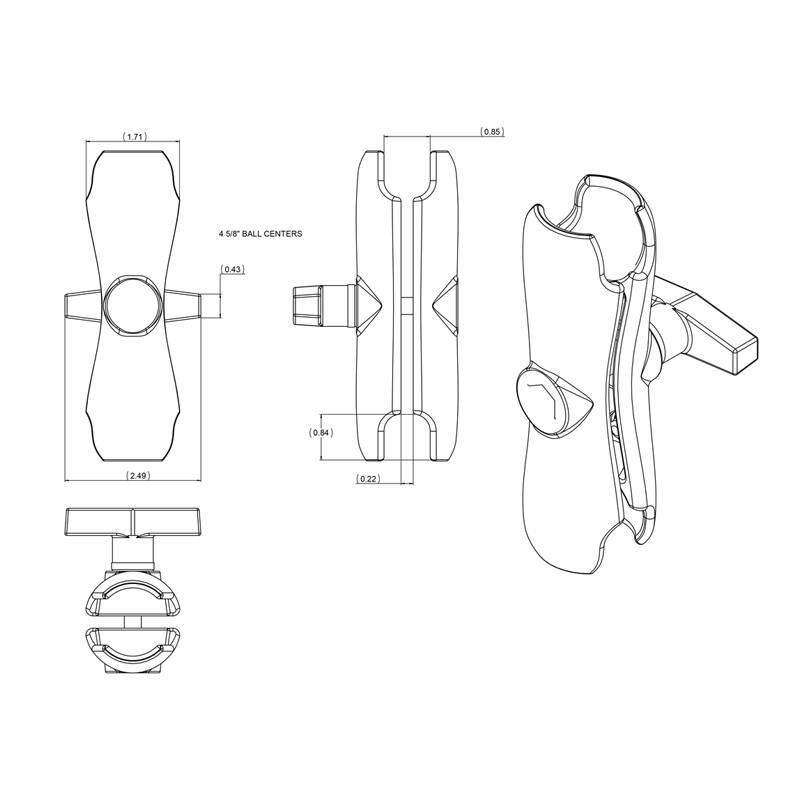

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Hardware Included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
https://www.youtube.com/watch?v=EC-bdR3KAww
Components:
RAM-HOL-TABL20U RAM Tab-Lock Locking Cradle for the Apple iPad Air WITH CASE
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-231Z-2U RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1.5" Ball for Rails to 80mm dia.
