RAM Tab-Lock Locking Cradle - Apple iPad Gen 1-4 + More

RAM-HOL-TABL3U RAM® Tab-Lock™ Locking Cradle for Apple iPad Gen 1-4 + More

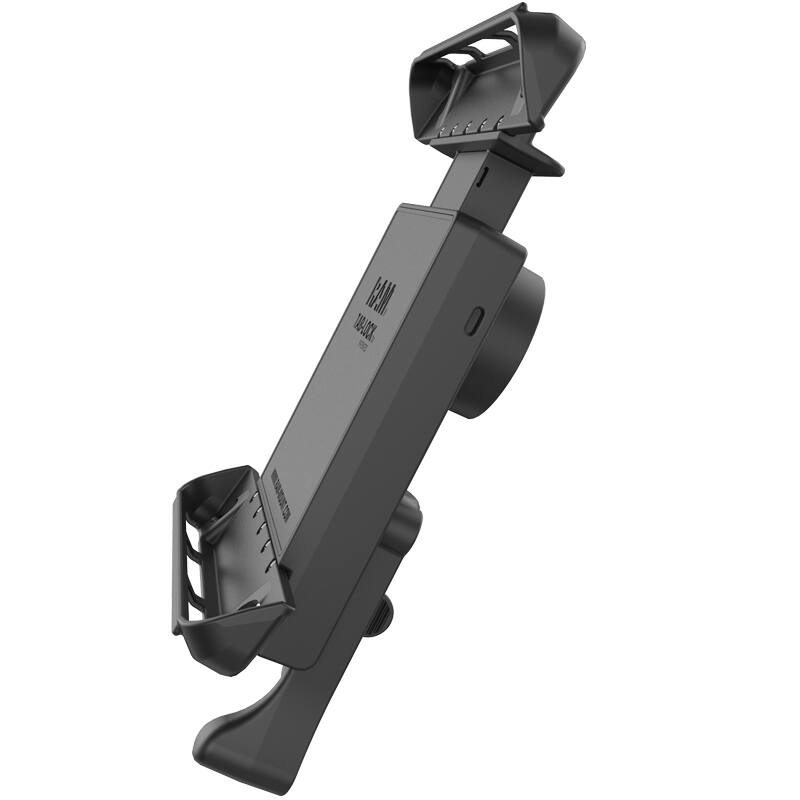

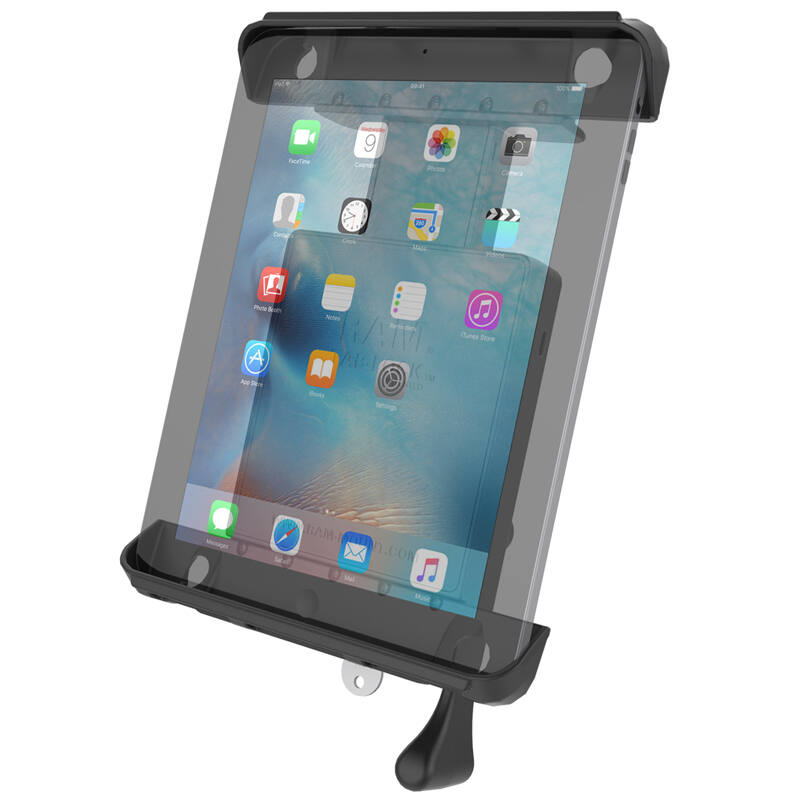

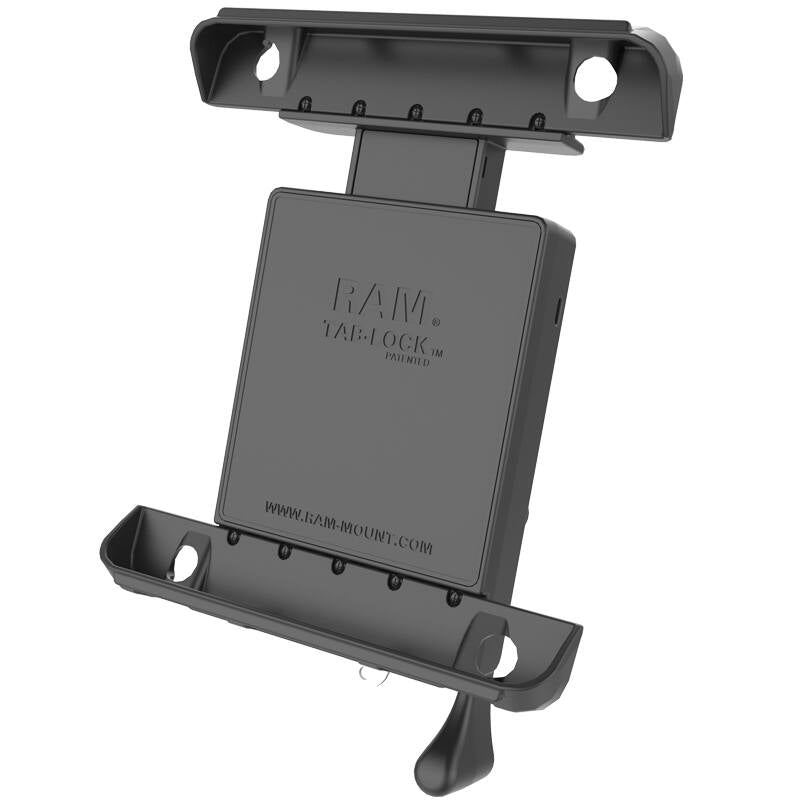

The RAM-HOL-TABL3U is a key-locking version of RAM's Tab-Tite™ cradle for 9.7"–10" tablets, built around the Apple iPad Gen 1-4. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release.

Key Features

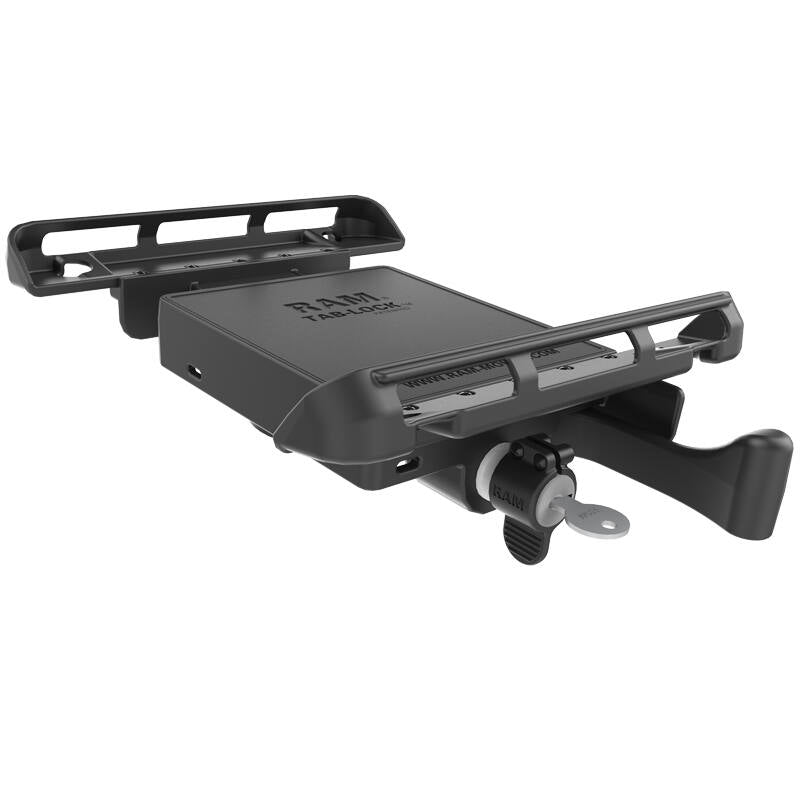

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings

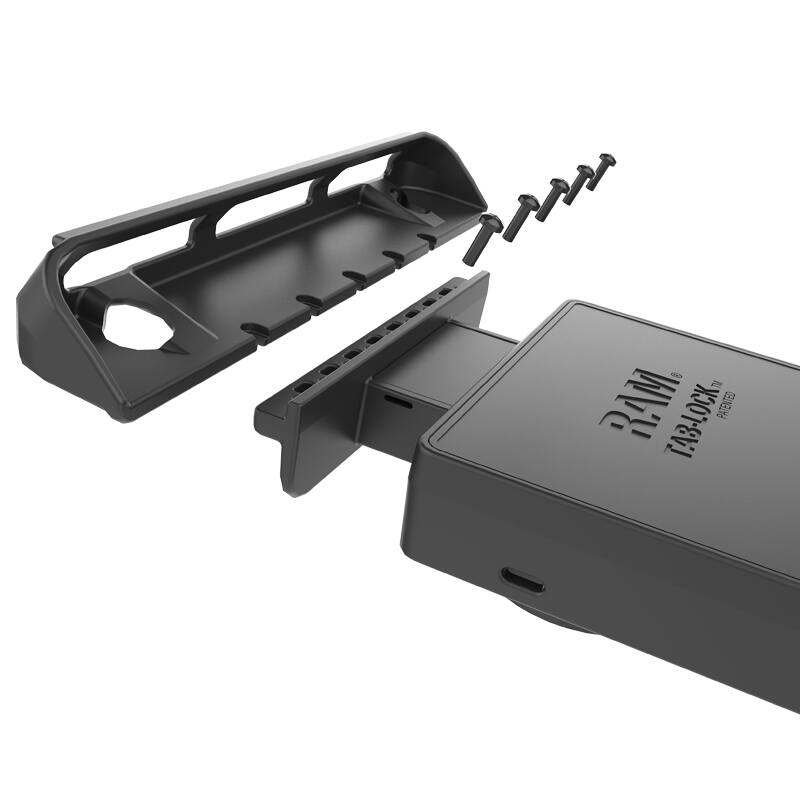

• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets: 216–283mm H x 162–197mm W x 3.3–14.2mm D (8.5"–11.125" x 6.38"–7.75" x 0.13"–0.56")

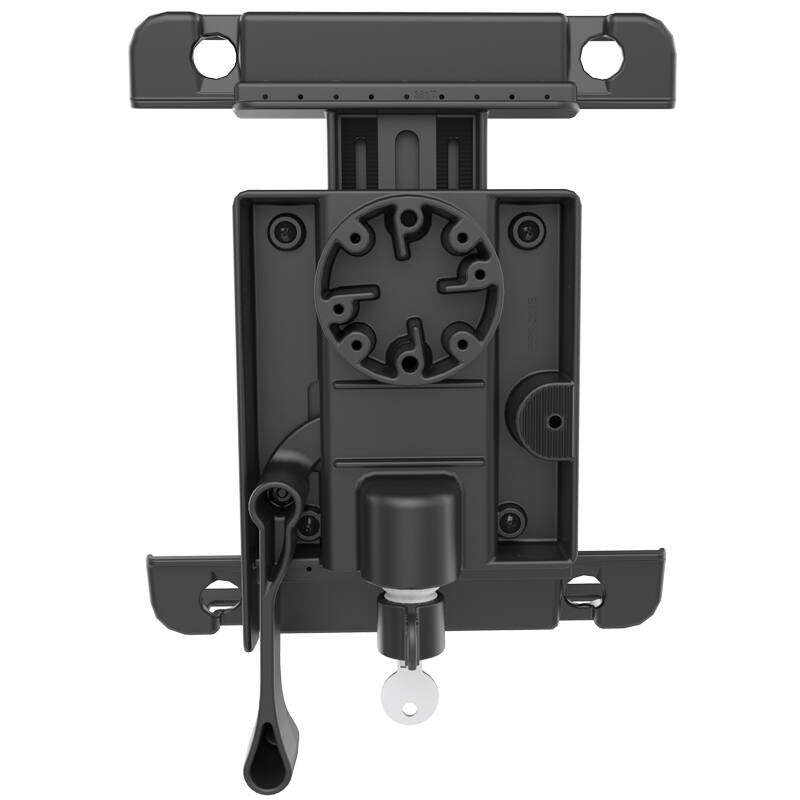

• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 539g
• Material: high-strength composite

Compatible Devices

Apple

• iPad (1st Generation)
• iPad 2
• iPad (3rd Generation)
• iPad (4th Generation)
• iPad Pro 11"

ASUS

• MeMO Pad FHD 10
• Transformer Pad

Dell

• Venue 10 7000
• Venue 11 Pro 7000

HP

• ElitePad 900
• ElitePad 900 G1
• Pro 610

Lenovo

• S6000
• Tab A10
• ThinkPad 10
• Yoga Tablet 10
• Yoga Tablet 10 HD+
• Yoga Tablet 2 (10 inch)

What's Included

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys

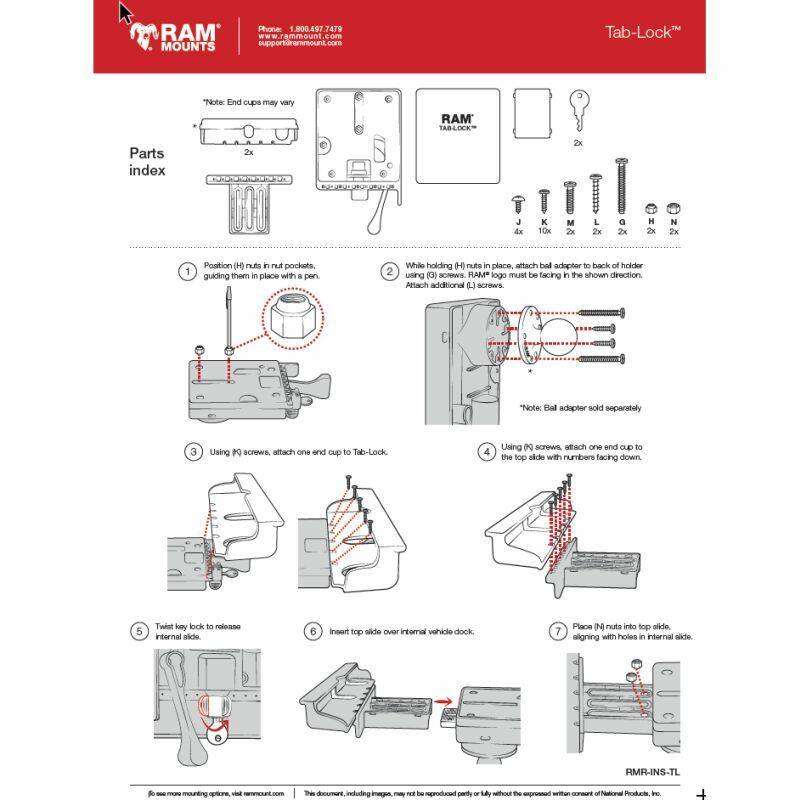

• Assembly hardware: (2) #8 x 5/8" sheet metal screws, (2) M4 x 32mm machine screws, (2) M4 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit my tablet if it's not listed? Check your tablet's dimensions against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
