RAM Tab-Tite - Backplate with Hardware

RAM-HOL-ACU RAM® Tab-Tite™ Backplate with Hardware

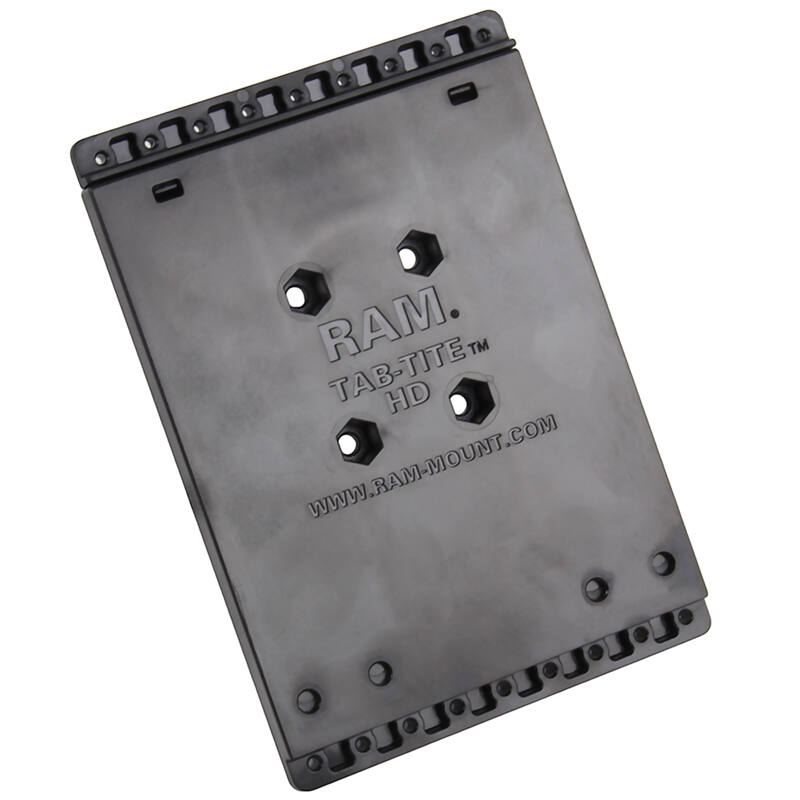

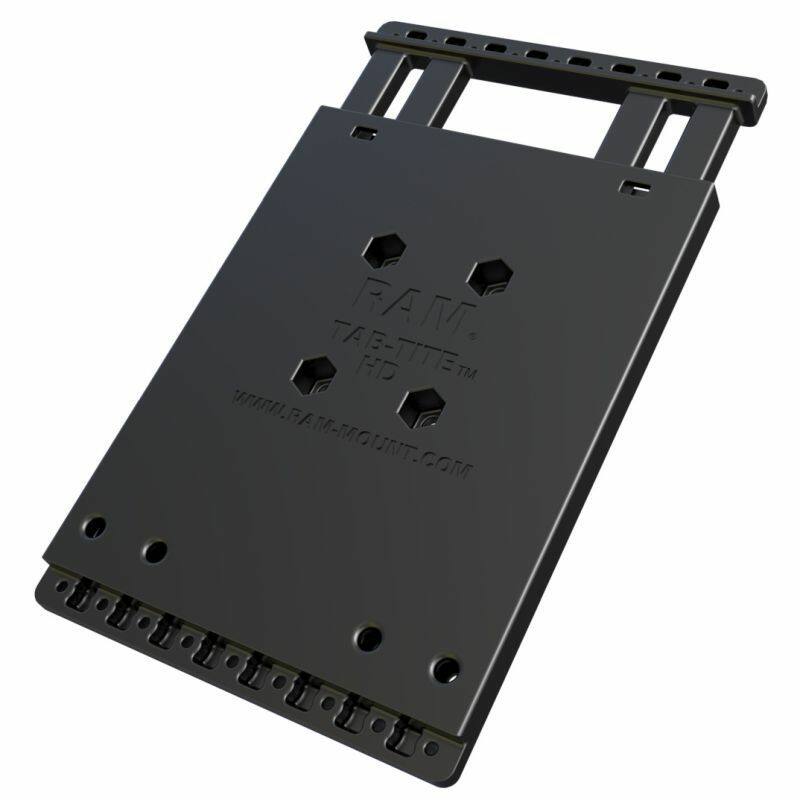

The RAM-HOL-ACU is a spring-loaded Tab-Tite™ backplate that becomes a complete tablet cradle once matching top and bottom cup ends are added, letting you re-fit an existing mount to a new tablet.

Key Features

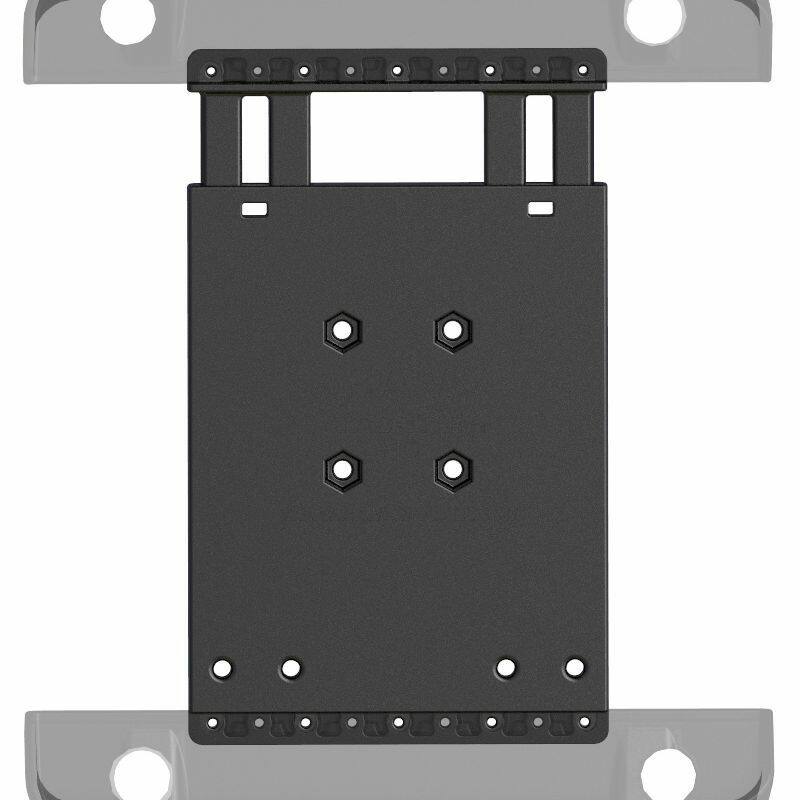

• Spring-loaded backplate forms a RAM-HOL-TAB-XXXX cradle once the appropriate RAM-HOL-XXXX-CUPSU cups are added
• Compatible with B and C Size RAM® round ball bases for attaching a double socket arm, with near-infinite adjustability
• High-strength composite construction
• Backed by RAM's lifetime warranty

Works With

To complete a tablet cradle, add the Replacement Top Cups for your model — part numbers ending in "CUPSU". For example, RAM-HOL-TAB6-CUPSU converts this backplate into a RAM-HOL-TAB6U.

Dimensions & Specifications

• 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)
• Material: High-strength composite

Hardware Included

• 10 x #4 x 3/8" sheet metal screws
• 4 x #8-32 x 5/8" machine screws
• 4 x #8-32 nylock nuts

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

Tab-Tite overview
