RAM-B-316-1-TAB-LG RAM® Tab-Tite™ with RAM® Pod™ I Vehicle Mount for Large Tablets
Features
* Spring-loaded holder secures large tablets with heavy-duty cases
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Universal vehicle mount attaches to seat rail without any drilling necessary; 457mm aluminium rod can be bent to your ideal position
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

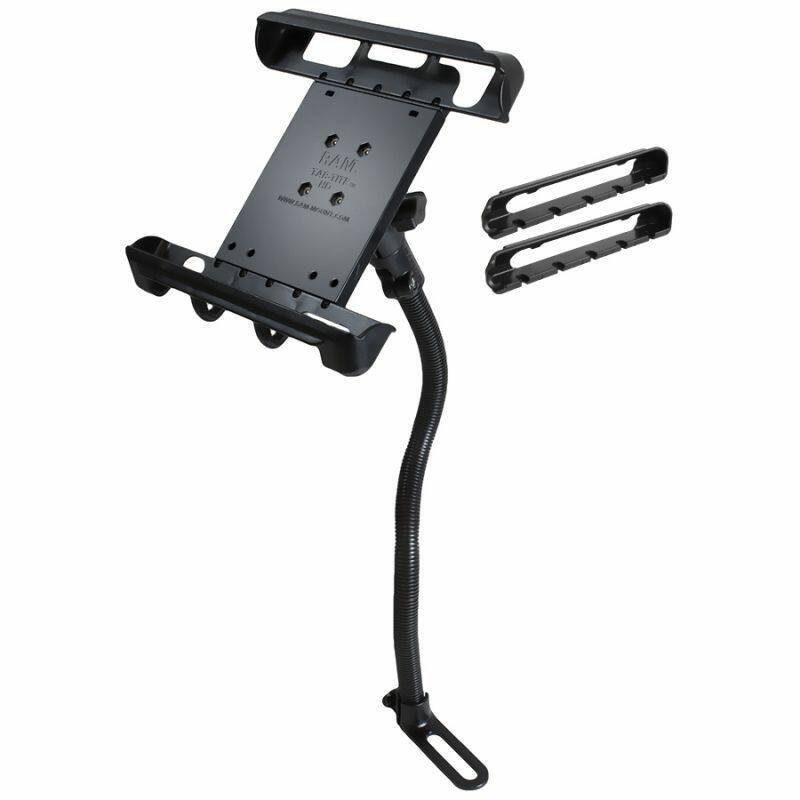

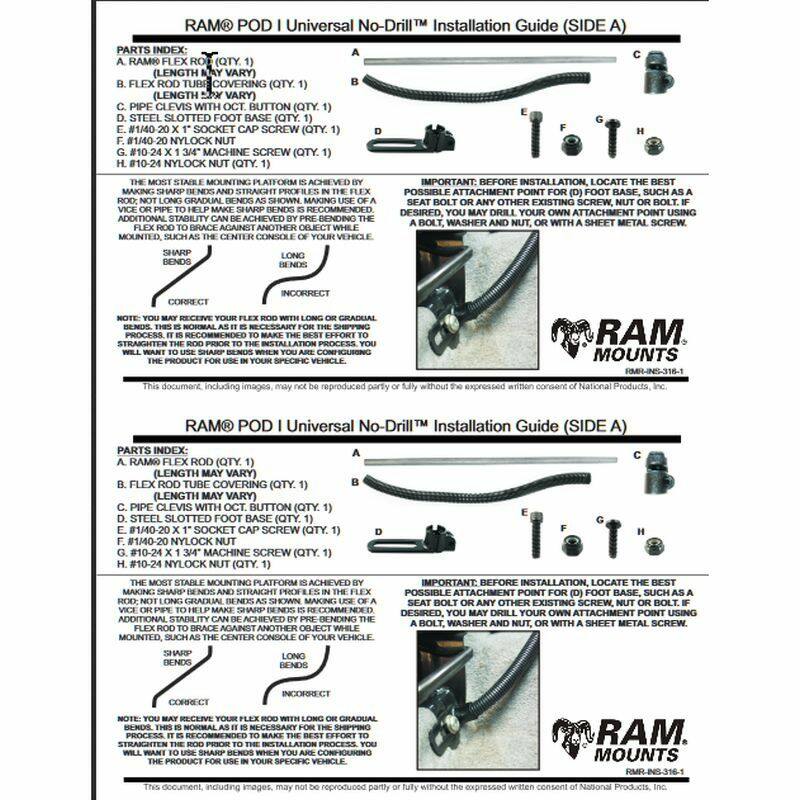

This consists of the RAM POD I No-Drill™ vehicle base, rigid aluminium rod, socket system and Tab-Tite™ cradle.

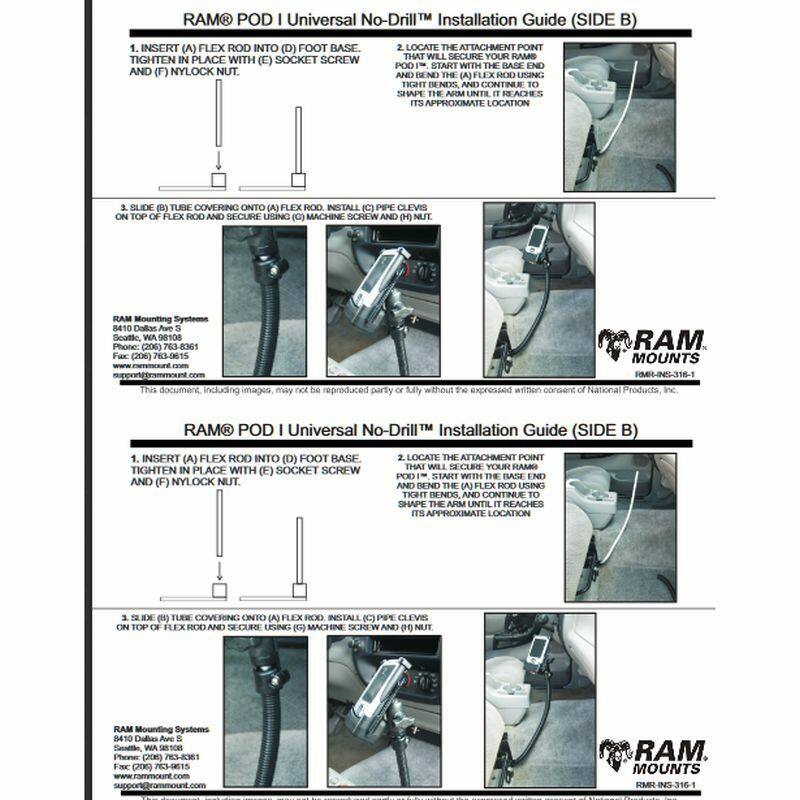

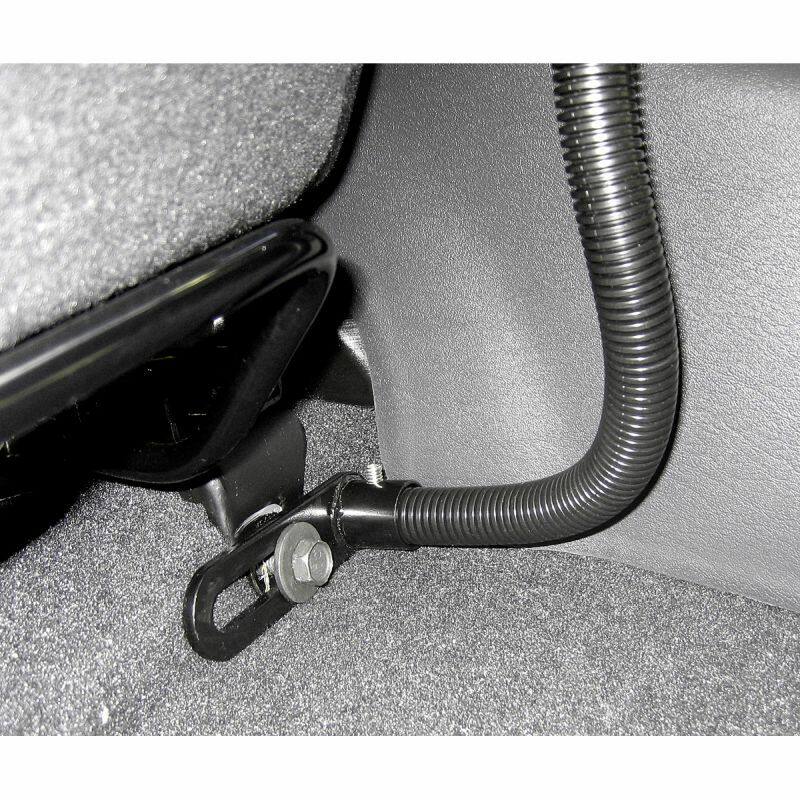

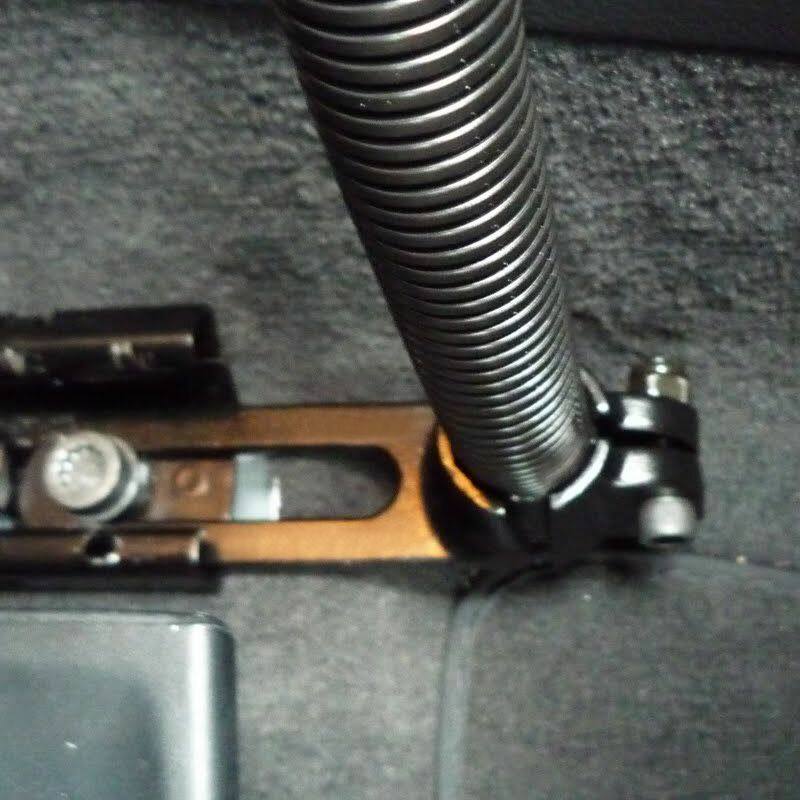

The 457mm (18") rigid aluminium rod can be bent to position your device to its optimum viewing location and connects to your seat rail without any drilling necessary.

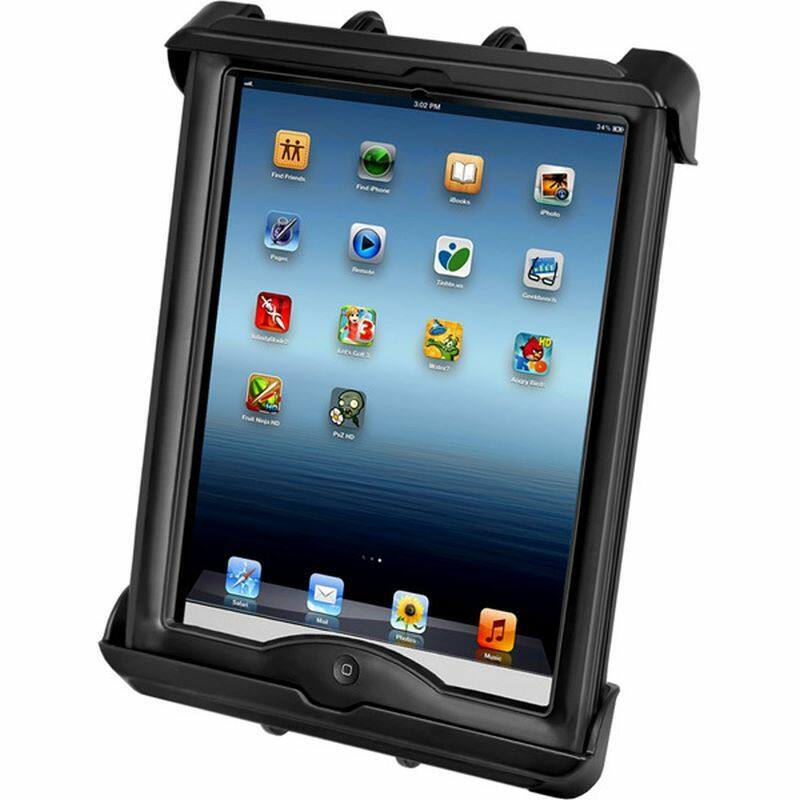

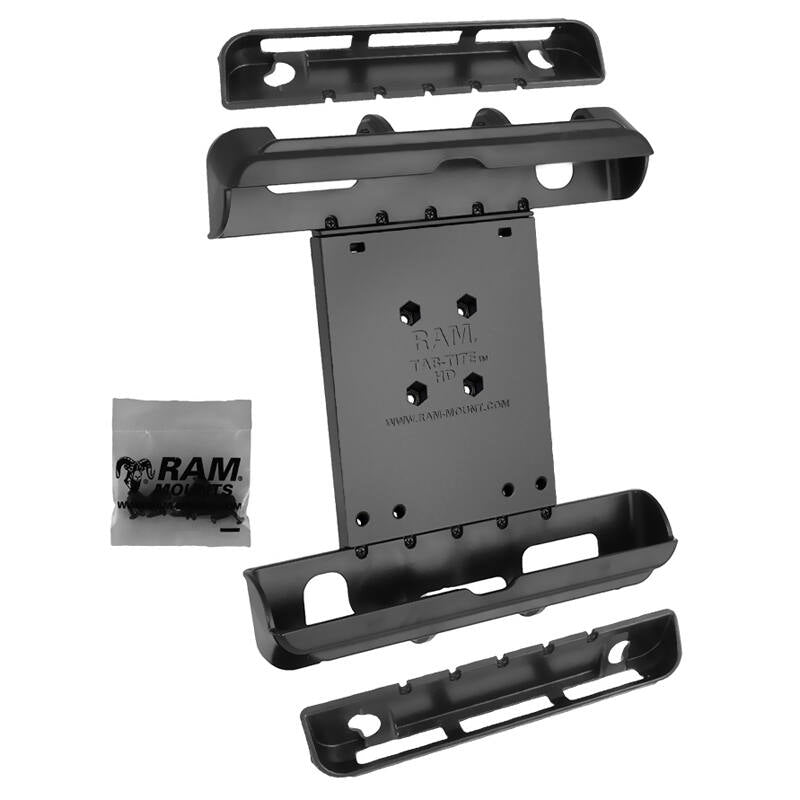

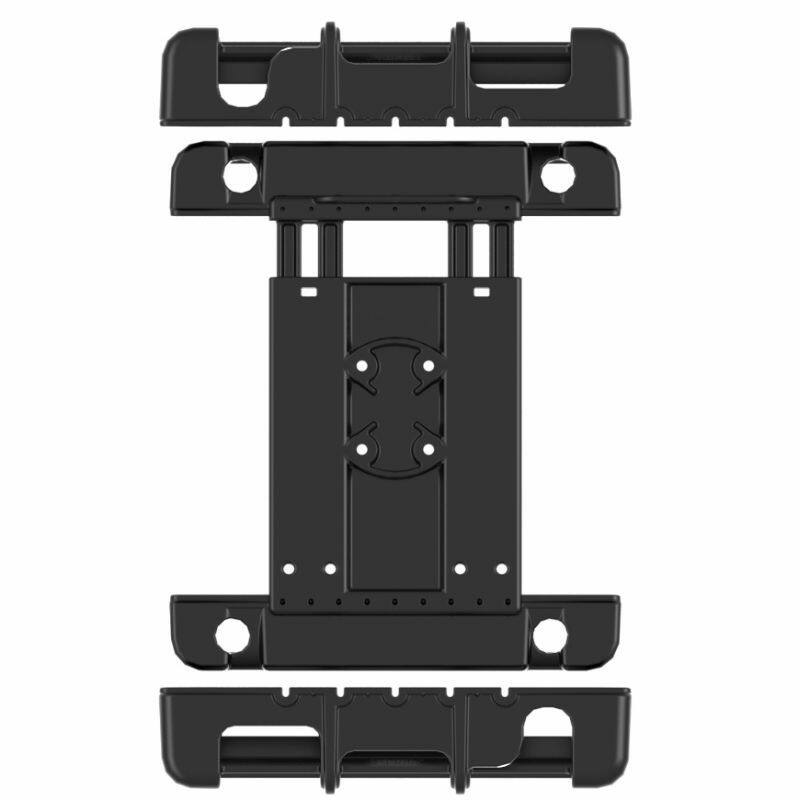

With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the Tab-Tite™ cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Holder Dimensions
H: 216mm - 298.5mm (8.5" - 11.75")
W: 197mm - 209.6mm (7.75" - 8.25")
D: 14.2mm - 27.9mm (0.56" - 1.1")
Compatible Devices
10" Tablets with LifeProof nd cases / Lifedge cases / Heavy duty cases
Apple
iPad 1, 2, 3, 4
iPad Air, Air 2
HP
TouchPad
Samsung
Galaxy Note 10.1
Overall Height:
533mm (21")
Weight Capacity
Standard Use:
0.907kg (2 lbs)
Heavy-Duty Use:
0.453kg (1 lb)
Materials
Marine-grade aluminium
High strength composite
BALL/SOCKET SIZE
B Size (1")
WEIGHT
1.56kg (3.45 lbs)
Components:

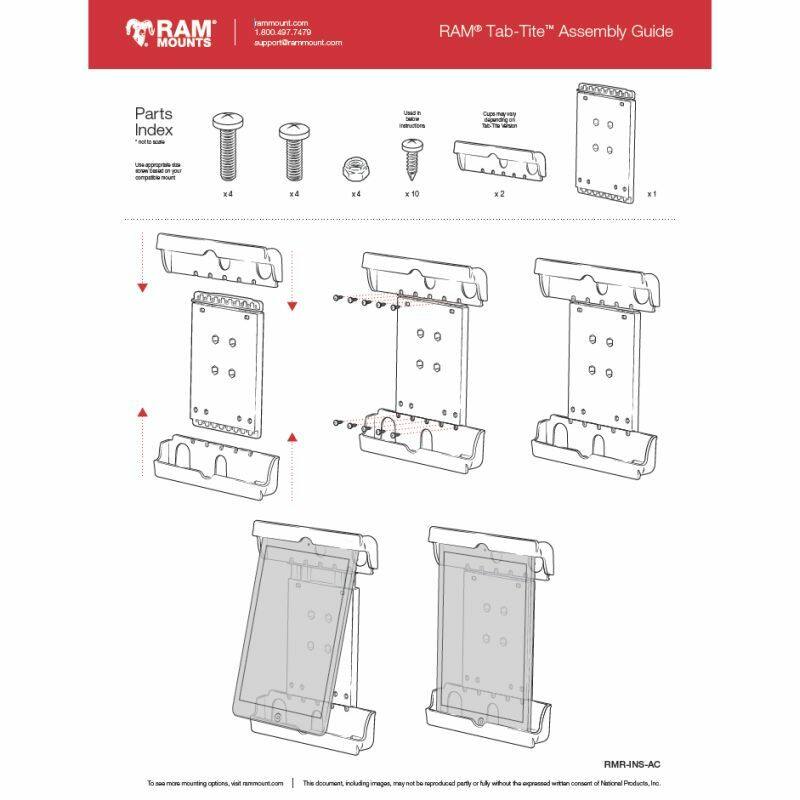

RAM-HOL-TAB-LGU TAB-TITE KIT

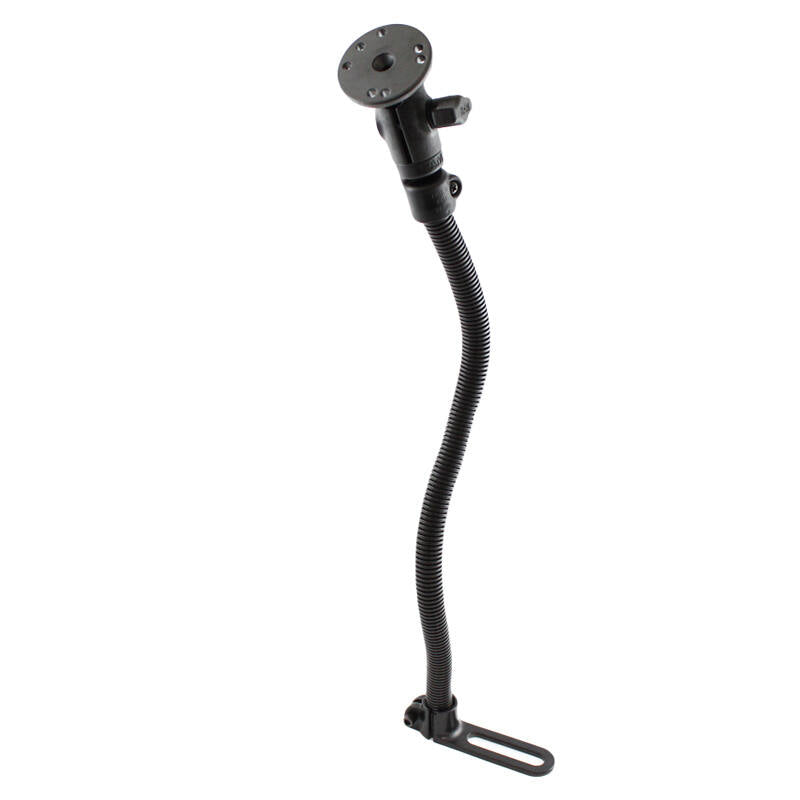

RAM-B-316-1U POD1 FLOOR MOUNT
RAM-B-202U Round Base
