RAM-B-189-PIV1-TAB17-ALA1-KRU RAM® Tab-Tite™ Articulating Suction Mount for iPad Gen 1-4

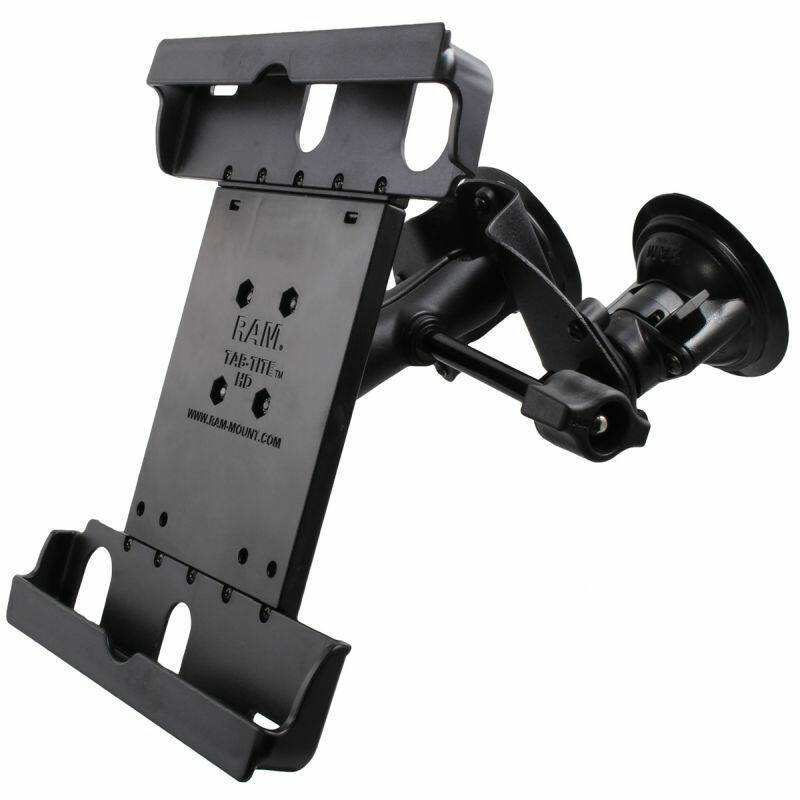

The RAM-B-189-PIV1-TAB17-ALA1-KRU is a complete RAM® mount for the Apple iPad Gen 1-4 in a case, built for curved surfaces. It pairs the spring-loaded RAM® Tab-Tite™ cradle with the RAM® dual articulating Twist-Lock™ suction base and a retention-knob arm, so it seals on a curved windscreen and adjusts with the tablet still in place.
Key Features
Dual articulating suction base: two 83.8mm (3.3") cups pivot independently, so the base grips curved glass such as a helicopter windscreen, not just flat surfaces.
Retention-knob arm: the double socket arm has an extension knob, so you can re-aim it with the tablet loaded and it will not over-loosen.
Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups.
Infinite adjustment: B-size 1" ball at each end of the arm for near-infinite viewing angles.
Built to last: high-strength composite construction, backed by RAM®'s lifetime warranty.
Works With
Sized for the iPad Gen 1-4 in a case and similar tablets within the cradle dimensions below. The pivot base suits curved or flat smooth, non-porous surfaces.
Compatible Devices
Apple
iPad (1st Generation) with case
iPad (2nd Generation) with case
iPad (3rd Generation) with case
iPad (4th Generation) with case
Plus any tablet that fits within the cradle dimensions below.
Dimensions & Specifications
Cradle height range: 241–298mm (9.5"–11.75")
Cradle width range: 162–210mm (6.375"–8.25")
Cradle depth range: 3.3–28mm (0.13"–1.1")
Suction base: two 83.8mm (3.3") independently articulating cups, ~202mm (7.95") total span
Ball size: B Series 1"
Arm: double socket arm with retention knob, 94mm (3.69") overall, 76mm (3") socket-to-socket
Load capacity: 907g (2 lb)
Material: high-strength composite
Weight: 925g (2.04 lb)

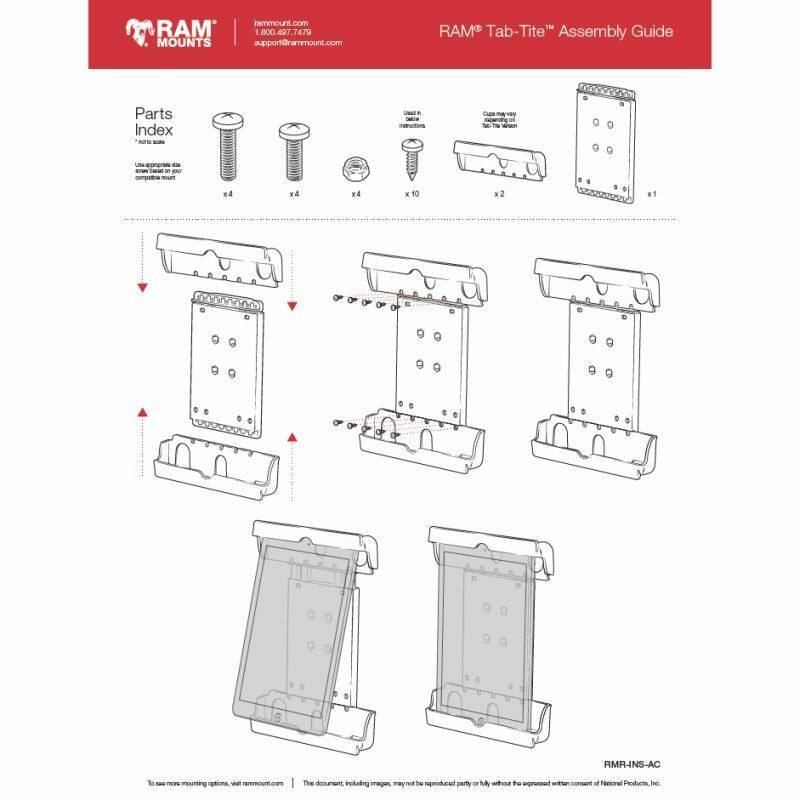

What's Included
RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
RAM® dual articulating Twist-Lock™ suction base with 1" ball
RAM® double socket arm with retention knob
Round base adapter with 1" ball
Assembly hardware
FAQs
Why an articulating base? Each suction cup pivots on its own, so the base can sit flat against a curved windscreen where a rigid dual base could not seal.
What does the retention knob do? It lets you loosen and re-aim the arm with the tablet still mounted, and stops the knob backing all the way off.
