RAM Tab-Tite Cradle - 10" Tablets in cases including Surface Pro with 1.5" Ball

RAM-HOL-TAB25-202U RAM® Tab-Tite™ Tablet Holder for 10" Tablets, Round Base (C Size Ball)

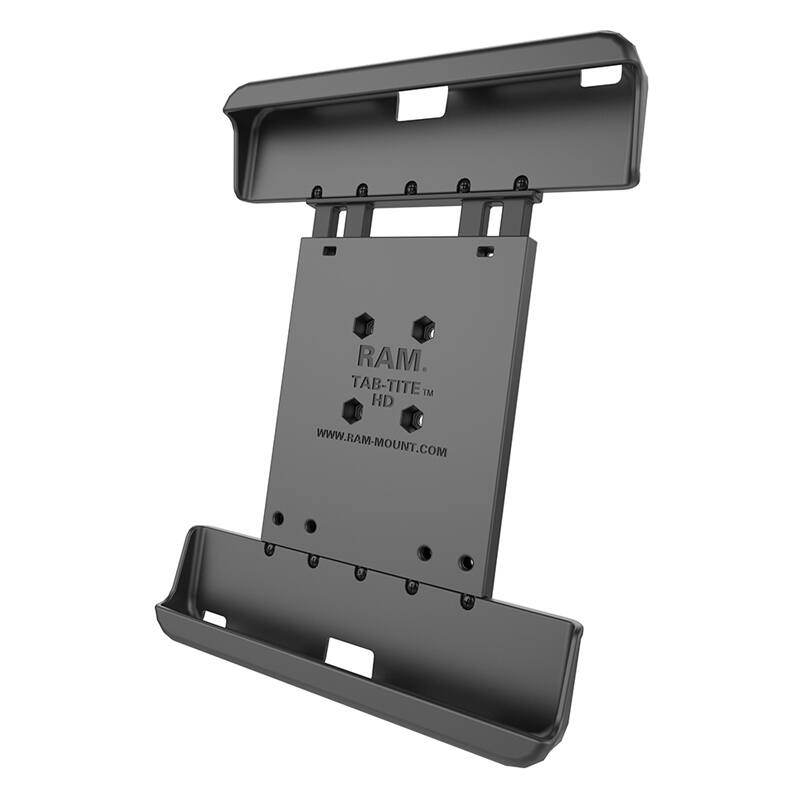

The RAM-HOL-TAB25-202U is a spring-loaded Tab-Tite™ cradle for various 10" tablets in a case, paired with a round base and 1.5" C Size ball.

Key Features

• Spring-loaded holder secures various 10" tablets with a case; interchangeable end cups let you adapt the holder for a new device later
• Includes a C Size round ball base for attaching a double socket arm, with near-infinite adjustability
• Cup ends allow access to all ports and tablet functions
• High-strength composite and marine-grade alloy construction
• Backed by RAM's lifetime warranty

Dimensions & Specifications

• Cradle height: 244.9mm to 313mm (9.64" to 12.32")
• Cradle width: 155.7mm to 188mm (6.13" to 7.4")
• Cradle depth: 3.3mm to 17.78mm (0.13" to 0.7")
• 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)

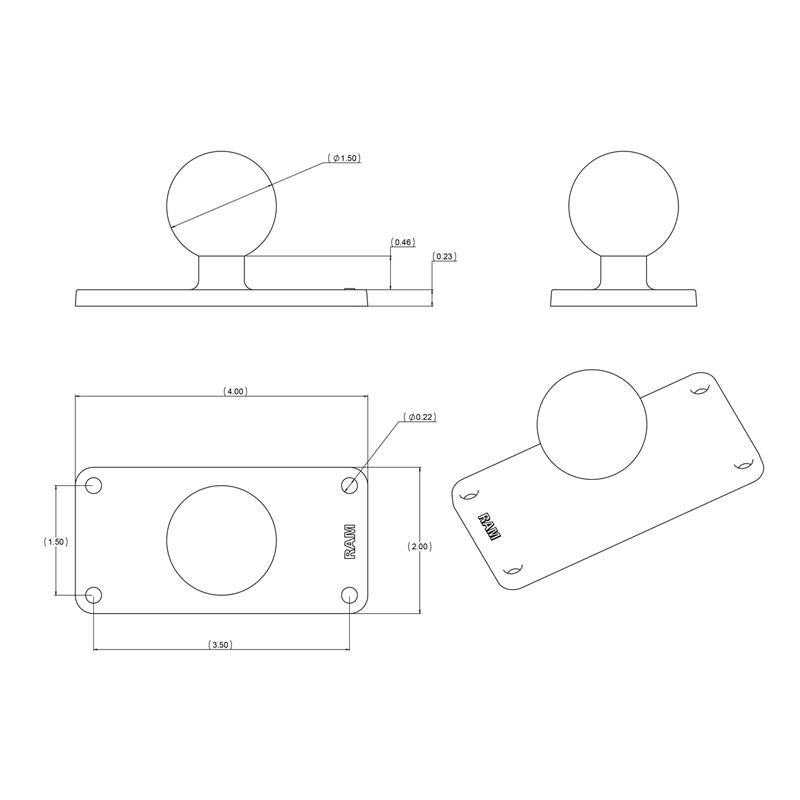

• Ball size: C Size (1.5")
• Materials: High-strength composite, powder-coated marine-grade aluminium
• Weight: 404 grams (0.87 lbs)

Compatible Devices

• Dell Venue 11 Pro
• HP Pro Slate 10.1
• Lenovo IdeaTab Lynx K3011
• Microsoft Surface 2, Surface 3, Surface Pro, Surface Pro 2
• Samsung Galaxy Tab 4 10.1 with case
• Samsung Galaxy Tab A 10.1 (2019) with case
• Samsung Galaxy Tab E 9.6 with case
• Samsung Galaxy Tab S 10.5 with case
• Sony Vaio Tap 11
• Zebra ET50, ET55

For off-road environments and extreme use, we recommend adding a tether to help retain your device. Product consists of holder only — case not included.

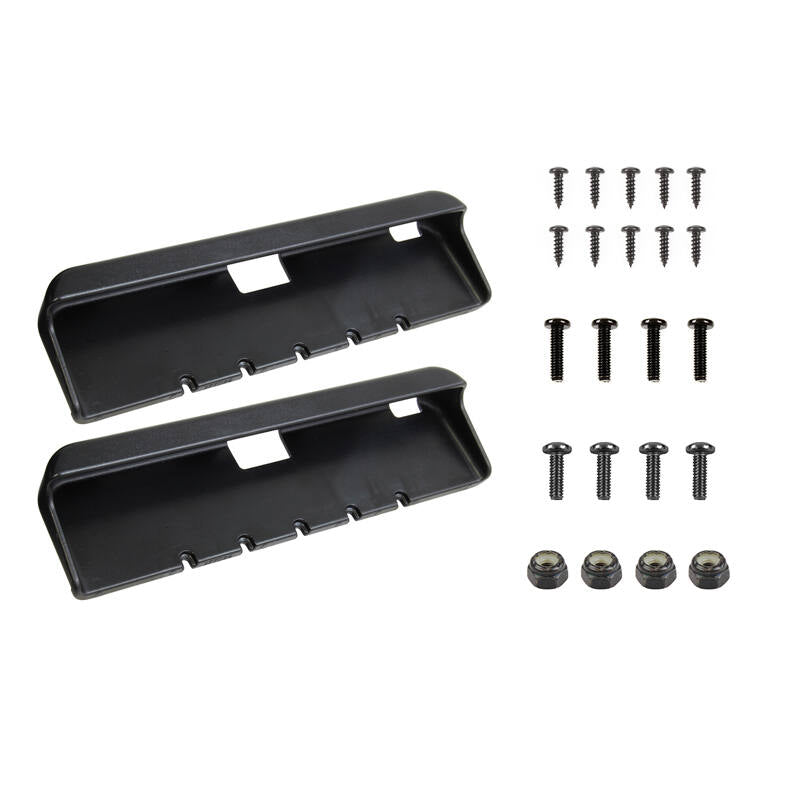

Hardware Included

• 4 x #8-32 x 5/8" machine screws
• 4 x #8-32 x 1/2" machine screws
• 4 x #8-32 nylock nuts

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

Tab-Tite overview
