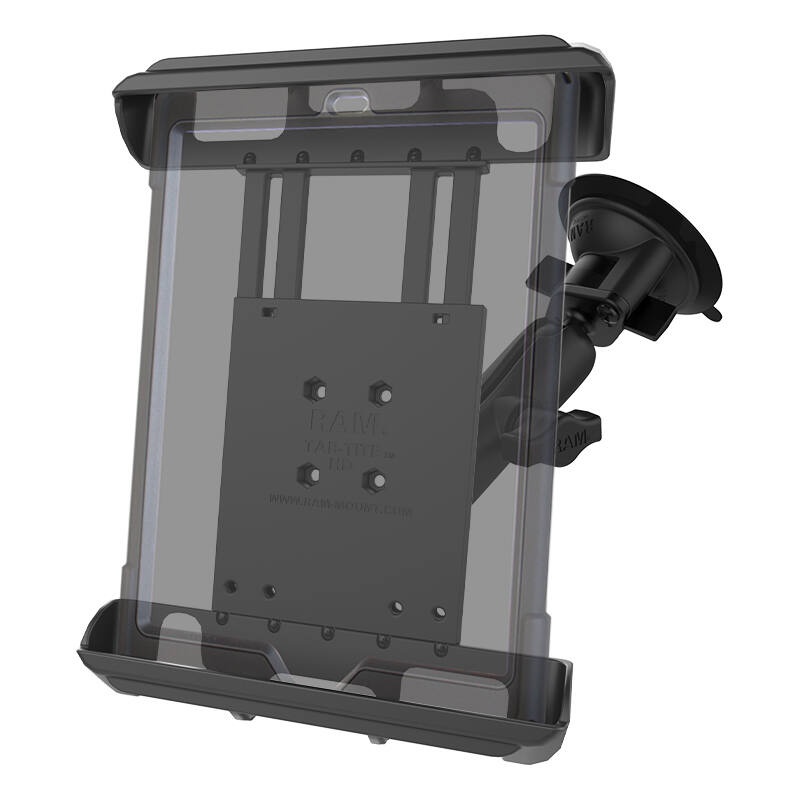

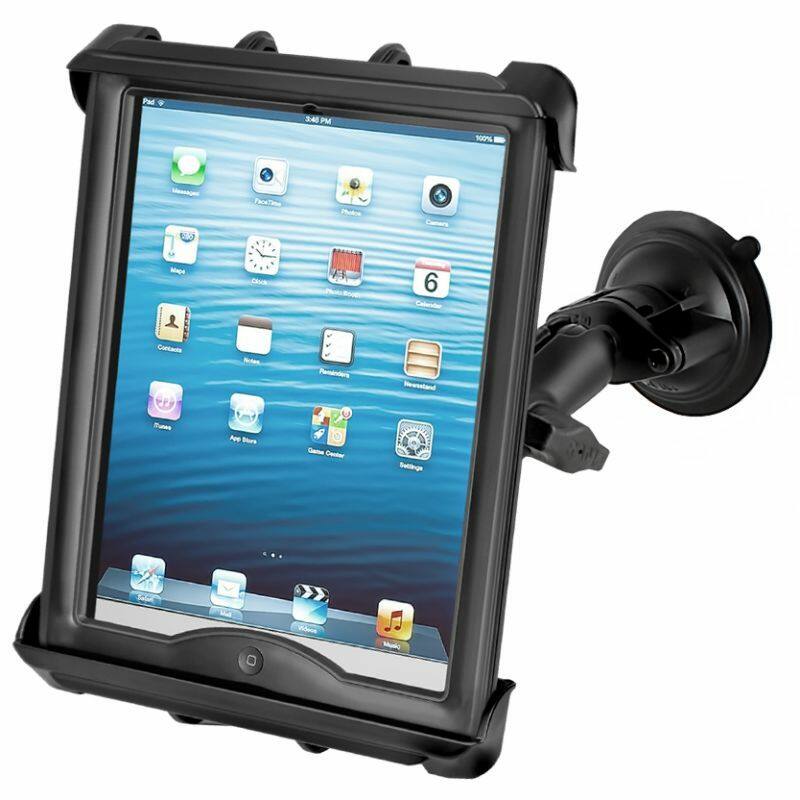

RAM-B-166-TAB8U RAM® Tab-Tite™ Suction Cup Mount for 10" Tablets with Case
The RAM-B-166-TAB8U is a complete RAM® suction cup mount for 10" tablets in a case, sized around the Apple iPad Pro 9.7 (1st Gen) with a case. It pairs the spring-loaded RAM® Tab-Tite™ cradle with a RAM® Twist-Lock™ suction base and a medium B-size arm, ready to mount to a windscreen or smooth surface.
Key Features
Complete mount: cradle, suction base and arm in one kit.

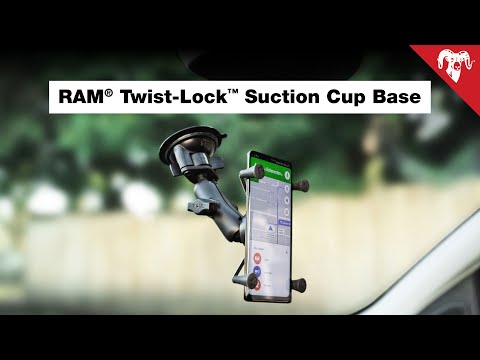

Twist-Lock suction base: 83.8mm (3.3") cup grips glass and smooth, non-porous surfaces and locks with the lever. Use a RAM® adhesive disk for textured dashboards.

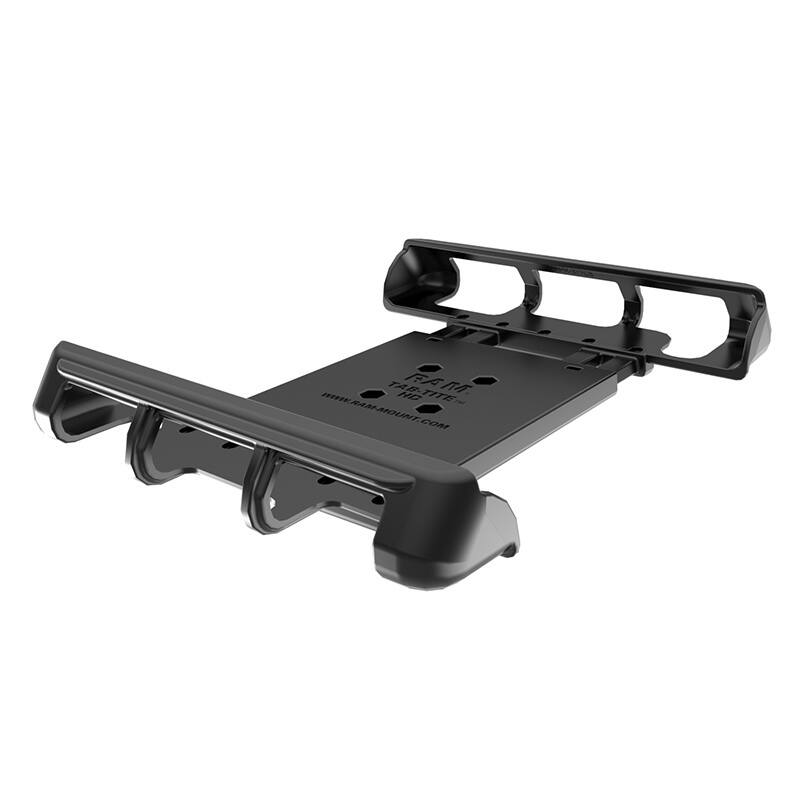

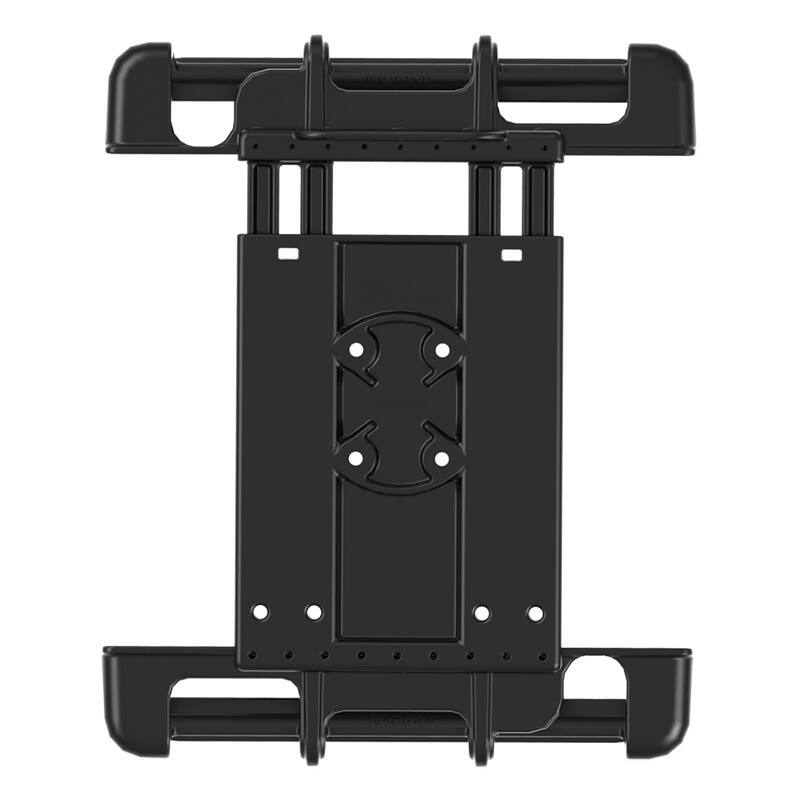

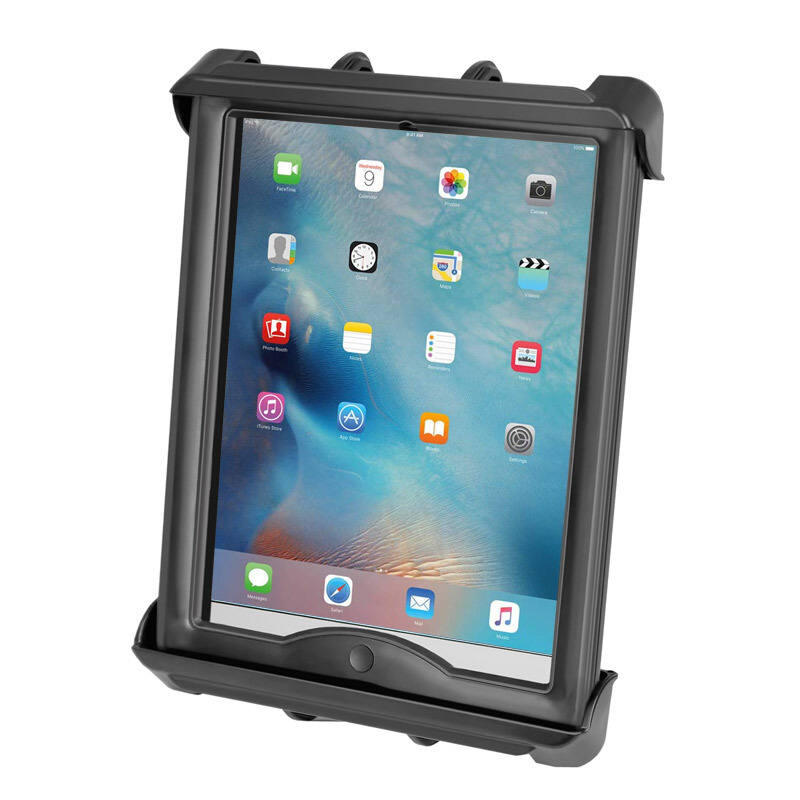

Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups.
Infinite adjustment: B-size 1" ball at each end of the double socket arm, locked with a single knob.
Built to last: powder-coated marine-grade aluminium and high-strength composite, backed by RAM®'s lifetime warranty.
Works With
Sized around the iPad Pro 9.7 with a case and most 10" tablets in a case that fit the cradle dimensions below. Mounts to windscreens, glass and other smooth, non-porous surfaces.
Compatible Devices
Apple
iPad Pro 9.7 (1st Gen) with or without case
iPad (9th Gen) 10.2" with or without case
Plus any tablet that fits within the cradle dimensions below.
Dimensions & Specifications
Cradle height range: 229–292mm (9"–11.5")
Cradle width range: 162–211mm (6.38"–8.31")
Cradle depth range: 3.3–28mm (0.13"–1.12")
Suction cup diameter: 83.8mm (3.3")
Ball size: B Series 1"
Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
Hole pattern: 4-Hole AMPS, 1.181" x 1.496" (30mm x 38mm)
Material: powder-coated marine-grade aluminium and high-strength composite
Weight: 522g (1.15 lb)
What's Included
RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
RAM® Twist-Lock™ suction cup base with 1" ball
RAM® medium double socket arm
Round base adapter with 1" ball
Assembly hardware
FAQs
Will it hold on my dashboard? The suction base needs a smooth, non-porous surface like glass. For a textured dash, use a RAM® adhesive disk and suction to that.
Will my tablet fit? If your tablet in its case sits within the cradle ranges above, it will fit. The cradle is sized around the iPad Pro 9.7 with a case.
How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
