RAM-138-TAB8U RAM® Tab-Tite™ Large Tablet Holder with Flat Surface Mount
Features
* Spring-loaded holder secures most 10" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes C size double ball and socket mount with drill-down base; 4-hole AMPS pattern
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

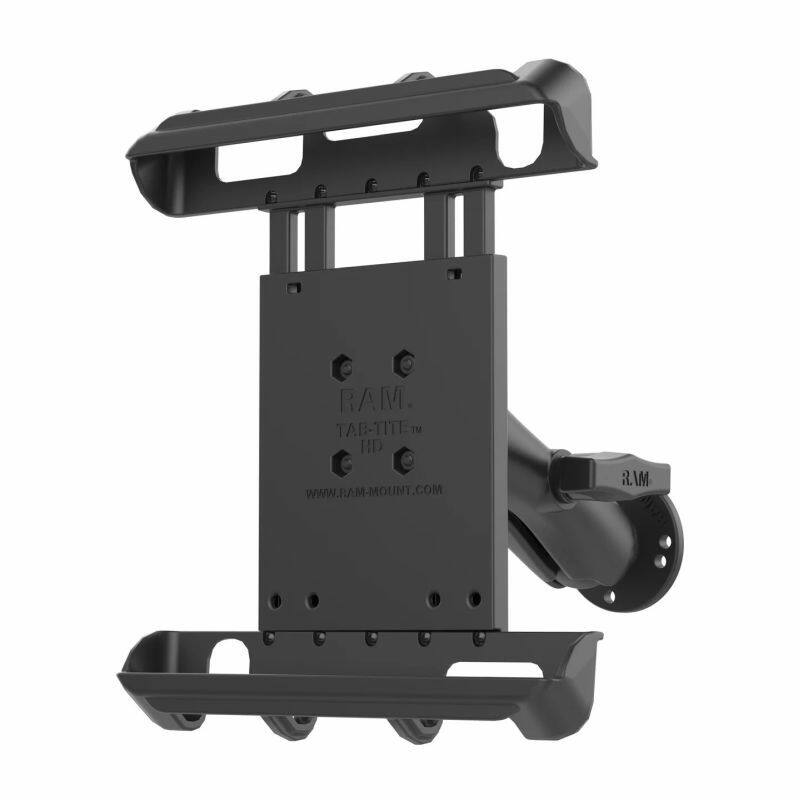

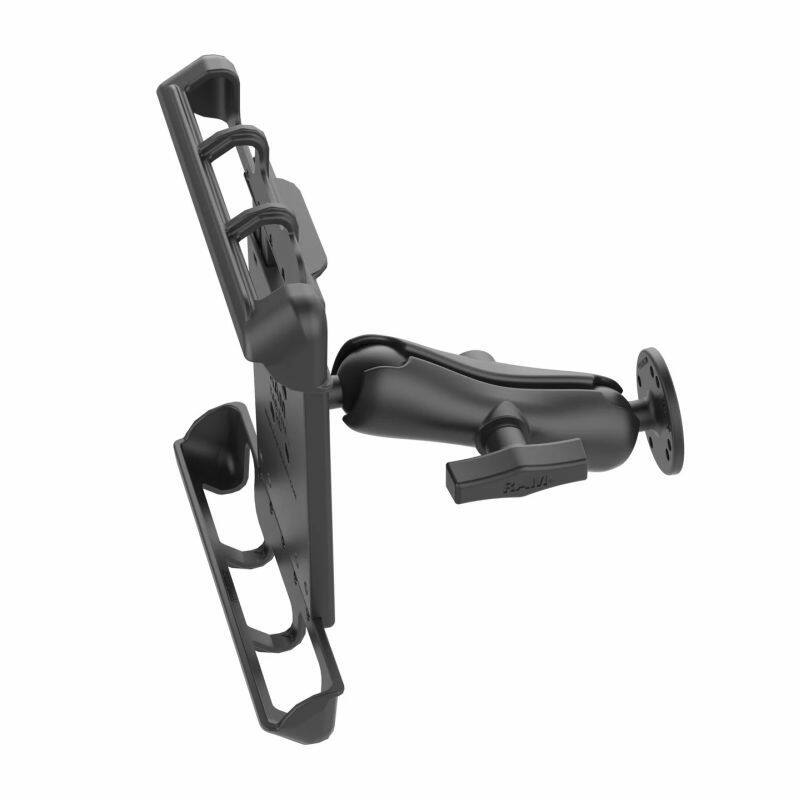

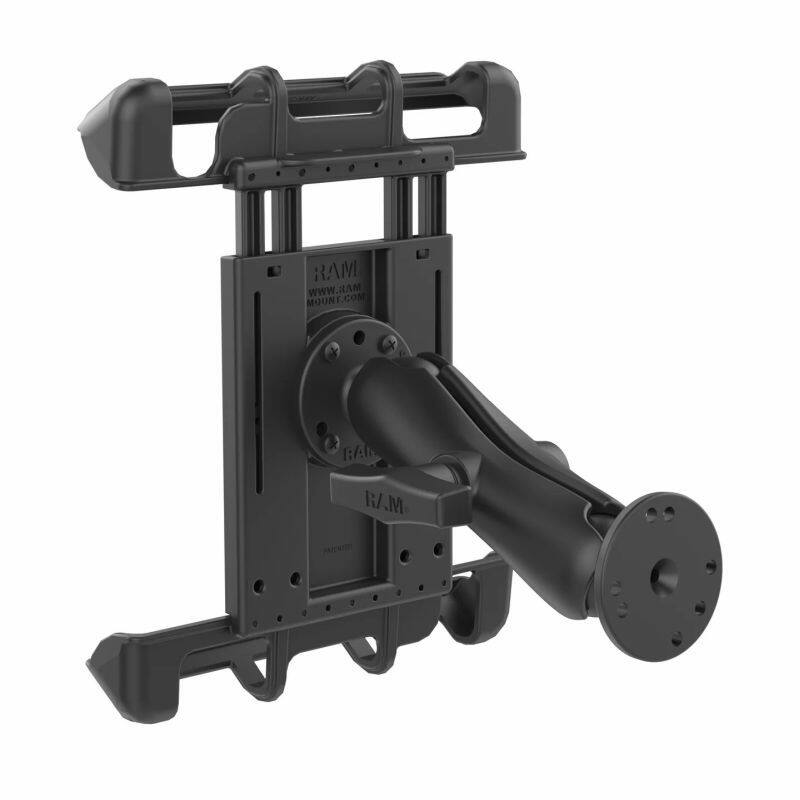

The RAM® Tab-Tite™ drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite™ universal clamping cradle. The mount is designed with a RAM® 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases.
The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 229mm to 292mm (9" to 11.5")
Width: 162mm to 211mm (6.38" to 8.31")
Depth: 3.3mm to 28mm (0.13" to 1.12")

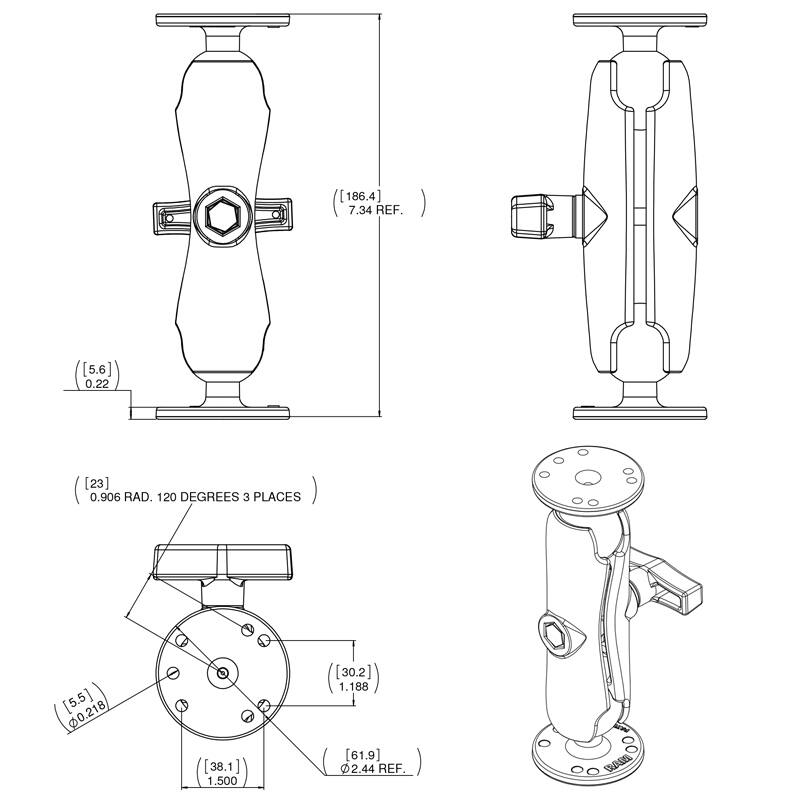

Overall Length:
187 mm (7.35")
Arm Length:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812" Diameter (46.0mm)
Materials
Marine-grade aluminium
High strength composite
Powder coated steel
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)

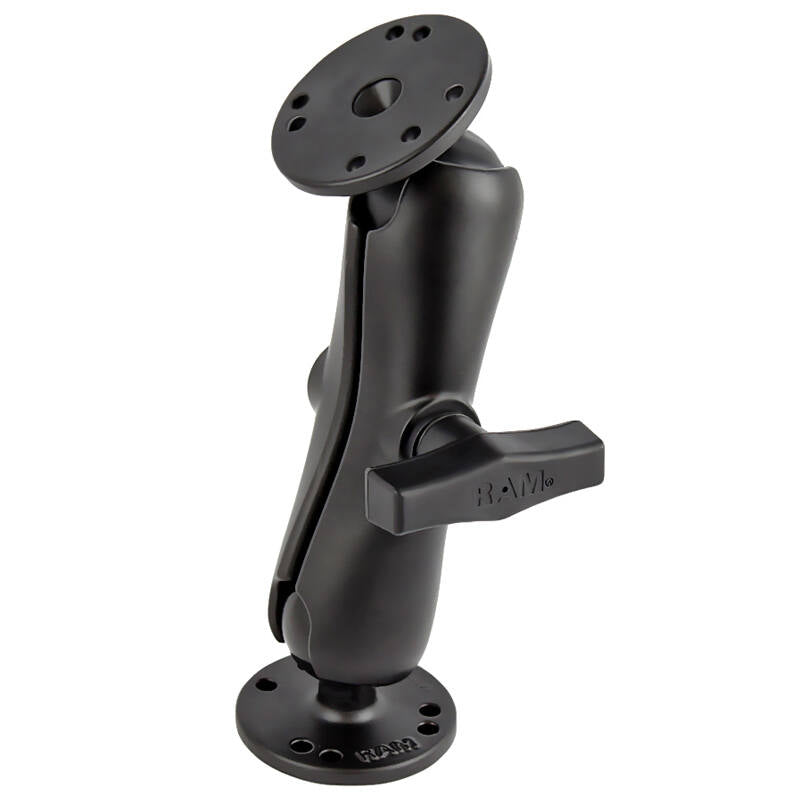

RAM-201U 1.5" (C-Series) Alloy Arm
RAM-HOL-TAB24U TAB-TITE Cradle
