RAM Tab-Tite Cradle - 10" Tablets with Dual Cup Suction Cup Base

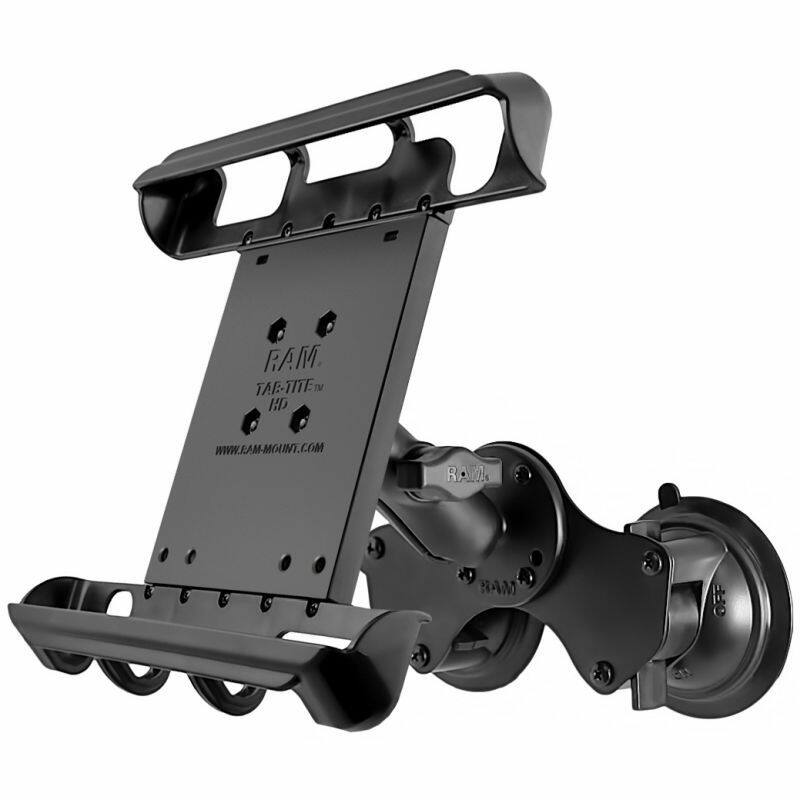

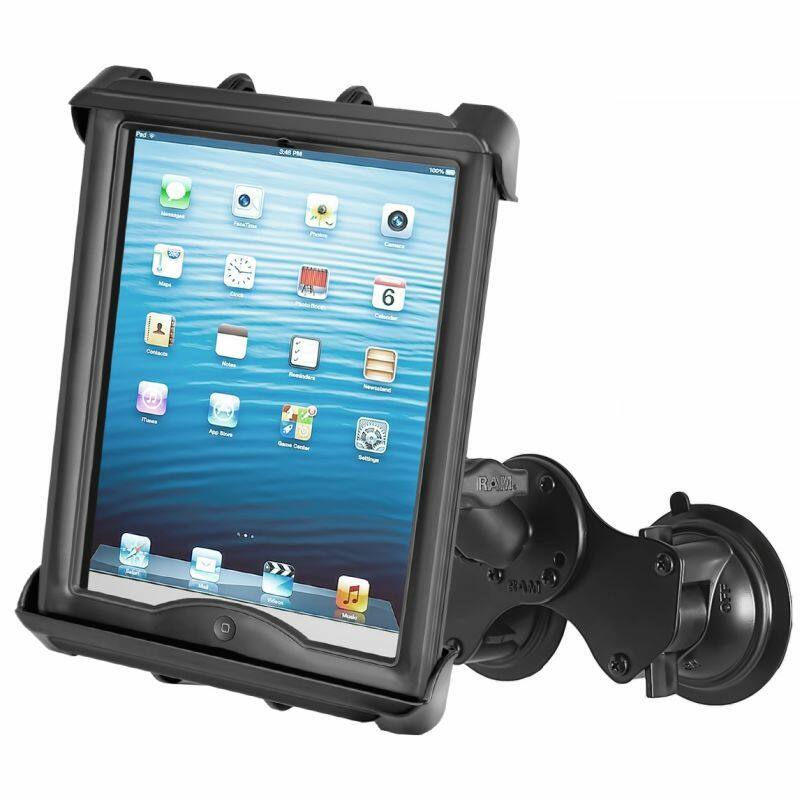

RAM-B-189-TAB8U RAM® Tab-Tite™ Dual Suction Mount for 10" Tablets

The RAM-B-189-TAB8U is a complete RAM® dual suction cup mount for 10" tablets in a heavy-duty case, sized around the Apple iPad Pro 9.7 with a case. Two RAM® Twist-Lock™ suction cups give a stronger, more vibration-resistant hold than a single cup, paired with the spring-loaded RAM® Tab-Tite™ cradle and a medium B-size arm.

Key Features

• Dual Twist-Lock suction base: two 84mm (3.3") cups grip glass and smooth, non-porous surfaces, built for places where a single cup would shake loose.
• Complete mount: cradle, dual suction base and arm in one kit.
• Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups, so ports and buttons stay reachable.
• Infinite adjustment: B-size 1" ball at each end of the double socket arm, locked with a single knob.
• Built to last: powder-coated marine-grade aluminium and high-strength composite; lifetime warranty on the mount hardware, with the suction cups excluded as a wear item.

Works With

Sized around the iPad Pro 9.7 with a case and most 10" tablets in a heavy-duty case that fit the cradle dimensions below. The Tab-Tite™ cradle takes any tablet within those ranges, so measure your device with its case fitted rather than going by model name. Mounts to windscreens, glass and other smooth, non-porous surfaces.

Compatible Devices

Apple

• iPad Pro 9.7 with or without case

Also fits the Samsung Galaxy Tab 10.x series and most 10" tablets in OtterBox, Gumdrop, Griffin, Belkin or other heavy-duty cases, within the cradle dimensions below.

Dimensions & Specifications

• Cradle height range: 229–292mm (9"–11.5")
• Cradle width range: 162–211mm (6.38"–8.31")
• Cradle depth range: 3.3–28mm (0.13"–1.12")
• Suction cups: two, 83.8mm (3.3") each; total width 202mm (7.95")
• Ball size: B Series 1"
• Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
• Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Hole pattern: 4-Hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Material: powder-coated marine-grade aluminium and high-strength composite
• Weight: 903g (1.99 lb)

What's Included

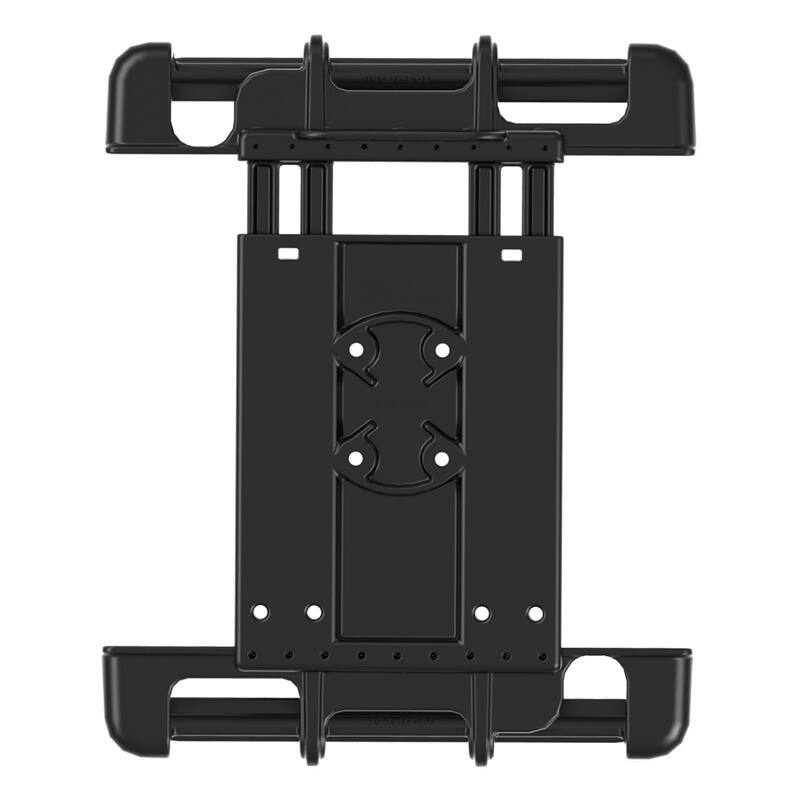

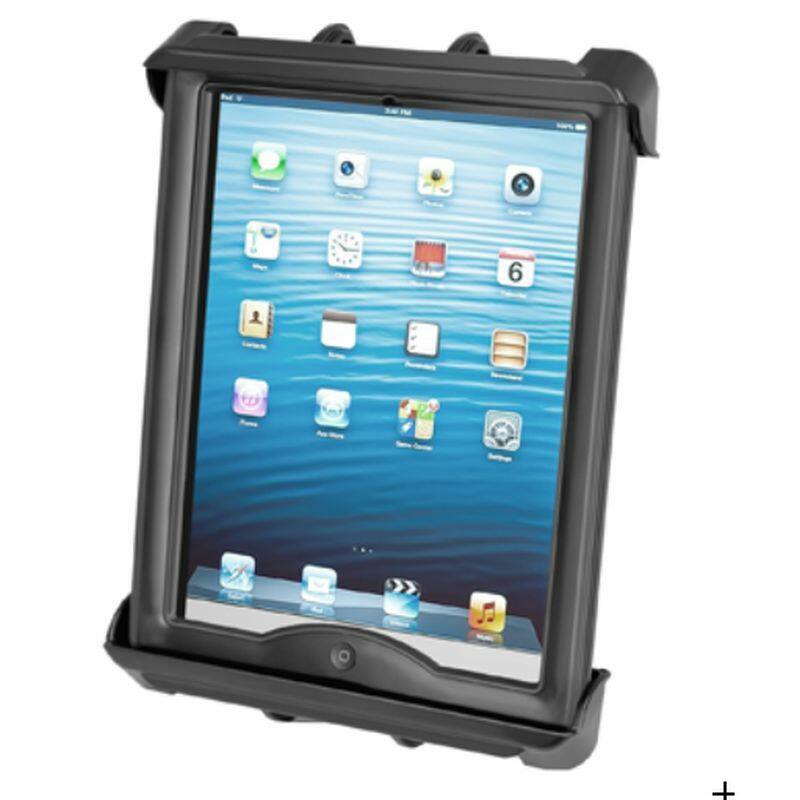

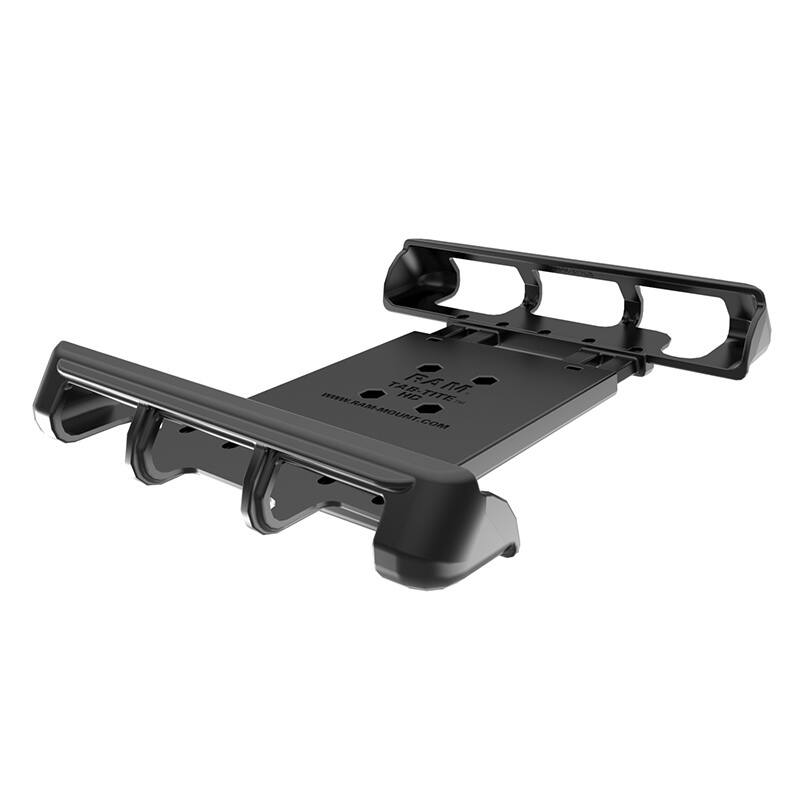

• RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)

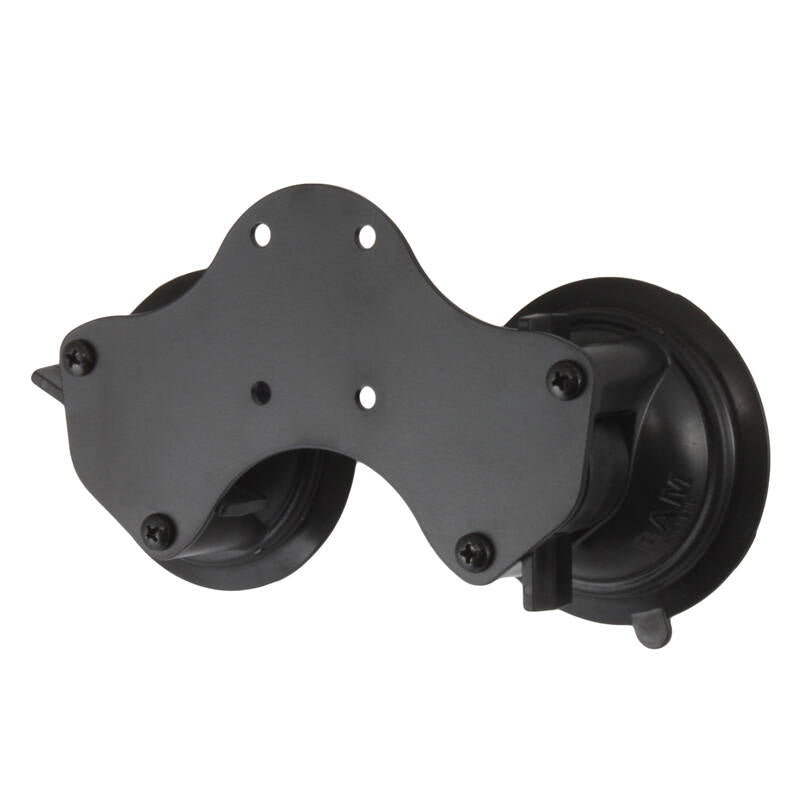

• RAM® Twist-Lock™ dual suction cup base with 1" ball
• RAM® medium double socket arm
• Round base adapter with 1" ball
• Assembly hardware

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.

Videos

Watch the RAM® Tab-Tite™ overview on YouTube

FAQs

How is this different from the single-cup suction mount? It uses two suction cups for a stronger, more vibration-resistant hold, which suits rougher rides and larger tablets.

Will my tablet fit? The Tab-Tite™ cradle takes any tablet inside the height, width and depth ranges above. Measure your device with its case on; that's a more reliable guide than the model name.

Will it hold on my dashboard? The suction cups need a smooth, non-porous surface like glass. For a textured dash, use a RAM® adhesive disk and suction to that.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.

When will my order ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
