RAM Mounts

RAM Tab-Tite Cradle - 10" Tablets with Dual Suction Cup Base - Articulating

RAM Tab-Tite Cradle - 10" Tablets with Dual Suction Cup Base - Articulating

SKU:RAM-B-189-PIV1-TAB8U-v

Regular price $240.35 NZD
Regular price Sale price $240.35 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-189-PIV1-TAB8U RAM® Tab-Tite™ with RAM® Twist-Lock™ Pivot Suction for 10" Tablets

Features
* Spring-loaded holder secures the iPad Pro 9.7 (1st Gen) with case; interchangeable end cups allow you to modify the holder when upgrading devices
* RAM® Twist-Lock™ Pivot Suction cup base is ideal for placement on curved surfaces such as in a helicopter cockpit
* Includes B size medium length RAM® double socket arm and round bases with B size 1" rubber balls
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

This consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces.

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.


Cradle Dimensions:

Height: 229mm to 292mm (9" to 11.5")
Width: 162mm to 211mm (6.38" to 8.31")
Depth: 3.3mm to 28mm (0.13" to 1.12")


Compatible Devices Include:
Apple iPad Pro 9.7 (1st Generation) with Case


SUCTION SIZE
(2) 3.3" Diameter Bases, Total Width 7.95"

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
907 grams (2 lbs)

Material:
Powder coated steel
Marine-grade aluminium
High strength composite

YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
https://www.youtube.com/watch?v=L8bbzMCMaUg


Components:
RAM-HOL-TAB8U Tab-Tite™ Tablet Holder for Apple iPad 9.7 Pro gen 1 + More

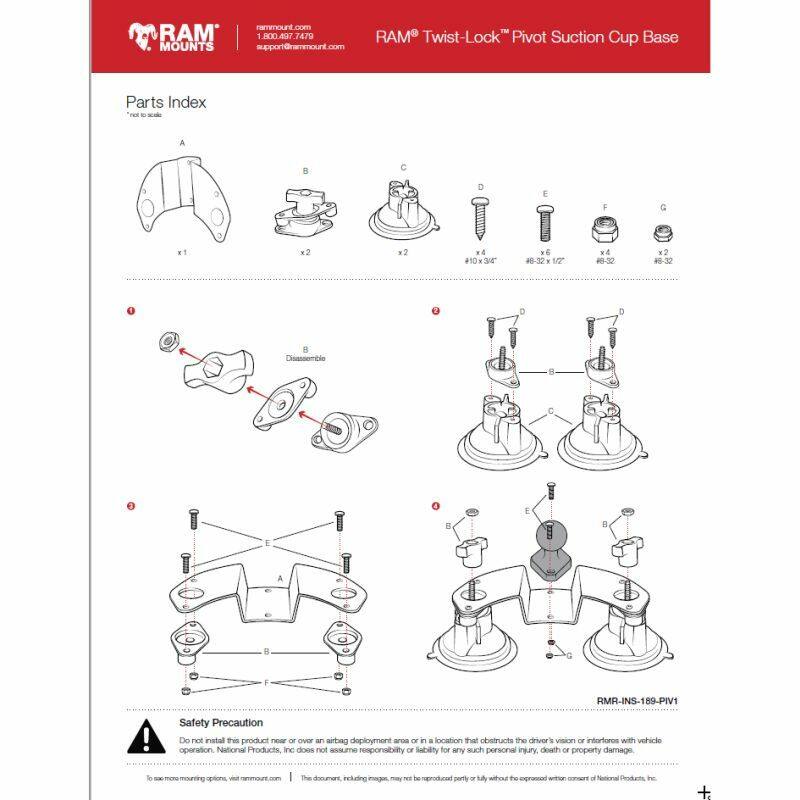

RAM-B-189B-PIV1U Twist-Lock Dual Pivot Suction Cup Base with Ball
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U 62mm DIA.BASE WITH 1" BALL

PLEASE NOTE IMAGES SHOW COMPONENTS BUT NOT THIS SET-UP FULLY ASSEMBLED
