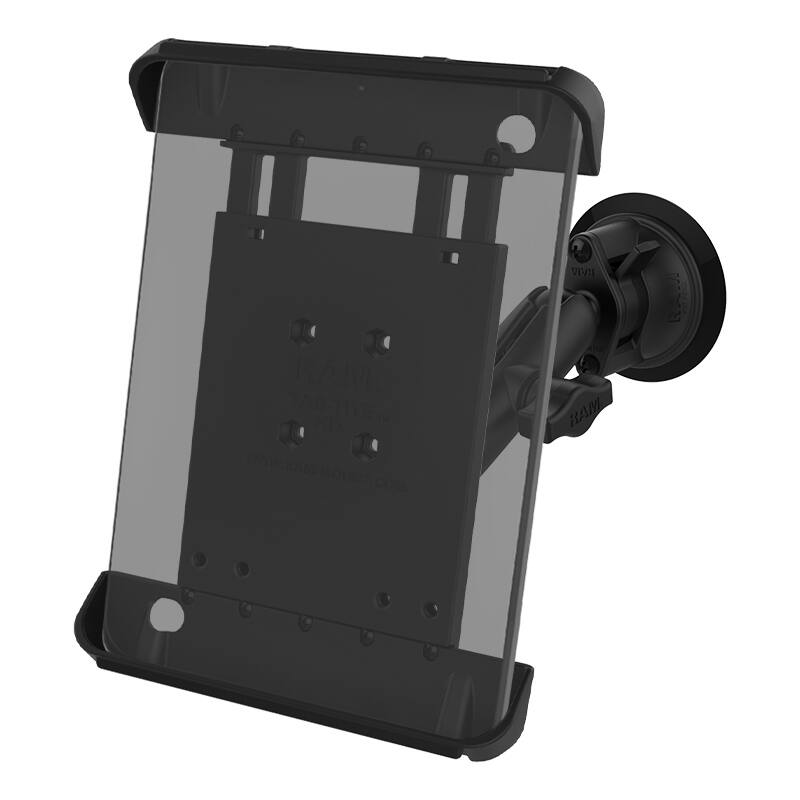

RAM-B-166-TAB6U RAM® Tab-Tite™ with RAM® Twist-Lock™ Suction Cup for iPad 9.7 + More
Features
* Spring-loaded holder secures most 9" tablets
* Interchangeable end cups allow you to modify the holder when upgrading devices
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

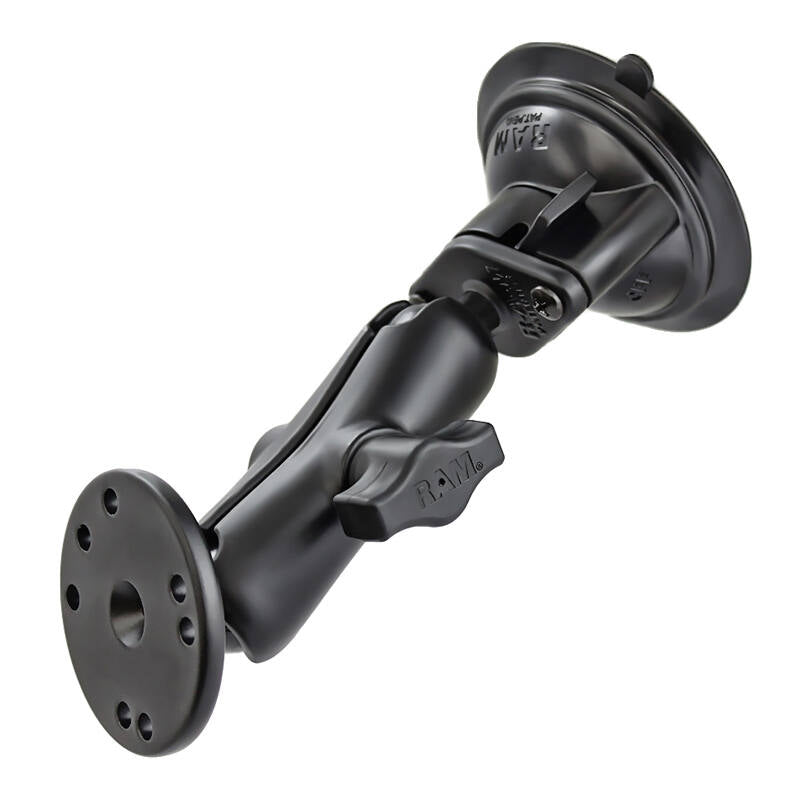

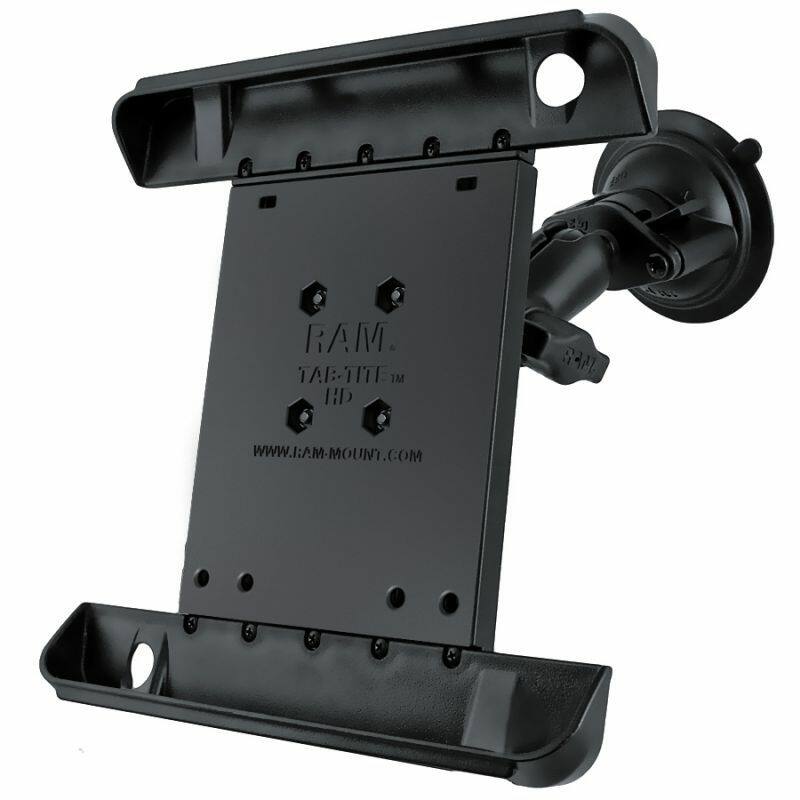

The RAM-B-166-TAB6U consists of a 84mm (3.3") diameter suction cup twist lock base, 96mm double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

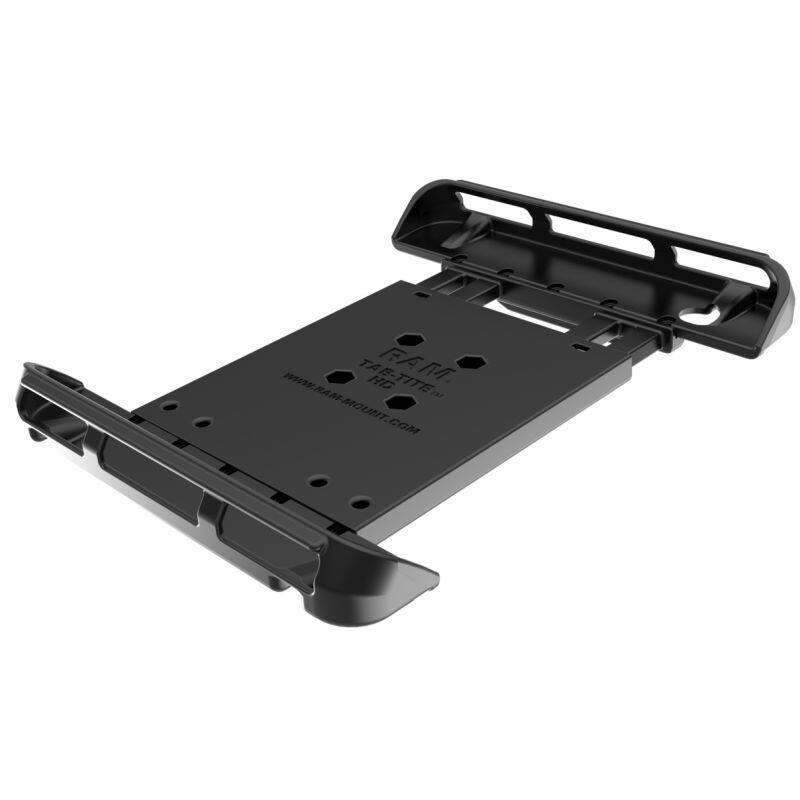

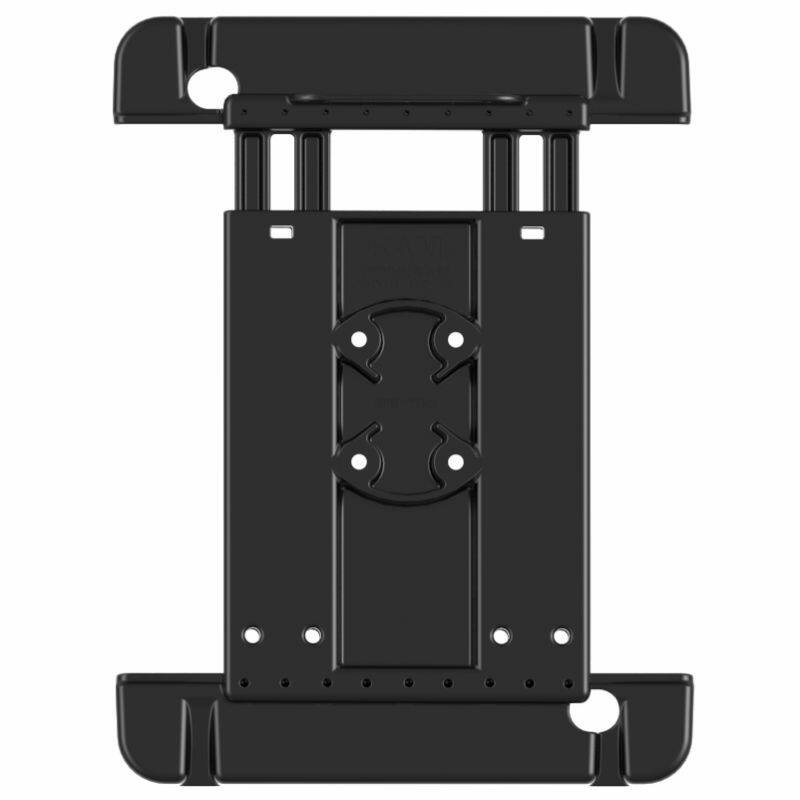

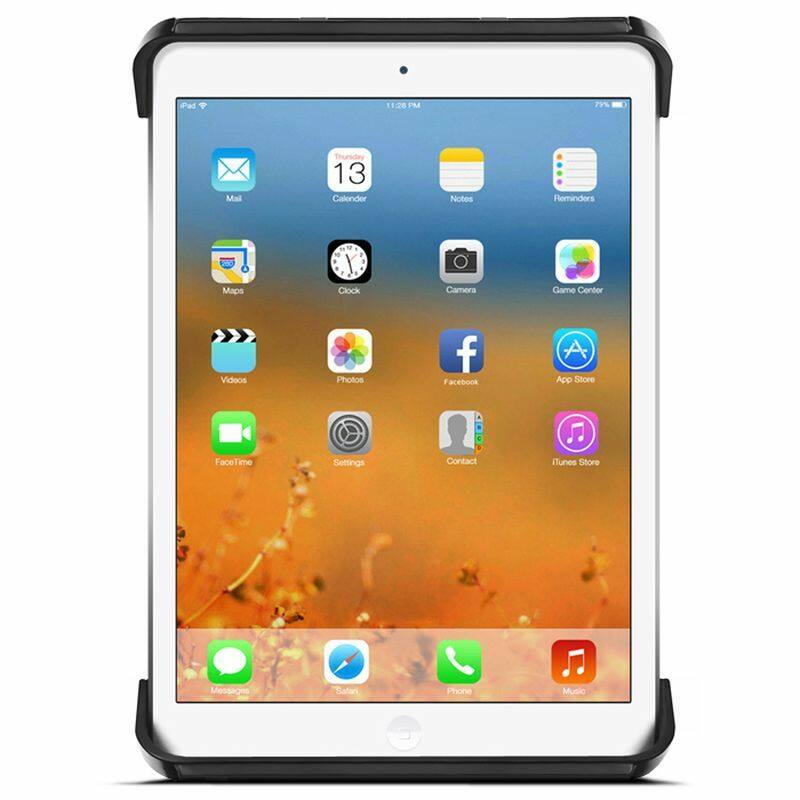

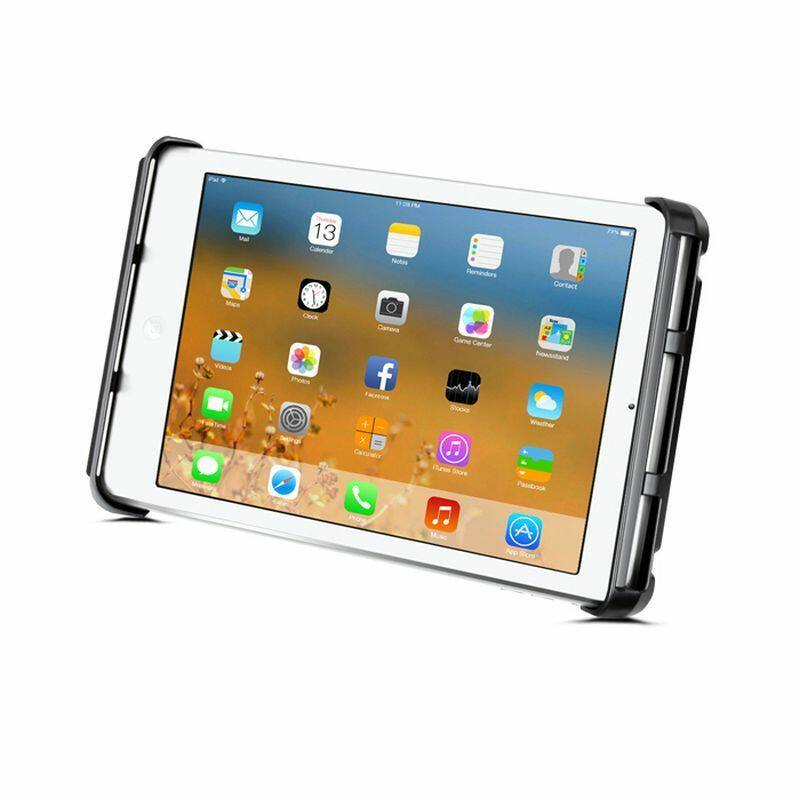

Get the most out of your tablet with the RAM Tab-Tite spring loaded, quick release cradle. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. When purchasing a new tablet, new detachable support cups are the only components needed for purchase. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below.
It is important to verify the dimensions of your tablet (including any cases, skins, or sleeves).
Cradle Dimensions:
H: 219 to 286mm (8.625" to 11.25")
W: 154 to 173mm (6.05" to 6.80")
D: 3.3 to 12.7mm (0.13” to 0.50")
Compatible Devices
Amazon Fire HD 10
Apple iPad 9.7 (2018)
Apple iPad Air
Apple iPad Air 2
Lenovo Miix 3
Lenovo Tab 2 A10-70
Lenovo Tab3 10 Business
Lenovo ThinkPad Tablet 2
Lenovo Yoga Book
Lenovo Yoga Tab 3 10
LG G Pad 10.1
Samsung Galaxy Tab 8.9
Samsung Galaxy Tab Pro 10.1
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:
RAM-B-224-1U RAM 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
RAM-HOL-TAB6-CUPSU RAM TOP CUPS IPAD 9.7 + More TAB-TITE CRADLE
RAM-HOL-ACU RAM Tab-Tite Backplate with Hardware
