RAM Mounts

RAM Tab-Tite Cradle - 10" Tablets with U-Bolt Rail Handlebar base

RAM Tab-Tite Cradle - 10" Tablets with U-Bolt Rail Handlebar base

SKU:RAM-B-149Z-TAB8U-v

Regular price $164.66 NZD
Regular price Sale price $164.66 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

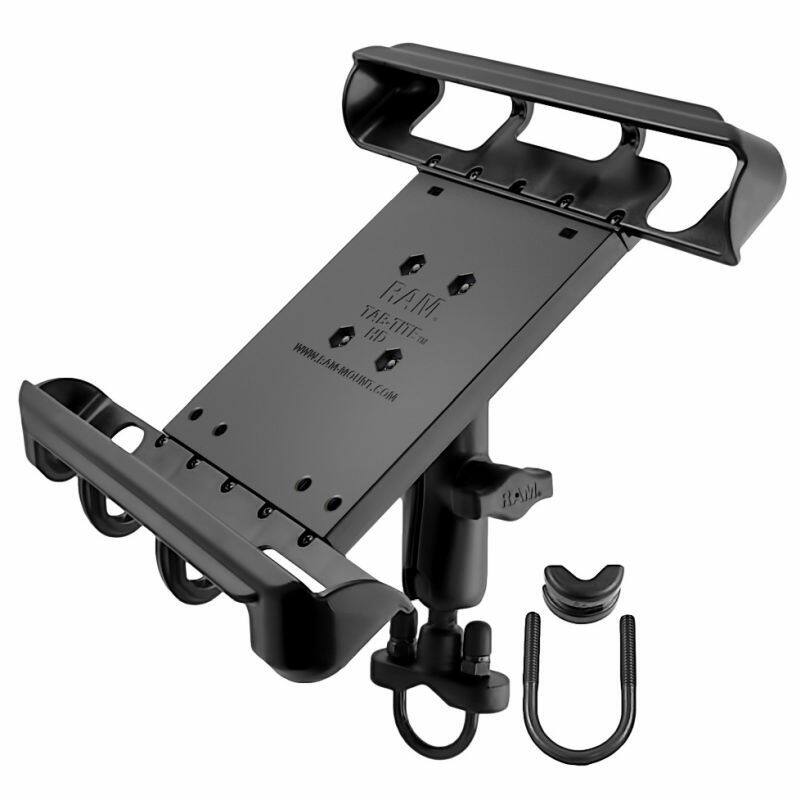

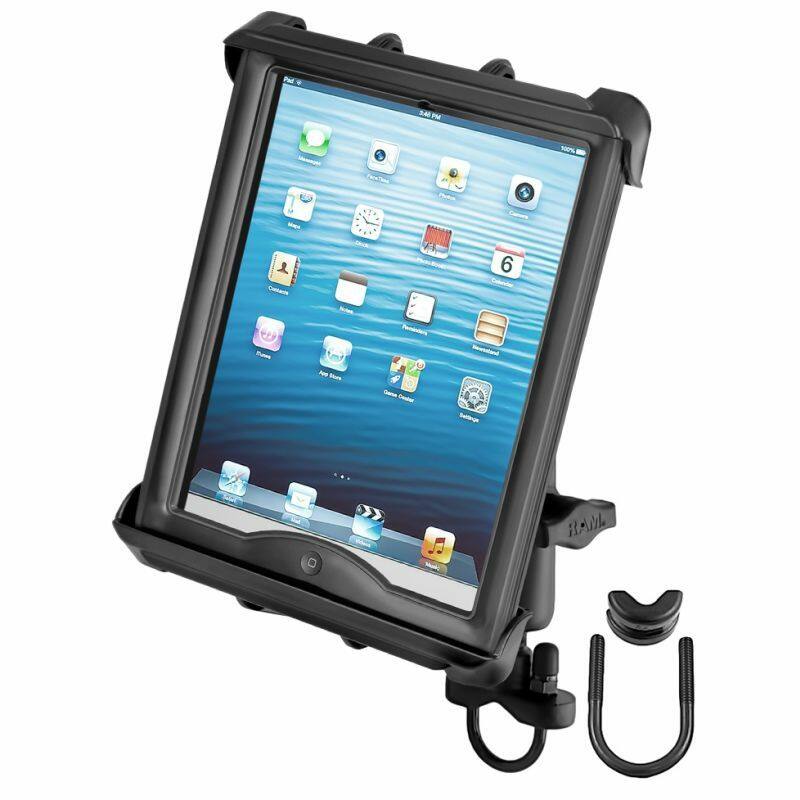

RAM-B-149Z-TAB8U RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets with Cases

Features

* Spring-loaded holder secures the iPad Pro 9.7 (1st Gen) with case; interchangeable end cups allow you to modify the holder when upgrading devices
* U Bolt base will mount securely to any bar, rail or post 12.7-31.87mm in diameter
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of marine grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

The zinc-coated U-Bolt base will accommodate rails from 12.7 to 31.8mm (0.50 to 1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt and the adapter can narrow the rail to a minimum width of 12.7mm.

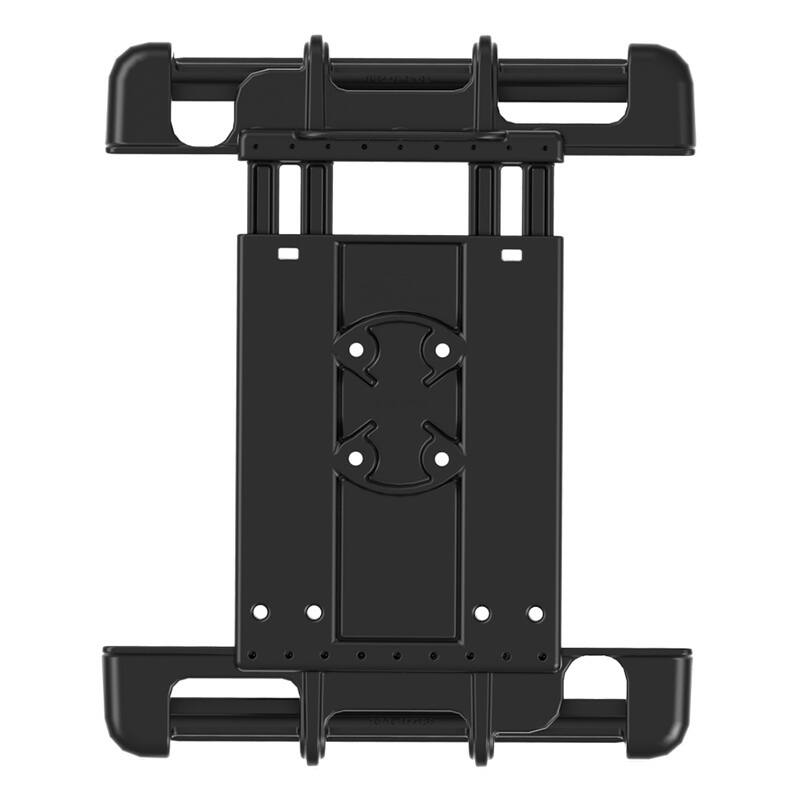

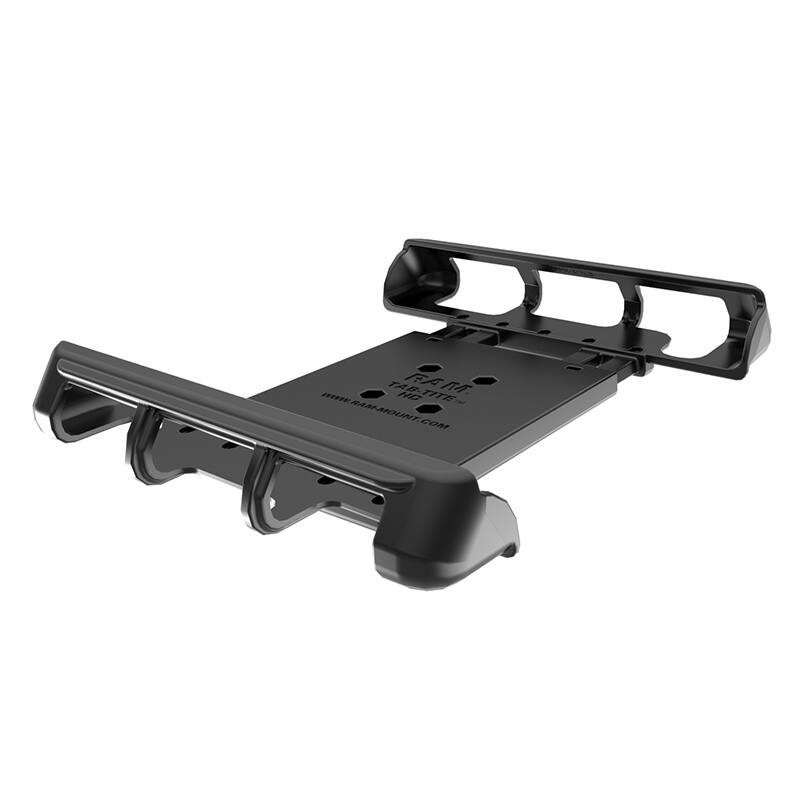

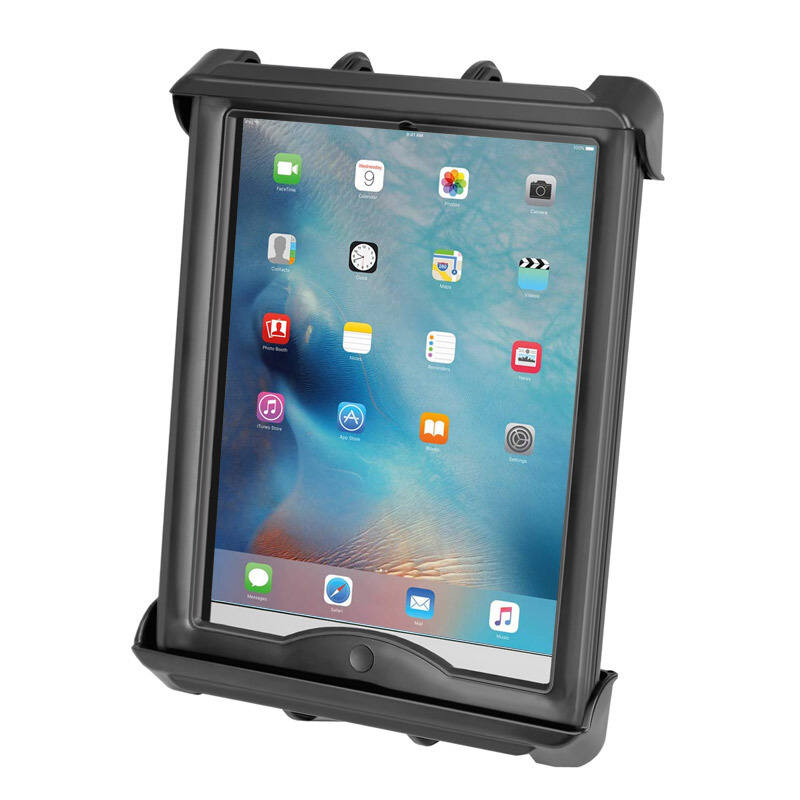

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.

The cradle is compatible with any tablet that will fit the dimensions listed below. Check the dimensions of your tablet when determining the overall size.

Compatible Devices Include:

iPad Pro 9.7 (1st Gen) with Case
iPad Mini 4 with SupCase Unicorn Beetle case
Samsung Galaxy Tab 10.x series,

10" Screen Tablets with OtterBox Defender cases / Gumdrop Drop Tech cases / Griffin Technology cases / Belkin cases
10" Screen Tablets with heavy duty cases

Cradle Dimensions:
Height: 229 to 292mm (9" to 11.5")
Width: 162 to 211mm (6.38" to 8.31")
Depth: 3.3 to 28mm (0.13" to 1.12")


U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")

Arm length
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")

Ball Size:
1" "B" Size

Weight
662 grams (1.46lbs)


Materials
Marine-grade aluminium
High strength composite


Components:
RAM-HOL-TAB8U TAB-TITE 10" TAB WITH CASE
RAM-B-231ZU RAIL BASE W/ U-BOLT
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-201U DOUBLE SOCKET ARM

YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
