RAM-B-138-TAB4-225BU RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets
Features
* Spring-loaded holder secures small tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes two round ball bases, double socket arm and backing plate
* Drill-down mounting solution - the 3" x 3" backing plate is ideal for mounting this to dashboards and other surfaces where the thickness is limited
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of steel, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

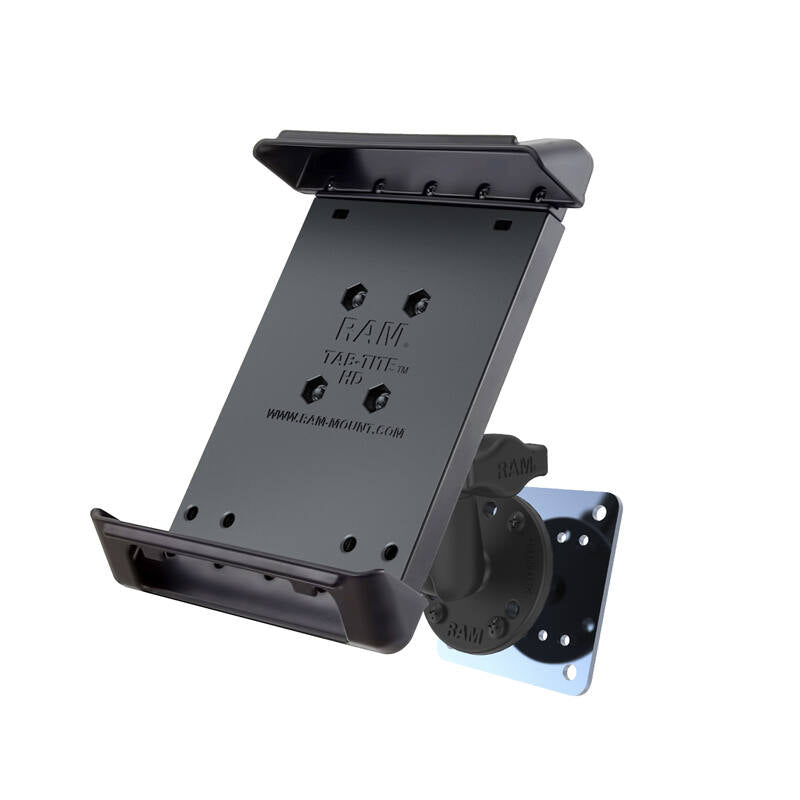

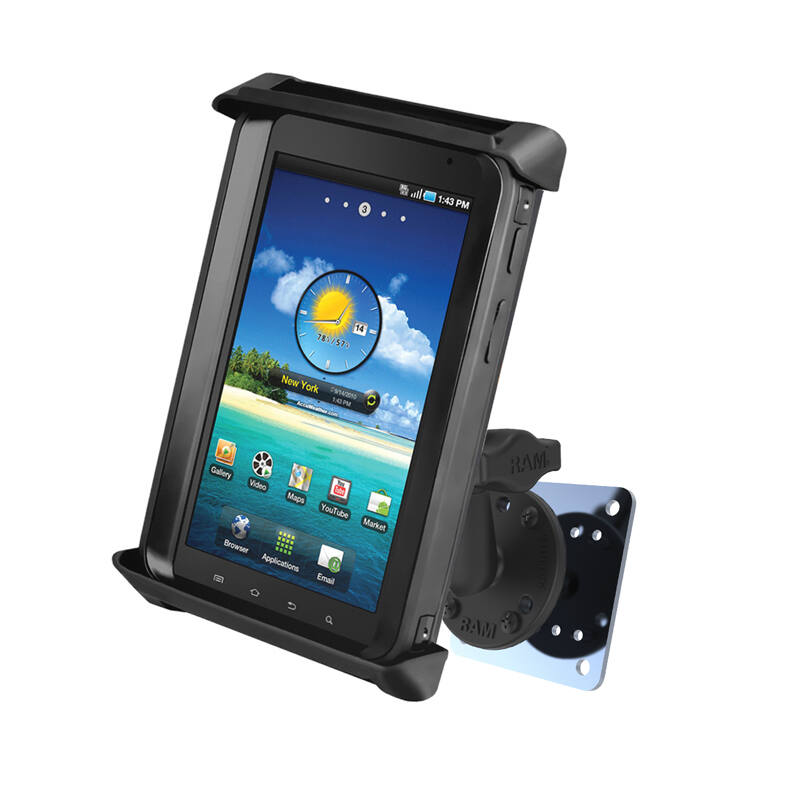

This complete mount consists of a 76.2 x 76.2mm (3 x 3") backer plate, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle.
The mount uses a double socket arm and two 63mm diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

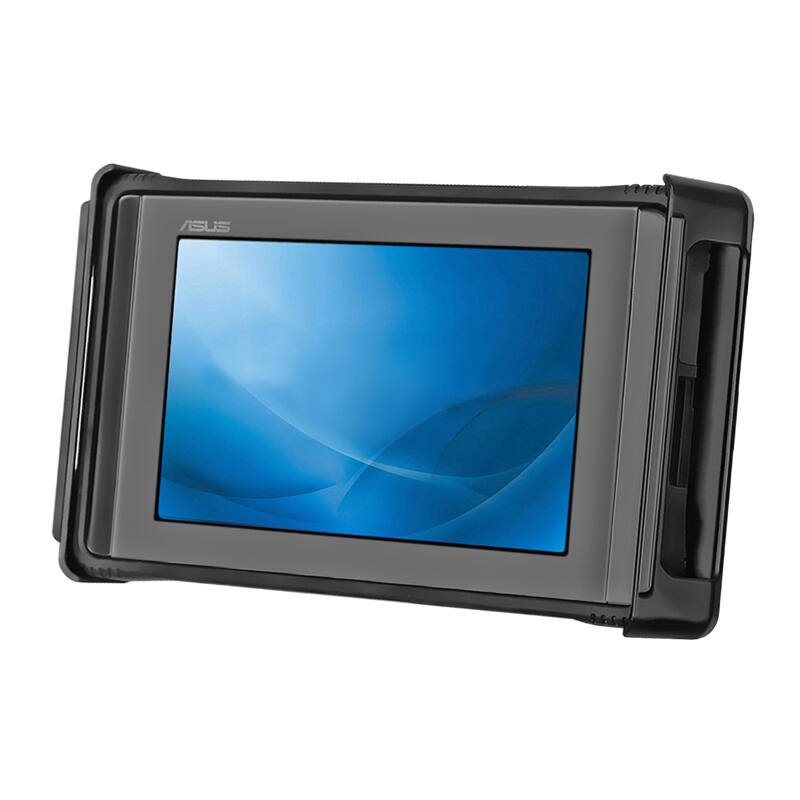

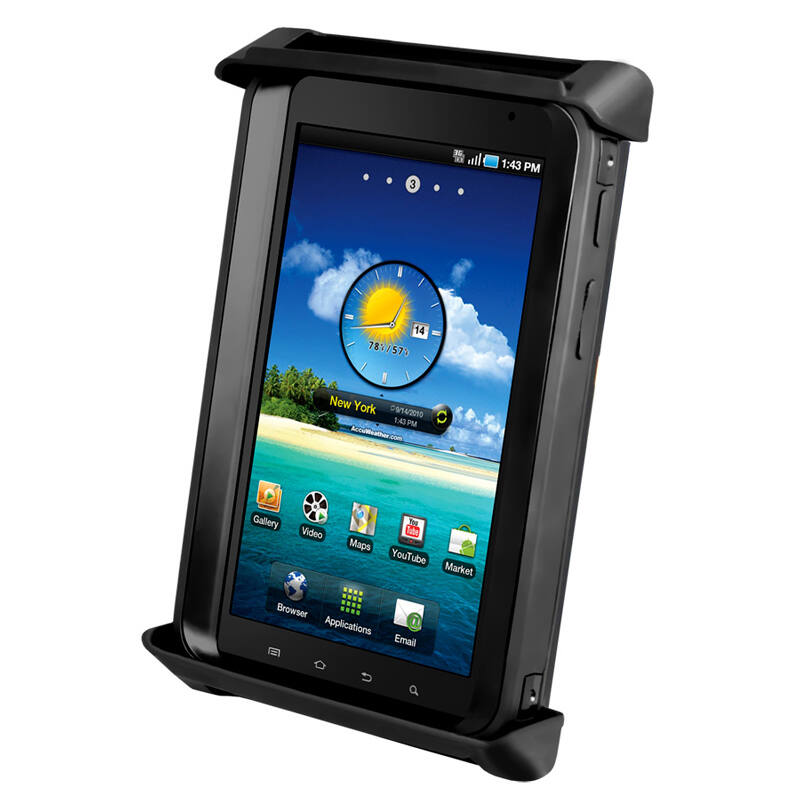

The RAM Tab-Tite™ spring loaded, quick release cradle has interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

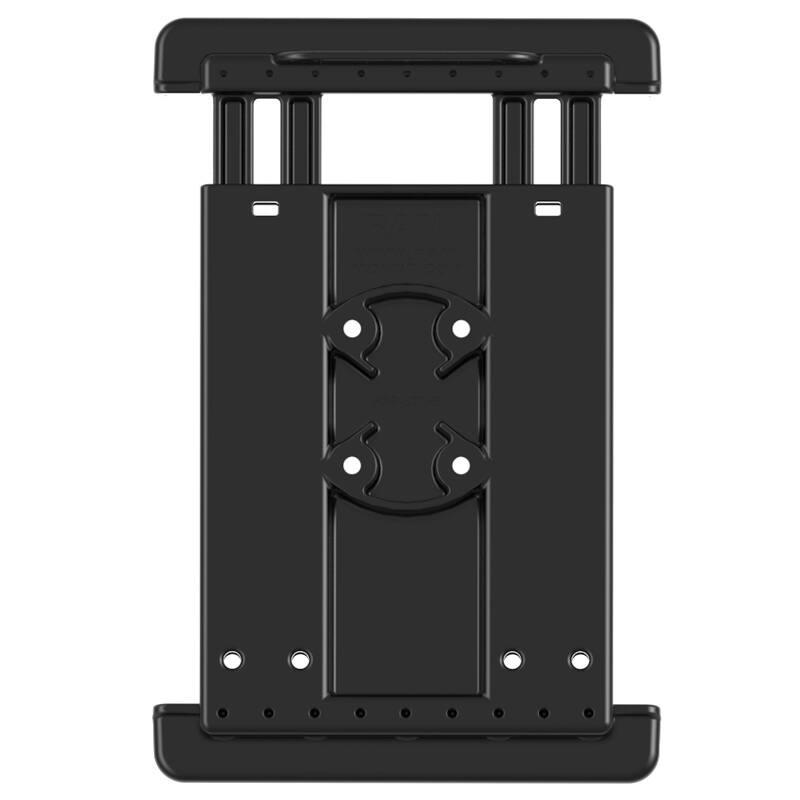

The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 187.32 to 254mm (7.375 to 10")
Width: 101.6 to 134.9mm (4 to 5.31")
Depth: 3.3 to 26.9mm (0.13 to 1.06")
Compatible Devices Include
Amazon
Fire 7 with Case
ASUS
ZenPad C 7.0 with Case
Dell
Venue 7 with Case
Venue 7 (2014) with Case
Venue 7 3741 with Case
Google
Nexus 7 with Case
HP
Slate 7 with Case
Huawei
MediaPad T1 7.0 with Case
MediaPad T3 7 with Case
Lenovo
IdeaTab A1000 with Case
IdeaTab A3000 with Case
Tab 2 A7-10 with Case
Tab 2 A7-20 with Case
Tab 2 A7-30 with Case
Tab 7 Essential with Case
Tab A7-30 with Case
Tab A7-40 with Case
Tab A7-50 with Case
Tab3 7 with Case
LG
G Pad 7.0 with Case
G Pad X 8.0 with Case
Samsung
Galaxy Tab 3 7.0 with Case
Galaxy Tab 3 Lite 7.0 with Case
Galaxy Tab A 7.0 with Case
Galaxy Tab E 7.0 with Case
Zebra
ET1 Enterprise Tablet
Overall Height:
127mm (5")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Hardware Included
Assembly Hardware

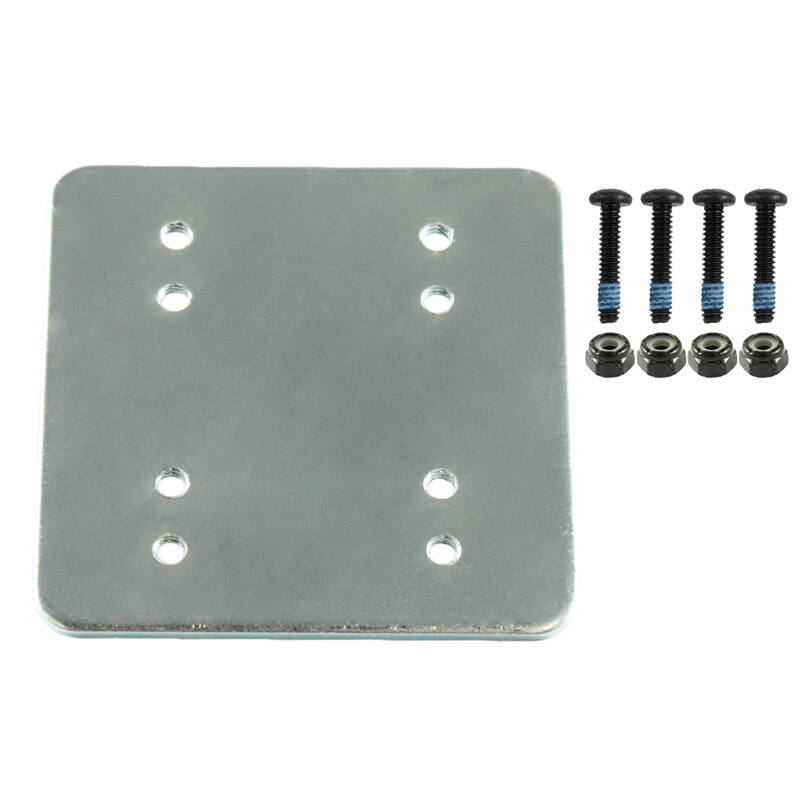

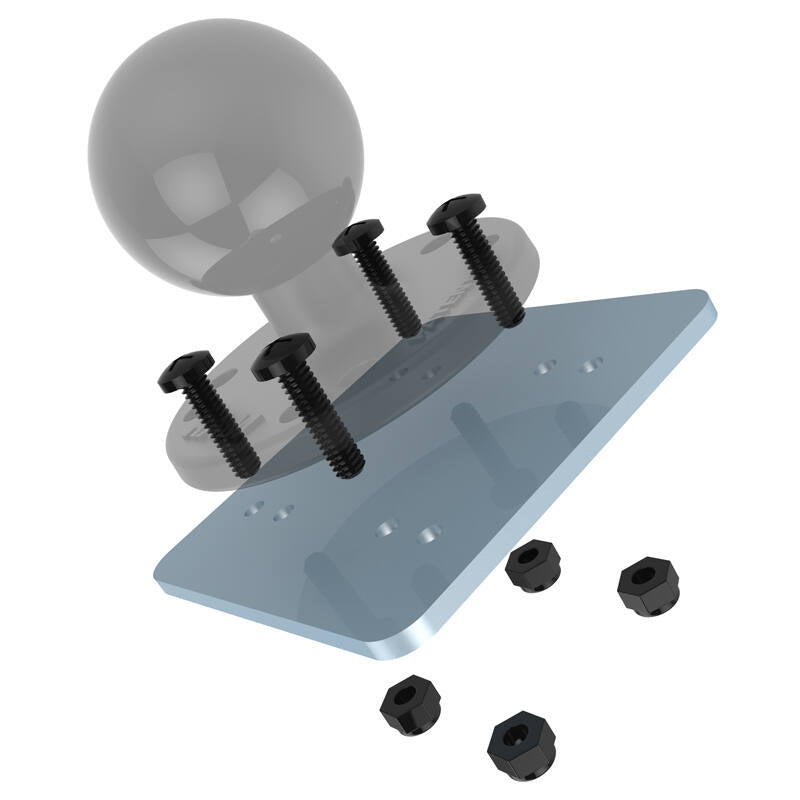

(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts

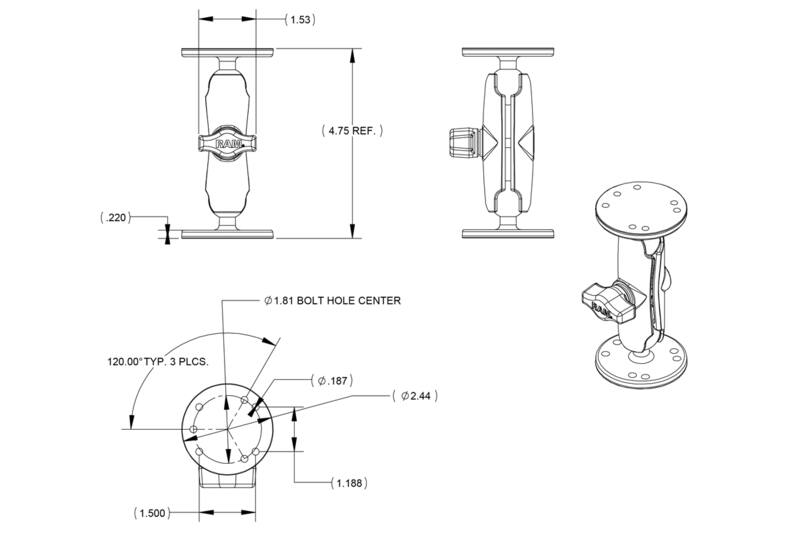

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Materials
Steel
Marine-grade aluminium
High strength composite
Weight
544 grams (1.2 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

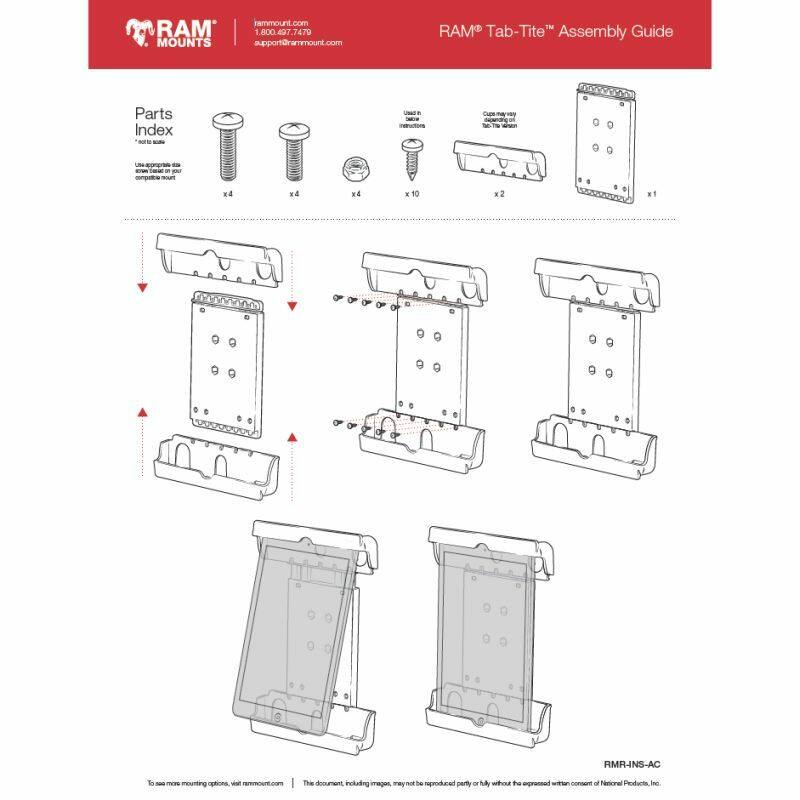

RAM-HOL-ACU RAM® Tab-Tite™ Backplate with Hardware

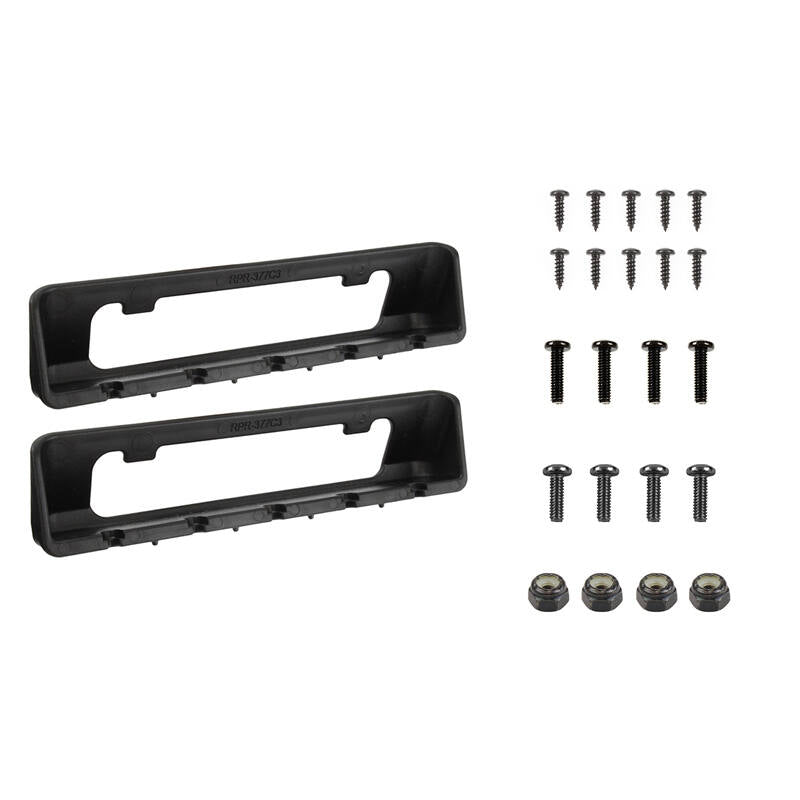

RAM-HOL-TAB4-CUPSU Replacement Top and Base Cups for RAM-HOL-TAB4U
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

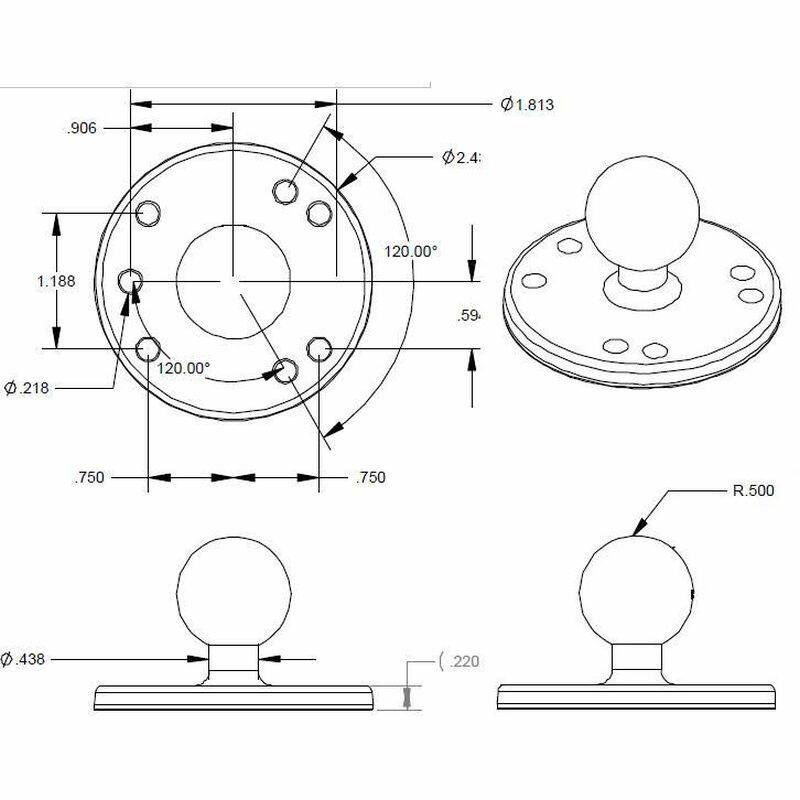

RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL (x2)
RAM-202-225BU RAM® Backing Plate Adapter
