RAM Mounts

RAM Tab-Tite Cradle - 7" Small Tablets with Drill Down Base

RAM Tab-Tite Cradle - 7" Small Tablets with Drill Down Base

SKU:RAM-B-138-TAB-SM-v

Regular price $165.76 NZD
Regular price Sale price $165.76 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-138-TAB-SM RAM® Tab-Tite™ Drill-Down Mount for Small Tablets


Features

* Spring-loaded holder secures many smaller tablets including iPad mini

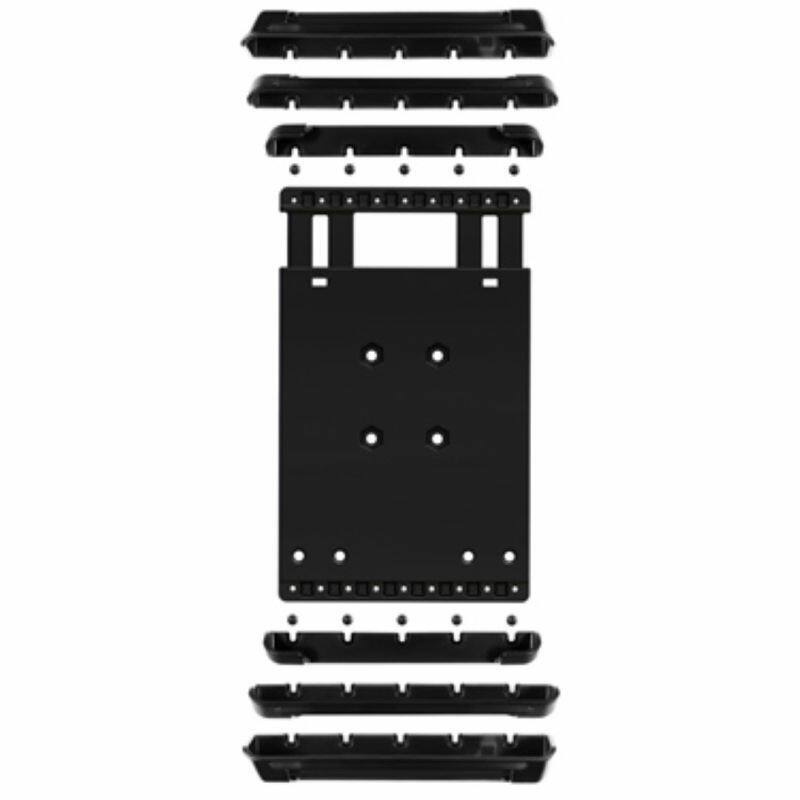

* Includes 3 sets of interchangeable cup ends, with different sizes and hole patterns
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Round drill down plate has 3 and 4 hole AMP's patterns and provides a stable permanent mounting solution
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of marine-grade aluminium alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

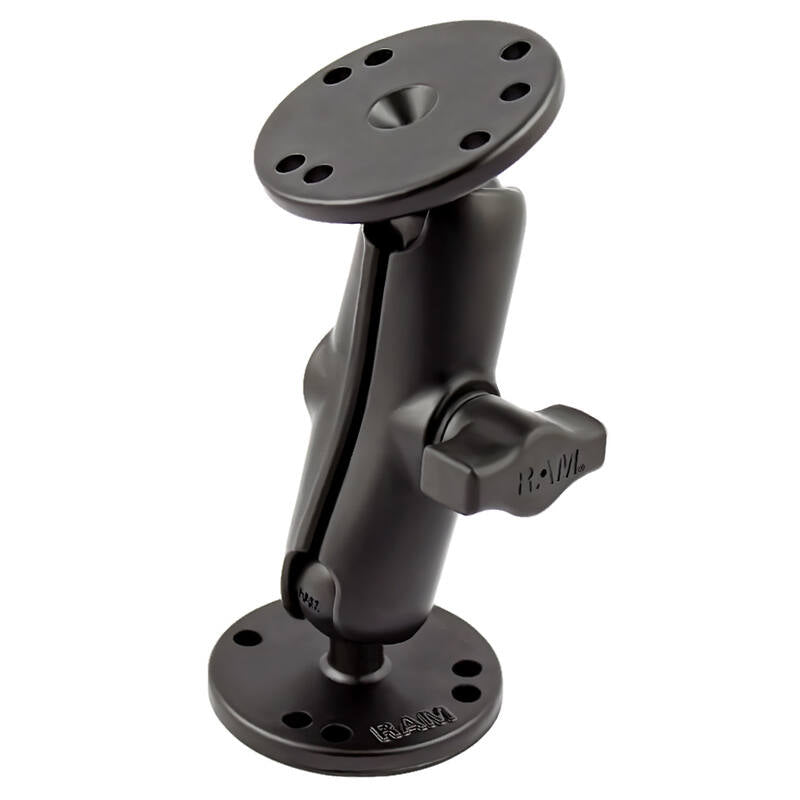

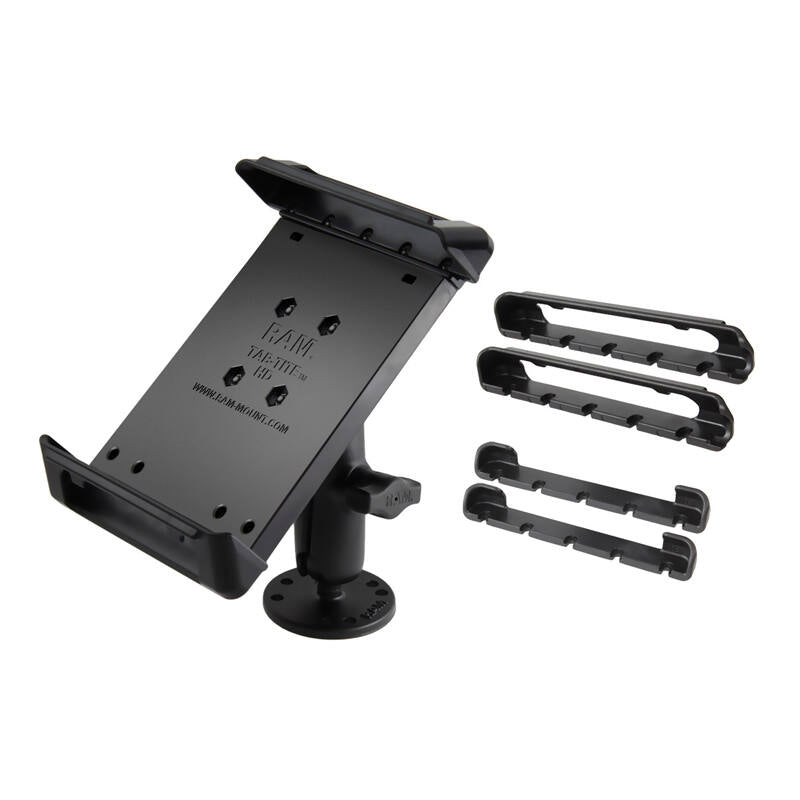

The RAM-B-138-TAB-SM consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

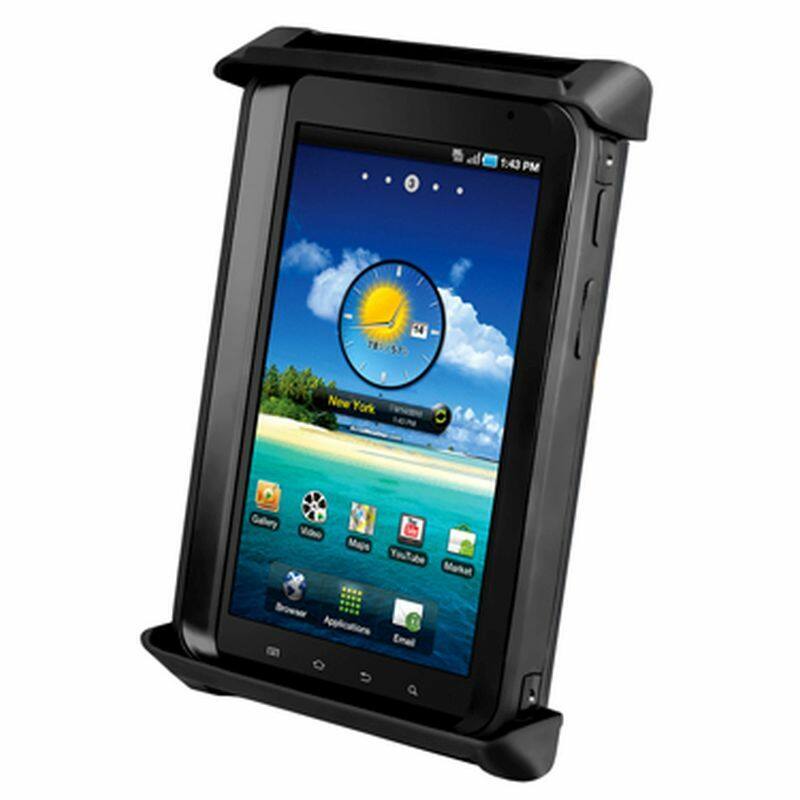

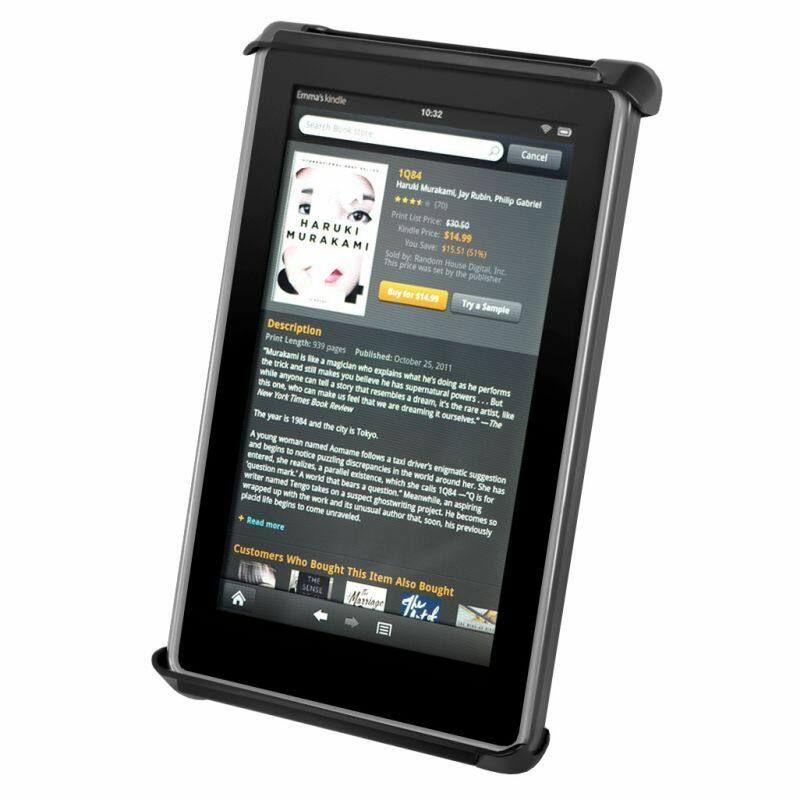

The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Height Range
177.8 - 254mm ( 7" - 10")

Width Range
101.6 - 134.9mm (4" - 5.31")

Depth Range
26.9mm (1.06") max


Compatible Devices include:

Apple iPad mini 1, 2, 3, 4
Most 7" Tablets

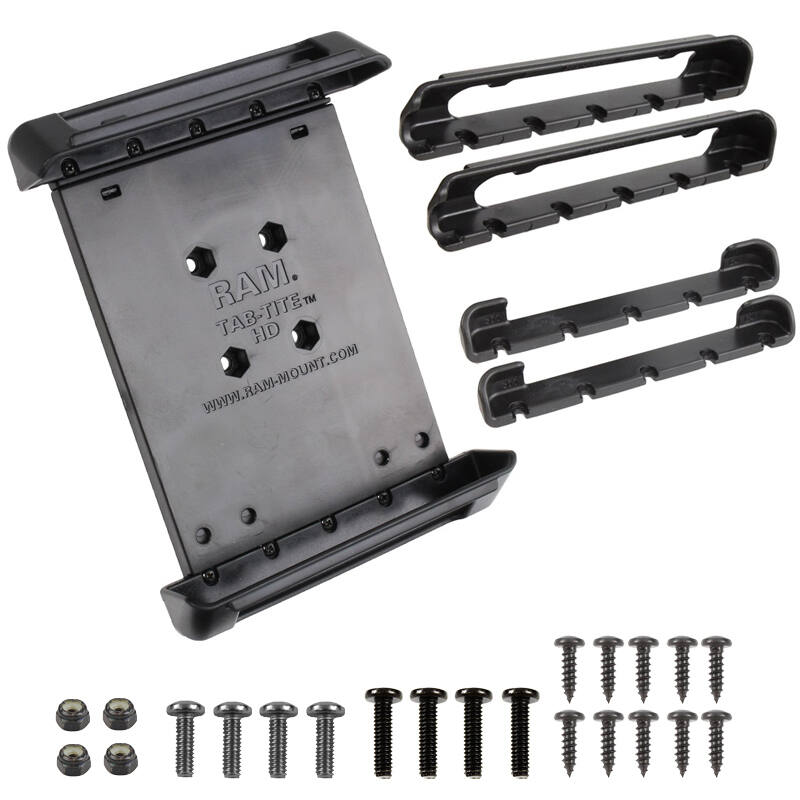

Hardware Included
Assembly Hardware

Socket-to-Socket Length
76.2mm (3")

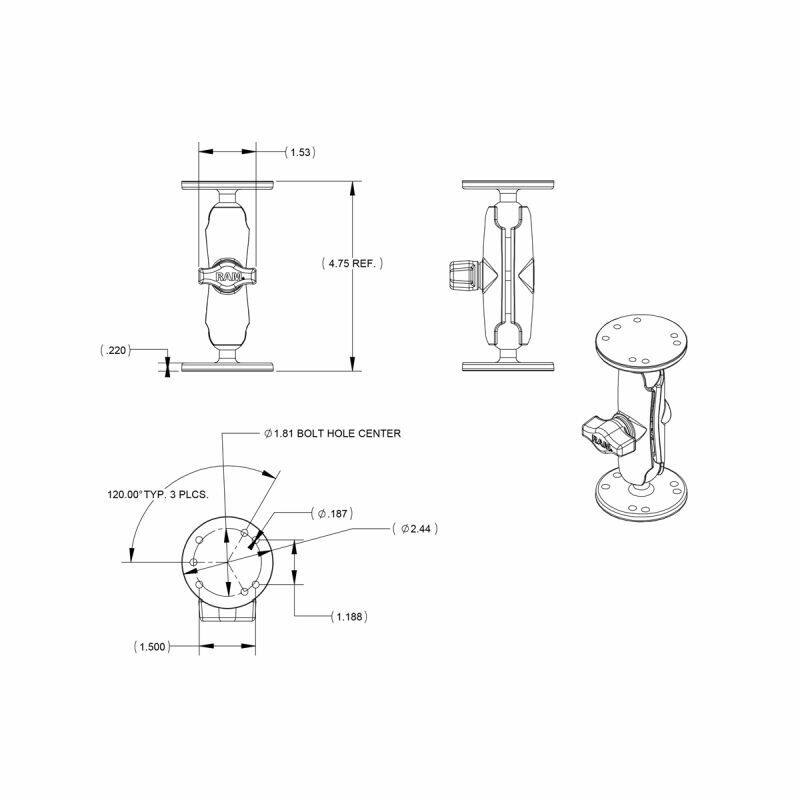

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter


Plate Size
2.5" Diameter

Ball/Socket Size
B Size (1")


Weight Capacity
907 grams (2 lbs)


Materials
Marine-grade aluminium
High strength composite


Weight
417 grams (0.92 lbs.)



YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
