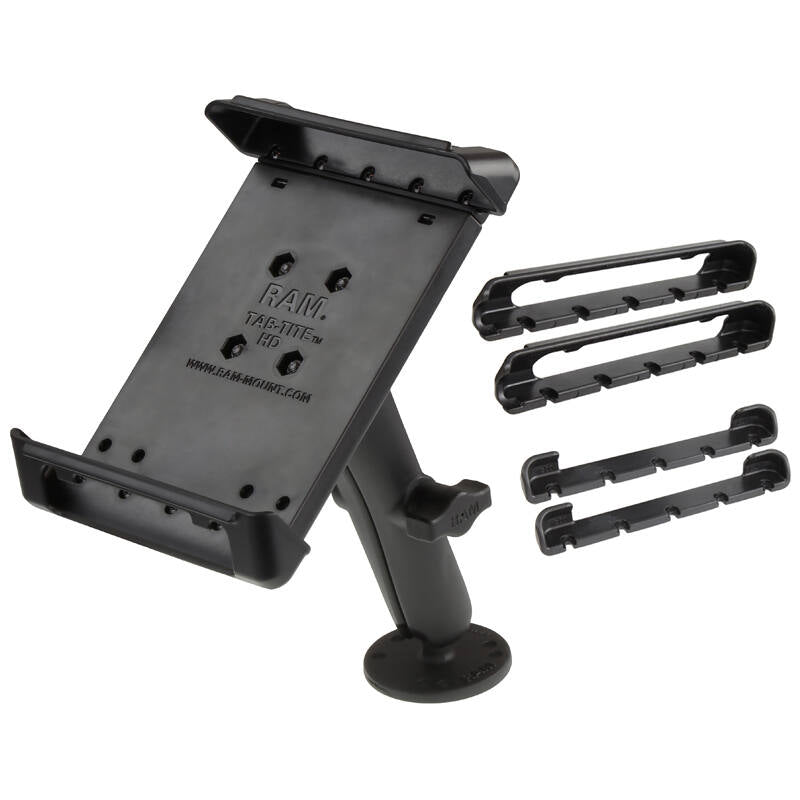

RAM-B-101-C-TAB-SMU RAM® Tab-Tite™ Drill-Down Double Ball Mount for Small Tablets
Features
* Spring-loaded holder secures many smaller 7" tablets including iPad mini

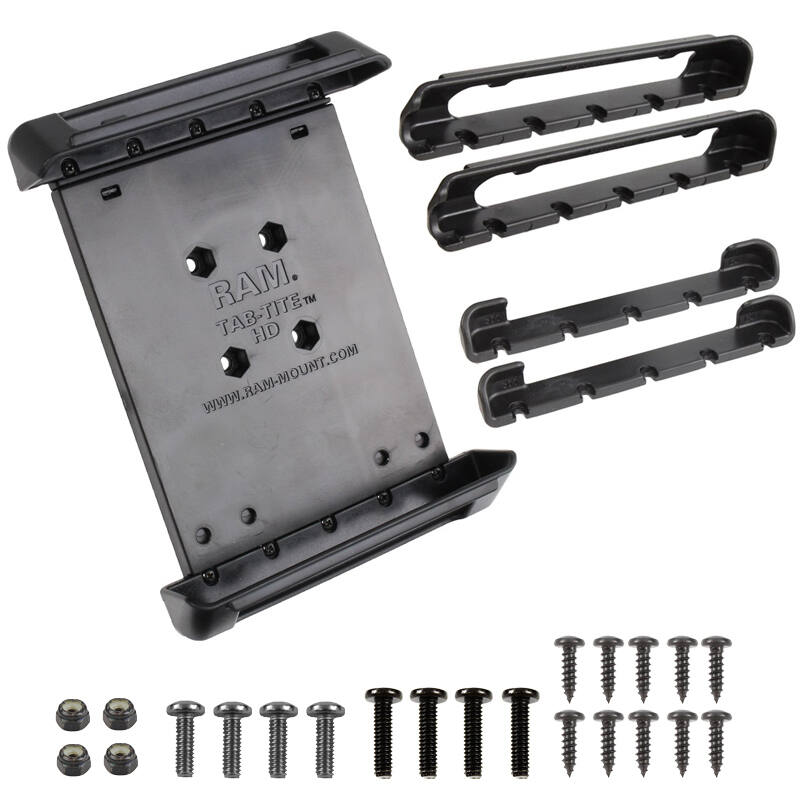

* Includes 3 sets of interchangeable cup ends, with different sizes and hole patterns
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Drill-down mounting solution - round plate features the AMPS hole pattern for attachment to compatible device holders
* Includes B size long length double socket arm
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This mount is designed with a patented rubber ball and socket system that dampens shock and vibration, and allows for almost infinite adjustment to achieve the perfect viewing angle.

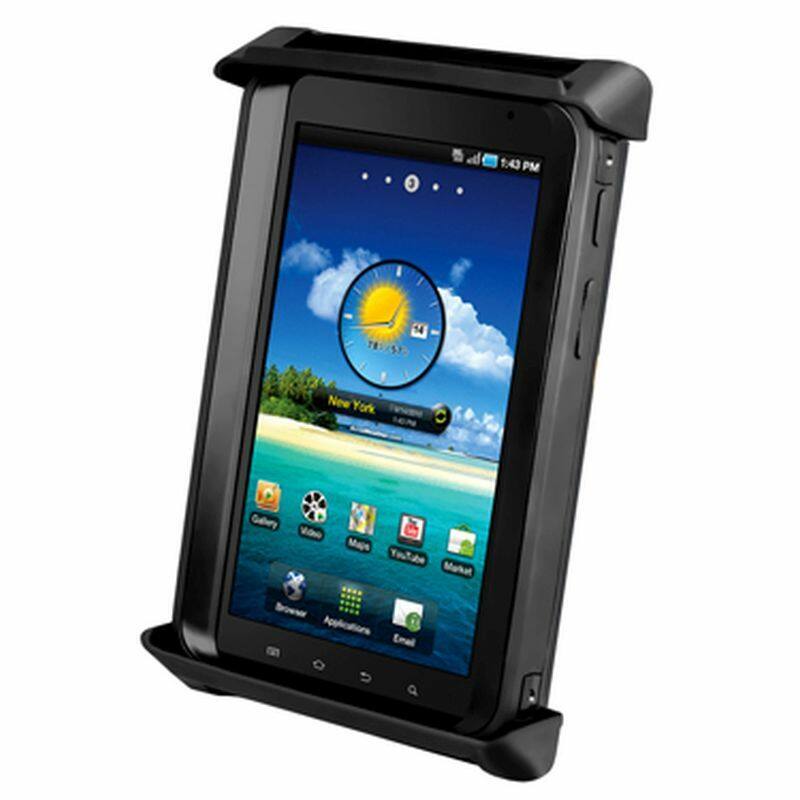

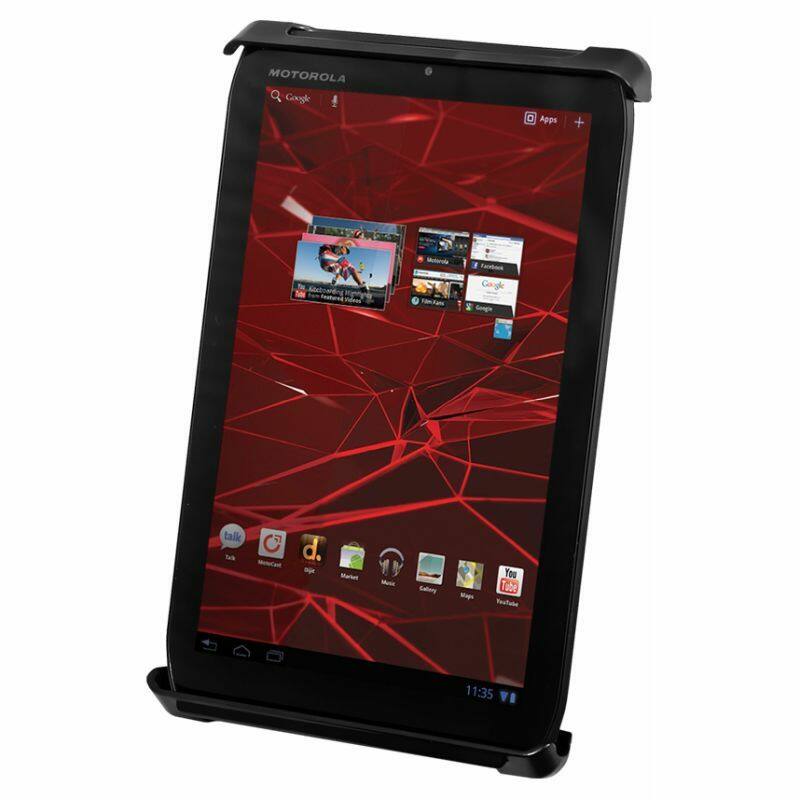

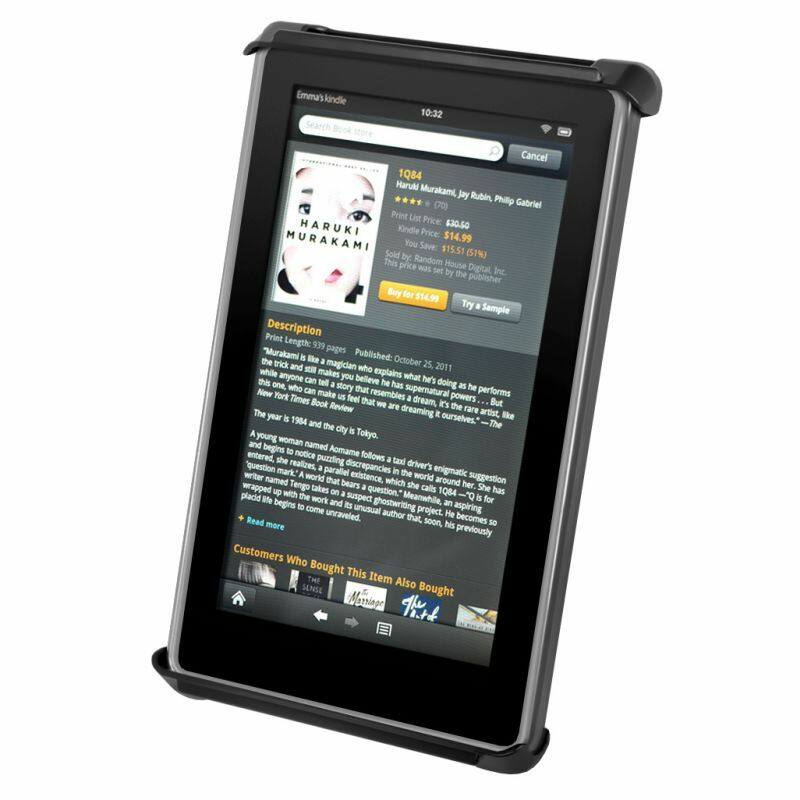

The Tab-Tite™ Cradle for 7" Screen Tablets with 3 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to allow access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. Check the dimensions of your tablet with a case/sleeve/skin when determining the overall size.

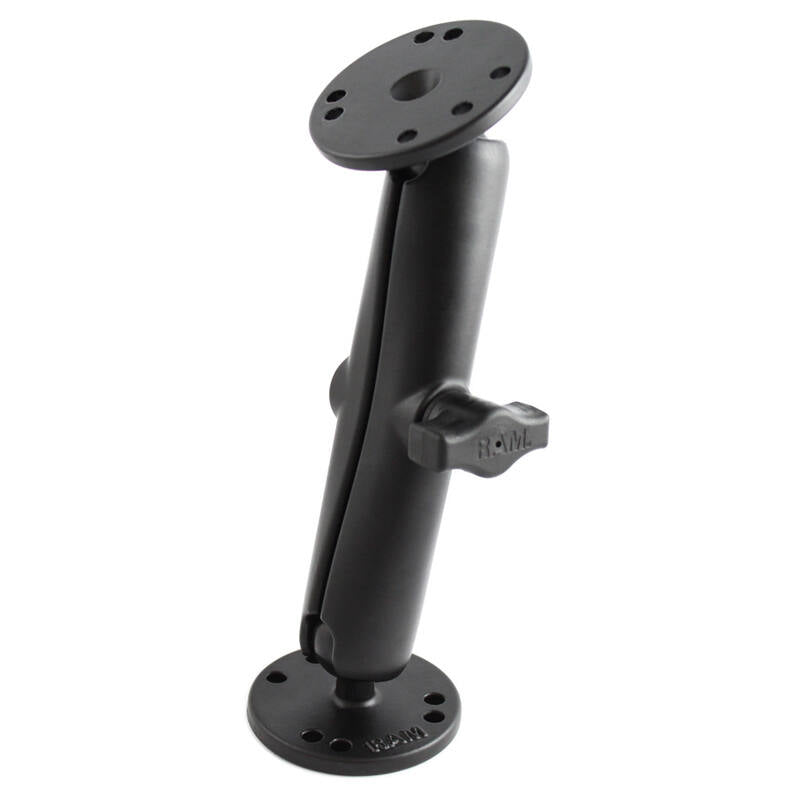

Drill down base with long double socket arm has an overall length of 152mm (6") and a socket-to-socket length of 134 mm (5.25"). The round plate has a diameter of 63.5mm (2.5") and contains the universal AMPS hole pattern.
Compatible Devices include:
Apple
iPad mini 1 - 4
Most 7" Tablets
(TAB4) Cradle Dimensions:
H: 187.3mm to 254mm (7.375" min to 10" max)
W: Min width 101.6mm (4") Max width 134.9mm (5.31")
D: 26.9mm (1.06") max
(TAB2) Cradle Dimensions
H: 177.8mm (7") min to 244.5mm (9.625") max
W: Min width 101.6mm (4") Max width 134.9mm (5.31")
D: 14.2mm (0.56") max
(TAB5) Cradle Dimensions:
H: 177.8mm (7") min to 250.8mm (9.875") max
W: Min width 101.6mm (4") Max width 119.4mm (4.70")
D: 11.2mm (0.44") max
Materials
Marine-grade aluminium
High strength composite
BALL/SOCKET SIZE
B Size (1")
Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Overall Height:
18.57cm (7.3125" )
Arm Dimensions:
Overall Length:
152 mm (6")
Socket-To-Socket Length:
134 mm (5.25")
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:
RAM-HOL-TAB-SMU UNIVERSAL SMALL TABLET MOUNT
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
