RAM Tab-Tite Cradle - Small Tablets with Dual Suction Cup Base

RAM-B-189-TAB-SMU RAM® Tab-Tite™ Dual Suction Mount for Small Tablets

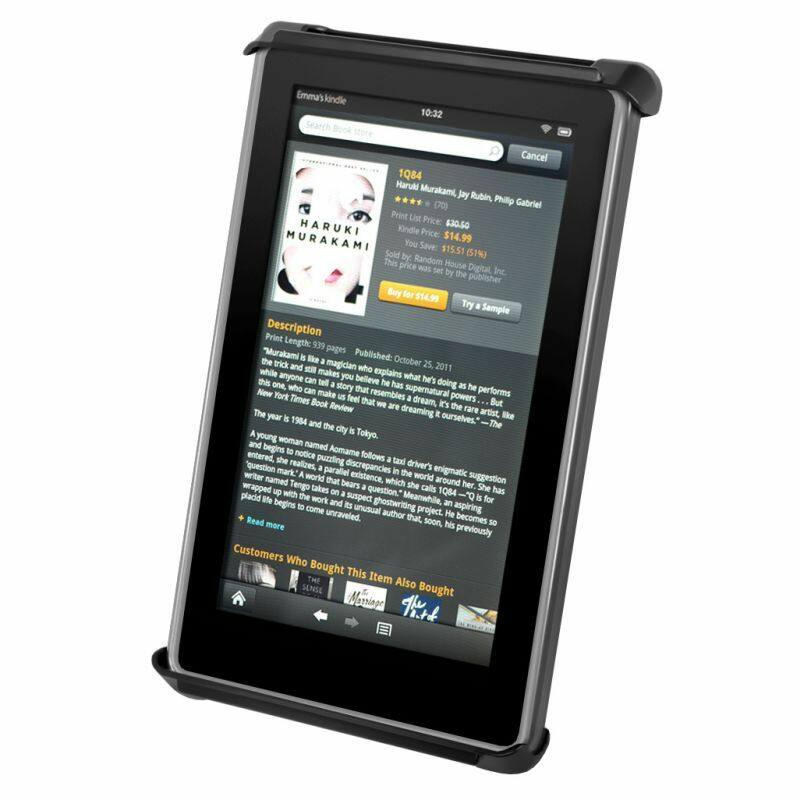

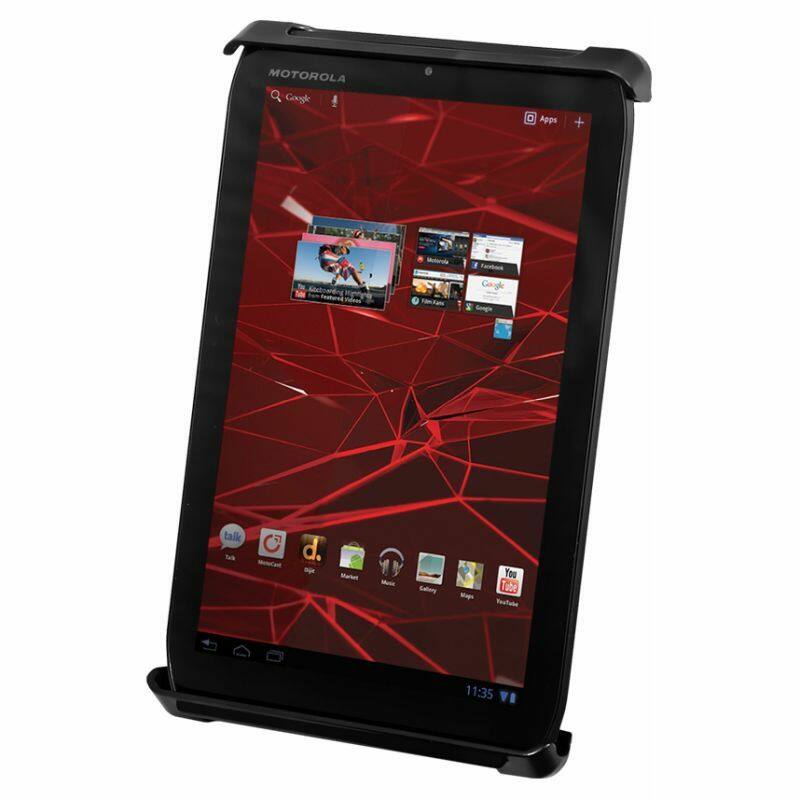

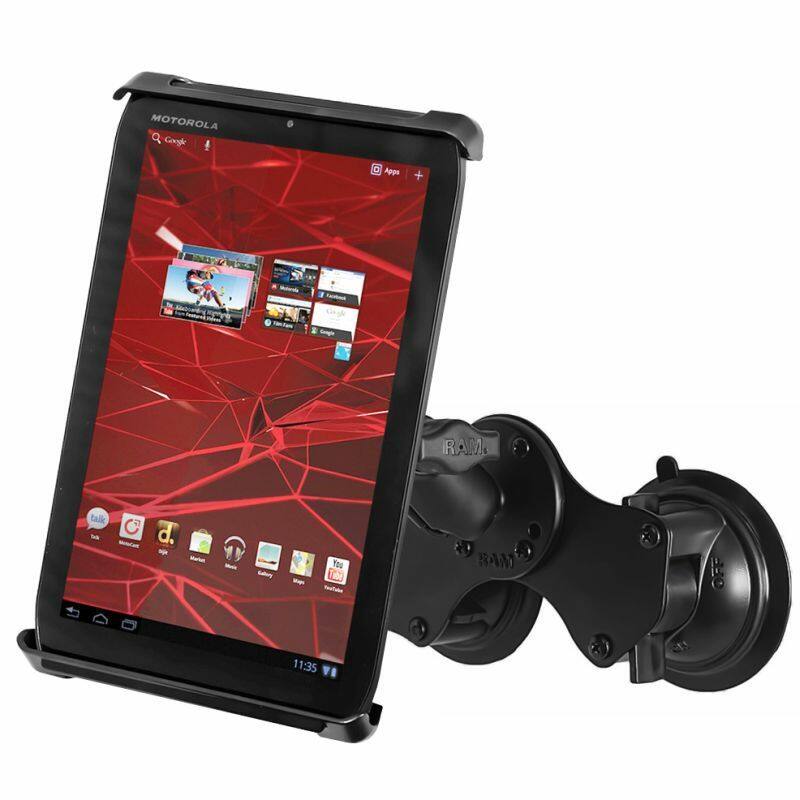

The RAM-B-189-TAB-SMU is a complete RAM® dual suction cup mount for small 7" to 8" tablets, including the iPad mini. Two RAM® Twist-Lock™ suction cups give a strong, vibration-resistant hold, and the universal Tab-Tite™ cradle ships with three sets of interchangeable cup ends to fit a wide range of small tablets.

Key Features

• Three cup-end sets: different sizes and hole patterns so you can fit the cradle to your tablet for a near-custom hold.
• Dual Twist-Lock suction base: two 84mm (3.3") cups grip glass and smooth, non-porous surfaces with extra hold where vibration is a factor.
• Complete mount: cradle, dual suction base and medium double socket arm in one kit.
• Infinite adjustment: B-size 1" ball at each end of the double socket arm, locked with a single knob.
• Built to last: powder-coated marine-grade aluminium, stainless steel components and high-strength composite; lifetime warranty on the mount hardware, with the suction cups excluded as a wear item.

Works With

Suits the iPad mini and most 7" tablets, with three cup sets covering a range of sizes. Check your device (with any case or sleeve) against the cradle dimensions below. Mounts to glass and other smooth, non-porous surfaces.

Compatible Devices

Apple

• iPad mini 1, mini 2, mini 3, mini 4

Plus most 7" tablets that fit one of the cup-set configurations below.

Dimensions & Specifications

The cradle ships with three cup-set configurations:

• TAB4 configuration: height 187.3–254mm (7.375"–10"), width 101.6–134.9mm (4"–5.31"), depth up to 26.9mm (1.06")
• TAB2 configuration: height 177.8–244.5mm (7"–9.625"), width 101.6–134.9mm (4"–5.31"), depth up to 14.2mm (0.56")
• TAB5 configuration: height 177.8–250.8mm (7"–9.875"), width 101.6–119.4mm (4"–4.70"), depth up to 11.2mm (0.44")

• Suction cups: two, 84mm (3.3") each; total width 202mm (7.95")
• Ball size: B Series 1"

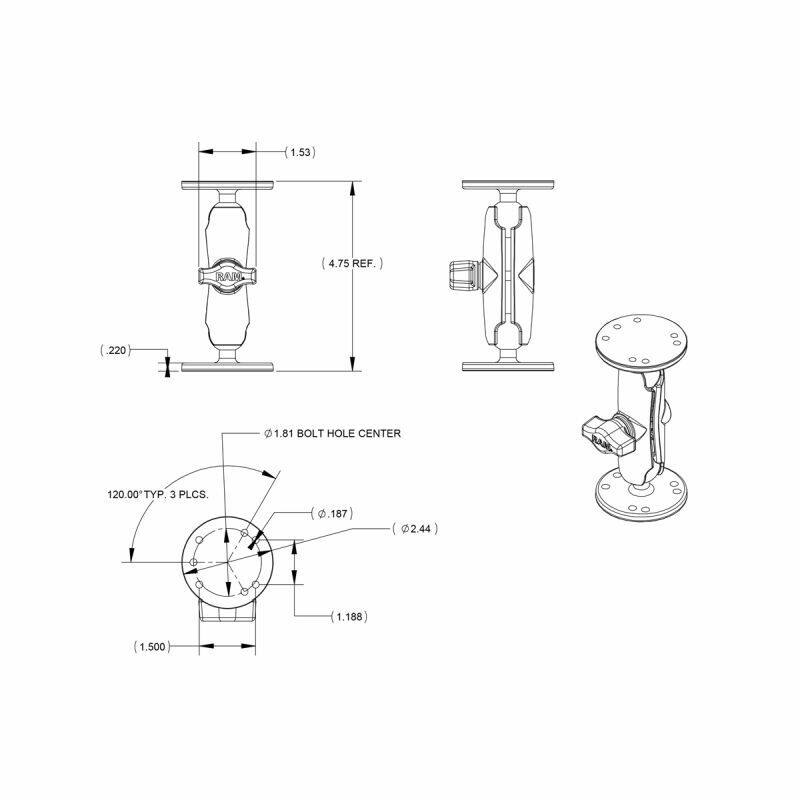

• Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
• Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: powder-coated marine-grade aluminium, stainless steel and high-strength composite
• Weight: 826g (1.82 lb)

What's Included

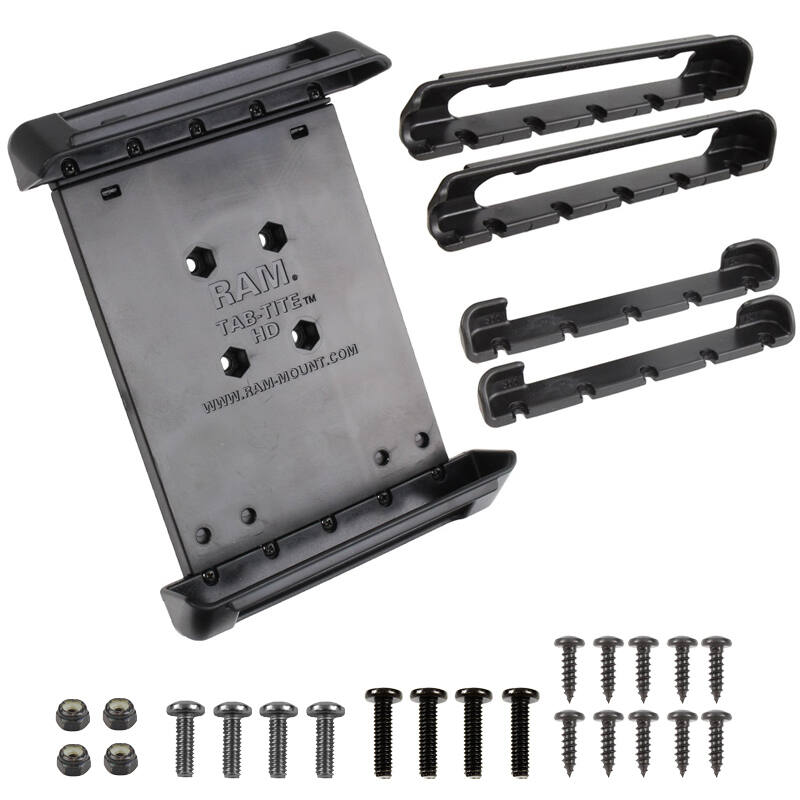

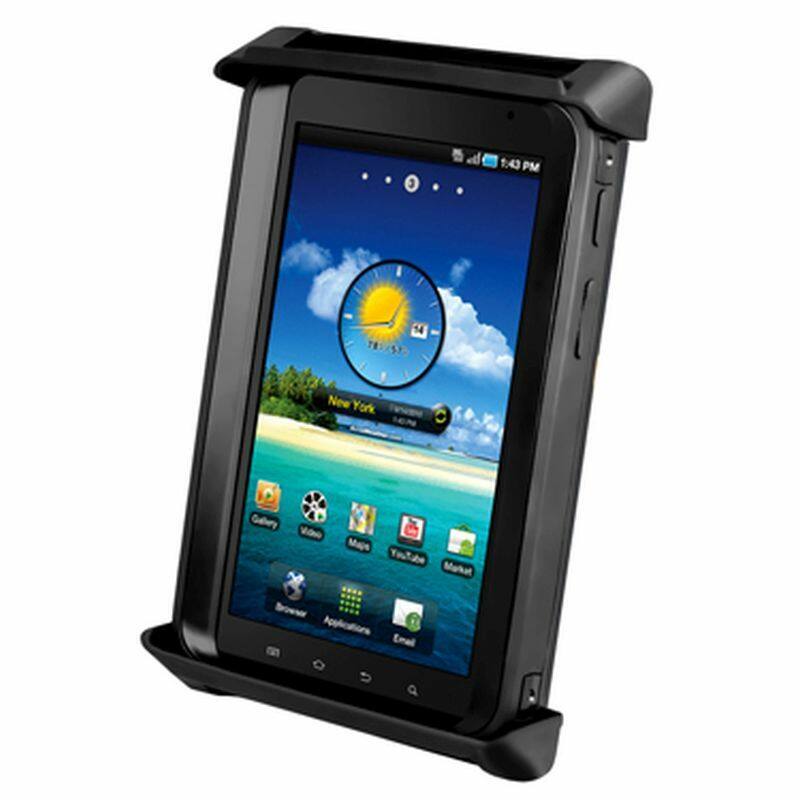

• RAM® Tab-Tite™ universal small tablet cradle (back plate)
• Three sets of interchangeable cup ends

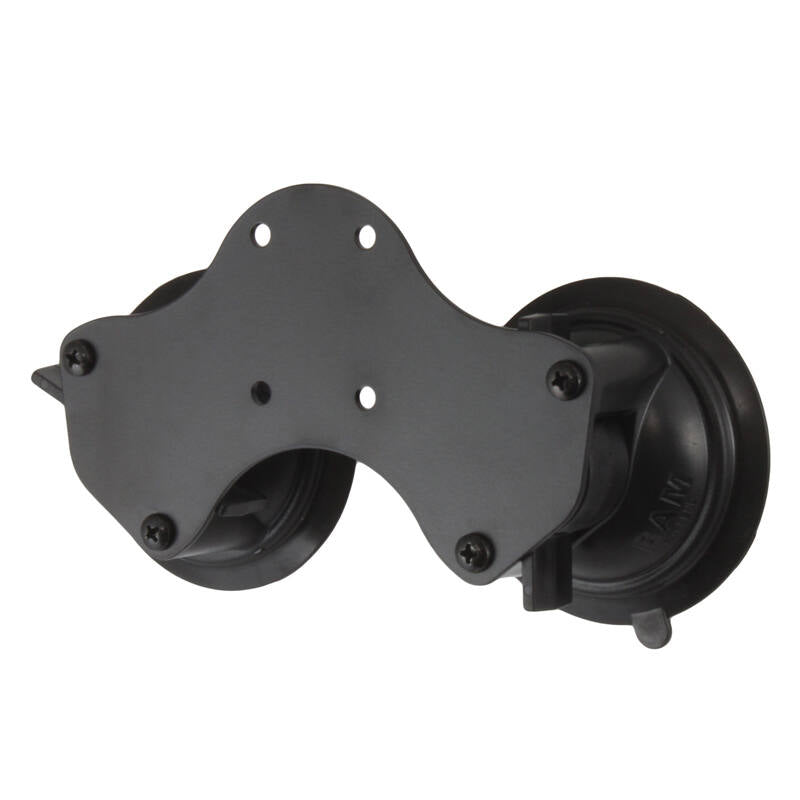

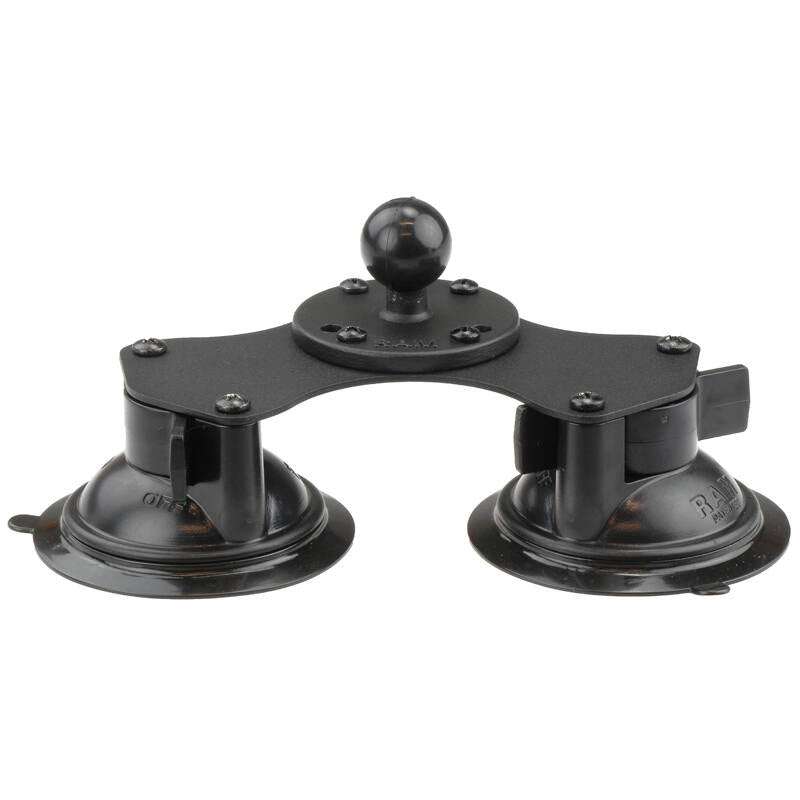

• RAM® Twist-Lock™ dual suction cup base with 1" ball

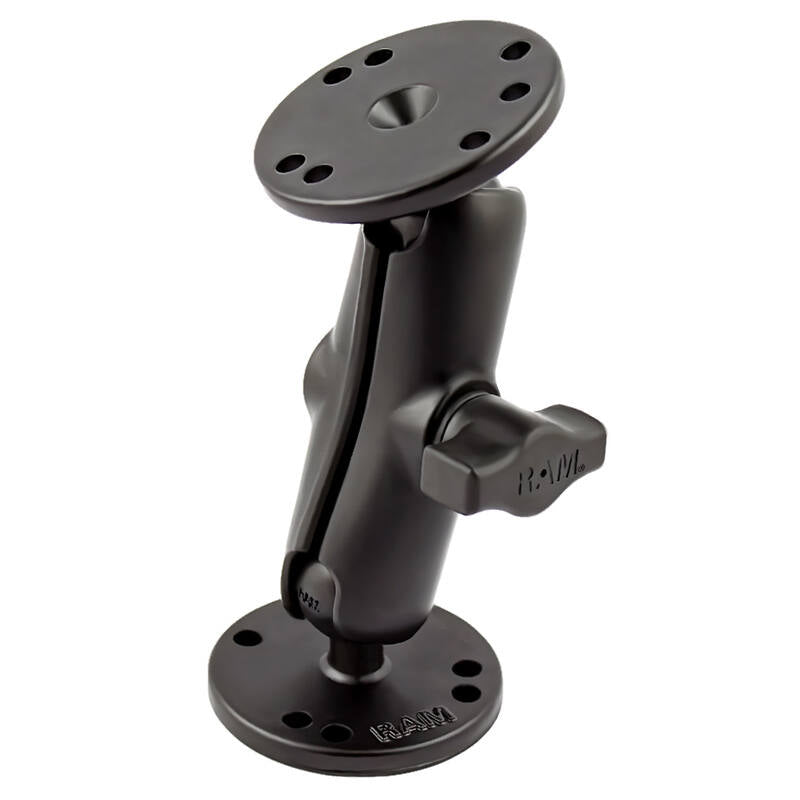

• RAM® medium double socket arm
• Round base adapter with 1" ball
• Assembly hardware

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.

Videos

Watch the RAM® Tab-Tite™ overview on YouTube

FAQs

Which cup set do I use? The kit includes three sets covering different sizes and hole patterns. Match your tablet (in its case) to the configuration above that fits its height, width and depth.

Will it hold on my dashboard? The suction cups need a smooth, non-porous surface like glass. For a textured dash, use a RAM® adhesive disk and suction to that.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.
