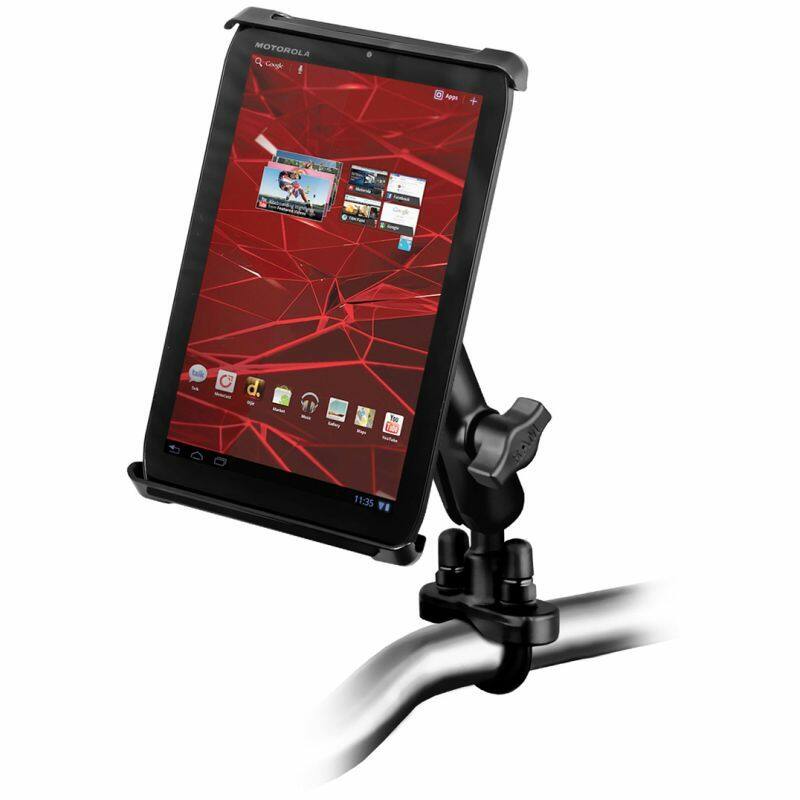

RAM-B-149Z-TAB-SM RAM® Tab-Tite™ Handlebar U-Bolt Mount for Small Tablets
Features
* Spring-loaded holder secures small tablets including iPad mini
* Interchangeable end cups allow you to modify the holder when upgrading devices
* The zinc-coated U-Bolt base will accommodate rails and bars from 12.7mm to 31.8mm
* Includes medium length B size RAM® double socket arm, and RAM® round Plate to adapt to the rear of the cradle
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This complete system consists of a zinc coated U-bolt base, standard length double socket arm, diamond adapter base and universal Tab-Tite™ cradle. Included in this package is hardware that will accommodate rails from 12.7mm to 31.8mm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 12.7mm (0.5”). The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

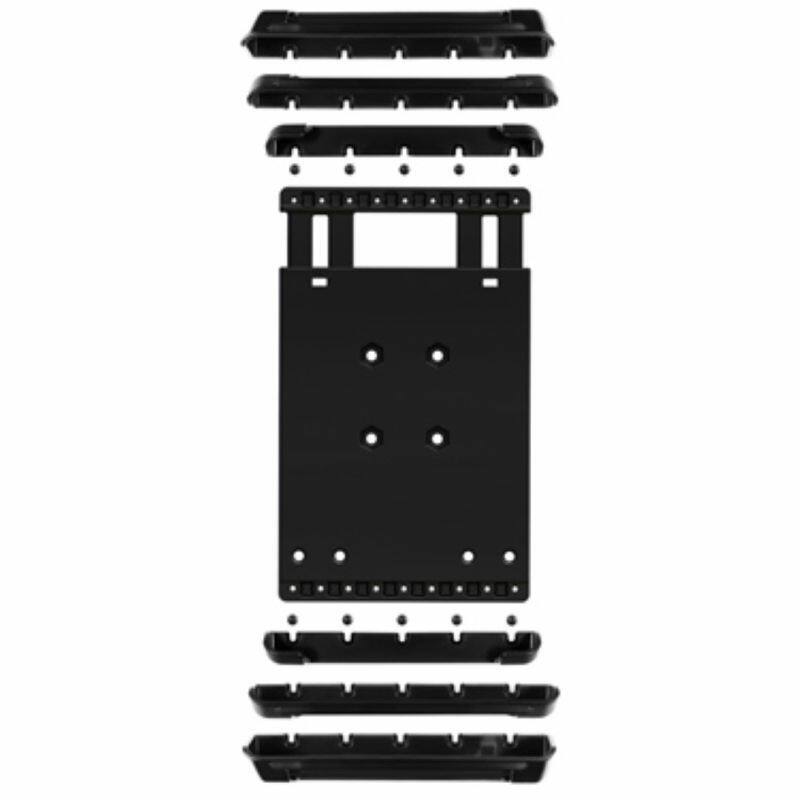

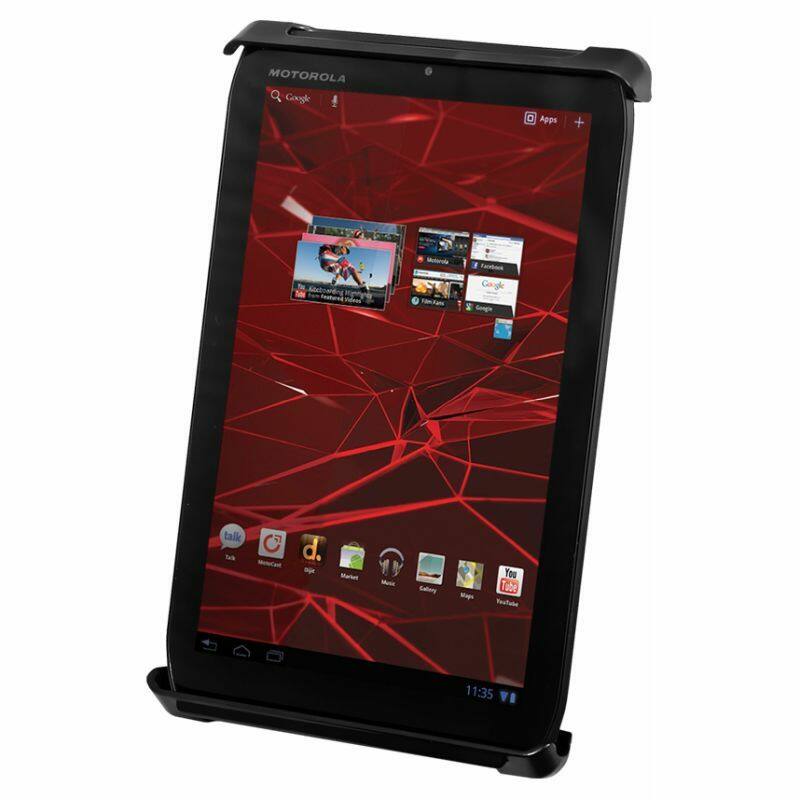

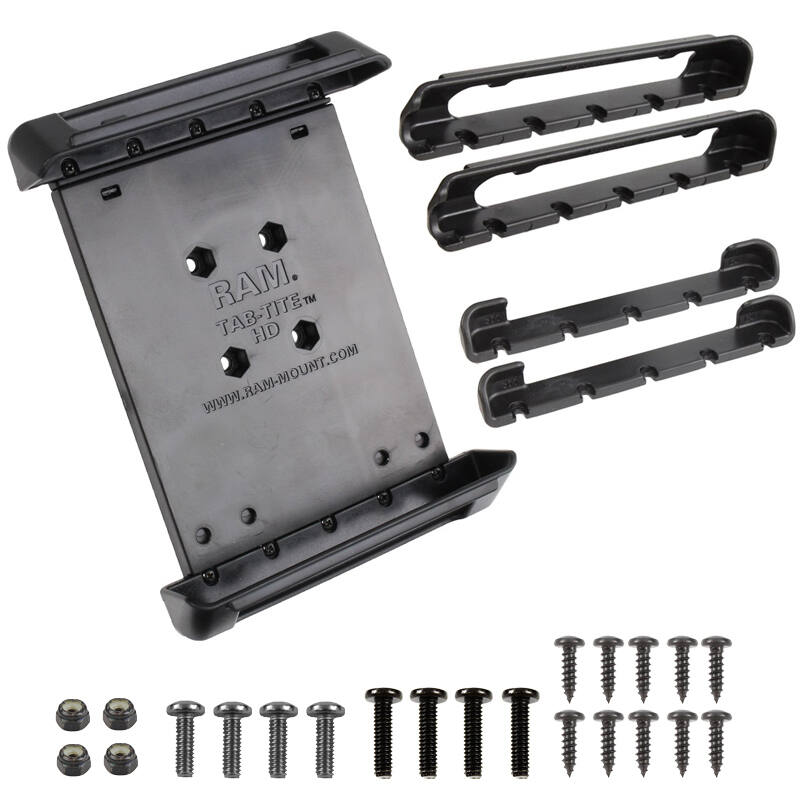

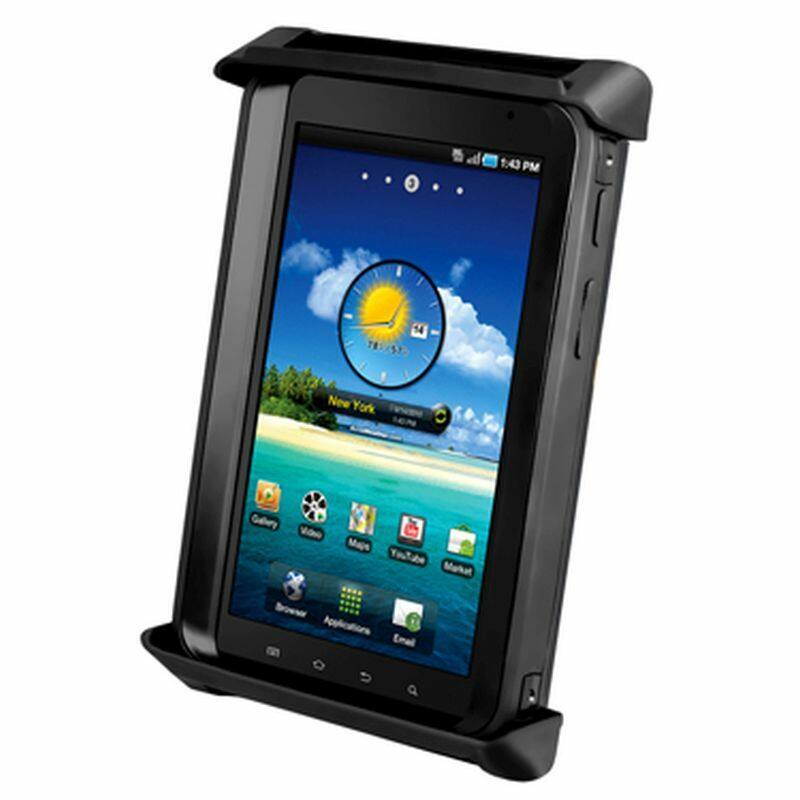

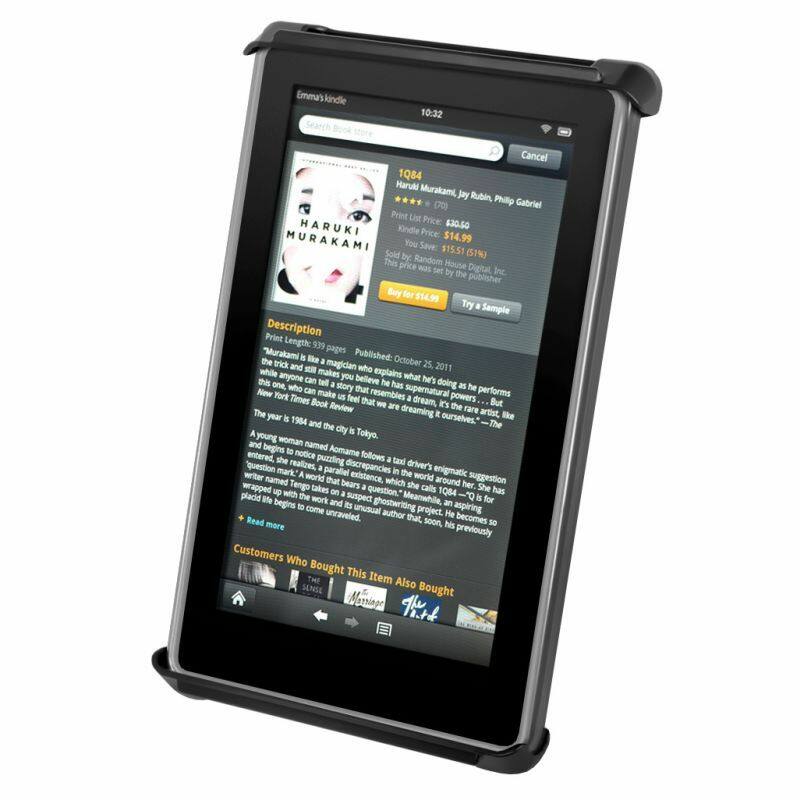

The RAM-HOL-TAB-SMU Tab-Tite™ Cradle for 7" Screen Tablets with 3 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to allow access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this RAM product is just what you need to get the most out of your mobile device.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. Please verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.
Compatible Devices include:
Apple
iPad mini 1
iPad mini 2
iPad mini 3
iPad mini 4
Most
7" Tablets
(TAB4) Cradle Dimensions:
Height: 187.3mm to 254mm (7.375" min to 10" max)
Width: Min width 101.6mm (4") Max width 134.9mm (5.31")
Depth: 26.9mm (1.06") max
(TAB2) Cradle Dimensions
Height: 177.8mm (7") min to 244.5mm (9.625") max
Width: Min width 101.6mm (4") Max width 134.9mm (5.31")
Depth: 14.2mm (0.56") max
(TAB5) Cradle Dimensions:
Height: 177.8mm (7") min to 250.8mm (9.875") max
Width: Min width 101.6mm (4") Max width 119.4mm (4.70")
Depth: 11.2mm (0.44") max

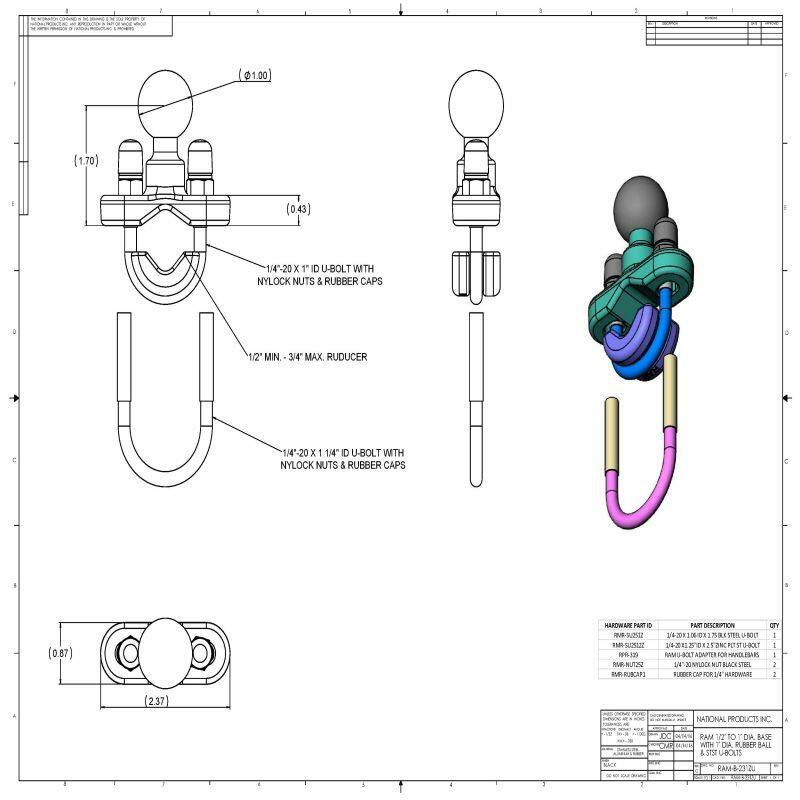

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")

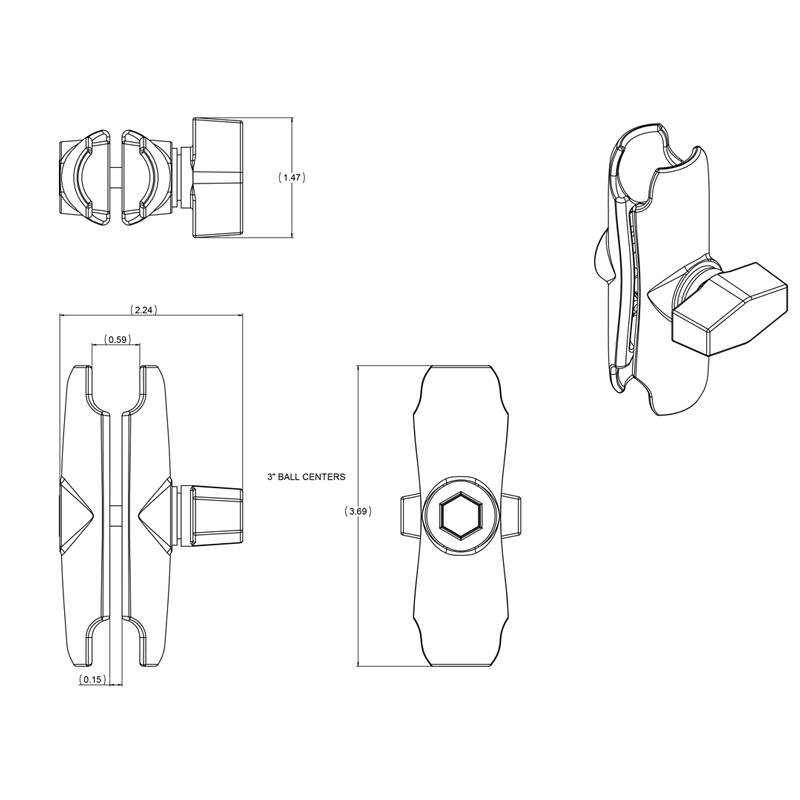

Arm dimensions:
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")
MATERIALS
Marine-grade aluminium
High strength composite
BALL/SOCKET SIZE
B Size (1")
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:
RAM-HOL-TAB-SMU UNIVERSAL SMALL TABLET MOUNT

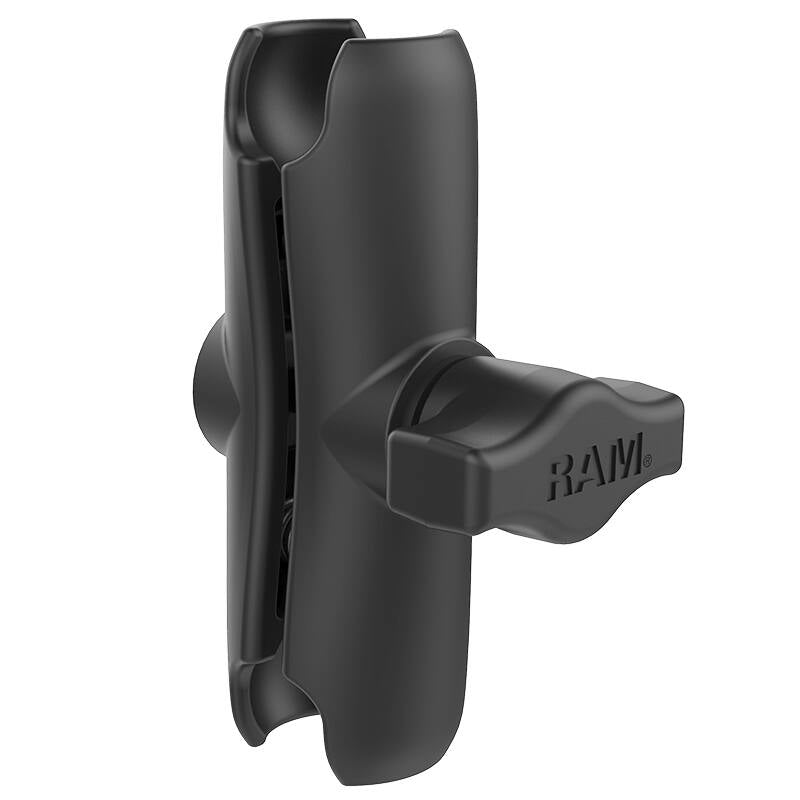

RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

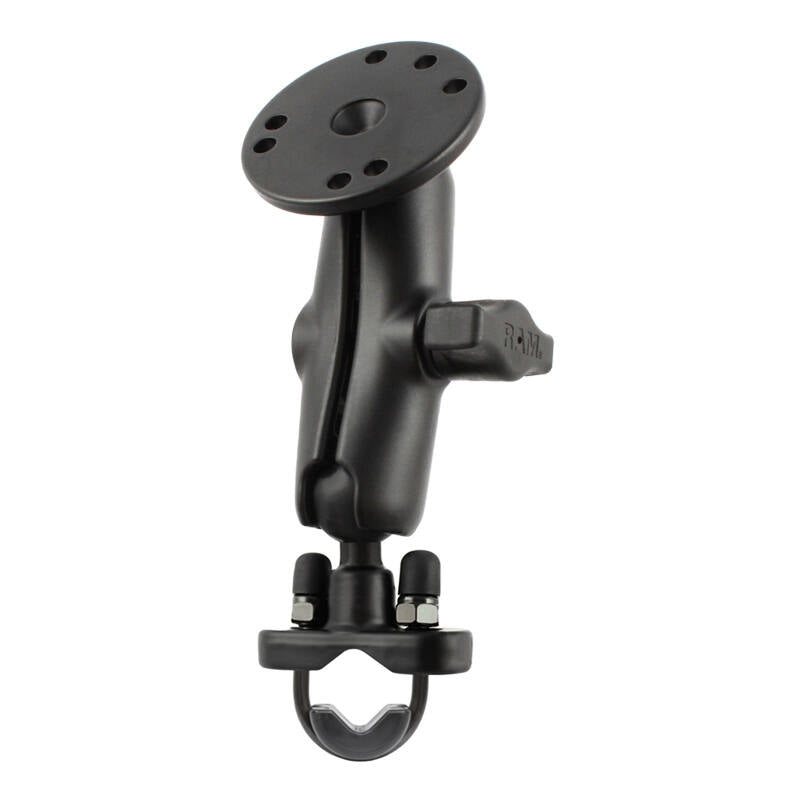

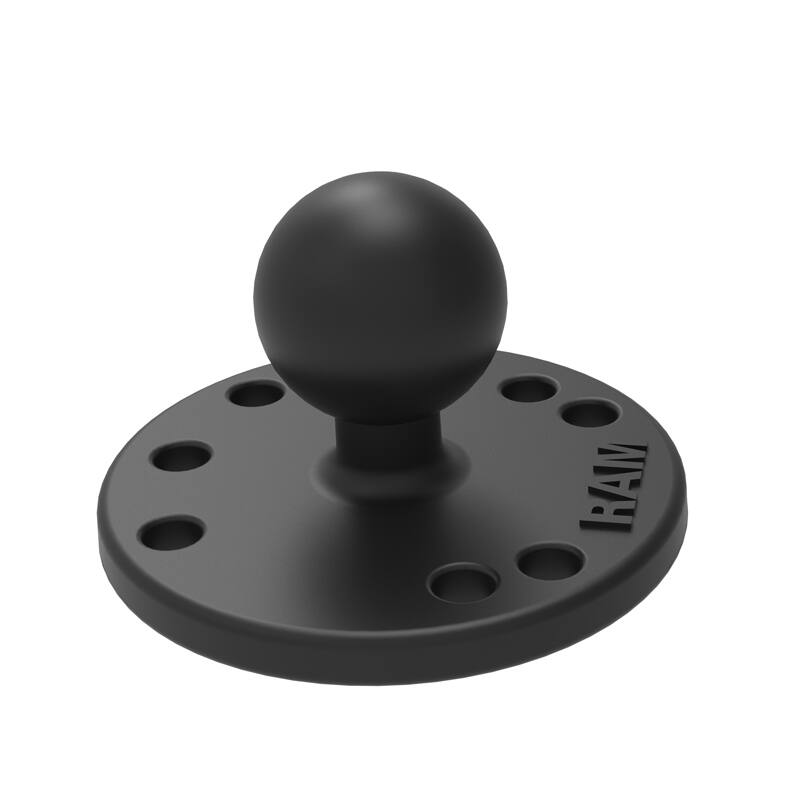

RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL

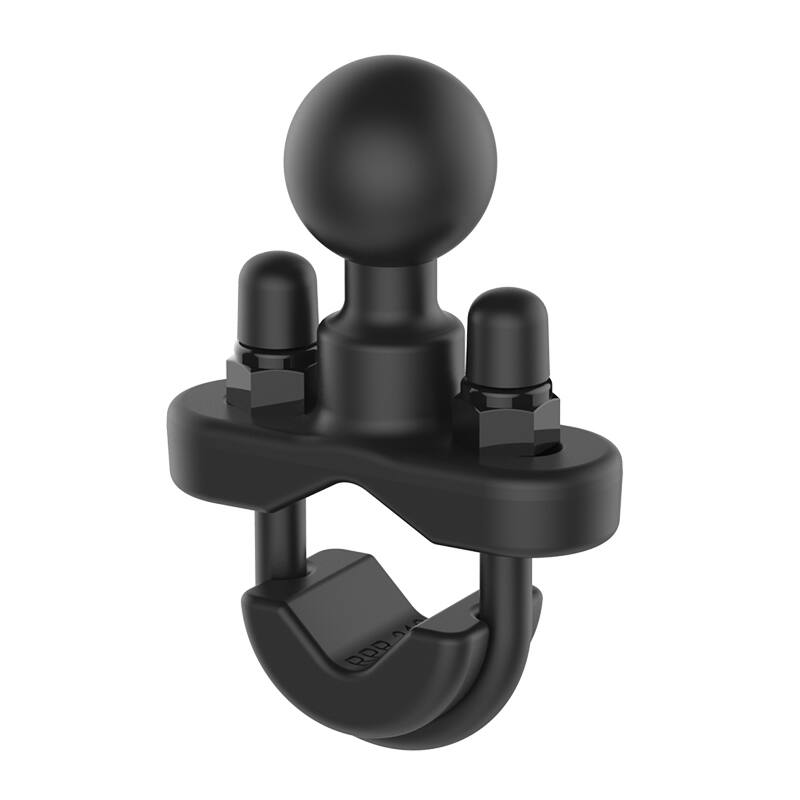

RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
