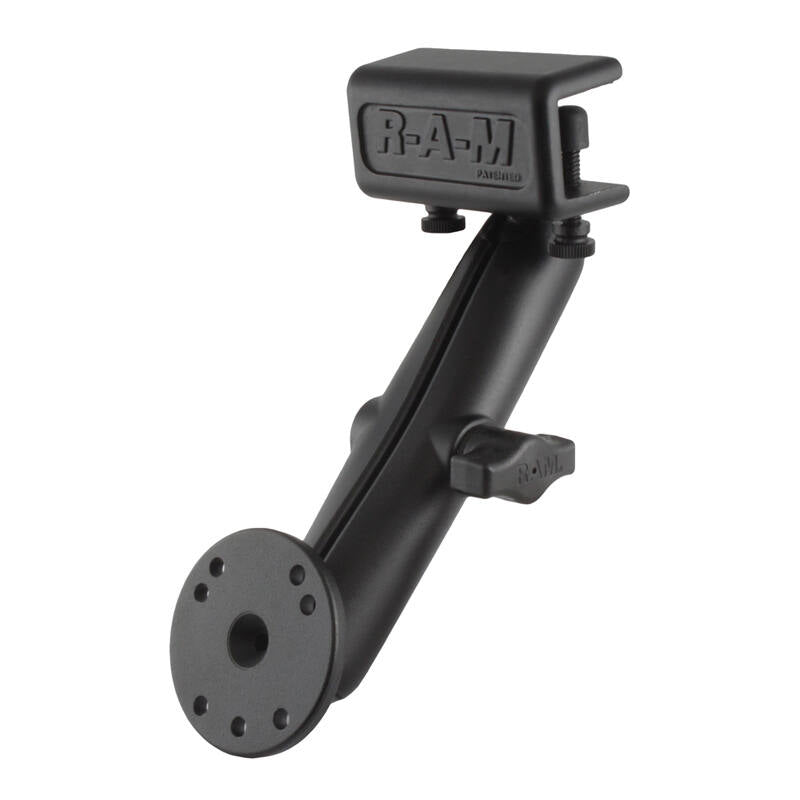

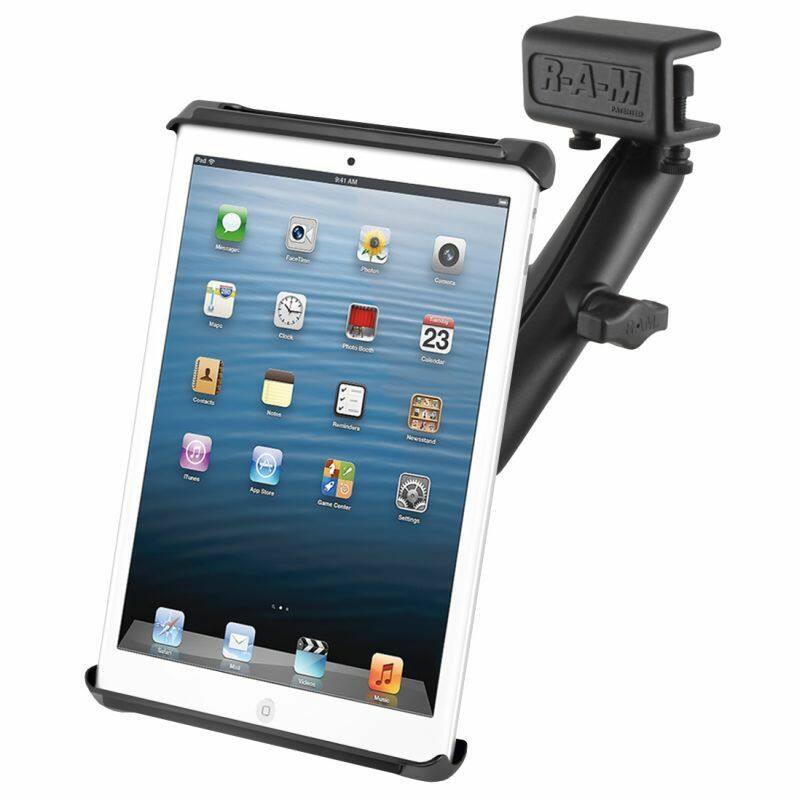

RAM-B-177-C-TAB2U RAM® Tab-Tite™ with Glare Shield Clamp Mount for 7" Tablets
Features
* Spring-loaded holder secures most 7" Tablets; interchangeable end cups allow you to modify the holder when upgrading devices
* Glare shield / flat surface clamp fits surfaces up to 15.8mm thick
* B series double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites and Marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

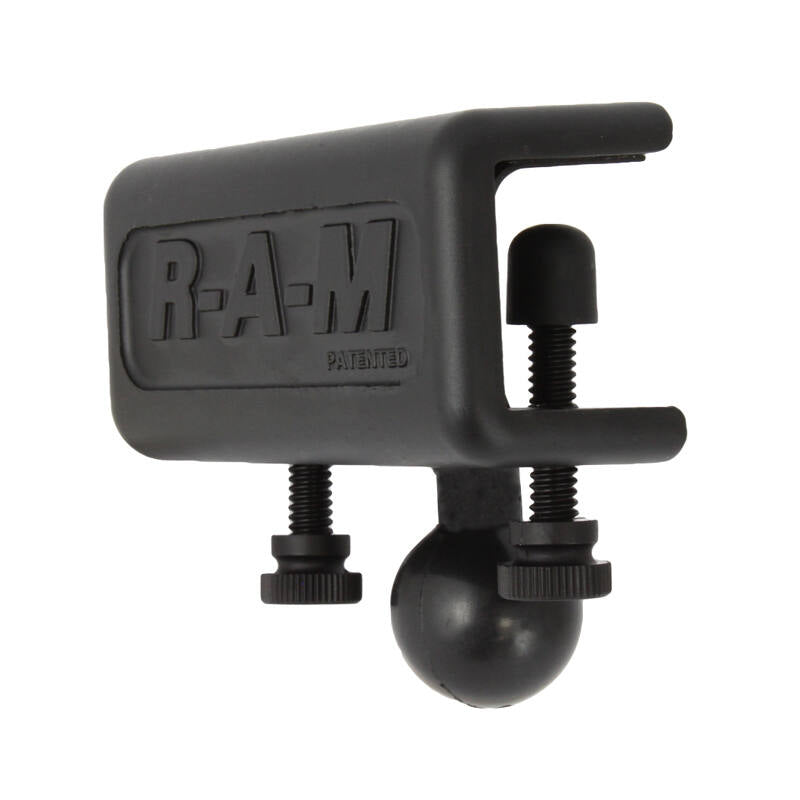

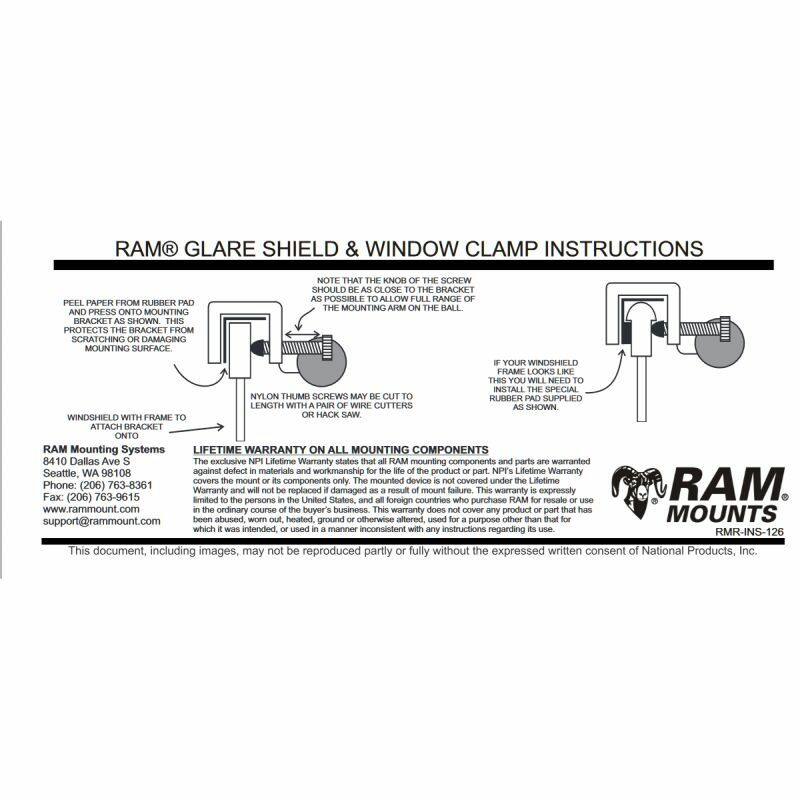

The RAM® Glare Shield Clamp Ball Base with 1" Ball is designed to mount to the lip edge of a flat surface up to 15.8mm thick. Popular mounting edges include a car side window edge lip or glare shield on an aeroplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application.

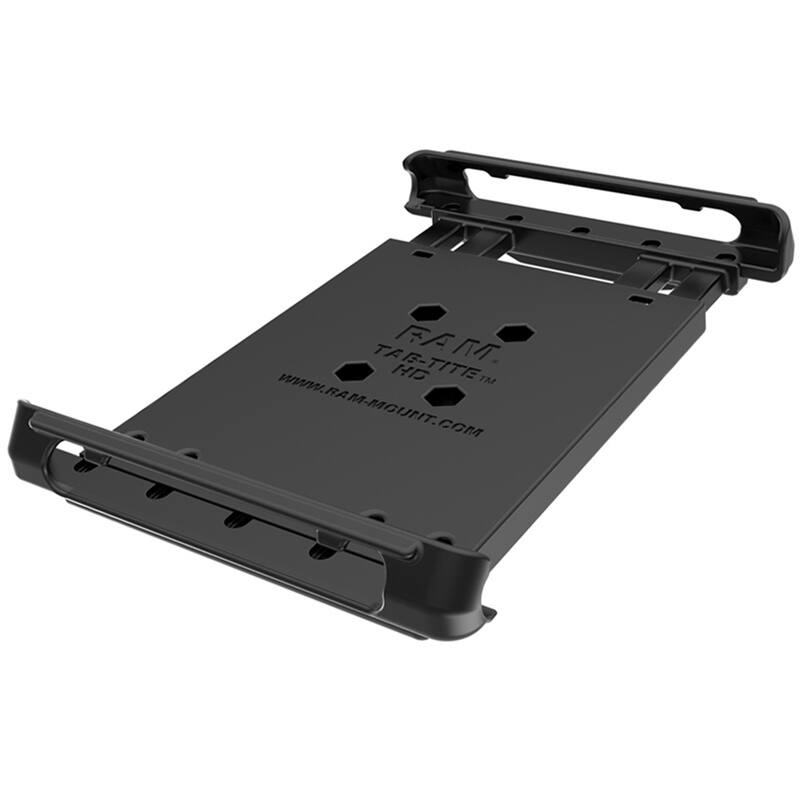

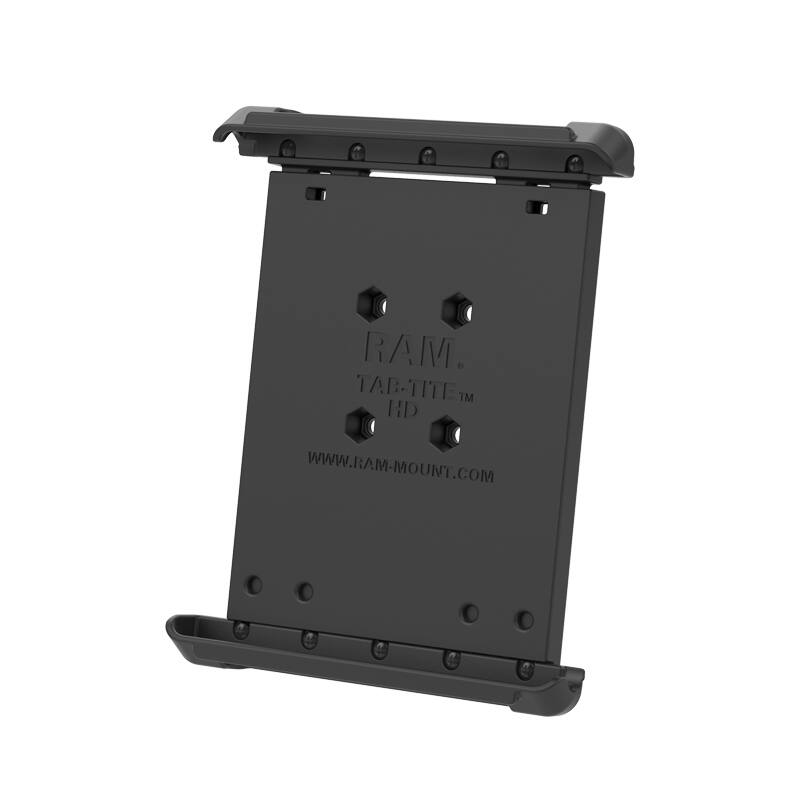

RAM-HOL-TAB2U RAM® Tab-Tite™ cradle. Get the most out of your tablet with the RAM Tab-Tite™ spring loaded, quick release cradle. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

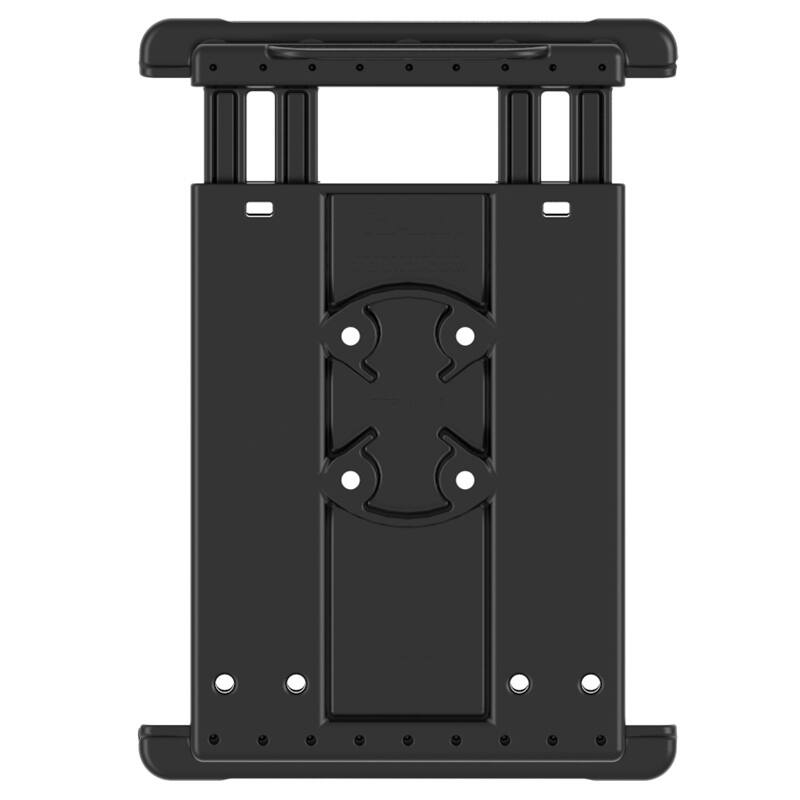

The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 177.8 to 244.5mm (7 to 9.625")
Width: 101.6 to 134.9 (4 to 5.31")
Depth: 3.3 to 14.22mm (0.13 to 0.56")
Compatible Devices Include:
Amazon
Fire HD 8
Apple
iPad mini (1st Generation)
Dell
Venue 8
Lenovo
IdeaTab A1000
IdeaTab A2107
IdeaTab A3000
Tab A7-40
Tab A7-50
Samsung
Galaxy Tab 2 7.0
Galaxy Tab 7.7
Clamp Base Dimensions
0 to 15.8mm (5/8")
Arm Dimensions
Overall Length:
152 mm (6")
Socket-To-Socket Length:
134 mm (5.25")

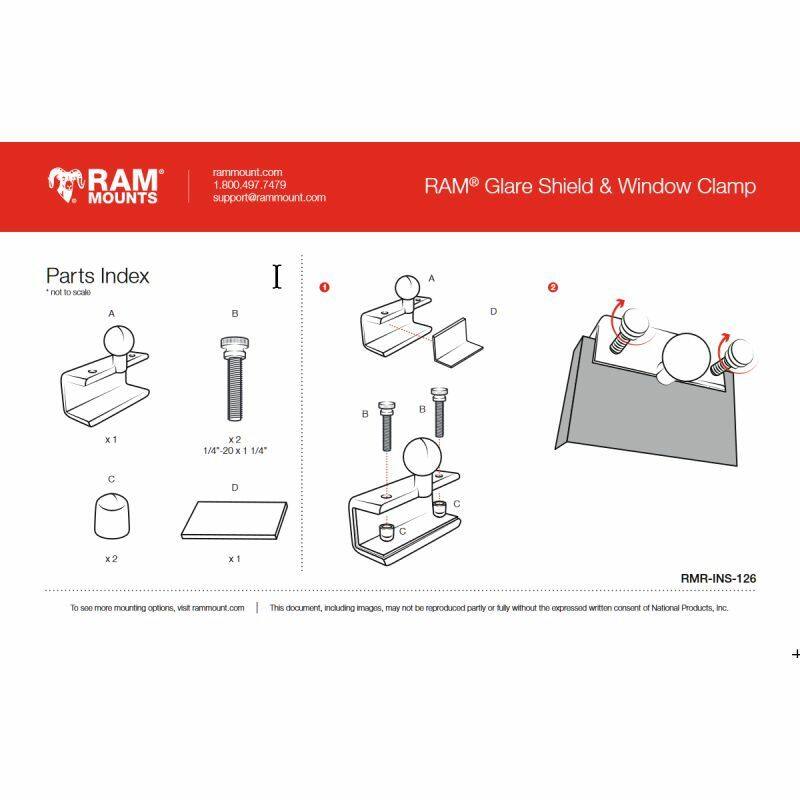

Hardware Included
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Materials
High strength composite
Marine-grade aluminium
Weight
635 grams (1.4 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-HOL-ACU Tab-Tite™ Backplate with Hardware

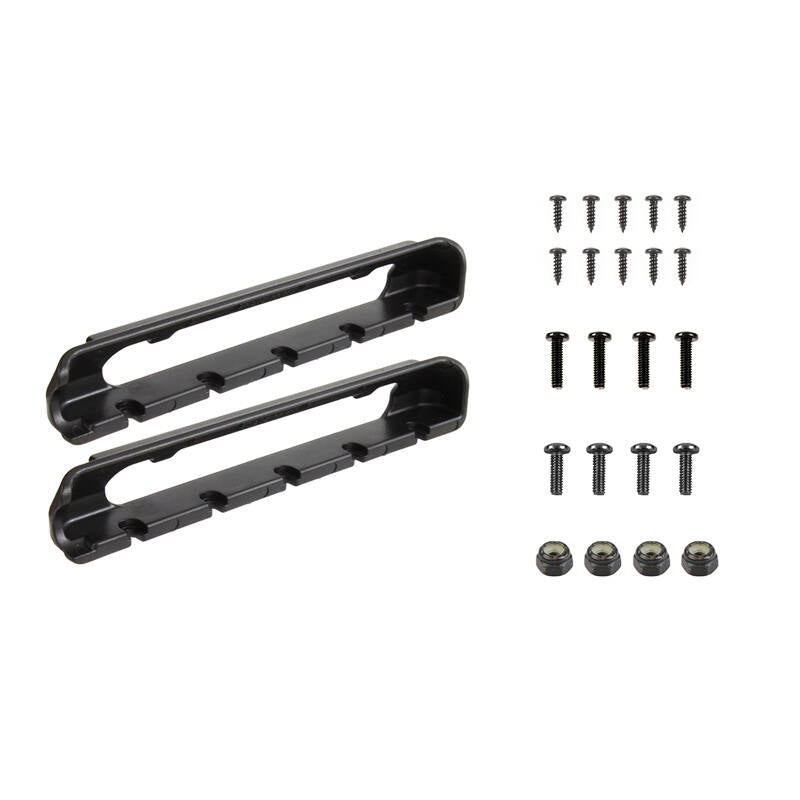

RAM-HOL-TAB2-CUPSU Replacement Top and Base Cups for RAM-HOL-TAB2U
RAM-B-259U Windshield mounting base
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
