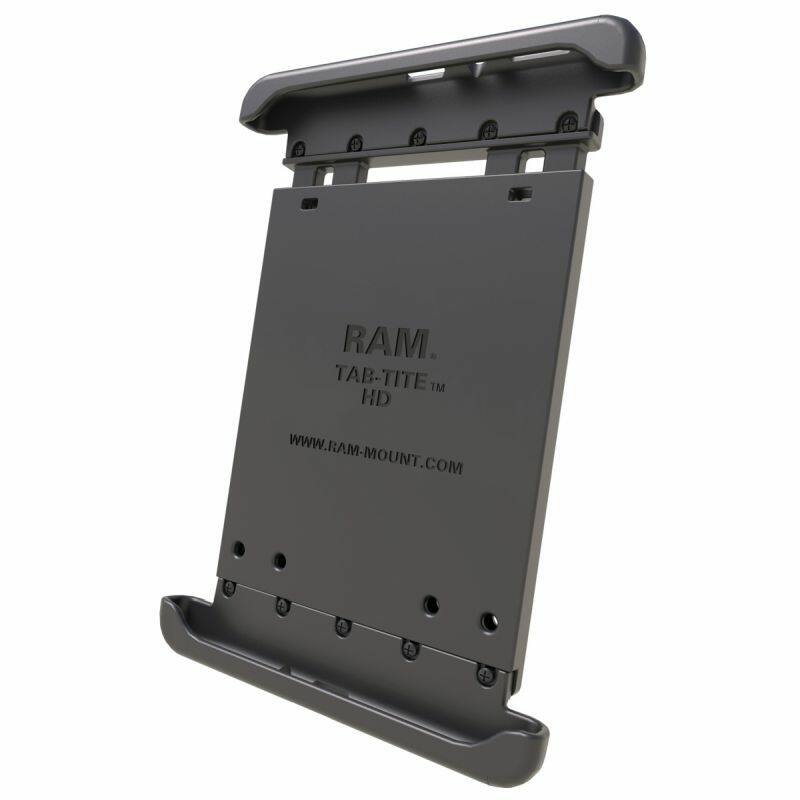

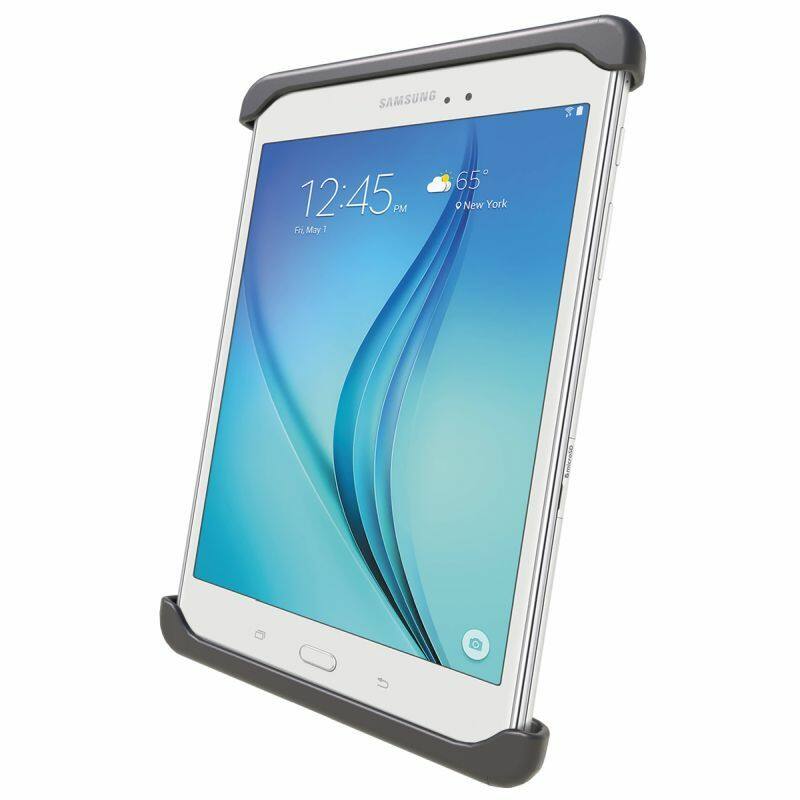

RAM Tab-Tite Cradle - 8" Tablets (incl. Galaxy Tab A 8.0 & iPad Mini 2/3) with 1.5" Ball

RAM-HOL-TAB27-202U RAM^® Tab-Tite^™ Tablet Holder for Samsung Galaxy Tab A 8.0 + More with round base and 1.5" ball


Features

* Spring-loaded holder secures Samsung Tab A 8.0 and other tablets
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Includes C size RAM® round ball base for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty



This spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 8.0 and Tab A 8.0 with S Pen. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.

Included is a set of four nuts and bolts to connect the cradle to the RAM-202U round base.

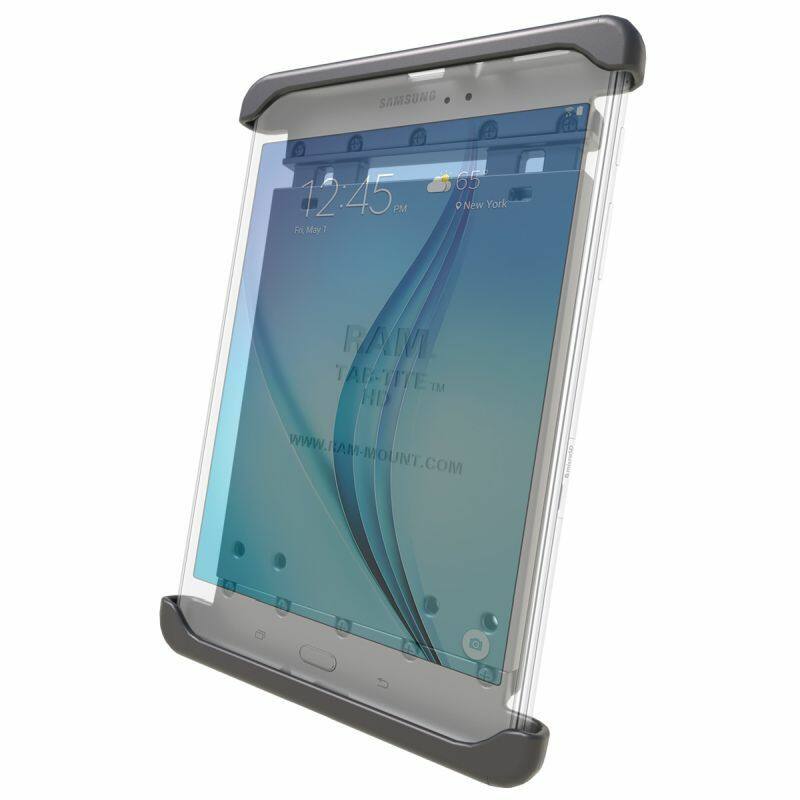

The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Cradle Dimensions:
H: 200 - 263.6mm (7.88" to 10.38")
W: 109.2 - 134.6mm (4.3" to 5.3")
Dh: 0 - 9.4mm (0.0" to 0.37")

Compatible Devices include


Apple
iPad mini 2
iPad mini 3

Dell
Venue 8 (2014)
Venue 8 Pro
Venue 8 Pro 5855

Huawei
MediaPad T1 8.0

Lenovo
Ideapad Miix 300

LG
G Pad F2 8.0
G Pad X II 8.0

Nvidia
Shield Tablet

Samsung
Galaxy Tab A 8.0
Galaxy Tab Pro 8.4



Note: This RAM® Tab-Tite™ is not compatible with the Samsung Galaxy Tab A 8.0 (2017). For this tablet, see RAM-HOL-TAB24U.



Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

Ball Size

1.5" C Series

Weight

335 grams / (0.74 lbs)

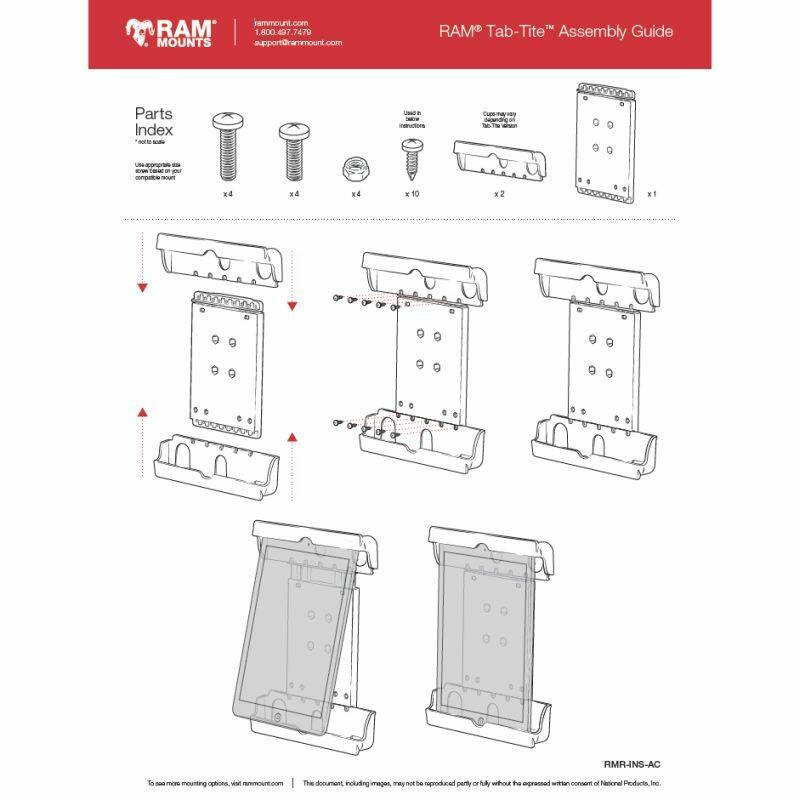

Hardware Included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts


Material:
High Strength Composite

Marine Grade Aluminium Alloy

YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
