RAM-HOL-TAB24U RAM® Tab-Tite™ Spring Loaded Holder for 8" Tablets
Features
* Spring-loaded holder secures most 8" tablets including Samsung Tab A 8.4; interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

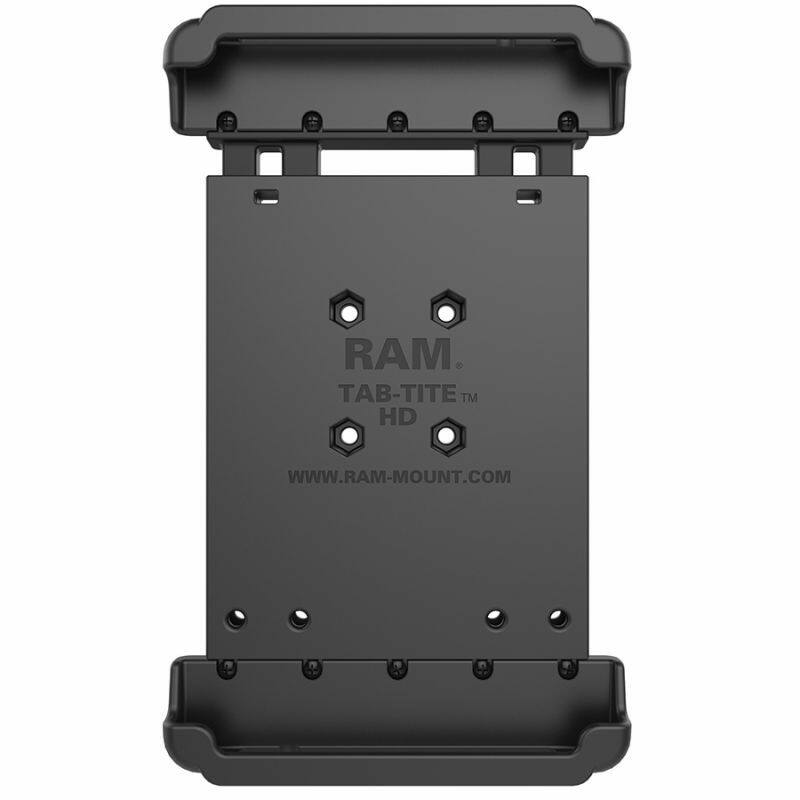

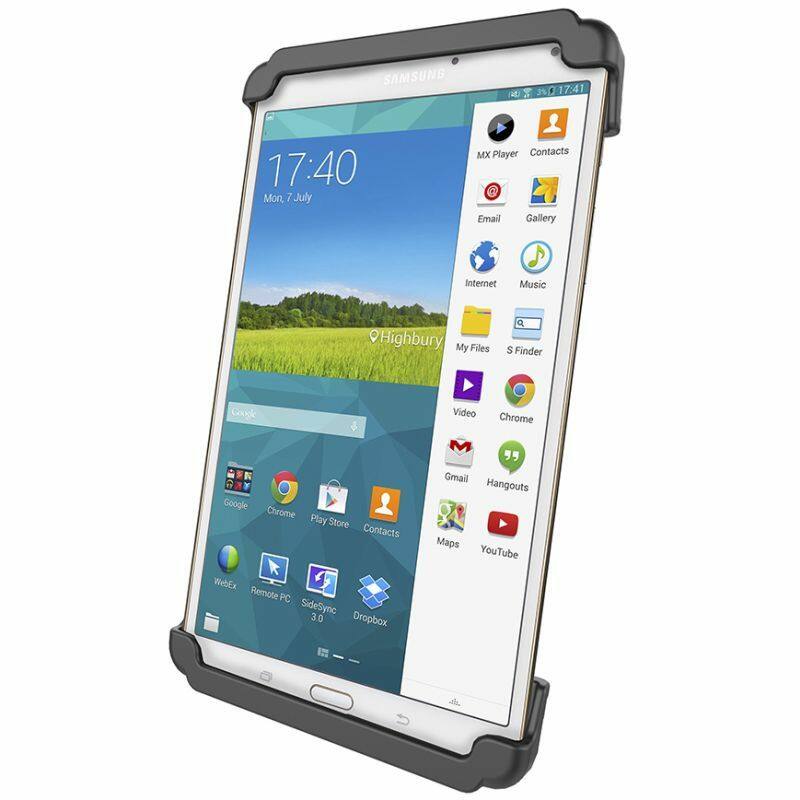

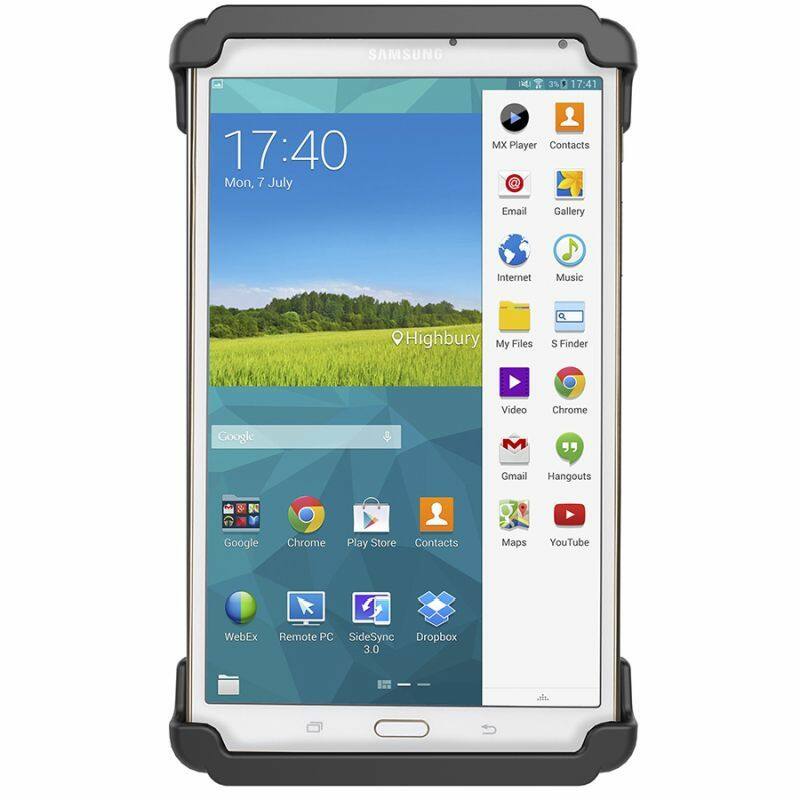

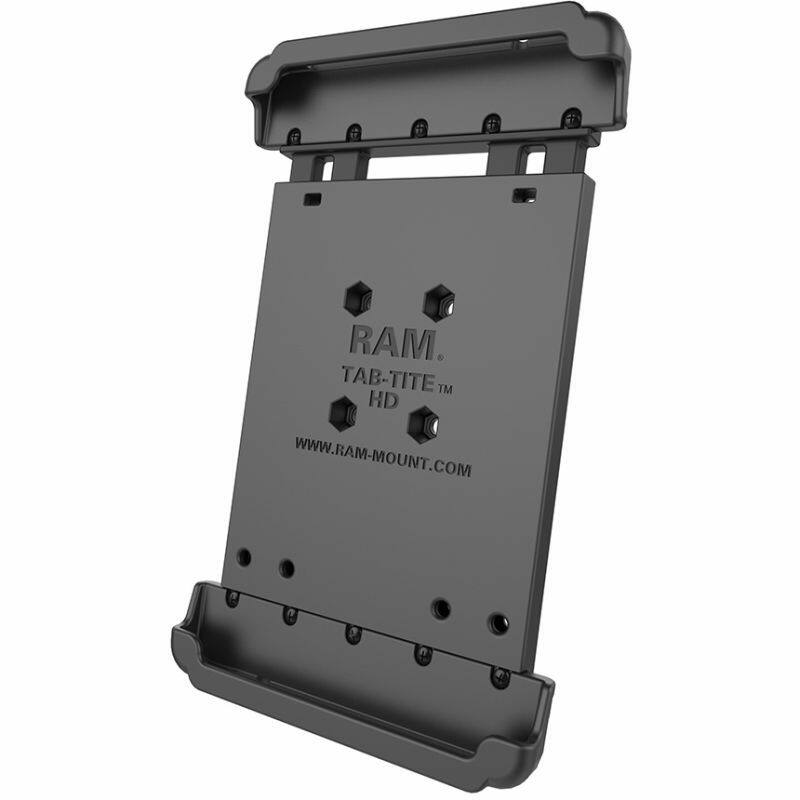

The RAM Tab-Tite spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 8.0, Tab S 8.4 and Tab E 8.0. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.

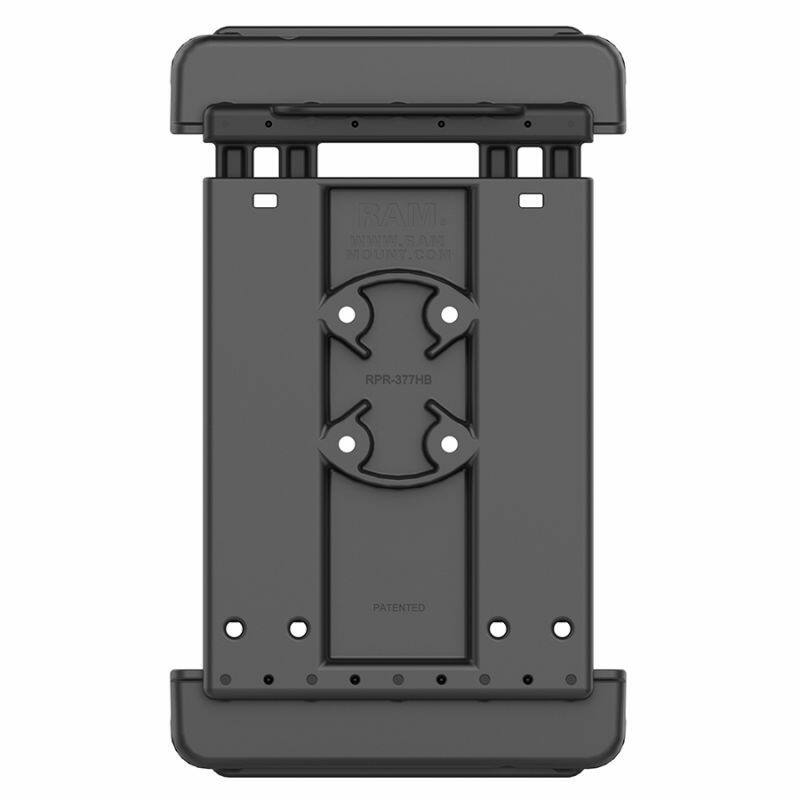

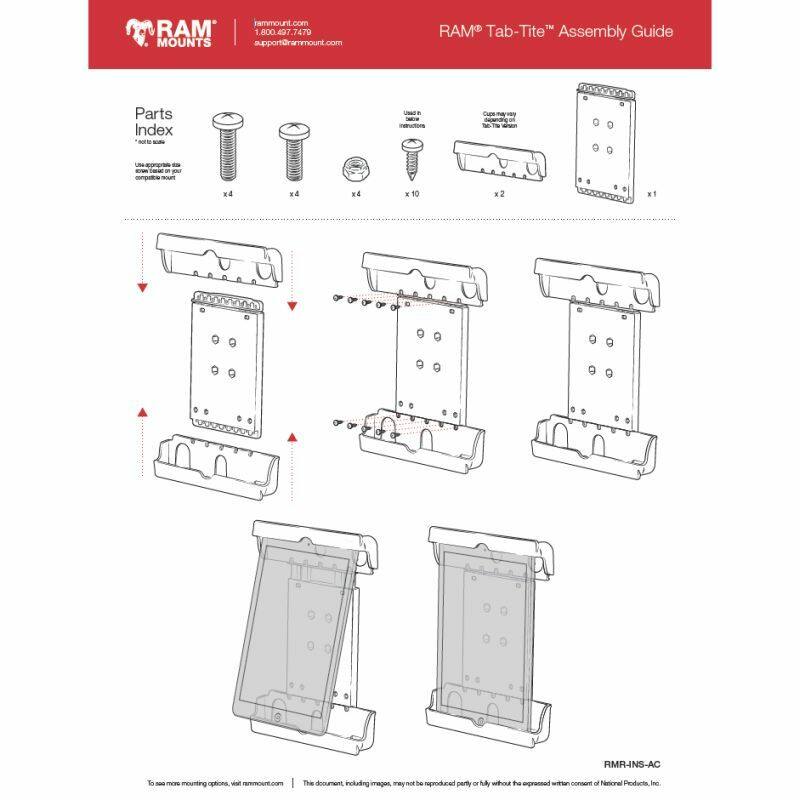

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below so check the dimensions of your tablet.
Cradle Dimensions:
H: 205.2 - 271.5mm (8.08" - 10.69")
W: 95.8 - 125.7mm (3.77" - 4.95")
D: 3.30 - 9.1mm (0.13" - 0.36")
Compatible Devices Include:
ASUS
MeMO Pad 8
VivoTab 8
ZenPad 8.0
ZenPad S 8.0
Dell
Venue 8 7840
Huawei
Mediapad M3 / M3 Lite
MediaPad T3 8
Lenovo
Tab 2 A8
Tab 4 8 / 8 Plus
Tab A8-50
Tab S8
Tab3 8
LG
G Pad F 8.0 (2nd Gen)
G Pad II 8.0
G Pad X 8.0
Samsung
Galaxy Tab 3 8.0
Galaxy Tab 4 8.0
Galaxy Tab A 8.0 (2017) / (2018) / (2019)
Galaxy Tab A 8.4
Galaxy Tab A7 Lite 8.7
Galaxy Tab E 8.0
Galaxy Tab S 8.4
Material:
High Strength Composite
Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Weight:
227 grams
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
